NDE180L-DHFSXW (2015)

Toyota Auris/Hybrid (Ukp)

Production May 2015 - Nov 2018
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

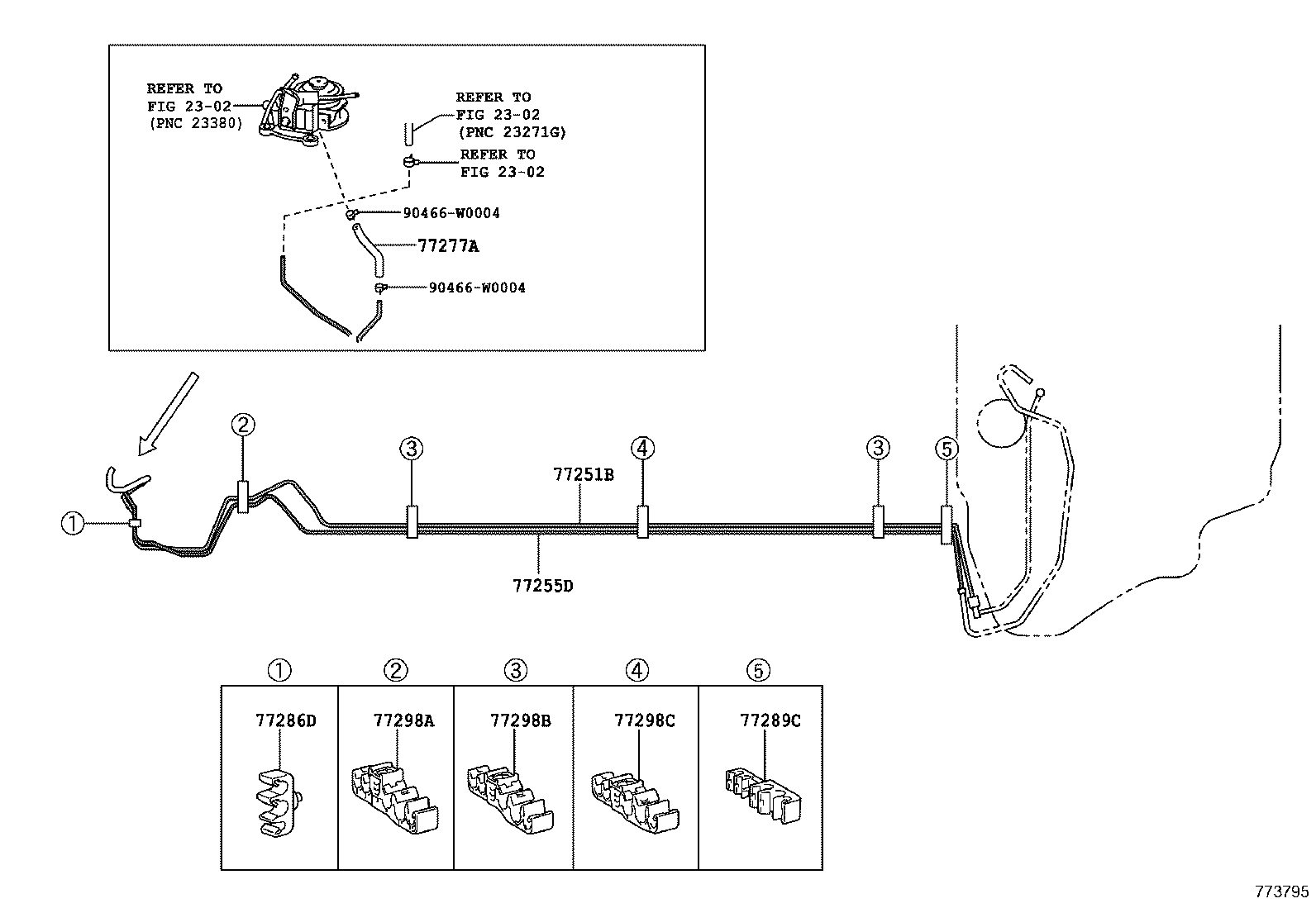

ILLUST NO. 2 OF 3(1505- )NDE180

Click highlighted areas on diagram

FUEL TUBE

diagram 2302 2302 2302 77251B 77255D 77277A 77286D 77289C 77298A 77298B 77298C 90466W0004 90466W0004
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-02600

ADE186,NDE180

 1
77251-02600

NDE180

 1
77255D - TUBE, FUEL RETURN
77255-02300

ADE186,NDE180

 1
77255-02380

NDE180

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95338-08016

ADE186,NDE180

L=160

 1
95338-08016

NDE180

L=160

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-02030

ADE186,NDE180,NRE180,ZRE185

 1
77286-0F010

NDE180

 1
77289C - CLAMP, FUEL TUBE, NO.4
77298-0F030

NDE180

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-68010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
77298-0F020

NDE180

 1
77298B - CLAMP, FUEL TUBE, NO.4
77298-02050

ADE186,NDE180,NRE180,ZRE185,ZWE186

 3
77298-0F010

NDE180

 2
77298C - CLAMP, FUEL TUBE, NO.4
77298-02170

NDE180

 1
77298-02040

ADE186,NDE180,NRE180,ZRE185

 1
Common parts
90466-W0004
Linked diagrams
2302
