NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)

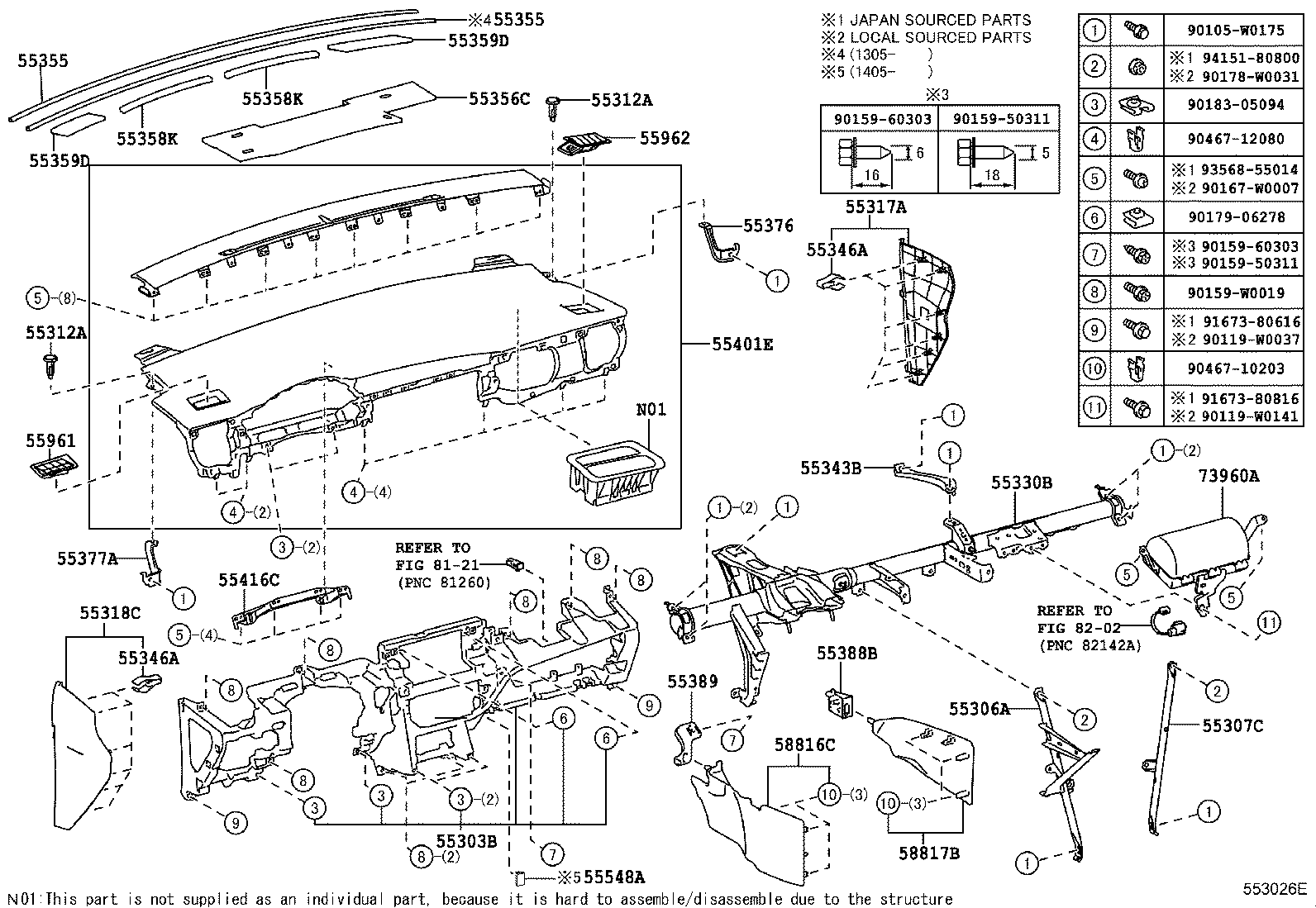

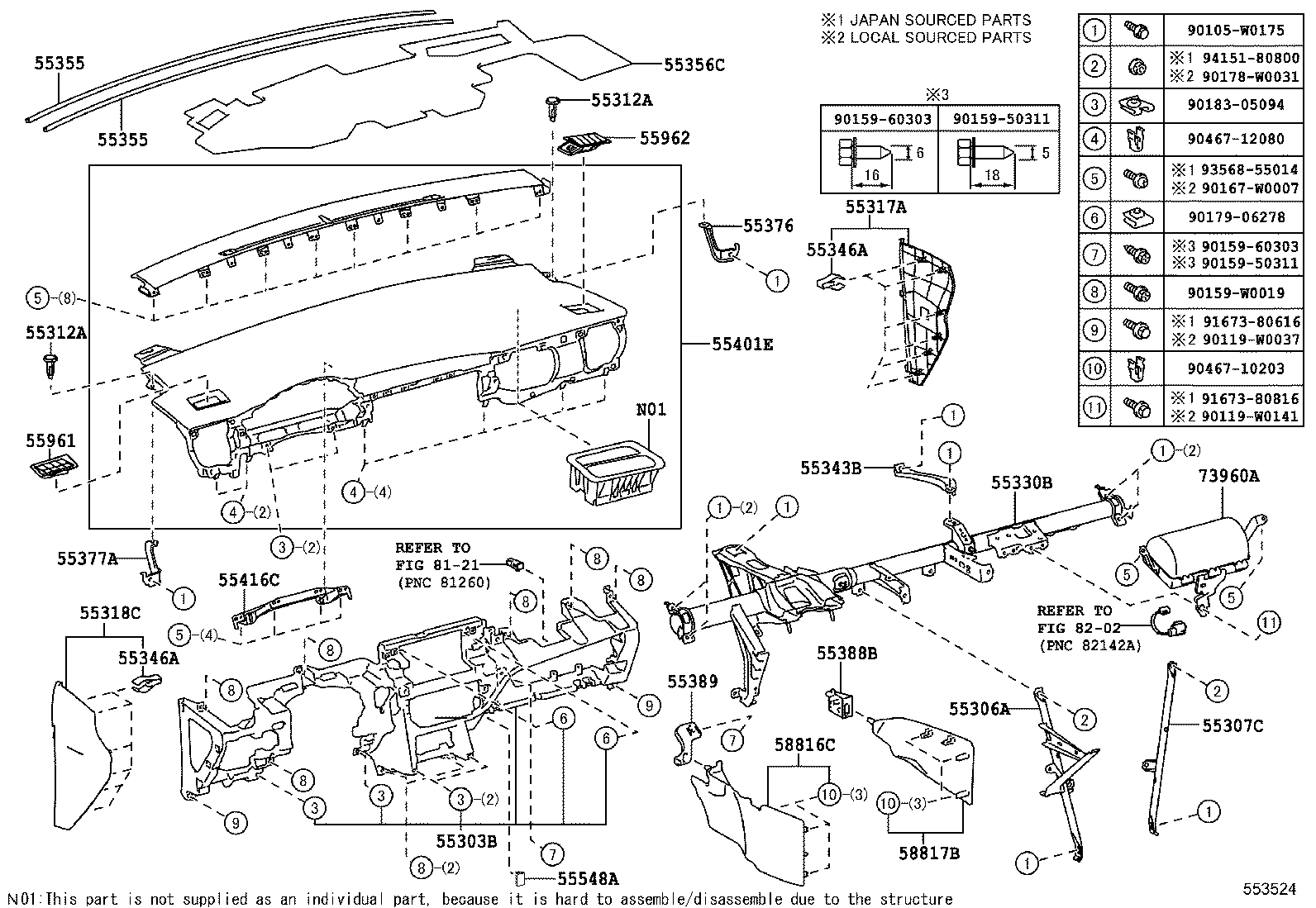

ILLUST NO. 1 OF 2(1210-1601)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02350C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55303-02351C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02430 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55306-02440 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 55306-02430 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55306-02430 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 55306-02440 |
NDE180,NRE18#,ZRE185..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55307-02300 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02290C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55317-02290C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02120C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55318-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02290 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55330-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55343-02060 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 22 X 12 X 1240 |
1 | ||
| 55355-02430 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 12 X 1240 |
1 | ||
| 55355-02420 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 8 X 1240 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 22 X 12 X 1240 |
1 | ||
| 55355-02430 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 12 X 1240 |
1 | ||
| 55355-02420 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 8 X 1240 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02440 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 55356-02470 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55356-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55358-02150 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55358-02150 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55359-02160 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55359-02160 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55376-02040 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02040 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55377-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55388-02050 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55389-02080 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-02900C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55401-02900C1 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02060 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55416-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55539-48020 |
NDE180,NRE18#,ZRE185,ZWE186..LHD REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 55548-02640C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) REFRIGERANT GAS TYPE=R-134A,EU BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55961-02110C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55962-02070C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02170C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58816-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58817-02170C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02130 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 73960-02130 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 73960-02131 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90159-50311 | ||||
| 90159-60303 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||

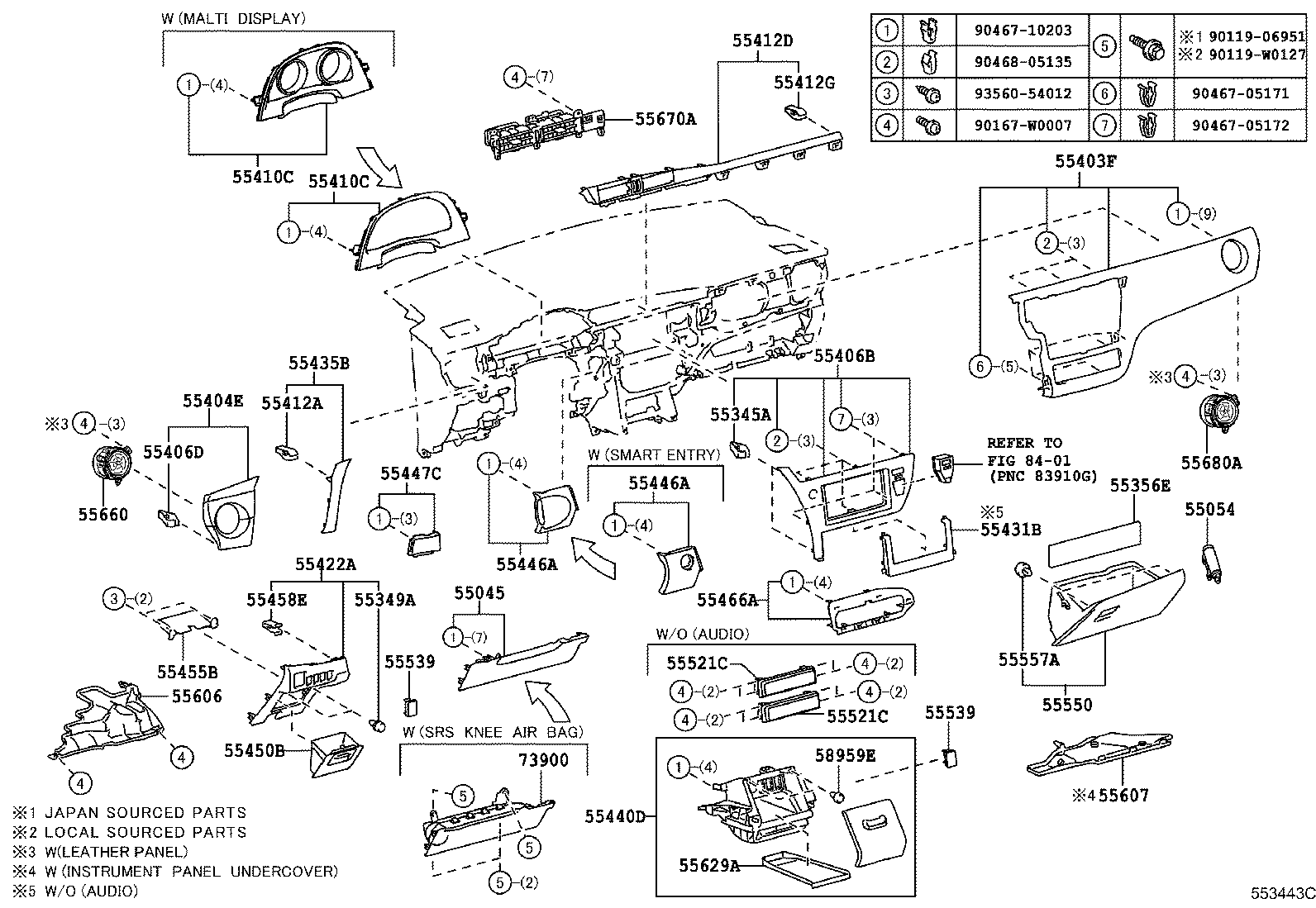

ILLUST NO. 2 OF 2(1505- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02320C0 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB REFRIGERANT GAS TYPE=R-134A,BLACK,TRIM2# |
1 | ||
| 55045-02320C1 |
NDE180,NRE18#,WWE185,ZRE185..LHD..HB..(D,N,S) REFRIGERANT GAS TYPE=R-134A,EU BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55054-35010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
2 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 58959-60060 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 55356E - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02450 |
NDE180,NRE185,ZWE186..G,N,S |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-0223021 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..N EU BLACK/GRAY NO.205,TRIM20 |
1 | ||
| 55403-0223020 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..N EU BLACK/BLACK,TRIM20 |
1 | ||
| 55403-02220J2 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..S EU BLACK/BLUE,TRIM20 |
1 | ||
| 55403-02220J1 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..S EU BLACK/BLACK,TRIM20 |
1 | ||
| 55403-02200C5 |
NDE180,NRE180,ZRE185,ZWE186..LHD..D EU BLACK/BLACK,TRIM2# |
1 | ||
| 55403-0223020 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..S EU BLACK/BLACK,TRIM20 |
1 | ||
| 55403-0223021 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..S EU BLACK/GRAY NO.205,TRIM20 |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02210B1 |
ADE186,NDE180,NRE180,ZRE185..LHD..N METAL SILVER/BLACK,TRIM2# |
1 | ||
| 55404-02160C2 |
NDE180,NRE180,ZRE185..LHD..D BLACK/BLACK,TRIM2# |
1 | ||
| 55404-02160C2 |
ADE186,NDE180,NRE180,ZRE185..LHD..N LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK/BLACK,TRIM2# |
1 | ||
| 55404-02230B1 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE),GRAY/BLACK,TRIM2# |
1 | ||
| 55404-02270C3 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE),BLACK,TRIM2# |
1 | ||
| 55404-02270C3 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 55404-02350J0 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..S EU BLACK/BLUE,TRIM2# |
1 | ||
| 55404-02440C6 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..N EU BLACK,TRIM2# |
1 | ||
| 55404-02440C6 |
NDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..S EU BLACK,TRIM2# |
1 | ||
| 55404-02200C5 |
NDE180,NRE180,ZRE185,ZWE186..LHD..D EU BLACK/BLACK,TRIM2# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02640 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
4 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
13 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02240C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55410-02240C1 |
NDE180,NRE180,ZRE185..LHD..N SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY),EU BLACK,TRIM2# |
1 | ||
| 55410-02240C1 |
NDE180,NRE180,ZRE185..LHD..D EU BLACK,TRIM2# |
1 | ||
| 55410-02440 |
NRE185,WWE185,ZWE186..LHD;NDE180,NRE180,ZRE185..LHD..(G,N,S) |
1 | ||
| 55410-02440 |
NDE180,NRE180,ZRE185..LHD..D PRE-COLLISION SYSTEM-WITH |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02240C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55410-02240C1 |
NDE180,NRE180,ZRE185..LHD..N SPEEDOMETER-KM/H,WITHOUT(MULTI DISPLAY),EU BLACK,TRIM2# |
1 | ||
| 55410-02240C1 |
NDE180,NRE180,ZRE185..LHD..D EU BLACK,TRIM2# |
1 | ||
| 55410-02440 |
NRE185,WWE185,ZWE186..LHD;NDE180,NRE180,ZRE185..LHD..(G,N,S) |
1 | ||
| 55410-02440 |
NDE180,NRE180,ZRE185..LHD..D PRE-COLLISION SYSTEM-WITH |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
3 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
3 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-02430 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55412-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
7 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02270C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55422-02270C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-02070 |
NRE180..LHD..HB..D;NDE180,ZRE185..HB..6F..D N1 PACKAGE&AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 55431-02070 |
NDE180,NRE180,ZRE185,ZWE186..D AUDIO-RADIO LESS & 4SPEAKER |
1 | ||
| 55431-02070 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 55431-02070 |
NDE180,NRE18#,ZRE185,ZWE186 AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02390C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55435-02530C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02420C1 |
NDE180,NRE18#,WWE185,ZRE185..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02310C0 |
ADE186,NDE180,NRE180,ZRE185..LHD..N WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55446-02310C1 |
NDE180,NRE18#,WWE185,ZRE185..LHD..(N,S) SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2# |
1 | ||
| 55446-02320C1 |
NDE180,NRE18#,WWE185,ZRE185..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55446-02320C0 |
ADE186,NDE180,NRE180,ZRE185..LHD BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02310C0 |
ADE186,NDE180,NRE180,ZRE185..LHD..N WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55446-02310C1 |
NDE180,NRE18#,WWE185,ZRE185..LHD..(N,S) SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2# |
1 | ||
| 55446-02320C1 |
NDE180,NRE18#,WWE185,ZRE185..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55446-02320C0 |
ADE186,NDE180,NRE180,ZRE185..LHD BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02060C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55447-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02110C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55450-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02140 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55455-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
ZWE186;ADE186,NDE180,NRE180,ZRE185..LHD |
8 | ||
| 90467-10203 |
ZWE186;NRE185..G;NRE185..LHD..(N,S);NDE180,NRE180,ZRE185..LHD |
8 | ||
| 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55468-02030 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180,ZRE185..LHD..D AUDIO-RADIO LESS & 4SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180..N;ADE186,ZRE185,ZWE186;NDE180,NRE180..LHD..D AUDIO-RADIO LESS & SPEAKER LESS |
2 | ||
| 55521-05030 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180,ZRE185,ZWE186..D AUDIO-RADIO LESS & 4SPEAKER |
2 | ||
| 55521-05030 |
ADE186,NDE180,NRE180,ZRE185..LHD..N AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE18#,ZRE185,ZWE186 AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180,ZRE185..LHD..D AUDIO-RADIO LESS & 4SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180..N;ADE186,ZRE185,ZWE186;NDE180,NRE180..LHD..D AUDIO-RADIO LESS & SPEAKER LESS |
2 | ||
| 55521-05030 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180,ZRE185,ZWE186..D AUDIO-RADIO LESS & 4SPEAKER |
2 | ||
| 55521-05030 |
ADE186,NDE180,NRE180,ZRE185..LHD..N AUDIO-RADIO LESS & 6SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE18#,ZRE185,ZWE186 AUDIO-RADIO LESS & WITHOUT(SPEAKER) |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
ZWE186..LHD..HB..N;ADE186,NDE180,NRE180,ZRE185..LHD..N HEADLAMP-DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
NDE180,NRE180,ZRE185..LHD..D SEAT HEATER-WITH&AUDIO JACK-AUX + USB,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185..N CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,WWE185..LHD COLD AREA SPEC |
1 | ||
| 55539-02100C1 |
NDE180,WWE185..LHD..(D,N,S) ADDITIONAL HEATER-WITH(STOVE HEATER),EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
NDE180,WWE185..LHD..(D,N,S) COLD AREA SPEC,EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH |
1 | ||
| 55539-05100 |
NDE180,NRE180..N,S;NDE180,NRE180..LHD..D;NRE185,WWE185,ZRE185..D,N,S SEAT HEATER-WITH |
1 | ||
| 55539-02100C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH,EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 55539-02100C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST),EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 55539-02100C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE180..LHD..D AUDIO-*DA & DAB & 6SPEAKER |
1 | ||
| 55539-05100 |
NDE180,WWE185..LHD ADDITIONAL HEATER-WITH(STOVE HEATER) |
1 | ||
| 55539-02100C1 |
NDE180,NRE180..N,S;NDE180,NRE180..LHD..D;NRE185,WWE185,ZRE185..D,N,S SEAT HEATER-WITH,EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
NDE180,NRE180..LHD..D AUDIO-*DA & DAB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
ZWE186..LHD..HB..N;ADE186,NDE180,NRE180,ZRE185..LHD..N HEADLAMP-DISCHARGE & AFS&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
NDE180,NRE180,ZRE185..LHD..D SEAT HEATER-WITH&AUDIO JACK-AUX + USB,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185..N CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 55539-02100C0 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,WWE185..LHD COLD AREA SPEC |
1 | ||
| 55539-02100C1 |
NDE180,WWE185..LHD..(D,N,S) ADDITIONAL HEATER-WITH(STOVE HEATER),EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
NDE180,WWE185..LHD..(D,N,S) COLD AREA SPEC,EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH |
1 | ||
| 55539-05100 |
NDE180,NRE180..N,S;NDE180,NRE180..LHD..D;NRE185,WWE185,ZRE185..D,N,S SEAT HEATER-WITH |
1 | ||
| 55539-02100C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S PRE-COLLISION SYSTEM-WITH,EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 55539-02100C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..N,S CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST),EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 55539-02100C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55539-05100 |
NDE180,NRE180..LHD..D AUDIO-*DA & DAB & 6SPEAKER |
1 | ||
| 55539-05100 |
NDE180,WWE185..LHD ADDITIONAL HEATER-WITH(STOVE HEATER) |
1 | ||
| 55539-02100C1 |
NDE180,NRE180..N,S;NDE180,NRE180..LHD..D;NRE185,WWE185,ZRE185..D,N,S SEAT HEATER-WITH,EU BLACK,TRIM2# |
1 | ||
| 55539-02100C1 |
NDE180,NRE180..LHD..D AUDIO-*DA & DAB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02290C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55550-02290C2 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 55557-60050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02140 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55606-02140 |
NDE180,NRE18#,ZRE185,ZWE186..LHD LIGHT GRADE |
1 | ||
| 55606-02140 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02060 |
ADE186,NDE180,NRE180,ZRE185..LHD..N |
1 | ||
| 55607-02061 |
NDE180,NRE18#,ZRE185..LHD..(G,N,S) |
1 | ||
| 55607-02061 |
NDE180,NRE18#,ZRE185..LHD..(G,N,S) LIGHT GRADE |
1 | ||
| 55629A - CUSHION, INSTRUMENT PANEL UNDER TRAY | ||||
| 55629-12050 |
NDE180,NRE18#,ZRE185 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-12290C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 55680-12290C2 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02550C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55670-02310 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
2 | ||
| 55680-12280C0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 55680-12280C2 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NDE180,NRE18#,ZRE185 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02051C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 73900-02050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 73900-02050C0 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB SRS AIR BAG-D+P+SIDE+I/P BOLSTER,BLACK,TRIM2# |
1 | ||
| 73900-02050C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1601- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02350C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55303-02351C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02430 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55306-02440 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 55306-02430 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55306-02430 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR) |
1 | ||
| 55306-02440 |
NDE180,NRE18#,ZRE185..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55307-02300 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02290C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55317-02290C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02120C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55318-02120C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02290 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55330-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55343-02060 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 90467-13082A0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 MELLOW WHITE |
12 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 22 X 12 X 1240 |
1 | ||
| 55355-02430 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 12 X 1240 |
1 | ||
| 55355-02420 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 8 X 1240 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02220 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 22 X 12 X 1240 |
1 | ||
| 55355-02430 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 12 X 1240 |
1 | ||
| 55355-02420 |
NDE180,NRE18#,ZRE185,ZWE186 8 X 8 X 1240 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02440 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 55356-02470 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55356-02090 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55376-02040 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02040 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55377-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55388-02050 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 55389-02080 |
NDE180,NRE18#,ZRE185,ZWE186..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-02900C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55401-02900C1 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02060 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 55416-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55539-48020 |
NDE180,NRE18#,ZRE185,ZWE186..LHD REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 55548-02640C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) REFRIGERANT GAS TYPE=R-134A,EU BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02110C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55961-02110C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02070C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N BLACK,TRIM2# |
1 | ||
| 55962-02070C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S EU BLACK,TRIM2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02170C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 58816-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02170C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) BLACK,TRIM2# |
1 | ||
| 58817-02170C1 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S) EU BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02130 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
1 | ||
| 73960-02130 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 73960-02131 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90159-50311 | ||||
| 90159-60303 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
