NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161K - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
NDE180,NRE18#,ZRE185,ZWE186 (L) |
2 | ||
| 52161-16010 |
NDE180,NRE18#,ZRE185,ZWE186 (J) |
2 | ||
| 52161K - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
NDE180,NRE18#,ZRE185,ZWE186 (L) |
2 | ||
| 52161-16010 |
NDE180,NRE18#,ZRE185,ZWE186 (J) |
2 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-02914 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 PAINT REQ. |
1 | ||
| 53111-02A50 |
NDE180,NRE18#,ZRE185,ZWE186 PLATED |
1 | ||
| 53111-02A00 |
NRE18#,ZWE186..N;NDE180,ZRE185..HB..N;NRE185,ZWE186..WG..S;NDE180,ZRE185..WG..(N,S) NO PAINT REQ.,RADIATOR GRILLE-BLACK PAINTED(209) |
1 | ||
| 53111-02A00 |
NDE180,NRE185,ZRE185,ZWE186..HB..S NO PAINT REQ.,RADIATOR GRILLE-BLACK PAINTED(209) |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 53121-02500 |
NDE180,NRE185,ZRE185,ZWE186..HB..S RADIATOR GRILLE-BLACK PAINTED(209) |
1 | ||
| 53121-02500 |
NRE18#,ZWE186..N;NDE180,ZRE185..HB..N;NRE185,ZWE186..WG..S;NDE180,ZRE185..WG..(N,S) RADIATOR GRILLE-BLACK PAINTED(209) |
1 | ||
| 53121-02300 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 53122-02180 |
NDE180,NRE185,ZRE185,ZWE186..HB..S RADIATOR GRILLE-BLACK PAINTED(209) |
1 | ||
| 53122-02150 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 53122-02180 |
NRE18#,ZWE186..N;NDE180,ZRE185..HB..N;NRE185,ZWE186..WG..S;NDE180,ZRE185..WG..(N,S) RADIATOR GRILLE-BLACK PAINTED(209) |
1 | ||
| 53114A - GRILLE, RADIATOR, INNER | ||||
| 53114-02260 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 53114-02380 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
NDE180,NRE18#,ZRE185,ZWE186 |
5 | ||
| 53145-60030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
5 | ||
| 53155D - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53037-02020 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 53037-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90109-06283 | ||||
| 90159-60431 | ||||
| 93560-A3012 | ||||

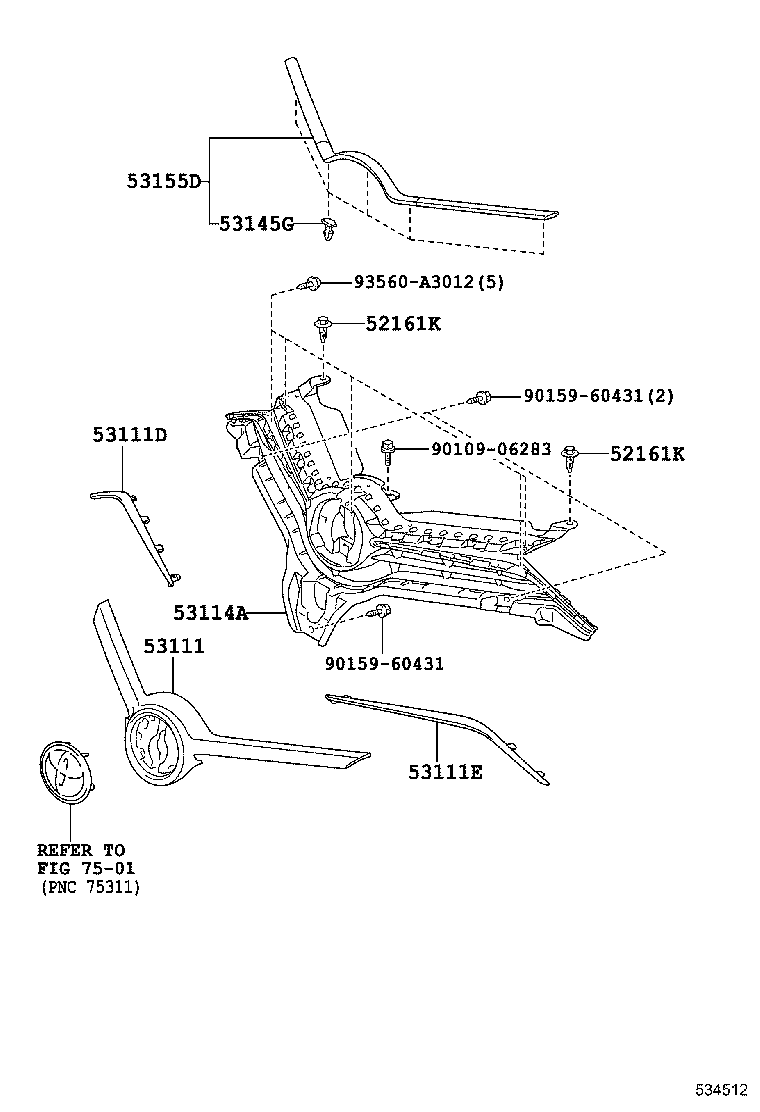

| Linked diagrams | ||||
| 7501 | ||||
