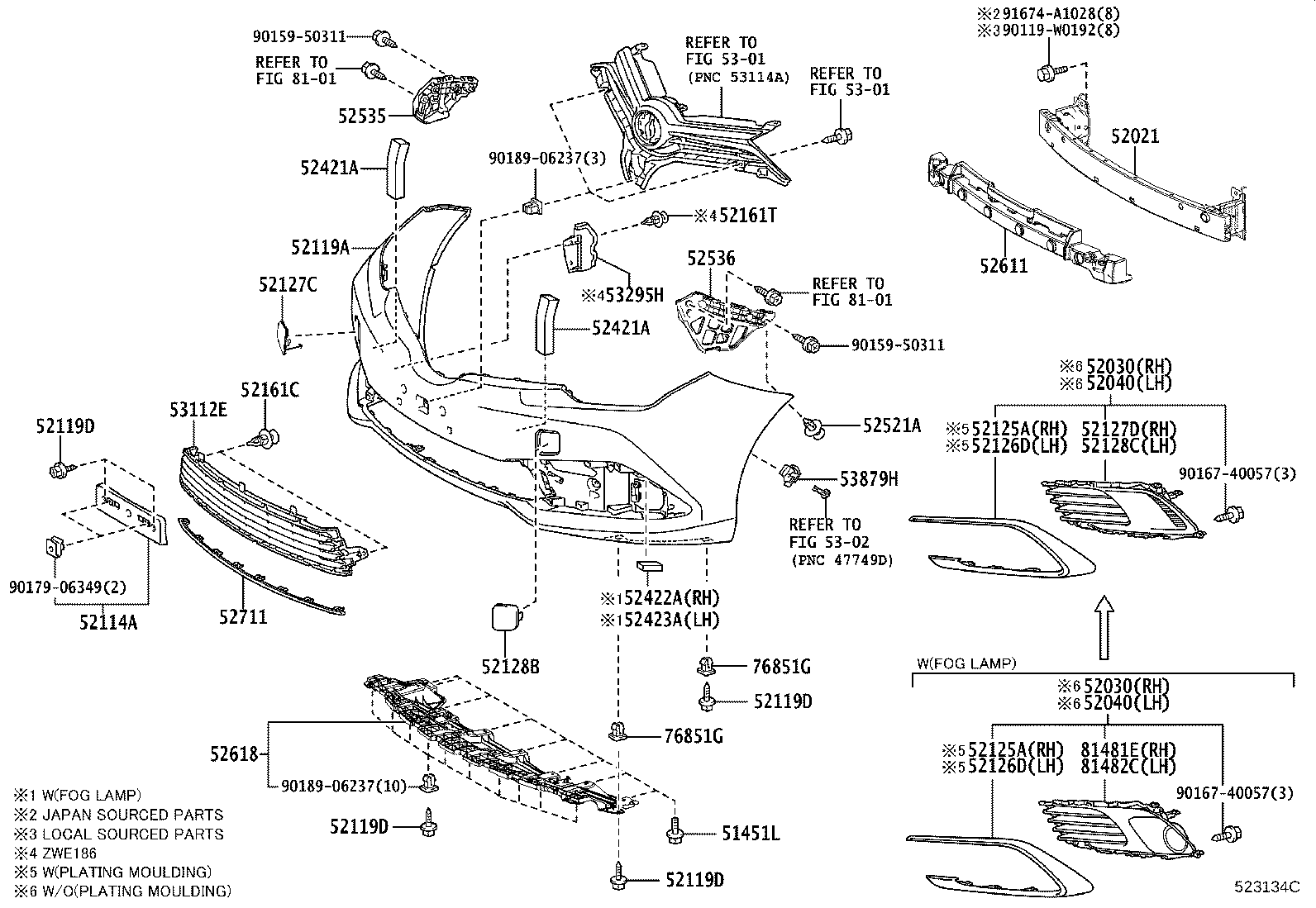

NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
8 | ||
| 90119-W0089 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
8 | ||
| 90119-06767 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (J) |
8 | ||
| 90119-W0089 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (L) |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02230 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52021-02230 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S NO PAINT REQ.,LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE180,ZRE185,ZWE186..D NO PAINT REQ. |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) NO PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52030-02210 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ. |
1 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S NO PAINT REQ.,LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE180,ZRE185,ZWE186..D NO PAINT REQ. |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) NO PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52030-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52030-02210 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ. |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52040-02120 |
NDE180,NRE180,ZRE185,ZWE186..D NO PAINT REQ. |
1 | ||
| 52040-02210 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ. |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S NO PAINT REQ.,LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) NO PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) NO PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52040-02120 |
NDE180,NRE180,ZRE185,ZWE186..D NO PAINT REQ. |
1 | ||
| 52040-02210 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ. |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S NO PAINT REQ.,LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) NO PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52040-02120 |
NDE180,NRE18#,ZRE185,ZWE186..N,S NO PAINT REQ.,FRONT FOG LAMP-WITHOUT |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-02150 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z924 |
ADE186,NDE180,NRE180,ZRE185..LHD..N PAINT REQ.,SPORT PACKAGE&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0Z925 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0Z923 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..D,N PAINT REQ. |
1 | ||
| 52119-0Z924 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0Z926 |
ADE186,NDE180,NRE180,ZRE185..LHD..N PAINT REQ.,SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0Z926 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0Z925 |
ADE186,NDE180,NRE180,ZRE185..N PAINT REQ.,SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0Z926 |
ADE186,NDE180,NRE180,ZRE185..LHD..N PAINT REQ.,HIGH GRADE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0Z925 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N PAINT REQ.,HIGH GRADE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-0Z962 |
NDE180,NRE18#,ZRE185,ZWE186..D,N,S PAINT REQ. |
1 | ||
| 52119-0Z963 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0Z963 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52119-0Z963 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52119-0Z963 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(D,N,S) PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0Z964 |
NDE180,NRE18#,ZRE185,ZWE186..N,S PAINT REQ.,CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-0Z964 |
NDE180,NRE18#,ZRE185,ZWE186..N,S PAINT REQ.,FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-0Z965 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-0Z965 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-W0007 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (L) |
2 | ||
| 90159-W0007 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
2 | ||
| 90159-60431 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (J) |
6 | ||
| 90159-60431 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-W0007 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (L) |
2 | ||
| 90159-W0007 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
2 | ||
| 90159-60431 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (J) |
6 | ||
| 90159-60431 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-W0007 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (L) |
2 | ||
| 90159-W0007 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
2 | ||
| 90159-60431 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (J) |
6 | ||
| 90159-60431 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-W0007 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (L) |
2 | ||
| 90159-W0007 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
2 | ||
| 90159-60431 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 (J) |
6 | ||
| 90159-60431 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
6 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-02080 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52125-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-02070 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..N SPORT PACKAGE |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52126-02100 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&HEADLAMP CLEANER-WITH |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02927 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52127-02919 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-02590 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-02590 |
NDE180,NRE180,ZRE185,ZWE186..D |
1 | ||
| 81481-02590 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-02590 |
NDE180,NRE18#,ZRE185,ZWE186..N,S FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 81481-02590 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-02590 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81481-02590 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02919 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-02580 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S FRONT FOG LAMP-WITHOUT |
1 | ||
| 81482-02580 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81482-02580 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(N,S) HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 81482-02580 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81482-02580 |
NDE180,NRE18#,ZRE185,ZWE186..N,S FRONT FOG LAMP-WITHOUT&CLEARANCE & BACK SONAR-WITH & WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 81482-02580 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 81482-02580 |
NDE180,NRE180,ZRE185,ZWE186..D |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (L) |
1 | ||
| 52161-16010 |
ZWE186..D,N,S;NDE180,NRE18#,WWE185,ZRE185 |
2 | ||
| 52161-16010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 (J) |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52422-02030 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52422-02030 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52421-02030 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52421-02030 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 90467-05170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-02050 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 52535-02050 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 52536-02040 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02380 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52611-02260 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02040 |
NDE180,NRE18#,ZRE185,ZWE186 |
1 | ||
| 52618-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N PLATED |
1 | ||
| 52711-02060 |
NDE180,NRE180,ZRE185..D NO PAINT REQ. |
1 | ||
| 52711-02110 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S NO PAINT REQ.,LIGHT GRADE |
1 | ||
| 52711-02110 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S NO PAINT REQ.,LIGHT GRADE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52711-02110 |
NDE180,NRE180,ZRE185,ZWE186..D NO PAINT REQ. |
1 | ||
| 52711-02060 |
ADE186,NDE180,NRE180,ZRE185..N NO PAINT REQ.,LIGHT GRADE |
1 | ||
| 52711-02110 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) NO PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 52711-02130 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S PLATED |
1 | ||
| 52711-02110 |
NDE180,NRE18#,ZRE185,ZWE186..LHD..(G,N,S) NO PAINT REQ.,LIGHT GRADE&HEADLAMP CLEANER-WITH |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53102-02050 |
ADE186,NDE180,NRE180,ZRE185..LHD..N PLATED,HIGH GRADE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53102-02050 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N PLATED,HIGH GRADE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-02390 |
ADE186,NDE180,NRE180,ZRE185..N NO PAINT REQ. |
1 | ||
| 53112-02400 |
ADE186,NDE180,NRE180,ZRE185..LHD..N NO PAINT REQ.,HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-02400 |
ADE186,NDE180,NRE180,ZRE185..N NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-02400 |
ADE186,NDE180,NRE180,ZRE185..N NO PAINT REQ.,SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-02400 |
ADE186,NDE180,NRE180,ZRE185..LHD..N NO PAINT REQ.,SPORT PACKAGE&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53112-02440 |
ADE186,NDE180,NRE180,ZRE185..N NO PAINT REQ.,LIGHT GRADE |
1 | ||
| 53112-02440 |
NDE180,NRE180,ZRE185..D NO PAINT REQ. |
1 | ||
| 53112-02680 |
NDE180,NRE18#,ZRE185,ZWE186 NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 53879-50020 |
NDE180,NRE18#,ZRE185,ZWE186 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
7 | ||
| 90189-06237 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180,NRE18#,WWE185,ZRE185,ZWE186 |
7 | ||
| 90189-06237 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02290 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 81481-02300 |
NDE180,NRE180,ZRE185..D |
1 | ||
| 81481-02300 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE |
1 | ||
| 81481-02600 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02290 |
NDE180,NRE180,ZRE185..D |
1 | ||
| 81482-02280 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..G,N |
1 | ||
| 81482-02290 |
ADE186,NDE180,NRE180,ZRE185..N LIGHT GRADE |
1 | ||
| 81482-02590 |
NDE180,NRE18#,ZRE185,ZWE186..G,N,S |
1 | ||
| Common parts | ||||
| 90119-W0192 | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90189-06237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
