NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Nov 2018
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )1NDTV

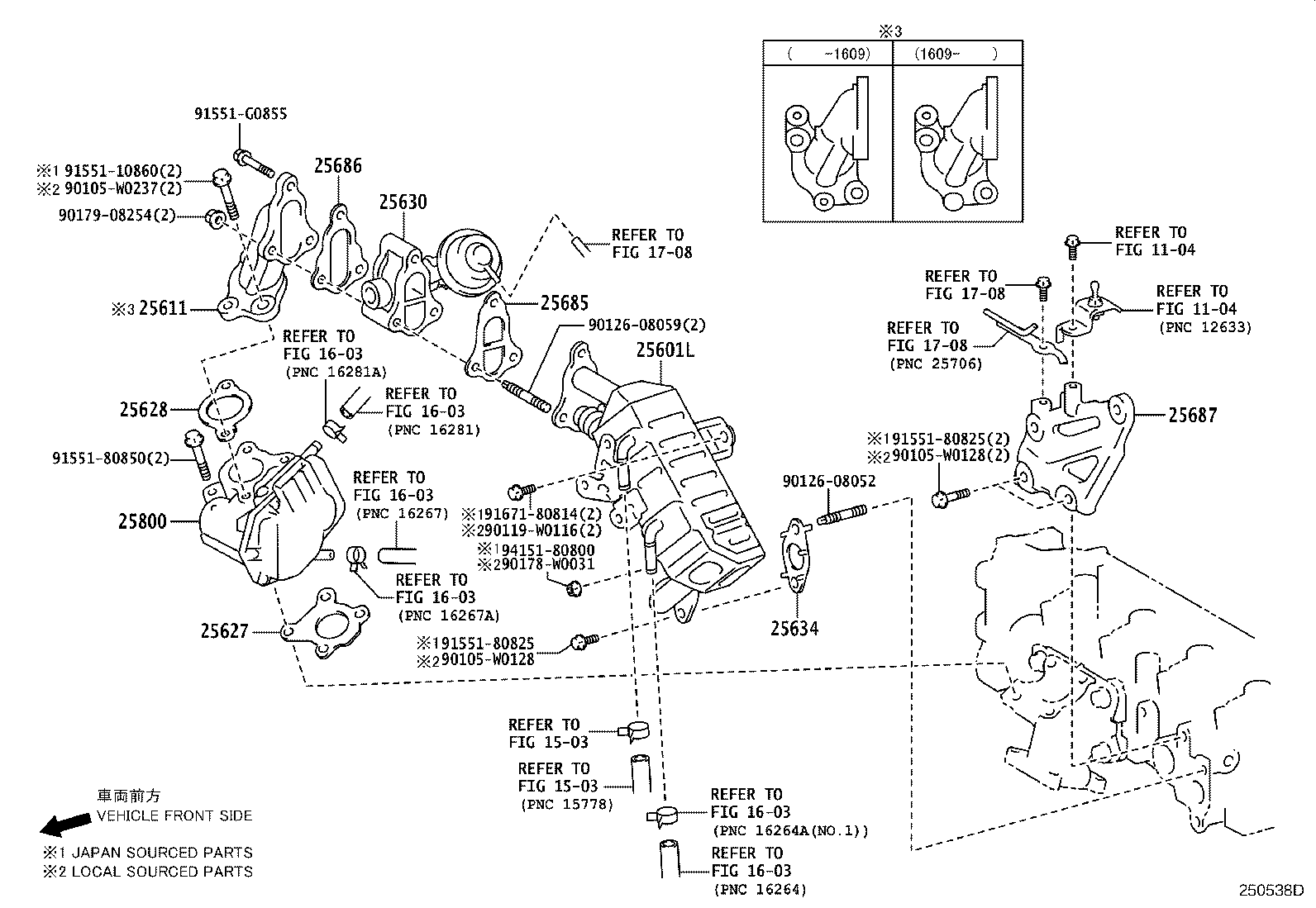

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601L - PIPE SUB-ASSY, EGR W/COOLER | ||||
| 25601-33070 |
1NDTV..NDE180 |
1 | ||
| 25601-0N020 |
1NDTV..NDE180 |
1 | ||
| 25611 - CONNECTOR, EGR PIPE | ||||
| 25611-33020 |
1NDTV..NDE180 |
1 | ||
| 25611-33020 |
1NDTV..NDE180 |
1 | ||
| 25611-33021 |
1NDTV..NDE180 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-33010 |
1NDTV..NDE180 |
1 | ||
| 25627-33010 |
1NDTV..NDE180 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-33040 |
1NDTV..NDE180 |
1 | ||
| 25628-33040 |
1NDTV..NDE180 |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-33020 |
1NDTV..NDE180 |
1 | ||
| 25630-33010 |
1NDTV..NDE180 |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-33010 |
1NDTV..NDE180 |
1 | ||
| 25634-33020 |
1NDTV..NDE180 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-33010 |
1NDTV..NDE180 |
1 | ||
| 25685-33010 |
1NDTV..NDE180 |
1 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-33010 |
1NDTV..NDE180 |
1 | ||
| 25686-33010 |
1NDTV..NDE180 |
1 | ||
| 25687 - BRACKET, EGR COOLER, NO.1 | ||||
| 25687-33030 |
1NDTV..NDE180 |
1 | ||
| 25687-33021 |
1NDTV..NDE180 |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-33011 |
1NDTV..NDE180 |
1 | ||
| 25800-33011 |
1NDTV..NDE180 |
1 | ||
| Common parts | ||||
| 90105-W0128 | ||||
| 90105-W0237 | ||||
| 90119-W0116 | ||||
| 90126-08052 | ||||
| 90126-08059 | ||||
| 90178-W0031 | ||||
| 90179-08254 | ||||
| 91551-10860 | ||||
| 91551-80825 | ||||
| 91551-80850 | ||||
| 91551-G0855 | ||||
| 91671-80814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1503 | ||||
| 1603 | ||||
| 1708 | ||||
