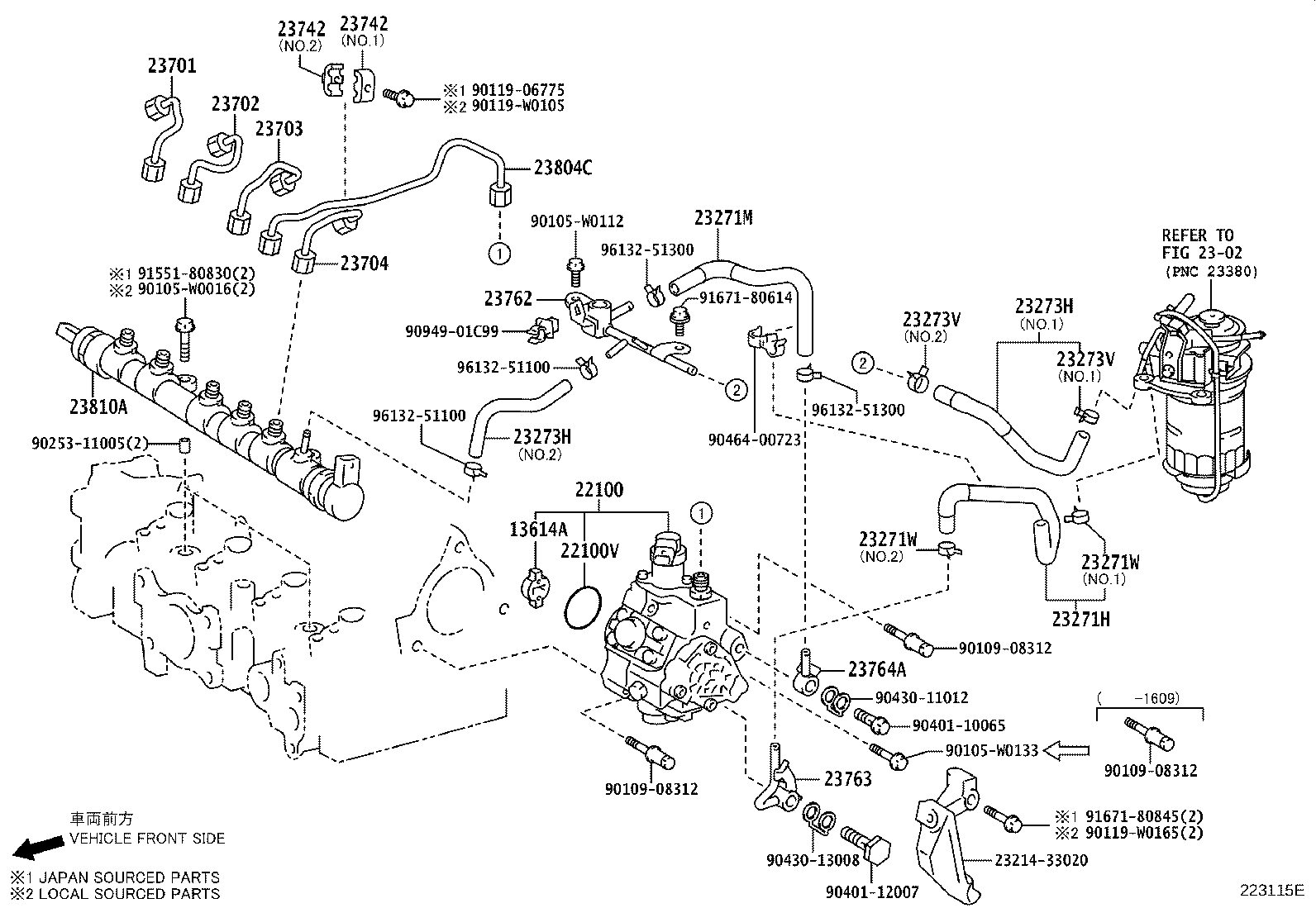

Toyota Auris/hybrid (ukp) NDE180 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1
13614-33010	1NDTV..NDE180 (J)	10/2012 - 05/2015	1
13614-0N010	1NDTV..NDE180 (L)	10/2012 - 05/2015	1
13614-0N020	1NDTV..NDE180	05/2015 - 12/2999	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-0N030	1NDTV..NDE180	05/2015 - 12/2999	1
22100-0W010	1NDTV..NDE180..LHD;1NDTV..NDE180..RHD..6FS	10/2012 - 05/2015	1
22100-0W020	1NDTV..NDE180..LHD..6F START & STOP SYSTEM PACKAGE	10/2012 - 05/2015	1
22100V - RING, O(FOR INJECTION PUMP)
96723-35044	1NDTV..NDE180	10/2012 - 05/2015	1
96723-35044	1NDTV..NDE180	05/2015 - 12/2999	1
23271H - HOSE, FUEL, NO.1
23271-0N020	1NDTV..NDE180	05/2015 - 12/2999	1
23271-0N030	1NDTV..NDE180	10/2012 - 05/2015	1
23271M - HOSE, FUEL
23271-0N070	1NDTV..NDE180	05/2015 - 12/2999	1
23271W - CLIP(FOR FUEL HOSE NO.1)
90466-W0004	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96132-51300	1NDTV..NDE180	10/2012 - 05/2015	2
96137-41501	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23271W - CLIP(FOR FUEL HOSE NO.1)
90466-W0004	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96132-51300	1NDTV..NDE180	10/2012 - 05/2015	2
96137-41501	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23273H - HOSE, FUEL, NO.2
23273-0N070	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
23273-33090	1NDTV..NDE180 (J),NO.2:SEE ILLUST	10/2012 - 05/2015	1
23273-0N030	1NDTV..NDE180 NO.1:REFER ILLUST.	10/2012 - 05/2015	1
23273-0N080	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23273-0N020	1NDTV..NDE180 (L),NO.2:SEE ILLUST	10/2012 - 05/2015	1
23273H - HOSE, FUEL, NO.2
23273-0N070	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
23273-33090	1NDTV..NDE180 (J),NO.2:SEE ILLUST	10/2012 - 05/2015	1
23273-0N030	1NDTV..NDE180 NO.1:REFER ILLUST.	10/2012 - 05/2015	1
23273-0N080	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23273-0N020	1NDTV..NDE180 (L),NO.2:SEE ILLUST	10/2012 - 05/2015	1
23273V - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1NDTV..NDE180	10/2012 - 05/2015	2
96132-51100	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96137-41501	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23273V - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1NDTV..NDE180	10/2012 - 05/2015	2
96132-51100	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
96137-41501	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-33040	1NDTV..NDE180	10/2012 - 05/2015	1
23701-33031	1NDTV..NDE180	05/2015 - 12/2999	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-33010	1NDTV..NDE180	10/2012 - 05/2015	2
23702-33021	1NDTV..NDE180	05/2015 - 12/2999	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-33021	1NDTV..NDE180	05/2015 - 12/2999	1
23703-33010	1NDTV..NDE180	10/2012 - 05/2015	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-33011	1NDTV..NDE180	05/2015 - 12/2999	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
23742-58020	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
23742-58020	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
23762 - PIPE, NOZZLE LEAKAGE, NO.2
23762-0N010	1NDTV..NDE180	05/2015 - 12/2999	1
23763 - PIPE, NOZZLE LEAKAGE, NO.3
23763-0N010	1NDTV..NDE180	05/2015 - 12/2999	1
23764A - PIPE, NOZZLE LEAKAGE, NO.4
23764-0N010	1NDTV..NDE180	05/2015 - 12/2999	1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-33031	1NDTV..NDE180	05/2015 - 12/2999	1
23804-33020	1NDTV..NDE180	10/2012 - 05/2015	1
23810A - RAIL ASSY, COMMON
23810-0N030	1NDTV..NDE180	05/2015 - 12/2999	1
23810-33030	1NDTV..NDE180	10/2012 - 05/2015	1
Common parts
23214-33020
90105-W0016
90105-W0112
90105-W0133
90109-08312
90119-06775
90119-W0105
90119-W0165
90253-11005
90401-10065
90401-12007
90430-11012
90430-13008
90464-00723
90949-01C99
91551-80830
91671-80614
91671-80845
96132-51100
96132-51300
Linked diagrams
2302

NDE180L-DHFSXW (2015)

(1505- )1NDTV
