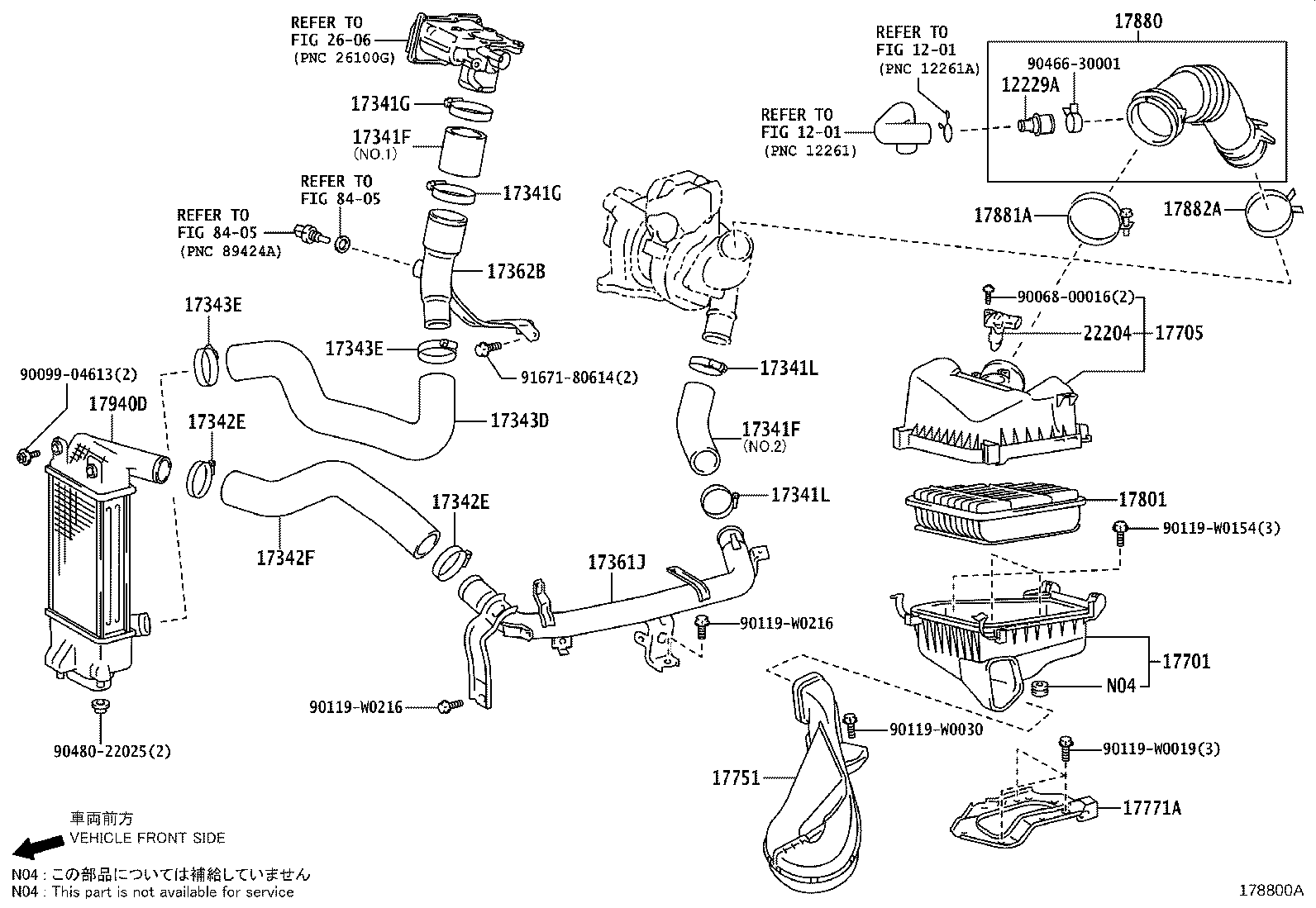

Toyota Auris/hybrid (ukp) NDE180 AIR CLEANER

Part #	Description	Period	Qty
12229A - PIPE, VENTILATION
12229-33010	1NDTV..NDE180	10/2012 - 04/2014	1
12229-33010	1NDTV..NDE180	05/2015 - 12/2999	1
17341F - HOSE, AIR, NO.1
17341-33060	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
17341-33080	1NDTV..NDE180 NO.1:REFER ILLUST.	10/2012 - 05/2015	1
17341-33070	1NDTV..NDE180 NO.2:REFER ILLUST.	10/2012 - 05/2015	1
17341-33080	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
17341F - HOSE, AIR, NO.1
17341-33060	1NDTV..NDE180 NO.2:REFER ILLUST.	05/2015 - 12/2999	1
17341-33080	1NDTV..NDE180 NO.1:REFER ILLUST.	10/2012 - 05/2015	1
17341-33070	1NDTV..NDE180 NO.2:REFER ILLUST.	10/2012 - 05/2015	1
17341-33080	1NDTV..NDE180 NO.1:REFER ILLUST.	05/2015 - 12/2999	1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011	1NDTV..NDE180	05/2015 - 12/2999	2
90460-63011	1NDTV..NDE180	10/2012 - 05/2015	2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-63011	1NDTV..NDE180	05/2015 - 12/2999	2
90460-63011	1NDTV..NDE180	10/2012 - 05/2015	2
17341L - CLAMP, HOSE
90460-50005	1NDTV..NDE180	05/2015 - 12/2999	2
90460-50005	1NDTV..NDE180	10/2012 - 05/2015	2
17341L - CLAMP, HOSE
90460-50005	1NDTV..NDE180	05/2015 - 12/2999	2
90460-50005	1NDTV..NDE180	10/2012 - 05/2015	2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-60006	1NDTV..NDE180	10/2012 - 05/2015	2
90460-60006	1NDTV..NDE180	05/2015 - 12/2999	2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-60006	1NDTV..NDE180	10/2012 - 05/2015	2
90460-60006	1NDTV..NDE180	05/2015 - 12/2999	2
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-33120	1NDTV..NDE180	10/2012 - 05/2015	1
17342-33120	1NDTV..NDE180	05/2015 - 12/2999	1
17343D - HOSE, AIR, NO.3
17343-33100	1NDTV..NDE180	10/2012 - 05/2015	1
17343-33220	1NDTV..NDE180	05/2015 - 12/2999	1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-50005	1NDTV..NDE180	10/2012 - 05/2015	2
90460-50005	1NDTV..NDE180	05/2015 - 12/2999	2
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-50005	1NDTV..NDE180	10/2012 - 05/2015	2
90460-50005	1NDTV..NDE180	05/2015 - 12/2999	2
17361J - TUBE, AIR, NO.1
17361-33020	1NDTV..NDE180	05/2015 - 12/2999	1
17361-33100	1NDTV..NDE180	10/2012 - 05/2015	1
17362B - TUBE, AIR, NO.2
17362-33080	1NDTV..NDE180	10/2012 - 05/2015	1
17362-33080	1NDTV..NDE180	05/2015 - 12/2999	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0R020	1NDTV..NDE180	10/2012 - 05/2015	1
17701-0R020	1NDTV..NDE180	05/2015 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0N100	1NDTV..NDE180	05/2015 - 12/2999	1
17705-0N070	1NDTV..NDE180	10/2012 - 07/2014	1
17751 - INLET, AIR CLEANER, NO.1
17751-0N060	1NDTV..NDE180	10/2012 - 05/2015	1
17751-0N060	1NDTV..NDE180	05/2015 - 12/2999	1
17771A - BRACKET, AIR CLEANER
17771-0R020	1NDTV..NDE180	05/2015 - 12/2999	1
17771-0R020	1NDTV..NDE180	10/2012 - 05/2015	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0R030	1NDTV..NDE180	10/2012 - 05/2015	1
17801-0R030	1NDTV..NDE180	05/2015 - 12/2999	1
17880 - HOSE ASSY, AIR CLEANER
17880-0N070	1NDTV..NDE180	10/2012 - 05/2015	1
17880-0N090	1NDTV..NDE180	05/2015 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1N#..NDE180,NRE180	10/2012 - 05/2015	1
96111-10850	1NDTV..NDE180	05/2015 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-54002	1NDTV..NDE180	10/2012 - 05/2015	1
90466-54002	1NDTV..NDE180	05/2015 - 12/2999	1
17940D - INTERCOOLER ASSY
17940-0N080	1NDTV..NDE180	10/2012 - 05/2015	1
17940-0N150	1NDTV..NDE180	05/2015 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-26010	1NDTV..NDE180	10/2012 - 05/2015	1
22204-30030	1NDTV..NDE180	05/2015 - 12/2999	1
Common parts
90068-00016
90099-04613
90119-W0019
90119-W0030
90119-W0154
90119-W0216
90466-30001
90480-22025
91671-80614
Linked diagrams
1201
2606
8405

NDE180L-DHFSXW (2015)

(1505- )1NDTV
