NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)

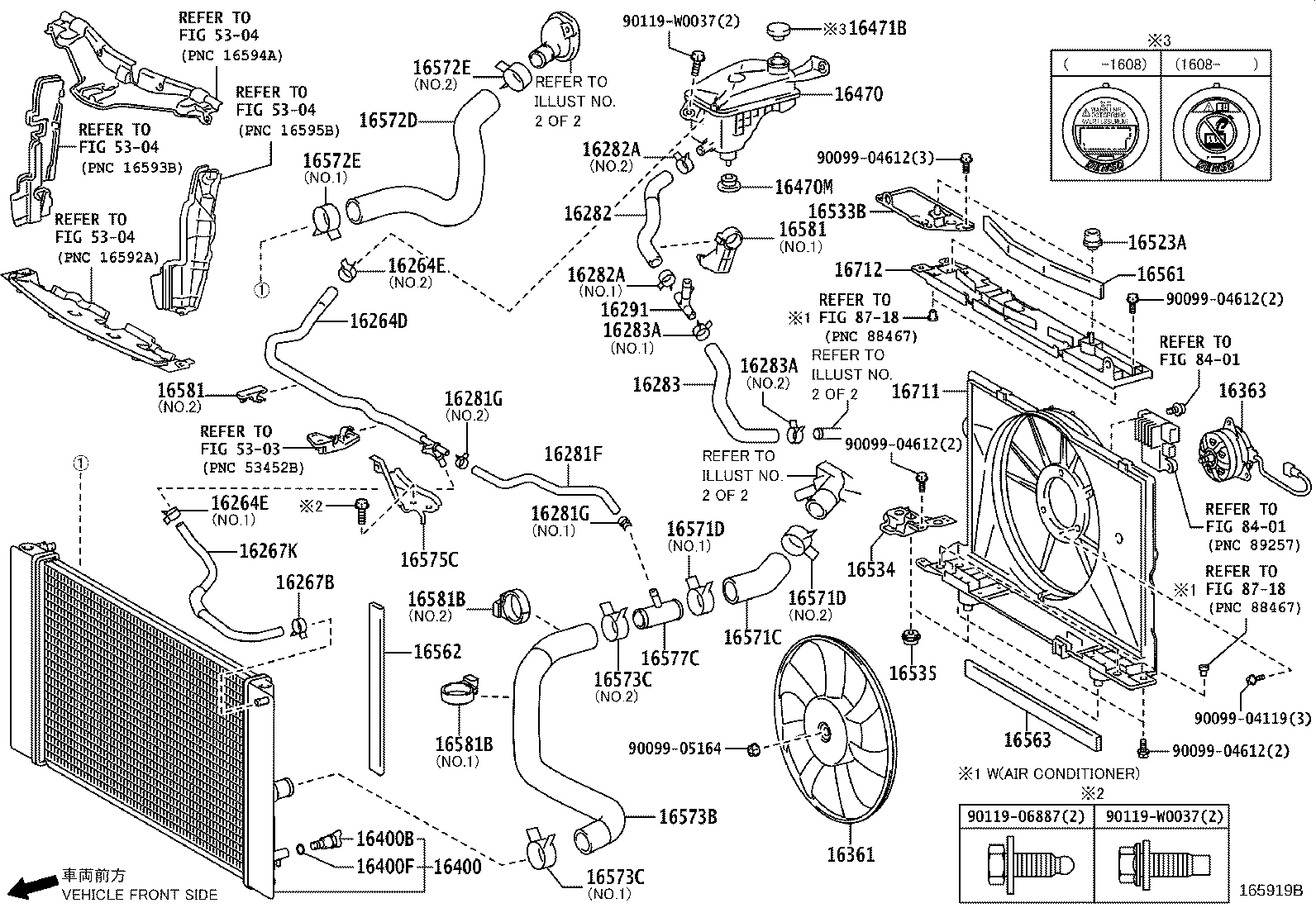

ILLUST NO. 1 OF 2(1505- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y030 |
1NDTV..NDE180 |
1 | ||
| 16264-0Y030 |
1NDTV..NDE180 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96136-42101 |
1NDTV,8NRFTS..NDE180,NRE185 NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42101 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96136-42101 |
1NDTV,8NRFTS..NDE180,NRE185 NO.2:REFER ILLUST. |
1 | ||
| 90467-15022 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE180 |
1 | ||
| 90467-15022 |
1NDTV..NDE180 |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0N030 |
1NDTV..NDE180..N LIGHT GRADE |
1 | ||
| 16267-0N030 |
1NDTV..NDE180 |
1 | ||
| 16267-0N030 |
1NDTV..NDE180..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 16267-0N030 |
1NDTV..NDE180..G,N,S LIGHT GRADE |
1 | ||
| 16267-0N030 |
1NDTV..NDE180..D AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 16267-0N030 |
1NDTV..NDE180 |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-0N060 |
1NDTV..NDE180 |
1 | ||
| 16281-0N060 |
1NDTV..NDE180 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96136-41901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 96136-41901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96136-41901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 96136-41901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0N040 |
1NDTV..NDE180 |
1 | ||
| 16282-0N040 |
1NDTV..NDE180 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST,NO.1:REFER ILLUST. |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 96136-42501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST,NO.1:REFER ILLUST. |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 96136-42501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-0N010 |
1NDTV..NDE180 |
1 | ||
| 16283-0N010 |
1NDTV..NDE180 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST,NO.1:REFER ILLUST. |
1 | ||
| 96136-42501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST,NO.1:REFER ILLUST. |
1 | ||
| 96136-42501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 90466-W0007 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-33020 |
1NDTV..NDE180 |
1 | ||
| 16291-47050 |
1NDTV..NDE180 |
1 | ||
| 16291-33020 |
1NDTV..NDE180 |
1 | ||
| 16361 - FAN | ||||
| 16361-0N040 |
1NDTV..NDE180 |
1 | ||
| 16361-0N040 |
1NDTV..NDE180 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0N020 |
1NDTV..NDE180 |
1 | ||
| 16363-0N020 |
1NDTV..NDE180 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0N060 |
1NDTV..NDE180 |
1 | ||
| 16400-0N060 |
1NDTV..NDE180 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0Q040 |
1N#..NDE180,NRE180 |
1 | ||
| 16417-0Q040 |
1N#..NDE180,NRE180 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1N#..NDE180,NRE180 |
1 | ||
| 16492-21050 |
1N#,8NRFTS..NDE180,NRE18# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-0D030 |
1N#..NDE180,NRE180 |
1 | ||
| 16480-0D030 |
1N#..NDE180,NRE180 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
1N#..NDE180,NRE180 |
1 | ||
| 90480-18010 |
1N#..NDE180,NRE180 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-37010 |
1N#..NDE180,NRE180 |
1 | ||
| 16475-37011 |
1N#,8NRFTS..NDE180,NRE18# |
1 | ||
| 16475-28140 |
1N#,8NRFTS..NDE180,NRE18# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Y030 |
1N#..NDE180,NRE180 |
2 | ||
| 16523-0Y030 |
1N#..NDE180,NRE180 |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16505-0N010 |
1NDTV..NDE180 |
1 | ||
| 16505-0N010 |
1NDTV..NDE180 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16506-0N010 |
1NDTV..NDE180 |
1 | ||
| 16506-0N040 |
1NDTV..NDE180 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0Y010 |
1NDTV..NDE180 |
3 | ||
| 16535-0Y010 |
1NDTV..NDE180 |
3 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0N010 |
1NDTV..NDE180 |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-0N020 |
1NDTV..NDE180 |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16561-0N030 |
1NDTV..NDE180 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0N080 |
1NDTV..NDE180 |
1 | ||
| 16571-0N080 |
1NDTV..NDE180 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-33006 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96136-43901 |
1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST. |
1 | ||
| 96136-43901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 90467-33006 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-33006 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96136-43901 |
1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST. |
1 | ||
| 96136-43901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 90467-33006 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0N080 |
1NDTV..NDE180 |
1 | ||
| 16572-0N080 |
1NDTV..NDE180 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-W0016 |
1N#..NDE180,NRE180 (L),NO.1:SEE ILLUST |
1 | ||
| 96136-43901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 90466-W0016 |
1N#,8NRFTS..NDE180,NRE18# (L),NO.1:SEE ILLUST |
1 | ||
| 96136-44301 |
1N#,8NRFTS..NDE180,NRE18# (J),NO.1:SEE ILLUST |
1 | ||
| 96136-43901 |
1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST. |
1 | ||
| 96136-44301 |
1N#..NDE180,NRE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-W0016 |
1N#..NDE180,NRE180 (L),NO.1:SEE ILLUST |
1 | ||
| 96136-43901 |
1N#..NDE180,NRE180 NO.2:REFER ILLUST. |
1 | ||
| 90466-W0016 |
1N#,8NRFTS..NDE180,NRE18# (L),NO.1:SEE ILLUST |
1 | ||
| 96136-44301 |
1N#,8NRFTS..NDE180,NRE18# (J),NO.1:SEE ILLUST |
1 | ||
| 96136-43901 |
1N#,8NRFTS..NDE180,NRE18# NO.2:REFER ILLUST. |
1 | ||
| 96136-44301 |
1N#..NDE180,NRE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0N030 |
1NDTV..NDE180 |
1 | ||
| 16573-0N030 |
1NDTV..NDE180 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 90466-W0016 |
1N#..NDE180,NRE180 (L),NO.1:SEE ILLUST |
1 | ||
| 96136-44301 |
1N#..NDE180,NRE180 (J),NO.1:SEE ILLUST |
1 | ||
| 90466-W0016 |
1N#..NDE180,NRE180 (L),NO.1:SEE ILLUST |
1 | ||
| 90467-33006 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96136-44301 |
1N#..NDE180,NRE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 90466-W0016 |
1N#..NDE180,NRE180 (L),NO.1:SEE ILLUST |
1 | ||
| 96136-44301 |
1N#..NDE180,NRE180 (J),NO.1:SEE ILLUST |
1 | ||
| 90466-W0016 |
1N#..NDE180,NRE180 (L),NO.1:SEE ILLUST |
1 | ||
| 90467-33006 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96136-44301 |
1N#..NDE180,NRE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-0Y010 |
1N#..NDE180,NRE180 |
1 | ||
| 16575-0Y010 |
1N#..NDE180,NRE180 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0N010 |
1NDTV..NDE180 |
1 | ||
| 16577-0N010 |
1NDTV..NDE180 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-0Y010 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-0Y010 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-36020 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-36020 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-0Y010 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-0Y010 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-36020 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-36020 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-33020 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33020 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33150 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33150 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-33020 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33020 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33150 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33150 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0N041 |
1NDTV..NDE180 |
1 | ||
| 16711-0N041 |
1NDTV..NDE180 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0N050 |
1NDTV..NDE180 |
1 | ||
| 16712-0N050 |
1NDTV..NDE180 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90119-W0037 | ||||
| Linked diagrams | ||||
| 5303 | ||||
| 5304 | ||||
| 8401 | ||||
| 8718 | ||||

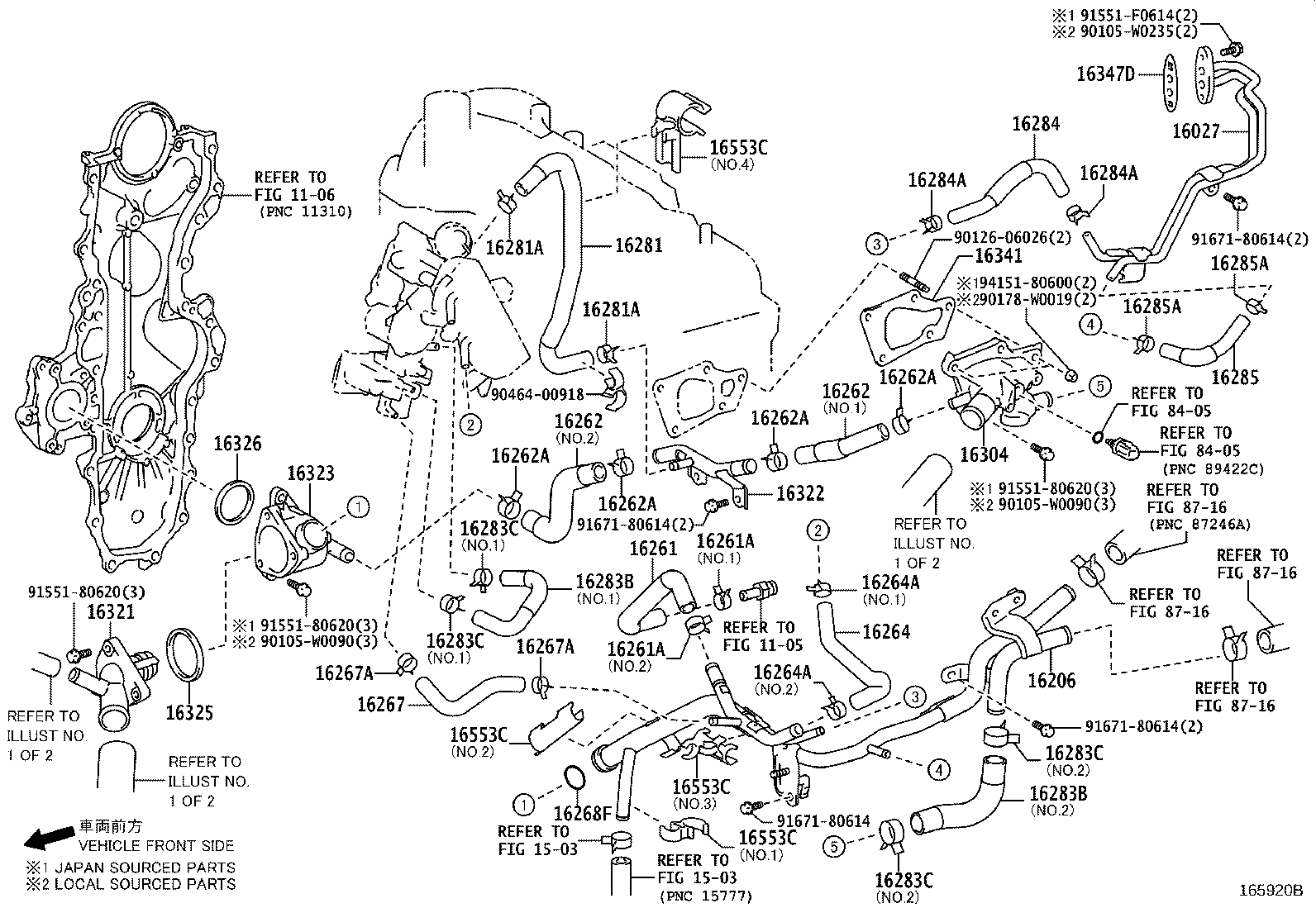

ILLUST NO. 2 OF 2(1505- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-33010 |
1NDTV..NDE180 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33070 |
1NDTV..NDE180 |
1 | ||
| 16206-33081 |
1NDTV..NDE180 |
1 | ||
| 16206-33080 |
1NDTV..NDE180 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NDE180 (J) |
1 | ||
| 16261-0N050 |
1NDTV..NDE180 (L) |
1 | ||
| 16261-0N050 |
1NDTV..NDE180 (L) |
1 | ||
| 16261-33050 |
1NDTV..NDE180 (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-33011 |
1NDTV..NDE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16262-33011 |
1NDTV..NDE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16262-0N011 |
1NDTV..NDE180 (L),NO.1:SEE ILLUST |
1 | ||
| 16263-33030 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST |
1 | ||
| 16262-0N011 |
1NDTV..NDE180 (L),NO.1:SEE ILLUST |
1 | ||
| 16263-0N010 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16263-33030 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST |
1 | ||
| 16263-0N010 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-33011 |
1NDTV..NDE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16262-33011 |
1NDTV..NDE180 (J),NO.1:SEE ILLUST |
1 | ||
| 16262-0N011 |
1NDTV..NDE180 (L),NO.1:SEE ILLUST |
1 | ||
| 16263-33030 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST |
1 | ||
| 16262-0N011 |
1NDTV..NDE180 (L),NO.1:SEE ILLUST |
1 | ||
| 16263-0N010 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16263-33030 |
1NDTV..NDE180 (J),NO.2:SEE ILLUST |
1 | ||
| 16263-0N010 |
1NDTV..NDE180 (L),NO.2:SEE ILLUST |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 96136-52201 |
1NDTV..NDE180 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NDE180 (J) |
1 | ||
| 16264-0N030 |
1NDTV..NDE180 (L) |
1 | ||
| 16264-0N030 |
1NDTV..NDE180 (L) |
1 | ||
| 16264-33040 |
1NDTV..NDE180 (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 96137-41701 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 96137-41901 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33030 |
1NDTV..NDE180 (J) |
1 | ||
| 16267-33040 |
1NDTV..NDE180 |
1 | ||
| 16267-0N050 |
1NDTV..NDE180 (L) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NDE180 |
1 | ||
| 90301-20016 |
1NDTV..NDE180 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0N070 |
1NDTV..NDE180 (L) |
1 | ||
| 16281-33030 |
1NDTV..NDE180 (J) |
1 | ||
| 16281-0N070 |
1NDTV..NDE180 (L) |
1 | ||
| 16281-33030 |
1NDTV..NDE180 (J) |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16282-33090 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16283-33070 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16282-33090 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16283-33070 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
2 | ||
| 96136-52501 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
2 | ||
| 96136-52501 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
2 | ||
| 96136-52501 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
2 | ||
| 96136-52501 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-33010 |
1NDTV..NDE180 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-33010 |
1NDTV..NDE180 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96136-41501 |
1NDTV..NDE180 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33011 |
1NDTV..NDE180 |
1 | ||
| 16304-33030 |
1NDTV..NDE180 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33040 |
1NDTV..NDE180 |
1 | ||
| 16321-33040 |
1NDTV..NDE180 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33010 |
1NDTV..NDE180 |
1 | ||
| 16322-33010 |
1NDTV..NDE180 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NDE180 |
1 | ||
| 16323-33030 |
1NDTV..NDE180 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-33010 |
1NDTV..NDE180 |
1 | ||
| 16325-33010 |
1NDTV..NDE180 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NDE180 |
1 | ||
| 16326-33030 |
1NDTV..NDE180 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-33010 |
1NDTV..NDE180 |
1 | ||
| 16341-33020 |
1NDTV..NDE180 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-33010 |
1NDTV..NDE180 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33140 |
1NDTV..NDE180 NO.4:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33140 |
1NDTV..NDE180 NO.4:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33140 |
1NDTV..NDE180 NO.4:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33140 |
1NDTV..NDE180 NO.4:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33050 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| 16581-33040 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
1 | ||
| 16581-33120 |
1NDTV..NDE180 NO.3:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90105-W0235 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91551-F0614 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 8405 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
