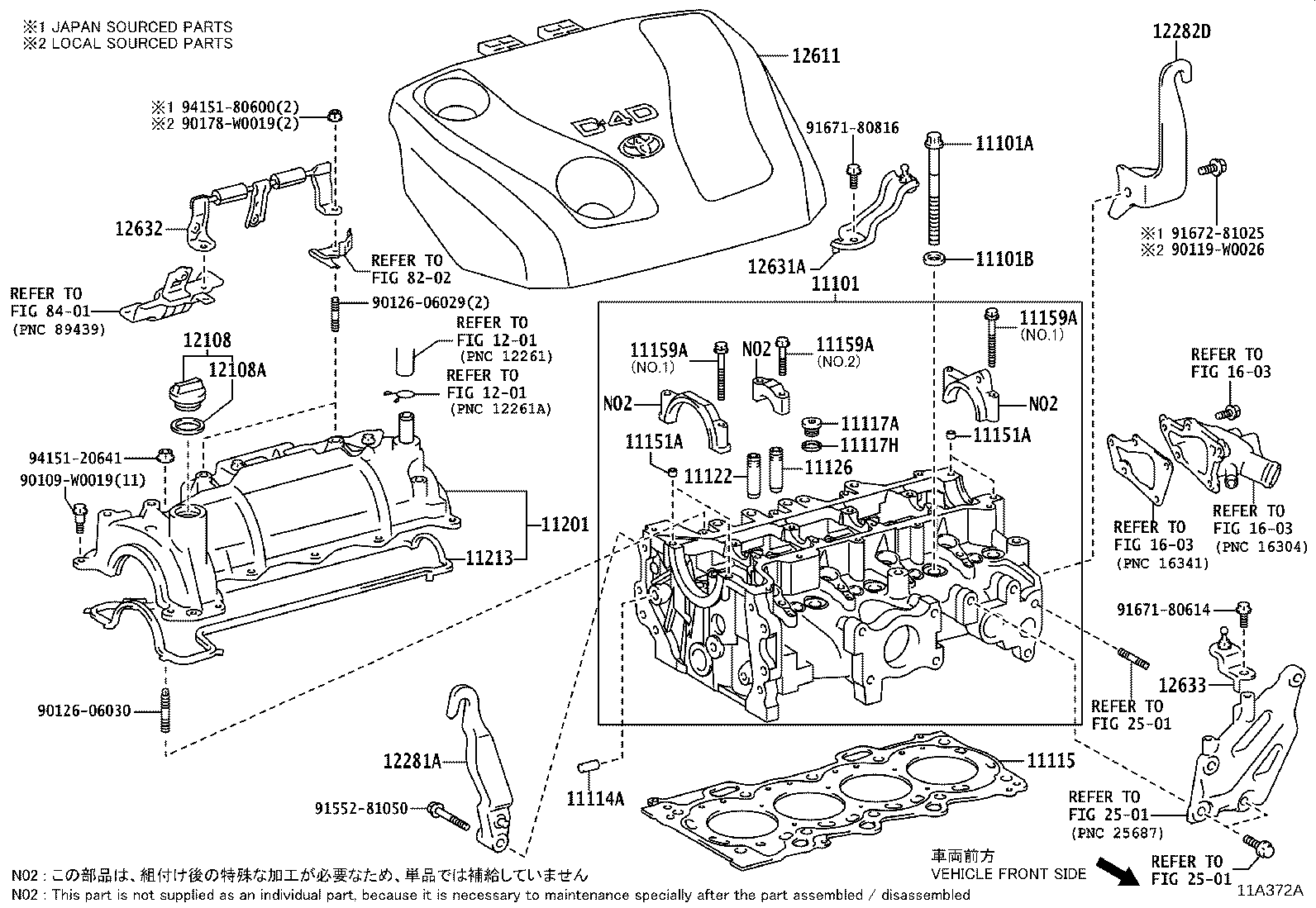

NDE180L-DHFSXW (2015)
Toyota Auris/Hybrid (Ukp)
(1505- )1NDTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-33061 |
1NDTV..NDE180 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02171 |
1NDTV..NDE180 |
10 | ||
| 90910-02171 |
1NDTV..NDE180 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13042 |
1NDTV..NDE180 |
10 | ||
| 90201-13042 |
1NDTV..NDE180 |
10 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-10030 |
1NDTV..NDE180 L=36,OD=10 |
1 | ||
| 90250-10030 |
1NDTV..NDE180 L=36,OD=10 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-33040A0 |
1NDTV..NDE180 MARKA,REFER REPAIR MANUAL |
1 | ||
| 11115-33040C0 |
1NDTV..NDE180 MARKC,REFER REPAIR MANUAL |
1 | ||
| 11115-33040D0 |
1NDTV..NDE180 MARKD,REFER REPAIR MANUAL |
1 | ||
| 11115-33040B0 |
1NDTV..NDE180 MARKB,REFER REPAIR MANUAL |
1 | ||
| 11115-33040E0 |
1NDTV..NDE180 MARKE,REFER REPAIR MANUAL |
1 | ||
| 11115-33041C0 |
1NDTV..NDE180 MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-33041A0 |
1NDTV..NDE180 MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-33041D0 |
1NDTV..NDE180 MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-33041B0 |
1NDTV..NDE180 MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-33041E0 |
1NDTV..NDE180 MARK E,REFER REPAIR MANUAL |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14008 |
1NDTV..NDE180 |
3 | ||
| 90341-14008 |
1NDTV..NDE180 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-14008 |
1NDTV..NDE180 |
3 | ||
| 90430-14008 |
1NDTV..NDE180 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-33030 |
1NDTV..NDE180 STD |
4 | ||
| 11123-33030 |
1NDTV..NDE180 O/S 0.05 |
4 | ||
| 11122-33030 |
1NDTV..NDE180 STD |
4 | ||
| 11123-33030 |
1NDTV..NDE180 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-33030 |
1NDTV..NDE180 STD |
4 | ||
| 11123-33030 |
1NDTV..NDE180 O/S 0.05 |
4 | ||
| 11122-33030 |
1NDTV..NDE180 STD |
4 | ||
| 11123-33030 |
1NDTV..NDE180 O/S 0.05 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NDE180 L=10,OD=8 |
4 | ||
| 90253-10004 |
1NDTV..NDE180 L=10,OD=8 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NDE180 L=10,OD=8 |
4 | ||
| 90253-10004 |
1NDTV..NDE180 L=10,OD=8 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
8 | ||
| 90119-07009 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
8 | ||
| 90119-07008 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
4 | ||
| 90119-07008 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
8 | ||
| 90119-07009 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
8 | ||
| 90119-07008 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
4 | ||
| 90119-07008 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
8 | ||
| 90119-07009 |
1NDTV..NDE180 NO.2:REFER ILLUST. |
8 | ||
| 90119-07008 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
4 | ||
| 90119-07008 |
1NDTV..NDE180 NO.1:REFER ILLUST. |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0N020 |
1NDTV..NDE180 (L) |
1 | ||
| 11201-33041 |
1NDTV..NDE180 (J) |
1 | ||
| 11201-0N030 |
1NDTV..NDE180 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0N010 |
1NDTV..NDE180 |
1 | ||
| 11213-33030 |
1NDTV..NDE180 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1N#..NDE180,NRE180 |
1 | ||
| 12180-38010 |
1N#,8NRFTS..NDE180,NRE18# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1N#,8NRFTS..NDE180,NRE18# |
1 | ||
| 90430-35001 |
1N#..NDE180,NRE180 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-33080 |
1NDTV..NDE180 |
1 | ||
| 12281-33050 |
1NDTV..NDE180 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-33022 |
1NDTV..NDE180 |
1 | ||
| 12282-0N020 |
1NDTV..NDE180 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0N080 |
1NDTV..NDE180 |
1 | ||
| 12611-0N090 |
1NDTV..NDE180 |
1 | ||
| 12611-0N090 |
1NDTV..NDE180 LIGHT GRADE |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-33020 |
1NDTV..NDE180 (J) |
1 | ||
| 12631-0N010 |
1NDTV..NDE180 (L) |
1 | ||
| 12631-0N020 |
1NDTV..NDE180 |
1 | ||
| 12632 - BRACKET, ENGINE COVER, NO.2 | ||||
| 12632-33060 |
1NDTV..NDE180 LIGHT GRADE |
1 | ||
| 12632-33041 |
1NDTV..NDE180 (J) |
1 | ||
| 12632-0N010 |
1NDTV..NDE180 (L) |
1 | ||
| 12632-33060 |
1NDTV..NDE180 |
1 | ||
| 12633 - BRACKET, ENGINE COVER, NO.3 | ||||
| 12633-0N010 |
1NDTV..NDE180 (L) |
1 | ||
| 12633-33030 |
1NDTV..NDE180 |
1 | ||
| 12633-33020 |
1NDTV..NDE180 (J) |
1 | ||
| Common parts | ||||
| 90109-W0019 | ||||
| 90119-W0026 | ||||
| 90126-06029 | ||||
| 90126-06030 | ||||
| 90178-W0019 | ||||
| 91552-81050 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91672-81025 | ||||
| 94151-20641 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 2501 | ||||
| 8202 | ||||
| 8401 | ||||
