NDE180L-DHFDXW (2015)
Toyota Auris/Hybrid (Ukp)
Production
May 2015
-
Nov 2018
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1505- )1NDTV

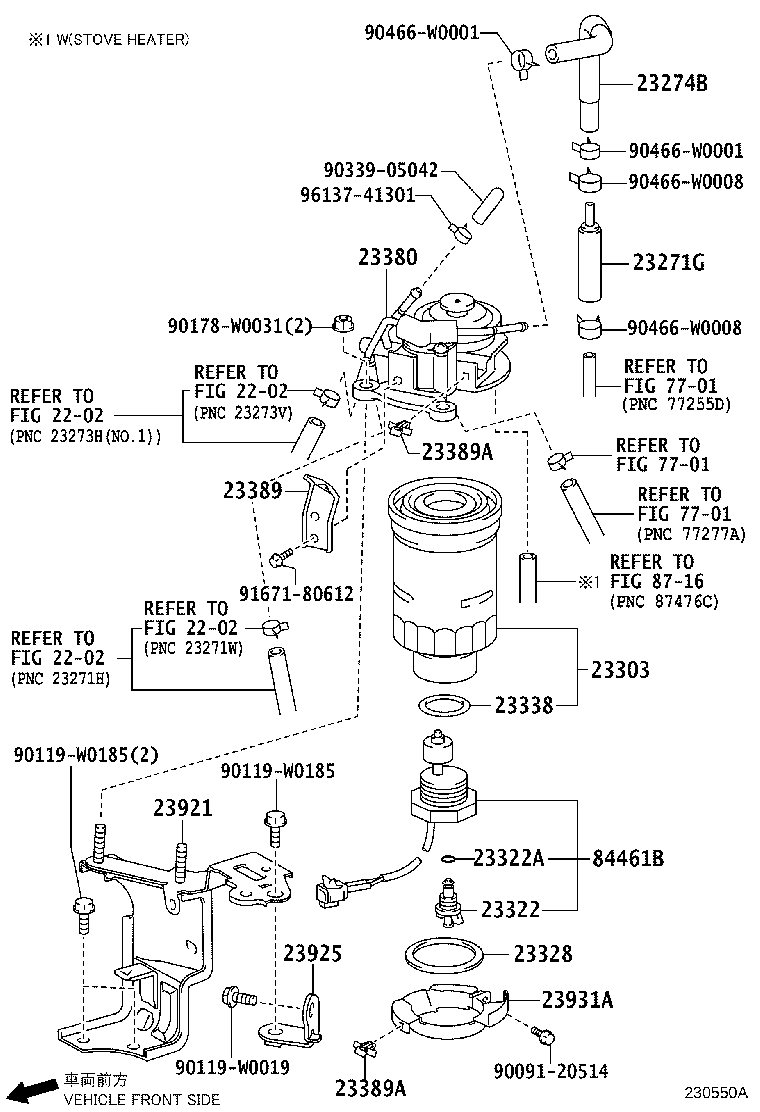

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23271G - HOSE, FUEL | ||||
| 23801-0N061 |
1NDTV..NDE180 |
1 | ||
| 23274B - HOSE, FUEL, NO.3 | ||||
| 23274-0T010 |
1NDTV..NDE180 (L) |
1 | ||
| 23274-0N040 |
1NDTV..NDE180 |
1 | ||
| 23274-26060 |
1NDTV..NDE180 (J) |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23390-26160 |
1NDTV..NDE180 |
1 | ||
| 23390-26160 |
1NDTV..NDE180 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
1NDTV..NDE180 |
1 | ||
| 23388-64470 |
1NDTV..NDE180 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1NDTV..NDE180 |
1 | ||
| 23344-54010 |
1NDTV..NDE180 |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-30160 |
1NDTV..NDE180 |
1 | ||
| 23385-30160 |
1NDTV..NDE180 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1NDTV..NDE180 |
1 | ||
| 23344-64010 |
1NDTV..NDE180 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-0R051 |
1NDTV..NDE180 |
1 | ||
| 23380-26161 |
1NDTV..NDE180..LHD COLD AREA SPEC |
1 | ||
| 23380-26171 |
1NDTV..NDE180 |
1 | ||
| 23380-0R061 |
1NDTV..NDE180..LHD COLD AREA SPEC |
1 | ||
| 23380-26171 |
1NDTV..NDE180..LHD LIGHT GRADE&COLD AREA SPEC |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-26130 |
1NDTV..NDE180 |
1 | ||
| 23389-26130 |
1NDTV..NDE180 |
1 | ||
| 23389A - CLAMP, FUEL FILTER | ||||
| 23389-27130 |
1NDTV..NDE180 |
2 | ||
| 23389-27130 |
1NDTV..NDE180 |
2 | ||
| 23389A - CLAMP, FUEL FILTER | ||||
| 23389-27130 |
1NDTV..NDE180 |
2 | ||
| 23389-27130 |
1NDTV..NDE180 |
2 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-0R010 |
1NDTV..NDE180 |
1 | ||
| 23921-0R010 |
1NDTV..NDE180 |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-0R010 |
1NDTV..NDE180 |
1 | ||
| 23925-0R010 |
1NDTV..NDE180 |
1 | ||
| 23931A - COVER, FUEL FILTER | ||||
| 23931-26031 |
1NDTV..NDE180 |
1 | ||
| 23931-26030 |
1NDTV..NDE180 |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60081 |
NDE180 |
1 | ||
| 84461-60081 |
NDE180 |
1 | ||
| Common parts | ||||
| 90091-20514 | ||||
| 90119-W0019 | ||||
| 90119-W0185 | ||||
| 90178-W0031 | ||||
| 90339-05042 | ||||
| 90466-W0001 | ||||
| 90466-W0008 | ||||
| 91671-80612 | ||||
| 96137-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 7701 | ||||
| 8716 | ||||
