NDE180L-DHFDXW (2012)
Toyota Auris/Hybrid (Ukp)
(1210- )NDE180
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915Q - RELAY, COMPUTER (FOR DIESEL) | ||||
| 90080-87021 |
NDE180 |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-20200 |
ADE186,NDE180 |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-33030 |
ADE186,NDE180 |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
ADE186,NDE180 |
1 | ||
| 89439G - BRACKET, SENSOR | ||||
| 89431-12010 |
NDE180 |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-0ZG30 |
NDE180..LHD..6F |
1 | ||
| 89661-0Z600 |
NDE180..6F |
1 | ||
| 89661-0Z780 |
NDE180..LHD..HB..6F START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 89661-0ZL10 |
NDE180..HB..6F START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 89661-0ZL11 |
NDE180..HB..6F START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 89661-0ZG40 |
NDE180..LHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89661-0ZN30 |
NDE180..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89661-0Z601 |
NDE180..6F |
1 | ||
| 89661-0ZN31 |
NDE180..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-0ZG30 |
NDE180..LHD..6F |
1 | ||
| 89661-0Z600 |
NDE180..6F |
1 | ||
| 89661-0Z780 |
NDE180..LHD..HB..6F START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 89661-0ZL10 |
NDE180..HB..6F START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 89661-0ZL11 |
NDE180..HB..6F START & STOP SYSTEM PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.736 |
1 | ||
| 89661-0ZG40 |
NDE180..LHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89661-0ZN30 |
NDE180..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89661-0Z601 |
NDE180..6F |
1 | ||
| 89661-0ZN31 |
NDE180..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-12320 |
NDE180 |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-12320 |
NDE180 |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-12250 |
NDE180 |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-12250 |
NDE180 |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90159-W0010 | ||||
| 90166-W0001 | ||||
| 90430-12221 | ||||
| 90430-16010 | ||||
| 91671-80614 | ||||

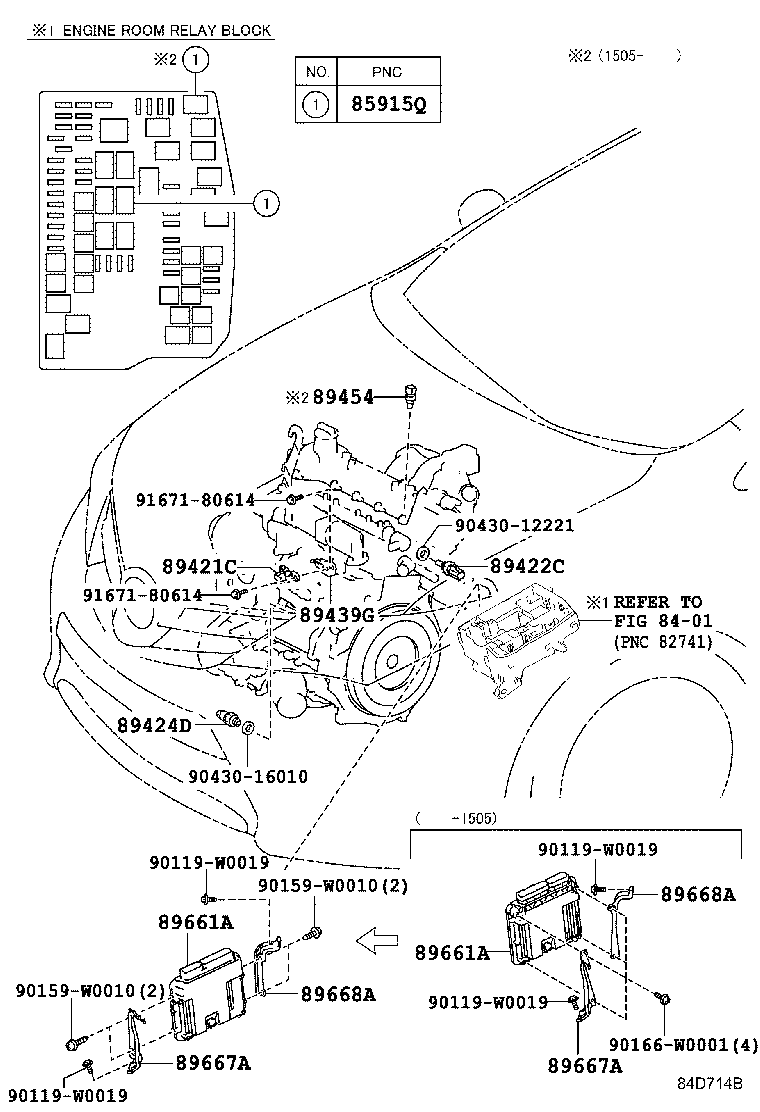

| Linked diagrams | ||||
| 8401 | ||||
