NDE180L-DHFDXW (2012)
Toyota Auris/Hybrid (Ukp)

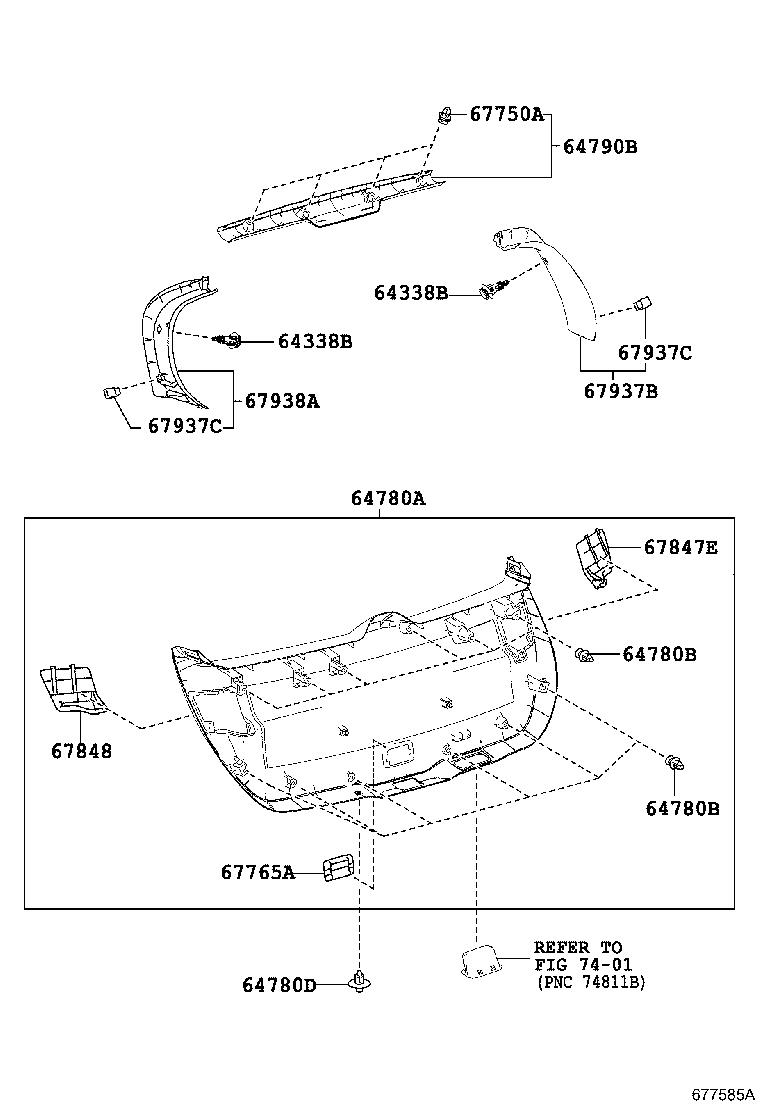

ILLUST NO. 2 OF 2(1210- )HB
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64338B - HOOK, PACKAGE TRAY TRIM GARNISH | ||||
| 64338-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
2 | ||
| 64338B - HOOK, PACKAGE TRAY TRIM GARNISH | ||||
| 64338-12050C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
2 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-02030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
12 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
12 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07076C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-02080C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-W0005 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-02030C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 67847E - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-02020C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-02060C0 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(D,N) BLACK,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 7401 | ||||

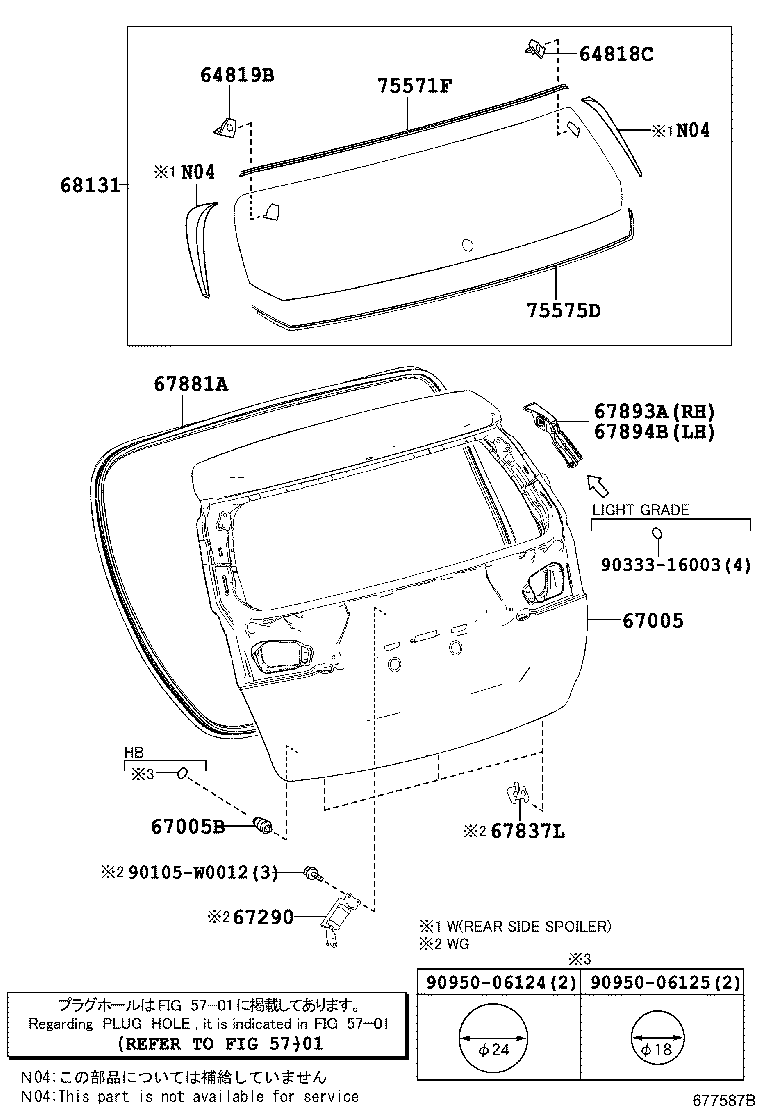

ILLUST NO. 1 OF 2(1210- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-02040 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-02030 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-02280 |
NDE180,NRE180,ZRE185..HB..D |
1 | ||
| 67005-02280 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 67005-02240 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09142 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 67893A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 67893-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 67894B - PROTECTOR, BACK DOOR PANEL, NO.2 | ||||
| 67894-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-02210 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..(G,N) REAR SIDE GLASS-PRIVACY |
1 | ||
| 68105-02200 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 68105-02300 |
NDE180..HB..6F..N ECO PACKAGE&REAR SIDE GLASS-PRIVACY |
1 | ||
| 68105-02290 |
NDE180..HB..6F ECO PACKAGE |
1 | ||
| 75571F - MOULDIMG, BACK DOOR WINDOW | ||||
| 75571-02270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-02060 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB |
1 | ||
| Common parts | ||||
| 90105-W0012 | ||||
| 90333-16003 | ||||
| 90950-06124 | ||||
| 90950-06125 | ||||
| Linked diagrams | ||||
| 5701 | ||||
