NDE150R-DGMNYW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Feb 2009
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0902)NDE150..RHD

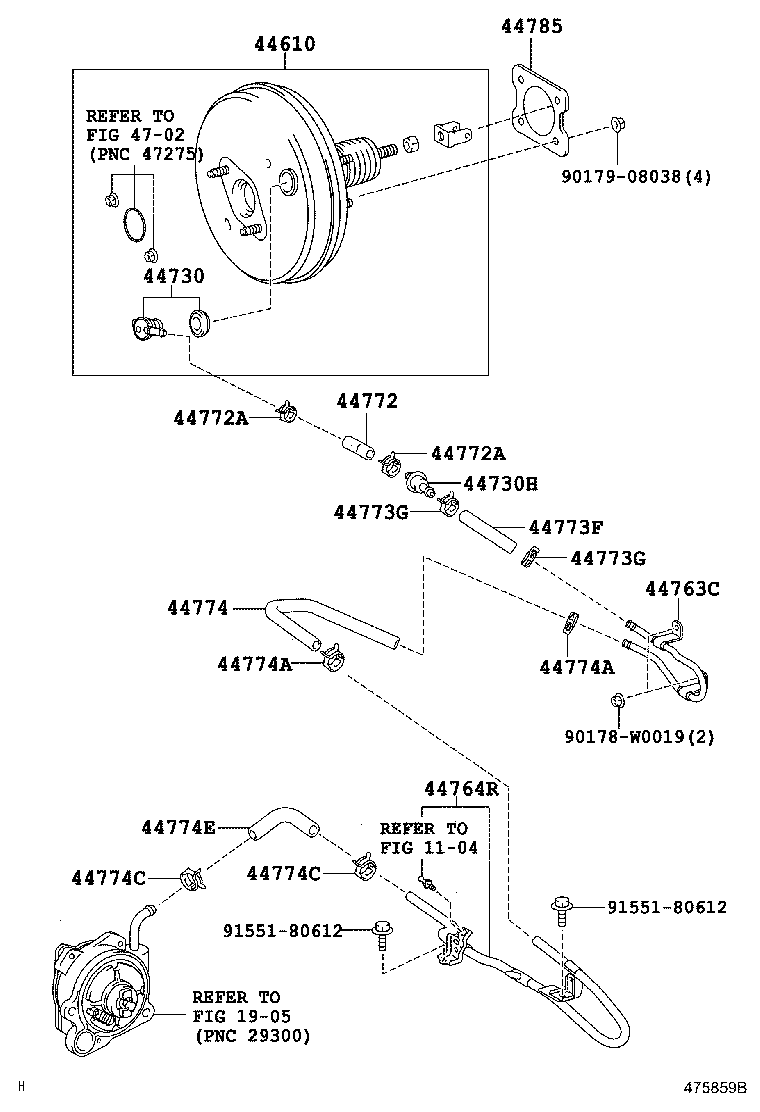

Click highlighted areas on diagram

diagram 1104 1905 44610 44730 44730H 44763C 44764R 44772 44772A 44772A 44773F 44773G 44773G 44774 44774A 44774A 44774C 44774C 44774E 44785 4702 90178W0019 9017908038 9155180612 9155180612
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09460

NDE150..RHD

VSC-WITH(W/CUT OFF SWITCH)

 1
44610-09420

NDE150..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

NDE150,ZRE151

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-35010

NDE150..RHD

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12450

NDE150..RHD

 1
44764R - TUBE, CONNECTOR TO VACUUM RESERVOIR
44764-12010

NDE150

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12610

NDE150..RHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-W0008

ZRE151;NDE150..RHD

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-W0008

ZRE151;NDE150..RHD

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-12780

NDE150..RHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-W0008

NDE150..RHD

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-W0008

NDE150..RHD

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12570

NDE150..RHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008

ZRE151;NDE150..RHD

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-W0008

ZRE151;NDE150..RHD

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NDE150

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NDE150

 2
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-52021

NDE150

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

NDE150,ZRE151

 1
Common parts
90178-W0019
90179-08038
91551-80612
Linked diagrams
1104
1905
4702
