NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)
(1001- )3D ; (1001- )ZRE151,ZWE150..HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

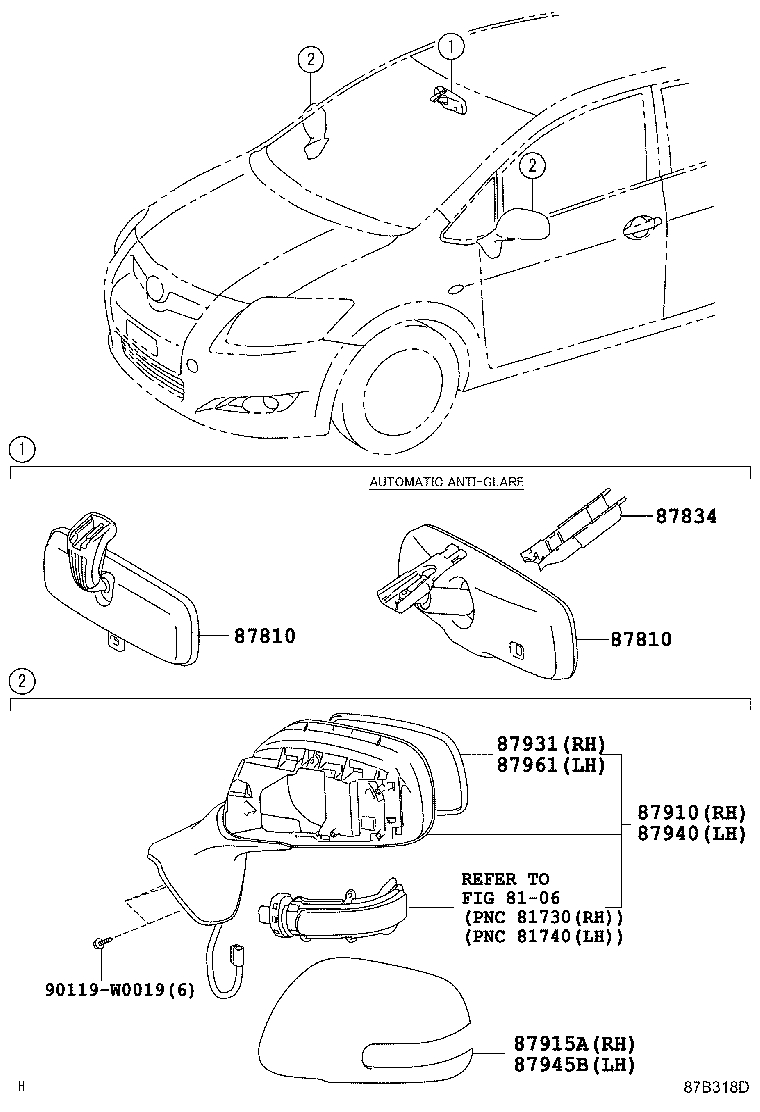

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-02090 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 87810-02090 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 87810-0D011 |
NDE150,ZRE151 |
1 | ||
| 87810-0D011 |
NDE150,ZRE151 |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-02090 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 87810-02090 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 87810-0D011 |
NDE150,ZRE151 |
1 | ||
| 87810-0D011 |
NDE150,ZRE151 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-33010 |
NDE150,ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 87818-33010 |
NDE150,ZRE151..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87901-02290 |
NDE150,ZRE151..RHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87901-02290 |
NDE150,ZRE151..RHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87901-02280 |
NDE150,ZRE151..RHD NO PAINT REQ. |
1 | ||
| 87901-02280 |
NDE150,ZRE151..RHD NO PAINT REQ. |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-02909 |
NDE150,ZRE151..SOL |
1 | ||
| 87915-02909 |
NDE150,ZRE151..SOL |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87908-02750 |
NDE150,ZRE151..RHD |
1 | ||
| 87908-02750 |
NDE150,ZRE151..RHD |
1 | ||
| 87908-02760 |
NDE150,ZRE151..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87908-02760 |
NDE150,ZRE151..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87906-02270 |
NDE150,ZRE151..RHD NO PAINT REQ. |
1 | ||
| 87906-02270 |
NDE150,ZRE151..RHD NO PAINT REQ. |
1 | ||
| 87906-02280 |
NDE150,ZRE151..RHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87906-02280 |
NDE150,ZRE151..RHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-02909 |
NDE150,ZRE151..SOL |
1 | ||
| 87945-02909 |
NDE150,ZRE151..SOL |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87909-02730 |
NDE150,ZRE151..RHD |
1 | ||
| 87909-02730 |
NDE150,ZRE151..RHD |
1 | ||
| 87909-02740 |
NDE150,ZRE151..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87909-02740 |
NDE150,ZRE151..RHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| Linked diagrams | ||||
| 8106 | ||||
