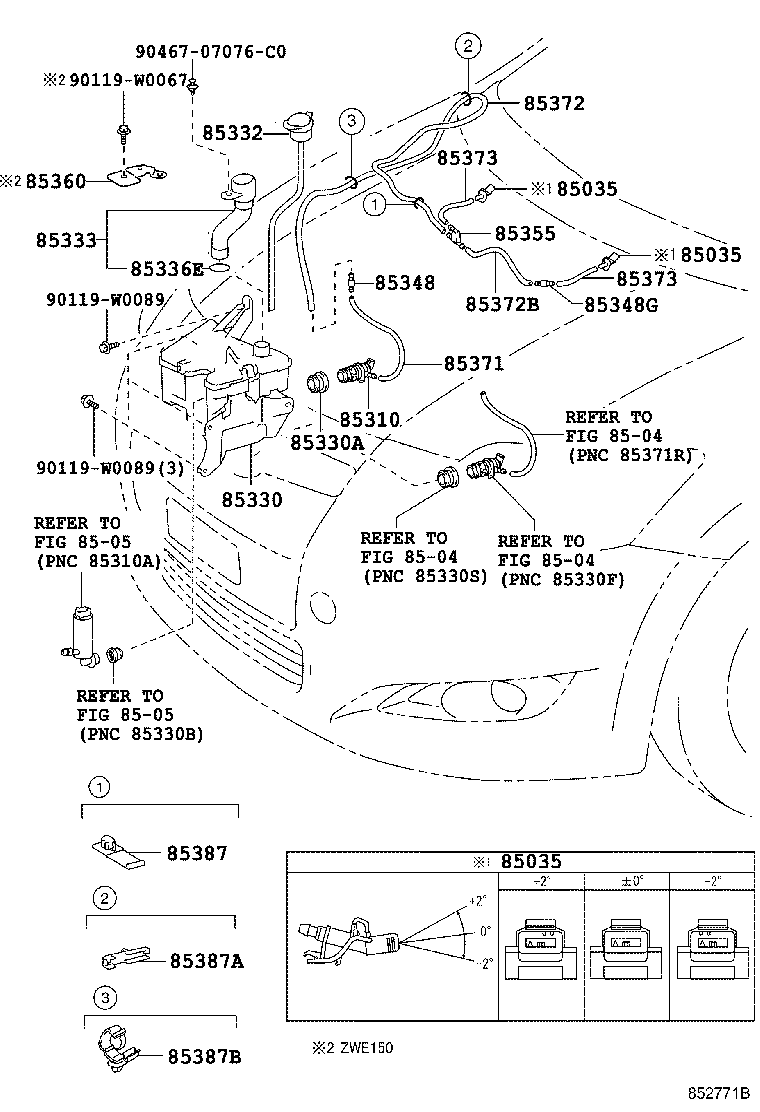

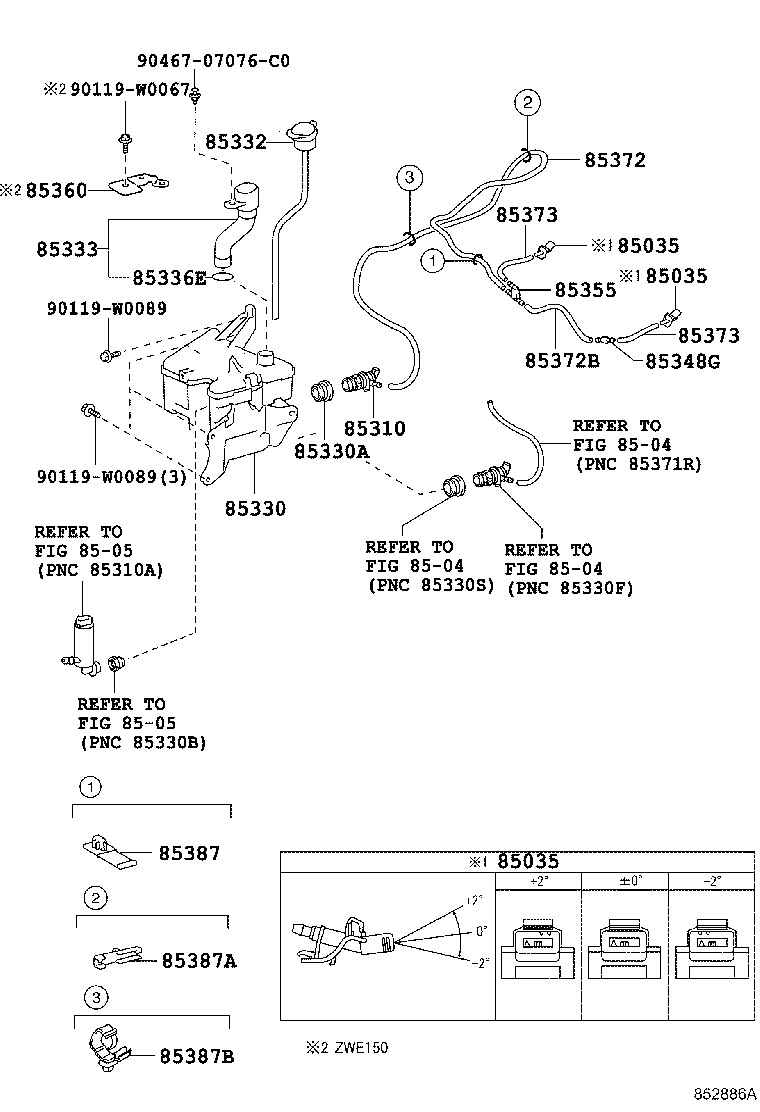

NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)
(0702-1108)
W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-02030 |
NDE150,ZRE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02230 |
NDE150,ZRE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE150,ZRE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-02060 |
NDE150,ZRE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE150,ZRE151 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE150,ZRE151 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02240 |
NDE150,ZRE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0067 | ||||
| 90119-W0089 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||

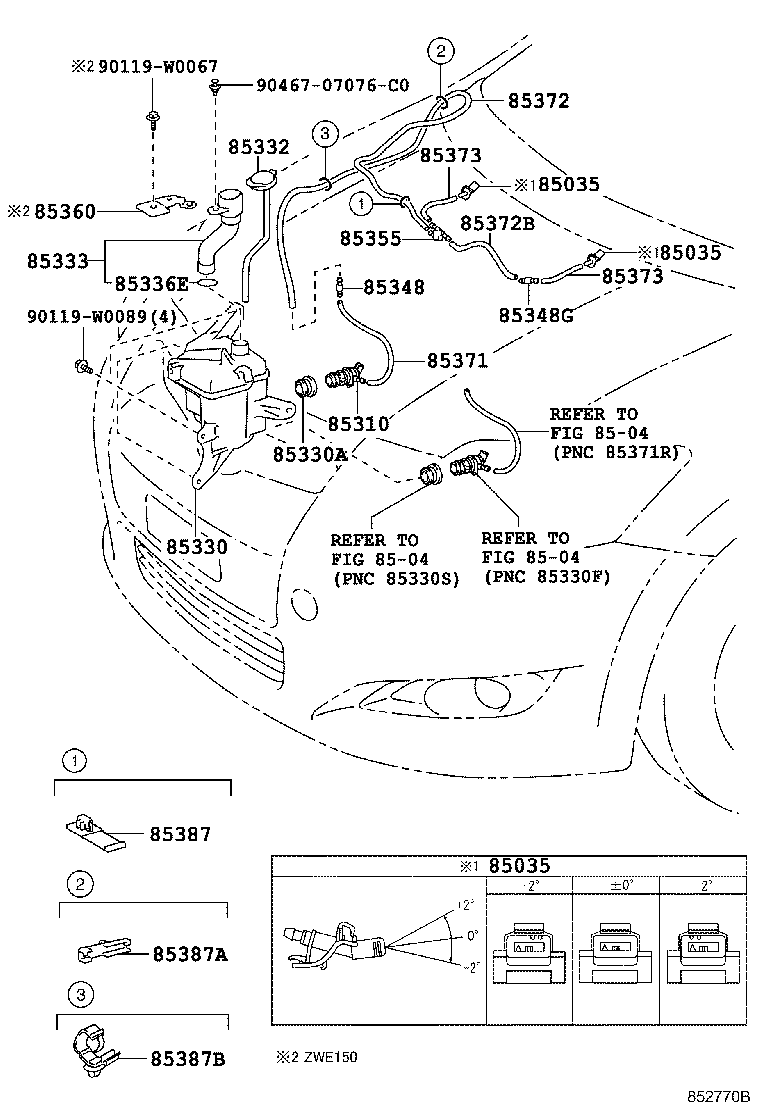

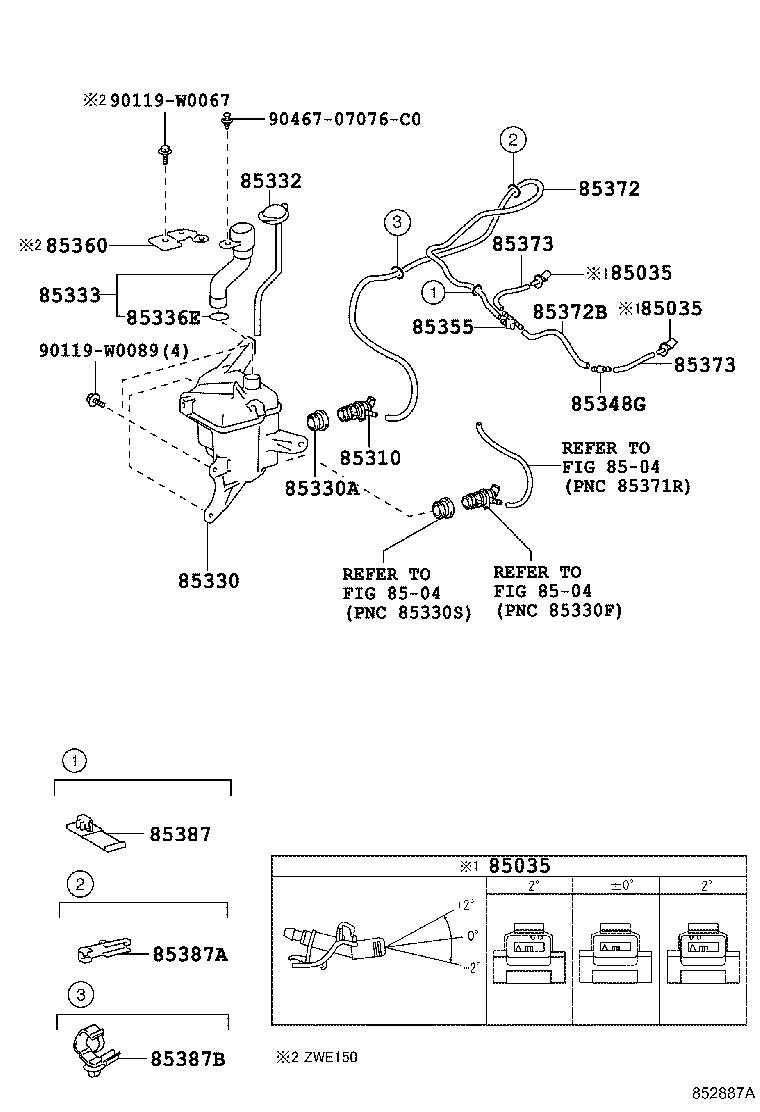

(0702-1108)G ; (0702-1108)LHD..E,SOL,TERRA
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-02030 |
NDE150,ZRE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02230 |
NDE150,ZRE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE150,ZRE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-02060 |
NDE150,ZRE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE150,ZRE151 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE150,ZRE151 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02240 |
NDE150,ZRE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0067 | ||||
| 90119-W0089 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
(1108-1202)
W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-02030 |
NDE150,ZRE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02230 |
NDE150,ZRE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE150,ZRE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-02060 |
NDE150,ZRE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE150,ZRE151 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE150,ZRE151 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02240 |
NDE150,ZRE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0067 | ||||
| 90119-W0089 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(1108-1202)G ; (1108-1202)LHD..E,SOL,TERRA
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-02030 |
NDE150,ZRE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02230 |
NDE150,ZRE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE150,ZRE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-02060 |
NDE150,ZRE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE150,ZRE151 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE150,ZRE151 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02240 |
NDE150,ZRE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0067 | ||||
| 90119-W0089 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
(1202- )
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-02030 |
NDE150,ZRE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02230 |
NDE150,ZRE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE150,ZRE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-02060 |
NDE150,ZRE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE150,ZRE151 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE150,ZRE151 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02240 |
NDE150,ZRE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0067 | ||||
| 90119-W0089 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
(1202- )
W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151 ANGLE 0 |
2 | ||
| 85381-12340 |
NDE150,ZRE151 ANGLE -2 |
2 | ||
| 85381-12350 |
NDE150,ZRE151 ANGLE +2 |
2 | ||
| 85381-12390 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE -2 |
2 | ||
| 85381-12380 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE 0 |
2 | ||
| 85381-12370 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-02030 |
NDE150,ZRE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02230 |
NDE150,ZRE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE150,ZRE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85356-02060 |
NDE150,ZRE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-05050 |
NDE150,ZRE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE150,ZRE151 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE150,ZRE151 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE150,ZRE151 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-02240 |
NDE150,ZRE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90119-W0067 | ||||
| 90119-W0089 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
