NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)

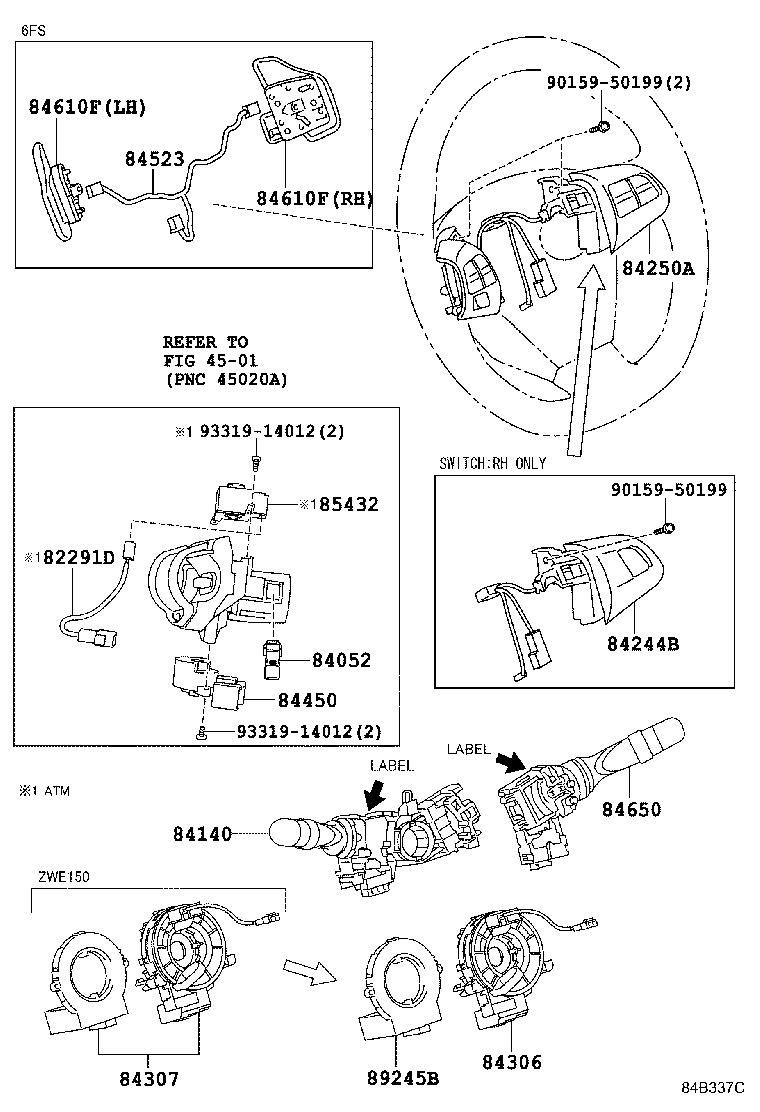

ILLUST NO. 5 OF 6(1001- )3D ; (1001- )ZRE151,ZWE150..HTWC
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02330 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28 |
1 | ||
| 84140-02330 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G28 |
1 | ||
| 84140-02290 |
ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24 |
1 | ||
| 84140-02290 |
ADE15#,NDE150,ZRE151,ZZE150..SOL LABEL=G24 |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-02010 |
ADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..SOL STEERING SWITCH-MULTI INFORMATION DISPLAY |
1 | ||
| 84244-02010 |
ADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..SOL STEERING SWITCH-MULTI INFORMATION DISPLAY |
1 | ||
| 84244-02030 |
NDE150,ZRE151..6FS..SOL STEERING SWITCH-MULTI INFORMATION DISPLAY |
1 | ||
| 84244-02030 |
NDE150,ZRE151..6FS..SOL STEERING SWITCH-MULTI INFORMATION DISPLAY |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02050 |
ADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..SOL STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-02050 |
ADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..SOL STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-02050 |
NDE150..E STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-02050 |
NDE150..E STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-02050 |
NDE150..E STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY&RADIOLESS 6SPEAKER |
1 | ||
| 84250-02050 |
NDE150..E STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY&RADIOLESS 6SPEAKER |
1 | ||
| 84250-02140 |
NDE150,ZRE151..6FS..SOL STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-02140 |
NDE150,ZRE151..6FS..SOL STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-02150 |
NDE150..E STEERING SWITCH-AUDIO,HANDSFREE,MULTIINFORMATION DISPLAY&CD BLUETOOTH 6SPEAKER(MULTI) |
1 | ||
| 84250-02150 |
NDE150..E STEERING SWITCH-AUDIO,HANDSFREE,MULTIINFORMATION DISPLAY&CD BLUETOOTH 6SPEAKER(MULTI) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D070 |
NDE150,ZRE151..SOL;NDE150,ZRE151..5FS..TERRA |
1 | ||
| 84306-0D070 |
NDE150,ZRE151..SOL;NDE150,ZRE151..5FS..TERRA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02420 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31 |
1 | ||
| 84652-02420 |
ADE15#,NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR),LABEL=G31 |
1 | ||
| 84652-02410 |
ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30 |
1 | ||
| 84652-02410 |
ADE15#,NDE150,ZRE151,ZZE150 LABEL=G30 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
