NDE150R-DGLNXW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jan 2010 - Oct 2012
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1001- )3D ; (1001- )ZRE151,ZWE150..HTWC ;(1001- )NDE150..LHD..5D..6FS

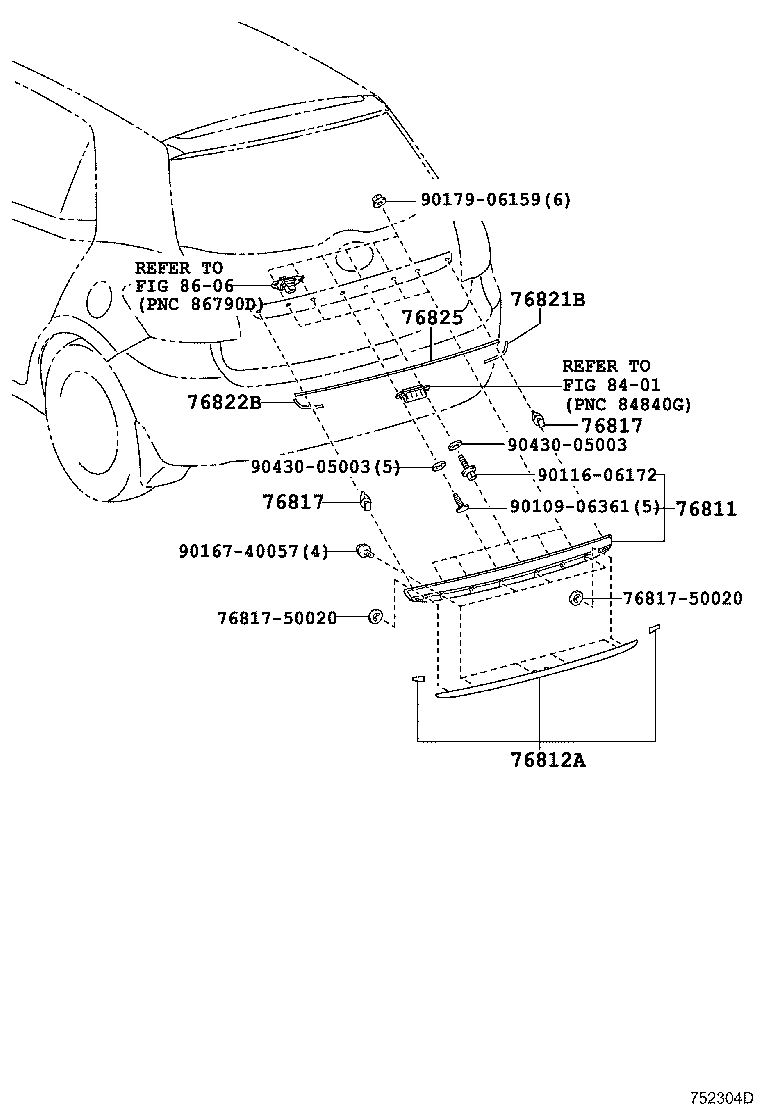

Click highlighted areas on diagram

diagram 76811 76812A 76817 76817 7681750020 7681750020 76821B 76822B 76825 8401 8606 9010906361 9011606172 9016740057 9017906159 9043005003 9043005003
Part # Description Qty Price
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-02180

NDE150,ZRE151

 1
76811-02180

NDE150,ZRE151

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-02030

NDE150,ZRE151

 1
76825-02030

NDE150,ZRE151

 1
Common parts
76817-50020
90109-06361
90116-06172
90167-40057
90179-06159
90430-05003
Linked diagrams
8401
8606
