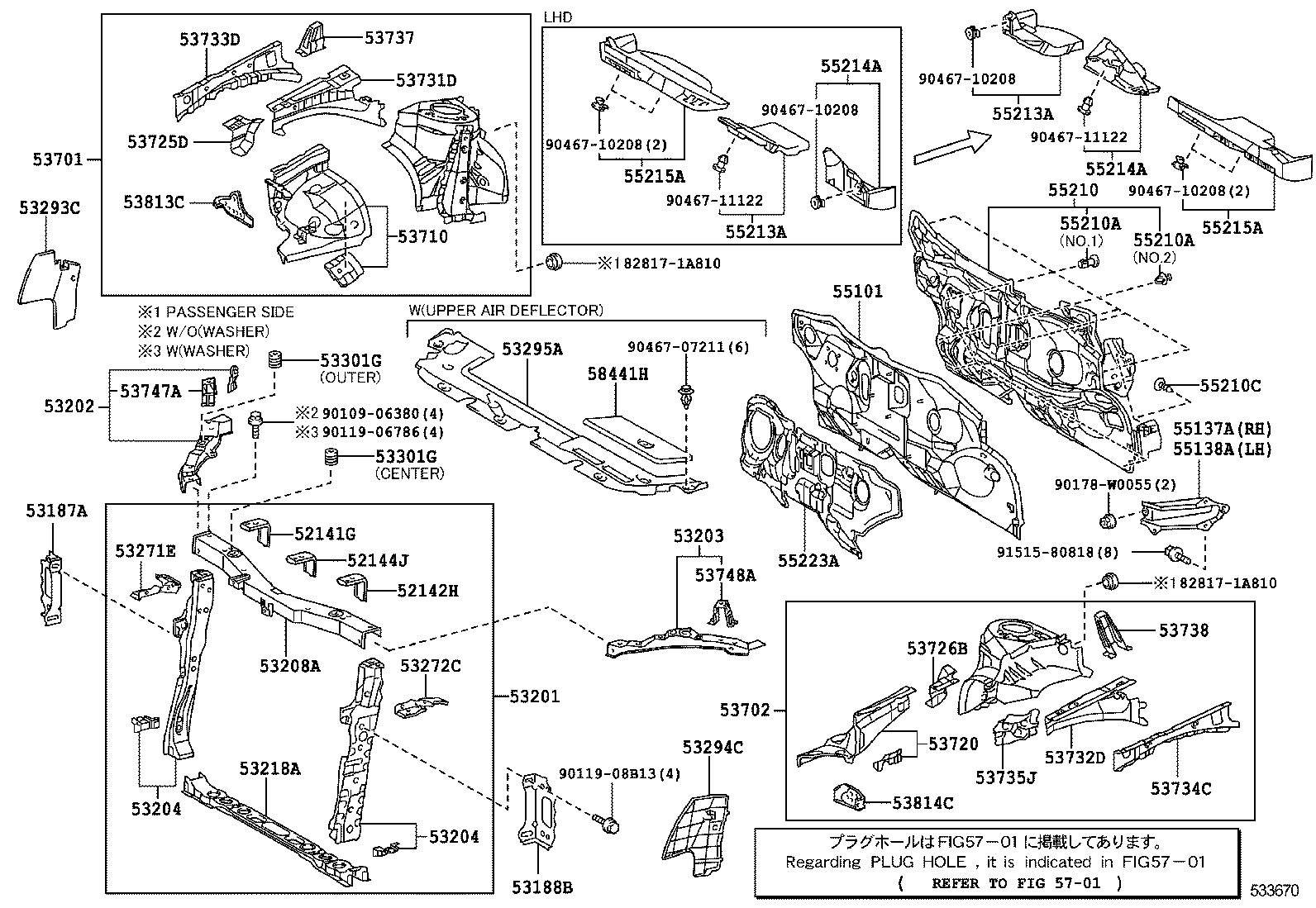

NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)
(0702-1201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52081-02020 |
NDE150,ZRE151 |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52082-02050 |
NDE150,ZRE151 |
1 | ||
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-02010 |
NDE150,ZRE151 |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-02010 |
NDE150,ZRE151 |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-02010 |
NDE150,ZRE151 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-02905 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 53201-02901 |
NDE150,ZRE151 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02030 |
NDE150,ZRE151 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02040 |
NDE150,ZRE151 |
1 | ||
| 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER | ||||
| 53204-02010 |
NDE150,ZRE151 LH |
1 | ||
| 53209-02040 |
NDE150,ZRE151 RH |
1 | ||
| 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER | ||||
| 53204-02010 |
NDE150,ZRE151 LH |
1 | ||
| 53209-02040 |
NDE150,ZRE151 RH |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02140 |
NDE150,ZRE151 *154 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-02901 |
NDE150,ZRE151 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-02010 |
NDE150,ZRE151 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-02010 |
NDE150,ZRE151 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-02010 |
NDE150,ZRE151 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-02010 |
NDE150,ZRE151 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
NDE150,ZRE151 OUTER |
2 | ||
| 90541-15022 |
NDE150,ZRE151 CENTER |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
NDE150,ZRE151 OUTER |
2 | ||
| 90541-15022 |
NDE150,ZRE151 CENTER |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02080 |
NDE150,ZRE151 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02090 |
NDE150,ZRE151 |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53710-02030 |
NDE150,ZRE151 |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53720-02030 |
NDE150,ZRE151 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-02010 |
NDE150,ZRE151 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-02010 |
NDE150,ZRE151 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02020 |
NDE150,ZRE151 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02020 |
NDE150,ZRE151 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-02010 |
NDE150,ZRE151 *153 |
1 | ||
| 53733-12070 |
NDE150,ZRE151 *154 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-02010 |
NDE150,ZRE151 *153 |
1 | ||
| 53734-12070 |
NDE150,ZRE151 *154 |
1 | ||
| 53735J - PATCH, FRONT FENDER APRON, NO.5 | ||||
| 53735-02010 |
NDE150,ZRE151 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02030 |
NDE150,ZRE151 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02040 |
NDE150,ZRE151 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-02010 |
NDE150,ZRE151 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-02010 |
NDE150,ZRE151 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-02030 |
NDE150,ZRE151 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-02030 |
NDE150,ZRE151 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02010 |
NDE150,ZRE151 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02010 |
NDE150,ZRE151 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02200 |
NDE150,ZRE151..RHD |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NDE150,ZRE151 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
NDE150,ZRE151 NO.2:REFER ILLUST. |
3 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NDE150,ZRE151 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
NDE150,ZRE151 NO.2:REFER ILLUST. |
3 | ||
| 55210C - CLIP | ||||
| 90467-08186C0 |
NDE150,ZRE151 BLACK |
4 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-02170 |
NDE150,ZRE151..RHD |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-02170 |
NDE150,ZRE151..RHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02160 |
NDE150,ZRE151..RHD |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90109-06380 | ||||
| 90119-06786 | ||||
| 90119-08B13 | ||||
| 90178-W0055 | ||||
| 90467-07211 | ||||
| 90467-10208 | ||||
| 90467-11122 | ||||
| 91515-80818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52081-02020 |
NDE150,ZRE151 |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52082-02050 |
NDE150,ZRE151 |
1 | ||
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-02010 |
NDE150,ZRE151 |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-02010 |
NDE150,ZRE151 |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-02010 |
NDE150,ZRE151 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-02905 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 53201-02901 |
NDE150,ZRE151 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02030 |
NDE150,ZRE151 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02040 |
NDE150,ZRE151 |
1 | ||
| 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER | ||||
| 53204-02010 |
NDE150,ZRE151 LH |
1 | ||
| 53209-02040 |
NDE150,ZRE151 RH |
1 | ||
| 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER | ||||
| 53204-02010 |
NDE150,ZRE151 LH |
1 | ||
| 53209-02040 |
NDE150,ZRE151 RH |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02140 |
NDE150,ZRE151 *154 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-02901 |
NDE150,ZRE151 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-02010 |
NDE150,ZRE151 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-02010 |
NDE150,ZRE151 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-02010 |
NDE150,ZRE151 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-02010 |
NDE150,ZRE151 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
NDE150,ZRE151 OUTER |
2 | ||
| 90541-15022 |
NDE150,ZRE151 CENTER |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
NDE150,ZRE151 OUTER |
2 | ||
| 90541-15022 |
NDE150,ZRE151 CENTER |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02080 |
NDE150,ZRE151 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02090 |
NDE150,ZRE151 |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53710-02030 |
NDE150,ZRE151 |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53720-02030 |
NDE150,ZRE151 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-02010 |
NDE150,ZRE151 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-02010 |
NDE150,ZRE151 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02020 |
NDE150,ZRE151 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02020 |
NDE150,ZRE151 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-02010 |
NDE150,ZRE151 *153 |
1 | ||
| 53733-12070 |
NDE150,ZRE151 *154 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-02010 |
NDE150,ZRE151 *153 |
1 | ||
| 53734-12070 |
NDE150,ZRE151 *154 |
1 | ||
| 53735J - PATCH, FRONT FENDER APRON, NO.5 | ||||
| 53735-02010 |
NDE150,ZRE151 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02030 |
NDE150,ZRE151 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02040 |
NDE150,ZRE151 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-02010 |
NDE150,ZRE151 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-02010 |
NDE150,ZRE151 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-02030 |
NDE150,ZRE151 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-02030 |
NDE150,ZRE151 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02010 |
NDE150,ZRE151 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02010 |
NDE150,ZRE151 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02200 |
NDE150,ZRE151..RHD |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NDE150,ZRE151 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
NDE150,ZRE151 NO.2:REFER ILLUST. |
3 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NDE150,ZRE151 NO.1:REFER ILLUST. |
5 | ||
| 90467-11127 |
NDE150,ZRE151 NO.2:REFER ILLUST. |
3 | ||
| 55210C - CLIP | ||||
| 90467-08186C0 |
NDE150,ZRE151 BLACK |
4 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-02170 |
NDE150,ZRE151..RHD |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-02170 |
NDE150,ZRE151..RHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02020 |
NDE150,ZRE151..RHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02160 |
NDE150,ZRE151..RHD |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90109-06380 | ||||
| 90119-06786 | ||||
| 90119-08B13 | ||||
| 90178-W0055 | ||||
| 90467-07211 | ||||
| 90467-10208 | ||||
| 90467-11122 | ||||
| 91515-80818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
