NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)
(1001- )3D ; (1001- )ZRE151..HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02120 |
NDE150,ZRE151 |
1 | ||
| 52021-02120 |
NDE150,ZRE151 |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-02022 |
ADE15#,NDE150,NRE150,ZRE15#..SOL |
1 | ||
| 52125-02022 |
ADE15#,NDE150,NRE150,ZRE15#..SOL |
1 | ||
| 52125-02022 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 52125-02022 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-02012 |
ADE15#,NDE150,NRE150,ZRE15#..SOL |
1 | ||
| 52126-02012 |
ADE15#,NDE150,NRE150,ZRE15#..SOL |
1 | ||
| 52126-02012 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 52126-02012 |
ADE150,NDE150,NRE150,ZRE151..E,TERRA FRONT FOG LAMP-WITH(WHITE) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02908 |
NDE150,ZRE151 |
1 | ||
| 52127-02908 |
NDE150,ZRE151 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02908 |
NDE150,ZRE151 |
1 | ||
| 52128-02908 |
NDE150,ZRE151 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
NDE150,ZRE151 (L) |
8 | ||
| 52161-02030 |
NDE150,ZRE151 (L) |
8 | ||
| 52161-16010 |
NDE150,ZRE151 (J) |
8 | ||
| 52161-16010 |
NDE150,ZRE151 (J) |
8 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
NDE150,ZRE151 (L) |
8 | ||
| 52161-02030 |
NDE150,ZRE151 (L) |
8 | ||
| 52161-16010 |
NDE150,ZRE151 (J) |
8 | ||
| 52161-16010 |
NDE150,ZRE151 (J) |
8 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 90467-05063C0 |
NDE150,ZRE151 BLACK |
3 | ||
| 90467-05063C0 |
NDE150,ZRE151 BLACK |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05090B1 |
NDE150,ZRE151 DK.GRAY |
2 | ||
| 90467-05090B1 |
NDE150,ZRE151 DK.GRAY |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-02040 |
NDE150,ZRE151 |
1 | ||
| 52535-02040 |
NDE150,ZRE151 |
1 | ||
| 52535-02041 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 52535-02041 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-02030 |
NDE150,ZRE151 |
1 | ||
| 52536-02030 |
NDE150,ZRE151 |
1 | ||
| 52536-02031 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 52536-02031 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02130 |
NDE150,ZRE151 |
1 | ||
| 52611-02130 |
NDE150,ZRE151 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02080 |
NDE150,ZRE151 NO PAINT REQ. |
1 | ||
| 53112-02080 |
NDE150,ZRE151 NO PAINT REQ. |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-02010 |
NDE150,ZRE151 |
1 | ||
| 53395-02010 |
NDE150,ZRE151 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02050 |
NDE150,ZRE151..SOL |
1 | ||
| 81481-02050 |
NDE150,ZRE151..SOL |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02040 |
NDE150,ZRE151..SOL |
1 | ||
| 81482-02040 |
NDE150,ZRE151..SOL |
1 | ||
| Common parts | ||||
| 90109-06383 | ||||
| 90179-06127 | ||||
| 91673-80616 | ||||
| 91674-A1028 | ||||

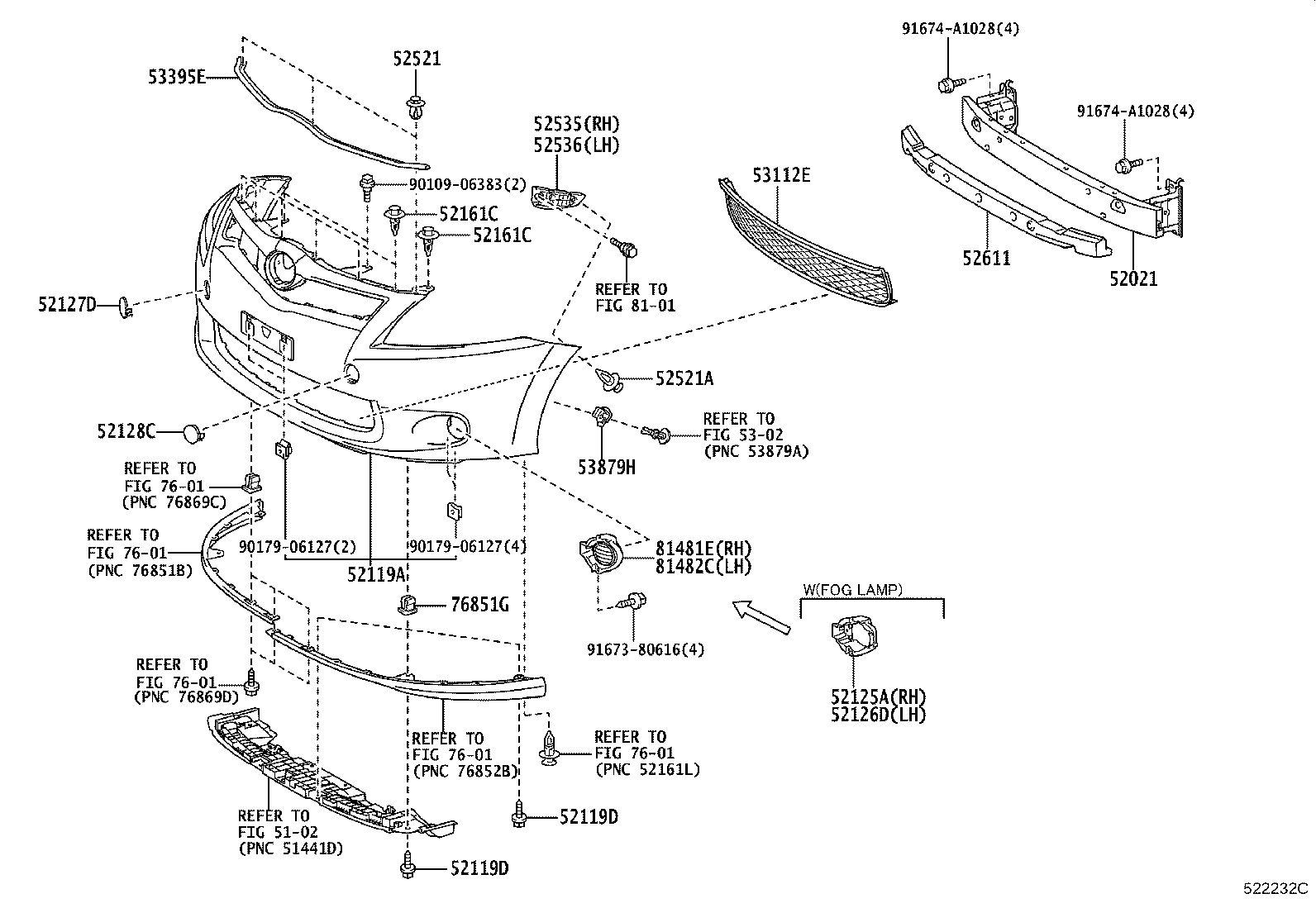

| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||
