NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)
(1001- )ZRE151..HTWC ; (1001- )ADE150,NDE150,NRE150,ZRE15#..3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-02010 |
NDE150,ZRE151 |
1 | ||
| 46135-02010 |
NDE150,ZRE151 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-02471B0 |
ADE150,NDE150,NRE150,ZRE15#..E,SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 46201-02471B0 |
ADE150,NDE150,NRE150,ZRE15#..E,SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-02050 |
NDE150,ZRE151 NO.2 |
1 | ||
| 46243-02050 |
NDE150,ZRE151 NO.2 |
1 | ||
| 46243-02040 |
NDE150,ZRE151 NO.1 |
1 | ||
| 46243-02040 |
NDE150,ZRE151 NO.1 |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-02050 |
NDE150,ZRE151 NO.2 |
1 | ||
| 46243-02050 |
NDE150,ZRE151 NO.2 |
1 | ||
| 46243-02040 |
NDE150,ZRE151 NO.1 |
1 | ||
| 46243-02040 |
NDE150,ZRE151 NO.1 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-02090 |
NDE150,ZRE151 |
1 | ||
| 46410-02090 |
NDE150,ZRE151 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-02121 |
NDE150,ZRE151 |
1 | ||
| 46420-02121 |
NDE150,ZRE151 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
NDE150,ZRE151 |
2 | ||
| 46411-12030 |
NDE150,ZRE151 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
NDE150,ZRE151 |
2 | ||
| 46411-12030 |
NDE150,ZRE151 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
NDE150,ZRE151 |
2 | ||
| 46411-12040 |
NDE150,ZRE151 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
NDE150,ZRE151 |
2 | ||
| 46411-12040 |
NDE150,ZRE151 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-02121 |
NDE150,ZRE151 |
1 | ||
| 46430-02121 |
NDE150,ZRE151 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-06171 |
ADE15#,NDE150,ZRE151 |
1 | ||
| 90179-06171 |
ADE15#,NDE150,ZRE151 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
NDE150,ZRE151 |
1 | ||
| 90179-06299 |
NDE150,ZRE151 |
1 | ||
| 90179-06299 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| 90179-06299 |
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 |
1 | ||
| Common parts | ||||
| 90119-08A12 | ||||
| 91671-80614 | ||||

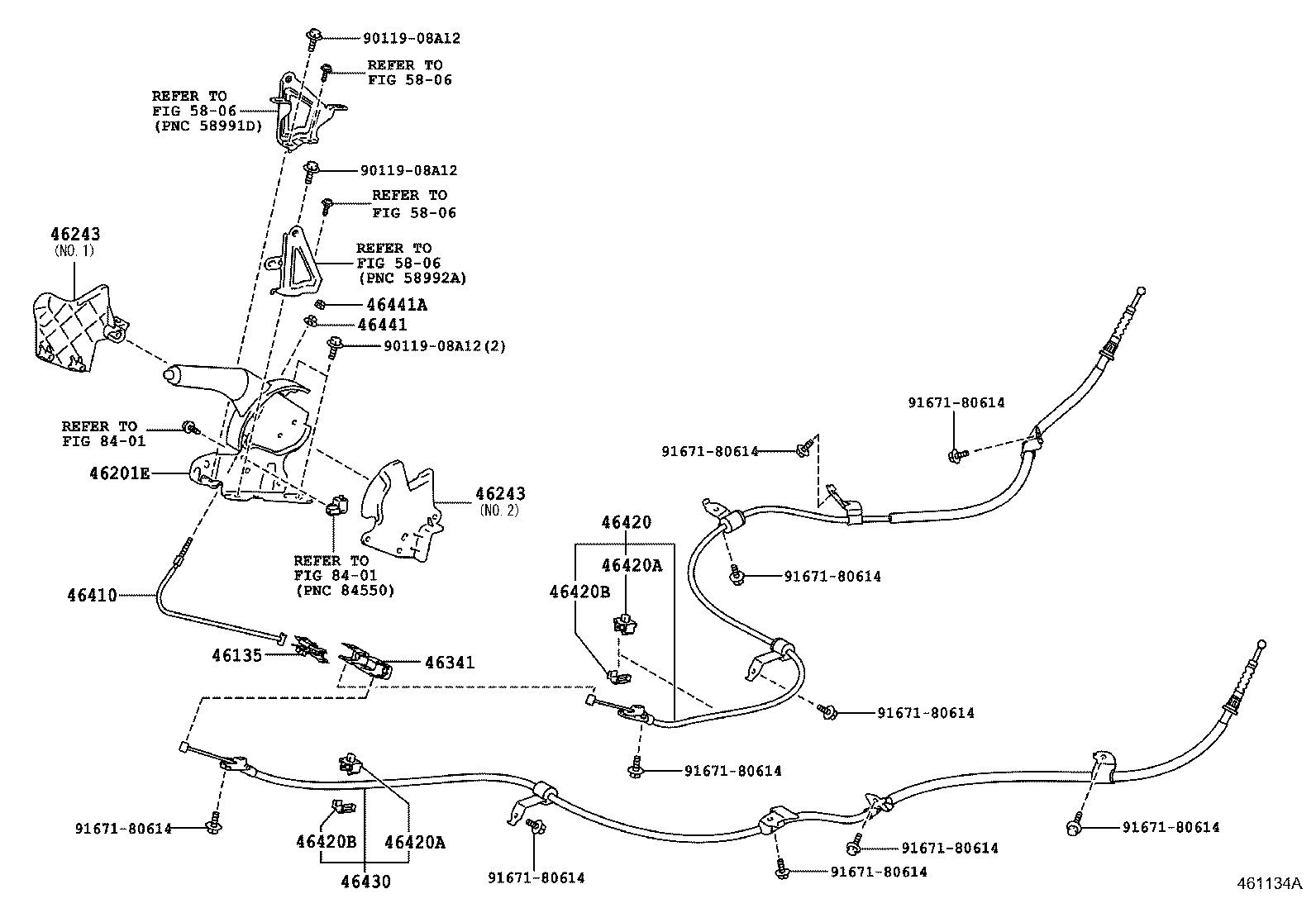

| Linked diagrams | ||||
| 5806 | ||||
| 8401 | ||||
