NDE150R-DGLNXW (2010)
Toyota Auris/Hybrid (Ukp)

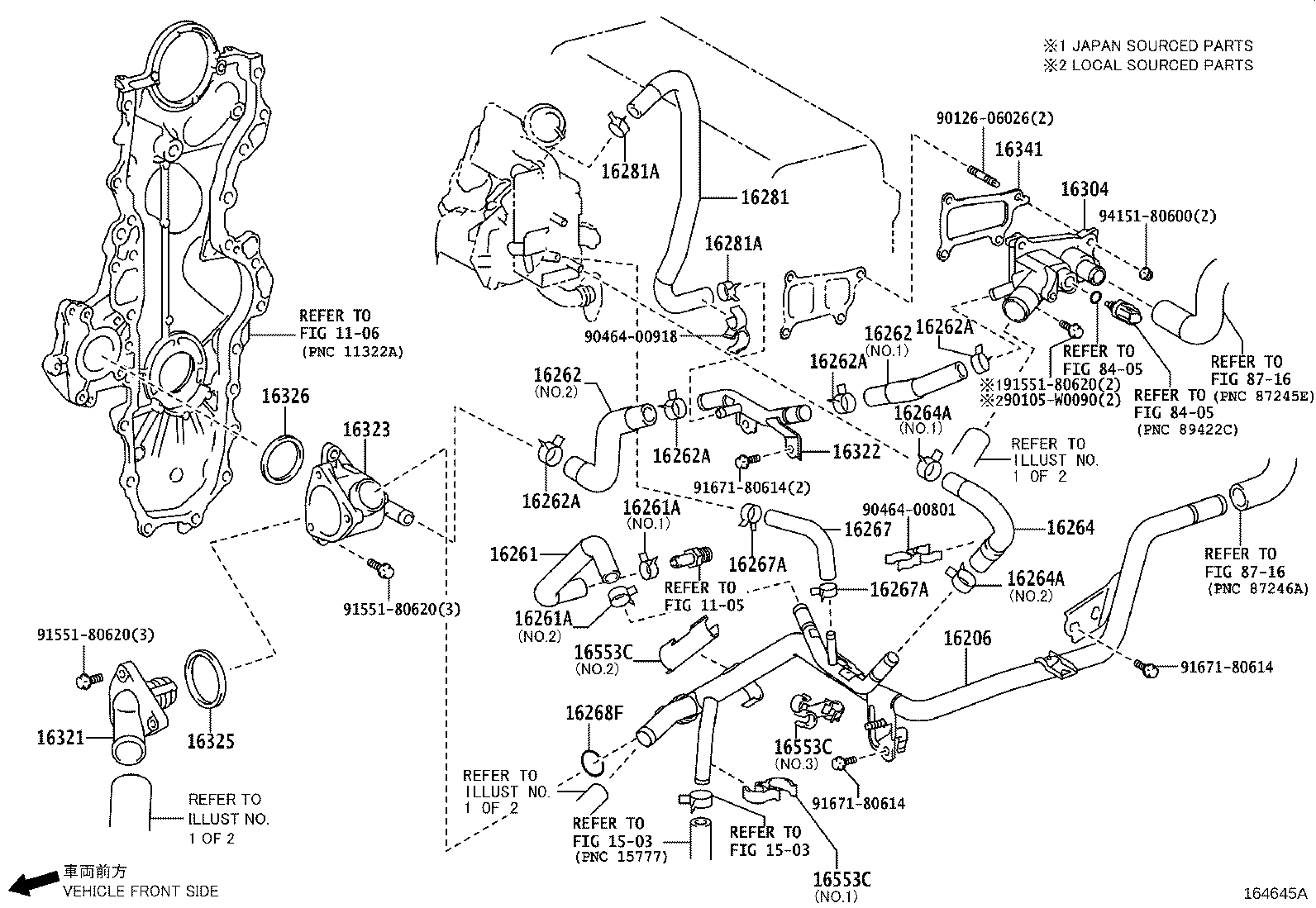

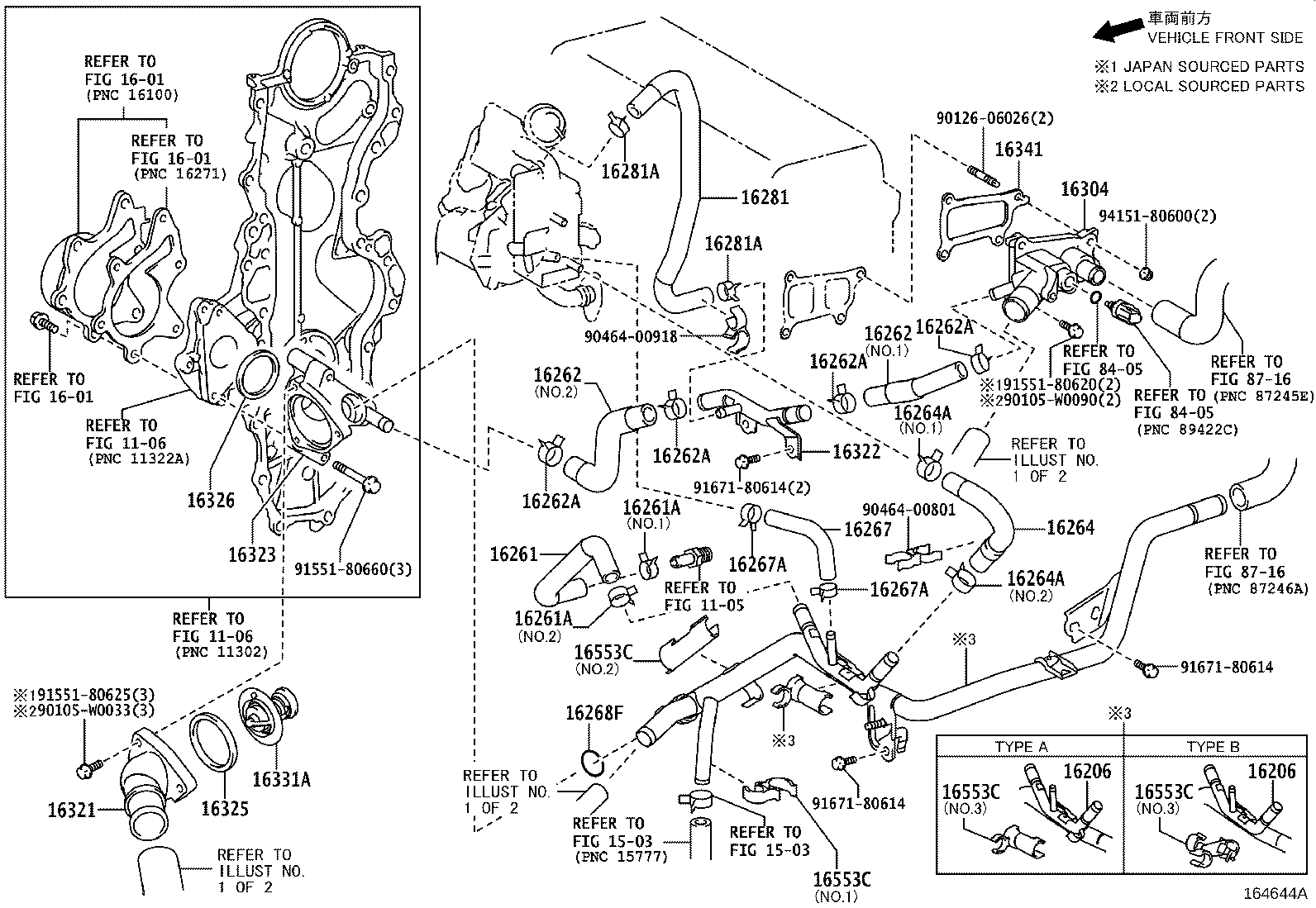

ILLUST NO. 2 OF 2(1007-1009)1NDTV..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33041 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16206-33041 |
1NDTV..NDE150..DCR *132 |
1 | ||
| 16206-33040 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16206-33041 |
1NDTV..NDE150 *251 |
1 | ||
| 16206-33040 |
1NDTV..NDE150 *132 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16261-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL (J),*251 |
1 | ||
| 16264-0N030 |
1NDTV..NDE150..DCRL (L),*251 |
1 | ||
| 16264-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NDE150 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NDE150 *132 |
1 | ||
| 96761-24021 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 90301-20016 |
1NDTV..NDE150 *251 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16281-0N070 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33011 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33011 |
1NDTV..NDE150 *132 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NDE150 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *251 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *132 |
1 | ||
| 16321-33020 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33010 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16322-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16323-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *132 |
1 | ||
| 16325-62010 |
1NDTV..NDE150 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16326-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16326-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NDTV..NDE150 *WAX 82-95 |
1 | ||
| 90916-03143 |
1NDTV..NDE150..DCR *WAX 82-95,*251 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| Common parts | ||||
| 90105-W0033 | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 1601 | ||||
| 8405 | ||||
| 8716 | ||||

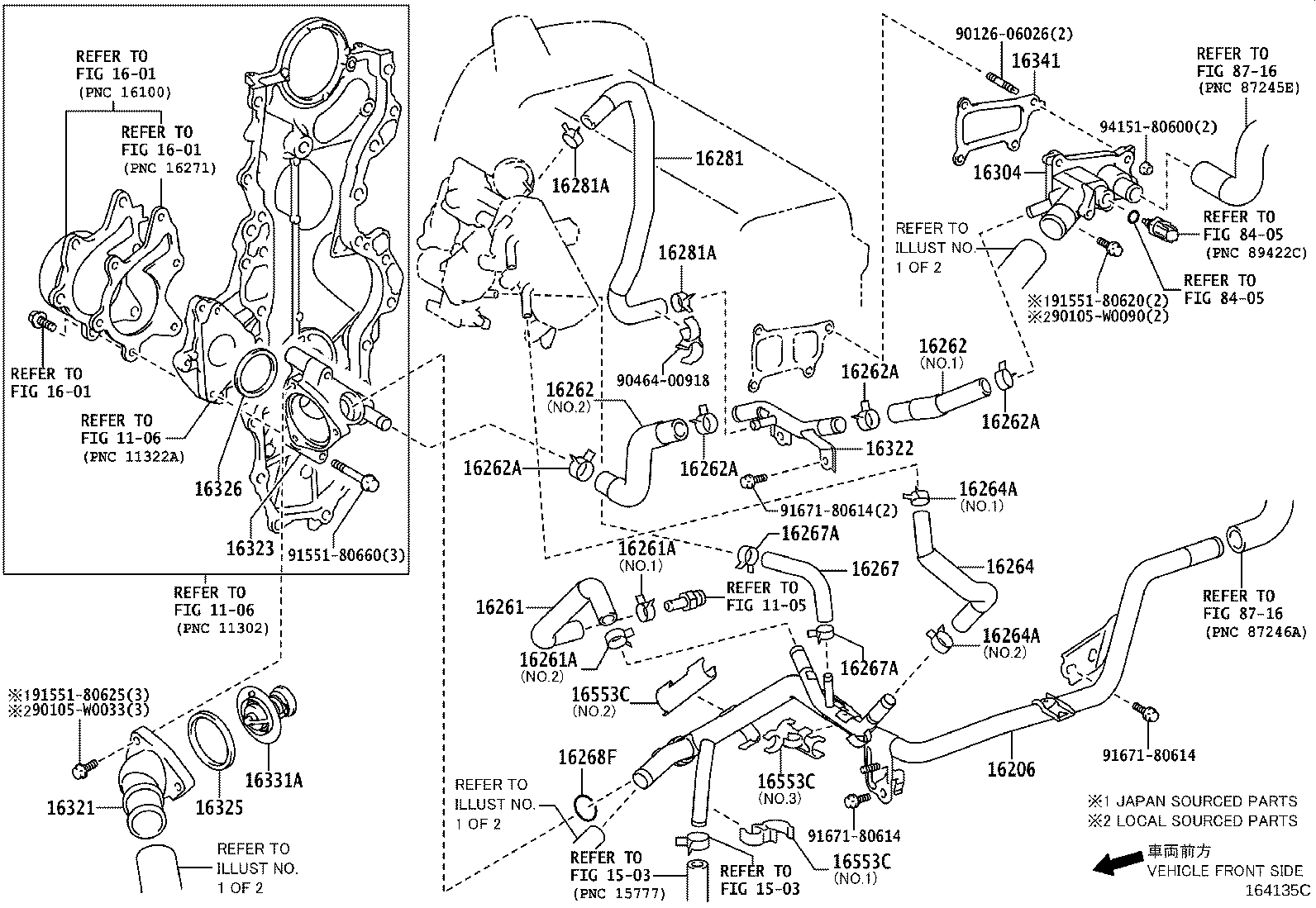

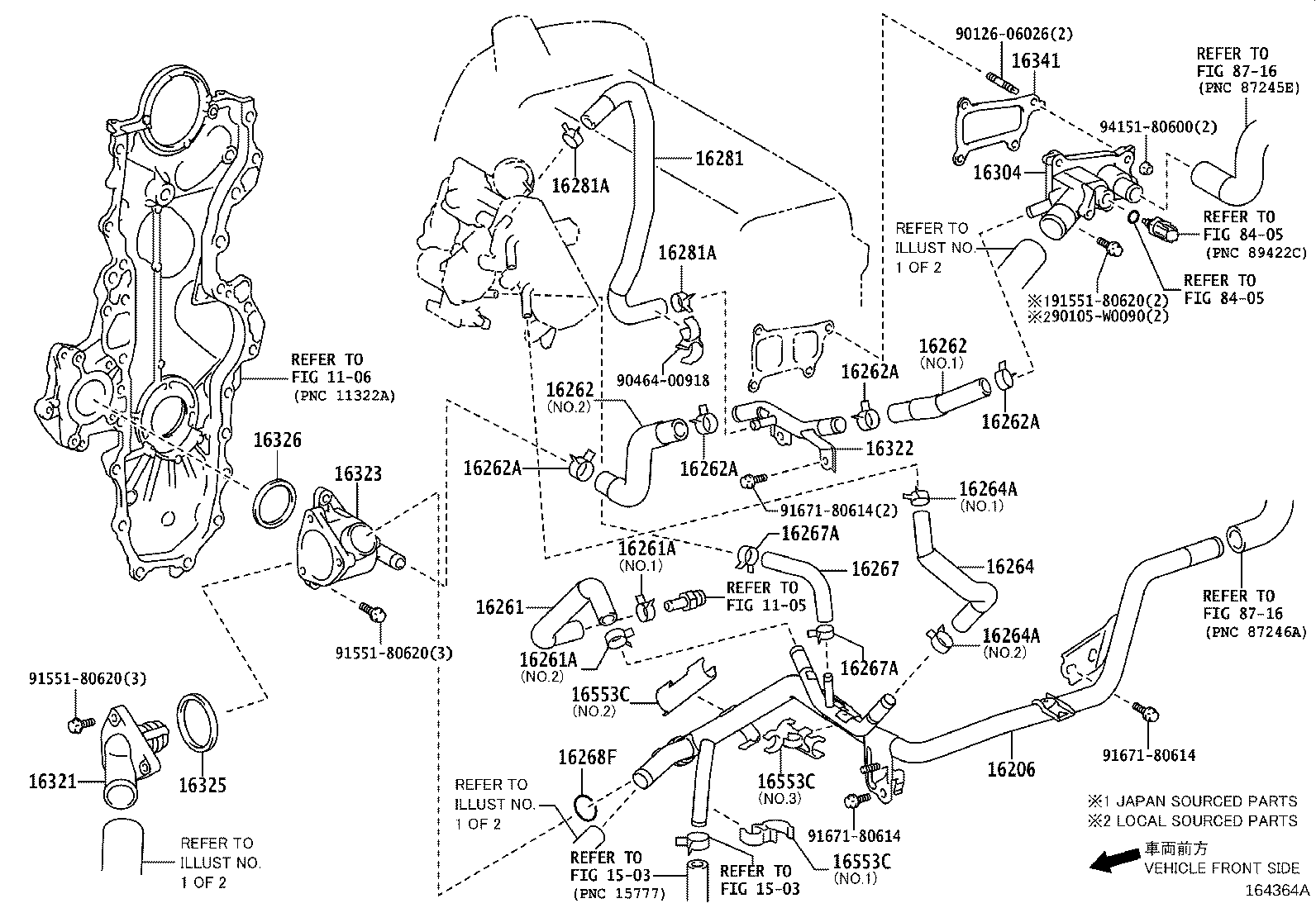

ILLUST NO. 2 OF 2(1009- )1NDTV..DCR
*132
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33041 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16206-33041 |
1NDTV..NDE150..DCR *132 |
1 | ||
| 16206-33040 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16206-33041 |
1NDTV..NDE150 *251 |
1 | ||
| 16206-33040 |
1NDTV..NDE150 *132 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16261-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL (J),*251 |
1 | ||
| 16264-0N030 |
1NDTV..NDE150..DCRL (L),*251 |
1 | ||
| 16264-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NDE150 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NDE150 *132 |
1 | ||
| 96761-24021 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 90301-20016 |
1NDTV..NDE150 *251 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16281-0N070 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33011 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33011 |
1NDTV..NDE150 *132 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NDE150 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *251 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *132 |
1 | ||
| 16321-33020 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33010 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16322-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16323-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *132 |
1 | ||
| 16325-62010 |
1NDTV..NDE150 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16326-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16326-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00801 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 8405 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1009- )1NDTV..DCRL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33041 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16206-33041 |
1NDTV..NDE150..DCR *132 |
1 | ||
| 16206-33040 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16206-33041 |
1NDTV..NDE150 *251 |
1 | ||
| 16206-33040 |
1NDTV..NDE150 *132 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16261-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL (J),*251 |
1 | ||
| 16264-0N030 |
1NDTV..NDE150..DCRL (L),*251 |
1 | ||
| 16264-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NDE150 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NDE150 *132 |
1 | ||
| 96761-24021 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 90301-20016 |
1NDTV..NDE150 *251 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16281-0N070 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33011 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33011 |
1NDTV..NDE150 *132 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NDE150 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *251 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *132 |
1 | ||
| 16321-33020 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33010 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16322-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16323-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *132 |
1 | ||
| 16325-62010 |
1NDTV..NDE150 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16326-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16326-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 8405 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1009-1011)1NDTV..DCR
*251
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33041 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16206-33041 |
1NDTV..NDE150..DCR *132 |
1 | ||
| 16206-33040 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16206-33041 |
1NDTV..NDE150 *251 |
1 | ||
| 16206-33040 |
1NDTV..NDE150 *132 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33041 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16206-33041 |
1NDTV..NDE150..DCR *132 |
1 | ||
| 16206-33040 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16206-33041 |
1NDTV..NDE150 *251 |
1 | ||
| 16206-33040 |
1NDTV..NDE150 *132 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16261-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL (J),*251 |
1 | ||
| 16264-0N030 |
1NDTV..NDE150..DCRL (L),*251 |
1 | ||
| 16264-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NDE150 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NDE150 *132 |
1 | ||
| 96761-24021 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 90301-20016 |
1NDTV..NDE150 *251 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16281-0N070 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33011 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33011 |
1NDTV..NDE150 *132 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NDE150 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *251 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *132 |
1 | ||
| 16321-33020 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33010 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16322-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16323-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *132 |
1 | ||
| 16325-62010 |
1NDTV..NDE150 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16326-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16326-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NDTV..NDE150 *WAX 82-95 |
1 | ||
| 90916-03143 |
1NDTV..NDE150..DCR *WAX 82-95,*251 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| Common parts | ||||
| 90105-W0033 | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00801 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 1601 | ||||
| 8405 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1011- )1NDTV..DCR
*251
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-33041 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16206-33041 |
1NDTV..NDE150..DCR *132 |
1 | ||
| 16206-33040 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16206-33041 |
1NDTV..NDE150 *251 |
1 | ||
| 16206-33040 |
1NDTV..NDE150 *132 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-33050 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16261-33050 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16261-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16263-33030 |
1NDTV..NDE150 *251,NO.2 |
1 | ||
| 16262-0N010 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16263-33010 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *251,(J),NO.2 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *251,(J),NO.1 |
1 | ||
| 16262-33010 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16262-33011 |
1NDTV..NDE150 *132,NO.1 |
1 | ||
| 16263-33030 |
1NDTV..NDE150 *132,NO.2 |
1 | ||
| 16263-0N010 |
1NDTV..NDE150 *251,(L),NO.2 |
1 | ||
| 16262-0N011 |
1NDTV..NDE150 *251,(L),NO.1 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-52201 |
1NDTV..NDE150..DCRL *251 |
4 | ||
| 96136-52201 |
1NDTV..NDE150..DCR *251 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33040 |
1NDTV..NDE150..DCRL *132 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL (J),*251 |
1 | ||
| 16264-0N030 |
1NDTV..NDE150..DCRL (L),*251 |
1 | ||
| 16264-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16264-33040 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
1NDTV..NDE150 NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE150 NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 96137-41701 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 96137-41901 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-33010 |
1NDTV..NDE150 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16267-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16267-0N050 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE150 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-20016 |
1NDTV..NDE150 *132 |
1 | ||
| 96761-24021 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 90301-20016 |
1NDTV..NDE150 *251 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-33030 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150 (J),*251 |
1 | ||
| 16281-33030 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16281-0N070 |
1NDTV..NDE150 (L),*251 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NDTV..NDE150..DCRL *251 |
2 | ||
| 96136-41501 |
1NDTV..NDE150..DCR *251 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-33011 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16304-33011 |
1NDTV..NDE150 *132 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NDE150 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *251 |
1 | ||
| 16321-33050 |
1NDTV..NDE150 *132 |
1 | ||
| 16321-33020 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-33010 |
1NDTV..NDE150..DCRL *251 |
1 | ||
| 16322-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16323-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16323-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *132 |
1 | ||
| 16325-62010 |
1NDTV..NDE150 |
1 | ||
| 16325-33010 |
1NDTV..NDE150 *251 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-33030 |
1NDTV..NDE150 *251 |
1 | ||
| 16326-33010 |
1NDTV..NDE150..DCR *251 |
1 | ||
| 16326-33030 |
1NDTV..NDE150 *132 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-33130 |
1NDTV..NDE150..DCRL NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCR *251,NO.2 |
1 | ||
| 16581-33050 |
1NDTV..NDE150..DCRL *251,NO.2 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *251,NO.3 |
1 | ||
| 16581-33130 |
1NDTV..NDE150..DCR NO.3T/P B:REF.ILLUST |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCR *251,NO.1 |
1 | ||
| 16581-33120 |
1NDTV..NDE150..DCRL *132,NO.3 |
1 | ||
| 16581-33040 |
1NDTV..NDE150..DCRL *251,NO.1 |
1 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90126-06026 | ||||
| 90464-00801 | ||||
| 90464-00918 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1503 | ||||
| 8405 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
