NDE150R-DGLNXW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jan 2010 - Oct 2012
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )1NDTV..DCRL

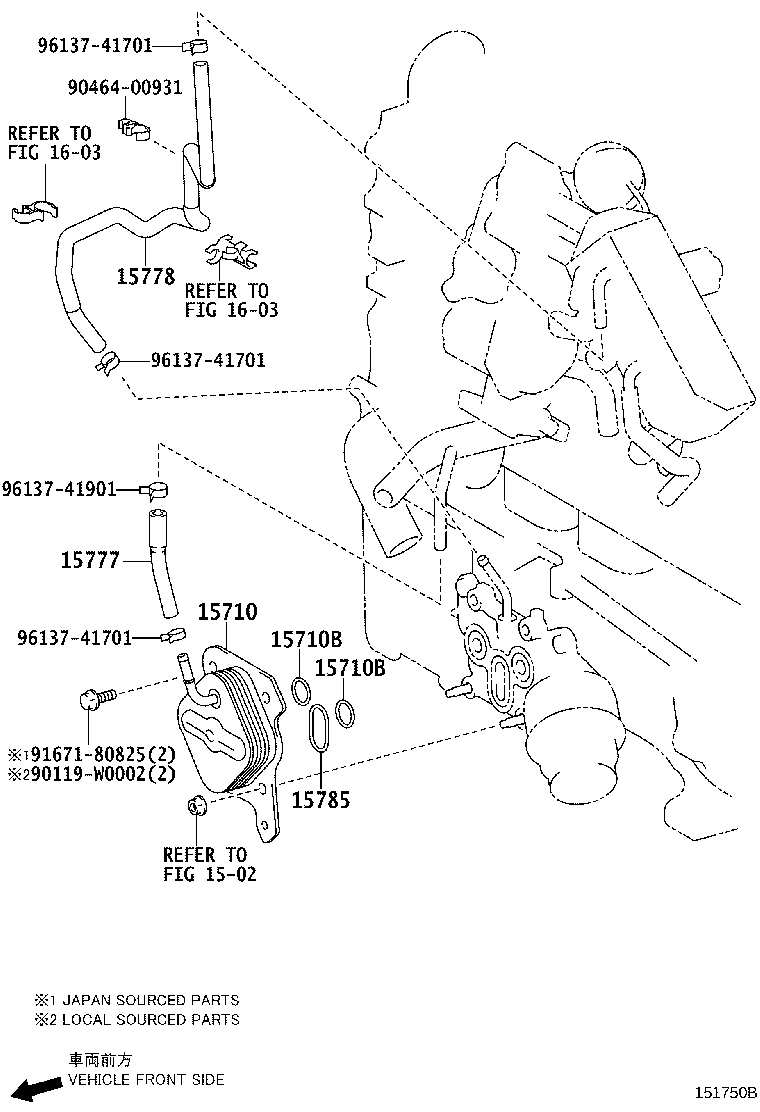

Click highlighted areas on diagram

diagram 1502 15710 15710B 15710B 15777 15778 15785 1603 1603 90119W0002 9046400931 9167180825 9613741701 9613741701 9613741701 9613741901
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-33030

1NDTV..NDE150

 1
15710B - RING, O(FOR OIL COOLER)
90301-58002

1NDTV..NDE150

 1
15710B - RING, O(FOR OIL COOLER)
90301-58002

1NDTV..NDE150

 1
15777 - HOSE, OIL COOLER
15777-33010

1NDTV..NDE150..DCRL

(J),*251

 1
15777-0N010

1NDTV..NDE150..DCR

(L),*251

 1
15777-33010

1NDTV..NDE150..DCR

(J),*251

 1
15777-0N010

1NDTV..NDE150..DCRL

(L),*251

 1
15777-33010

1NDTV..NDE150

(J),*251

 1
15777-0N010

1NDTV..NDE150

(L),*251

 1
15778 - HOSE, OIL COOLER, NO.2
15778-33030

1NDTV..NDE150..DCRL

(J),*251

 1
15778-33060

1NDTV..NDE150..DCRL

 1
15778-33060

1NDTV..NDE150..DCR

*132

 1
15778-33030

1NDTV..NDE150..DCRL

*132

 1
15778-0N010

1NDTV..NDE150..DCRL

(L),*251

 1
Common parts
90119-W0002
90464-00931
91671-80825
96137-41701
96137-41901
Linked diagrams
1502
1603
