NDE150R-DGLNXW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jan 2010 - Oct 2012
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )1NDTV..DCRL

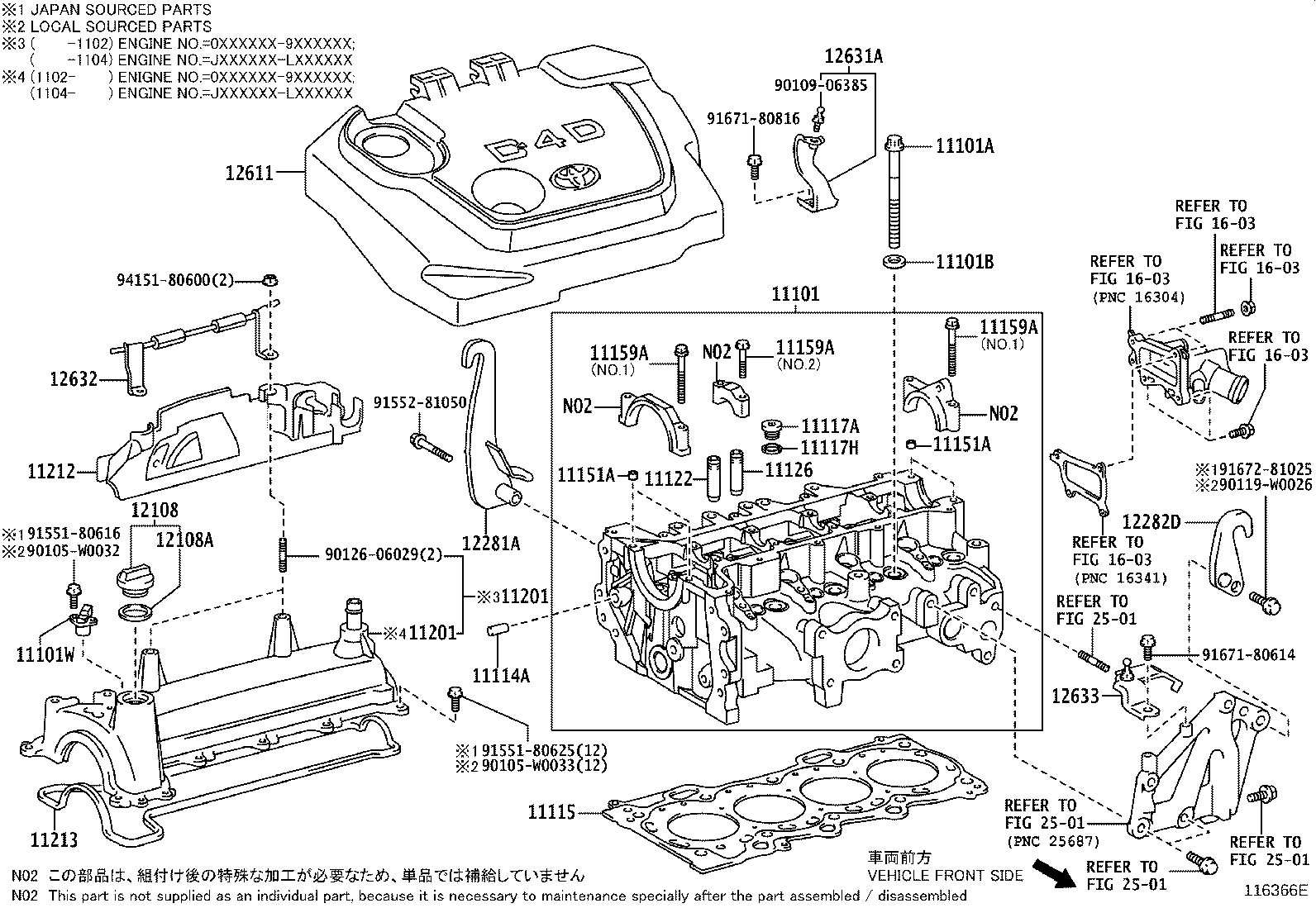

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101W 11114A 11115 11117A 11117H 11122 11126 11151A 11151A 11159A 11159A 11159A 11201 11201 11212 11213 12108 12108A 12281A 12282D 12611 12631A 12632 12633 1603 1603 1603 1603 1603 2501 2501 2501 2501 90105W0032 90105W0033 9010906385 90119W0026 9012606029 9155180616 9155180625 9155281050 9167180614 9167180816 9167281025 9415180600
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-33050

1NDTV..NDE150

 1
11101-33060

1NDTV..NDE150..DCR

*251

 1
11101-33061

1NDTV..NDE150

*251,*132

 1
11101-33060

1NDTV..NDE150..DCRL

*251

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02148

1NDTV..NDE150

 10
90910-02171

1NDTV..NDE150..DCRL

*251

 10
90910-02171

1NDTV..NDE150..DCR

*251

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13021

1NDTV..NDE150

 10
90201-13042

1NDTV..NDE150..DCRL

*251

 10
90201-13042

1NDTV..NDE150..DCR

*251

 10
11101W - SENSOR, CRANK POSITION, NO.1
90919-05029

1NDTV..NDE150..DCRL

*251

 1
90919-05029

1NDTV..NDE150..DCR

*251

 1
11114A - PIN, STRAIGHT
90250-10030

1NDTV..NDE150..DCRL

L=36,OD=10,*251

 1
90250-10030

1NDTV..NDE150..DCR

L=36,OD=10,*251

 1
11115 - GASKET, CYLINDER HEAD
11115-33030A0

1NDTV..NDE150

MARKA,REFER REPAIR MANUAL

 1
11115-33030B0

1NDTV..NDE150

MARKB,REFER REPAIR MANUAL

 1
11115-33030C0

1NDTV..NDE150

MARKC,REFER REPAIR MANUAL

 1
11115-33030E0

1NDTV..NDE150

MARKE,REFER REPAIR MANUAL

 1
11115-33030D0

1NDTV..NDE150

MARKD,REFER REPAIR MANUAL

 1
11115-33040C0

1NDTV..NDE150..DCR

MARKC,*251:REFER R/M

 1
11115-33040B0

1NDTV..NDE150..DCR

MARKB,*251:REFER R/M

 1
11115-33040A0

1NDTV..NDE150..DCRL

MARKA,*251:REFER R/M

 1
11115-33040D0

1NDTV..NDE150..DCR

MARKD,*251:REFER R/M

 1
11115-33040A0

1NDTV..NDE150..DCR

MARKA,*251:REFER R/M

 1
11115-33040B0

1NDTV..NDE150..DCRL

MARKB,*251:REFER R/M

 1
11115-33040C0

1NDTV..NDE150..DCRL

MARKC,*251:REFER R/M

 1
11115-33040D0

1NDTV..NDE150..DCRL

MARKD,*251:REFER R/M

 1
11115-33040E0

1NDTV..NDE150..DCRL

MARKE,*251:REFER R/M

 1
11115-33040E0

1NDTV..NDE150..DCR

MARKE,*251:REFER R/M

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14008

1NDTV..NDE150

*132

 3
90341-14008

1NDTV..NDE150..DCR

*251

 3
90341-14008

1NDTV..NDE150

 3
90341-14008

1NDTV..NDE150..DCR

*251

 3
90341-14008

1NDTV..NDE150..DCRL

*251

 3
11117H - GASKET(FOR WATER HOLE)
90430-14008

1NDTV..NDE150..DCRL

*251

 3
90430-14008

1NDTV..NDE150

*132

 3
90430-14008

1NDTV..NDE150

 3
90430-14008

1NDTV..NDE150..DCR

*251

 3
90430-14008

1NDTV..NDE150..DCR

*251

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-33030

1NDTV..NDE150

O/S 0.05

 4
11122-33030

1NDTV..NDE150

STD

 4
11123-33030

1NDTV..NDE150..DCRL

O/S 0.05,*251

 4
11122-33030

1NDTV..NDE150..DCRL

STD,*251

 4
11122-33030

1NDTV..NDE150..DCR

STD,*251

 4
11123-33030

1NDTV..NDE150..DCR

O/S 0.05,*251

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-33030

1NDTV..NDE150

STD

 4
11123-33030

1NDTV..NDE150

O/S 0.05

 4
11122-33030

1NDTV..NDE150..DCRL

STD,*251

 4
11123-33030

1NDTV..NDE150..DCRL

O/S 0.05,*251

 4
11123-33030

1NDTV..NDE150..DCR

O/S 0.05,*251

 4
11122-33030

1NDTV..NDE150..DCR

STD,*251

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-10004

1NDTV..NDE150

L=10,OD=8,*132

 4
90253-10004

1NDTV..NDE150..DCR

L=10,OD=8,*251

 4
90253-10004

1NDTV..NDE150..DCRL

L=10,OD=8,*251

 4
90253-10004

1NDTV..NDE150..DCR

L=10,OD=8,*251

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-10004

1NDTV..NDE150

L=10,OD=8,*132

 4
90253-10004

1NDTV..NDE150..DCR

L=10,OD=8,*251

 4
90253-10004

1NDTV..NDE150..DCRL

L=10,OD=8,*251

 4
90253-10004

1NDTV..NDE150..DCR

L=10,OD=8,*251

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07008

1NDTV..NDE150

NO.1

 4
90119-07008

1NDTV..NDE150..DCR

*251,NO.1

 4
90119-07009

1NDTV..NDE150..DCR

*251,NO.2

 8
90119-07009

1NDTV..NDE150

NO.2

 8
90119-07009

1NDTV..NDE150..DCRL

*251,NO.2

 8
90119-07009

1NDTV..NDE150..DCR

*251,NO.2

 8
90119-07008

1NDTV..NDE150..DCR

*251,NO.1

 4
90119-07008

1NDTV..NDE150..DCRL

*251,NO.1

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07008

1NDTV..NDE150

NO.1

 4
90119-07008

1NDTV..NDE150..DCR

*251,NO.1

 4
90119-07009

1NDTV..NDE150..DCR

*251,NO.2

 8
90119-07009

1NDTV..NDE150

NO.2

 8
90119-07009

1NDTV..NDE150..DCRL

*251,NO.2

 8
90119-07009

1NDTV..NDE150..DCR

*251,NO.2

 8
90119-07008

1NDTV..NDE150..DCR

*251,NO.1

 4
90119-07008

1NDTV..NDE150..DCRL

*251,NO.1

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07008

1NDTV..NDE150

NO.1

 4
90119-07008

1NDTV..NDE150..DCR

*251,NO.1

 4
90119-07009

1NDTV..NDE150..DCR

*251,NO.2

 8
90119-07009

1NDTV..NDE150

NO.2

 8
90119-07009

1NDTV..NDE150..DCRL

*251,NO.2

 8
90119-07009

1NDTV..NDE150..DCR

*251,NO.2

 8
90119-07008

1NDTV..NDE150..DCR

*251,NO.1

 4
90119-07008

1NDTV..NDE150..DCRL

*251,NO.1

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-33031

1NDTV..NDE150

 1
11201-33040

1NDTV..NDE150..DCR

*251

 1
11201-33041

1NDTV..NDE150

*251

 1
11201-33040

1NDTV..NDE150..DCRL

*251

 1
11201-33041

1NDTV..NDE150

(J),*251

 1
11201-0N020

1NDTV..NDE150

(L),*251

 1
11201-33041

1NDTV..NDE150

*132

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-33031

1NDTV..NDE150

 1
11201-33040

1NDTV..NDE150..DCR

*251

 1
11201-33041

1NDTV..NDE150

*251

 1
11201-33040

1NDTV..NDE150..DCRL

*251

 1
11201-33041

1NDTV..NDE150

(J),*251

 1
11201-0N020

1NDTV..NDE150

(L),*251

 1
11201-33041

1NDTV..NDE150

*132

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-33020

1NDTV..NDE150

 1
11212-33031

1NDTV..NDE150

*132

 1
11212-33031

1NDTV..NDE150..DCR

*251

 1
11212-33031

1NDTV..NDE150..DCRL

*251

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-33021

1NDTV..NDE150

 1
11213-33030

1NDTV..NDE150..DCRL

*251

 1
11213-33030

1NDTV..NDE150..DCR

*251

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-28010

1NDTV..NDE150

 1
12180-28010

1NDTV..NDE150..DCRL

*251

 1
12180-28010

1NDTV..NDE150..DCR

*251

 1
12180-38010

1NDTV..NDE150

*251

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1NDTV..NDE150

 1
90430-37004

1NDTV..NDE150..DCR

*251

 1
90430-37004

1NDTV..NDE150..DCRL

*251

 1
90430-35001

1NDTV..NDE150

*251

 1
12281A - HANGER, ENGINE, NO.1
12281-21010

1NDTV..NDE150

 2
12281-33050

1NDTV..NDE150..DCRL

*251

 1
12281-33050

1NDTV..NDE150..DCR

*251

 1
12282D - HANGER, ENGINE, NO.2
12282-33050

1NDTV..NDE150..DCRL

*132

 1
12282-33021

1NDTV..NDE150..DCRL

*132

 1
12282-33021

1NDTV..NDE150..DCR

*251

 1
12282-33021

1NDTV..NDE150..DCRL

*251

 1
12282-33022

1NDTV..NDE150

*251

 1
12282-33050

1NDTV..NDE150..DCRL

*251

 1
12282-33022

1NDTV..NDE150

*132

 1
12611 - COVER, ENGINE, NO.1
12611-0N020

1NDTV..NDE150

 1
12611-0N051

1NDTV..NDE150

(L)

 1
12611-33061

1NDTV..NDE150

(J)

 1
12631A - BRACKET, ENGINE COVER
12631-33020

1NDTV..NDE150..DCRL

*251

 1
12632-33020

1NDTV..NDE150

 1
12631-0N010

1NDTV..NDE150

(L),*251

 1
12631-33020

1NDTV..NDE150..DCR

*251

 1
12631-33020

1NDTV..NDE150

(J),*251

 1
12632 - BRACKET, ENGINE COVER, NO.2
12632-0N010

1NDTV..NDE150

(L),*251

 1
12632-33041

1NDTV..NDE150..DCR

*251

 1
12632-33041

1NDTV..NDE150..DCRL

*251

 1
12632-33041

1NDTV..NDE150

*132

 1
12632-33041

1NDTV..NDE150

(J),*251

 1
12633 - BRACKET, ENGINE COVER, NO.3
12633-33020

1NDTV..NDE150..DCRL

*132

 1
12633-33020

1NDTV..NDE150..DCRL

(J),*251

 1
12633-33010

1NDTV..NDE150

 1
12633-33020

1NDTV..NDE150..DCRL

*251

 1
12633-0N010

1NDTV..NDE150..DCRL

(L),*251

 1
Common parts
90105-W0032
90105-W0033
90109-06385
90119-W0026
90126-06029
91551-80616
91551-80625
91552-81050
91671-80614
91671-80816
91672-81025
94151-80600
