NDE150R-DGFNYW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF12(0902- )NDE150

Click highlighted areas on diagram

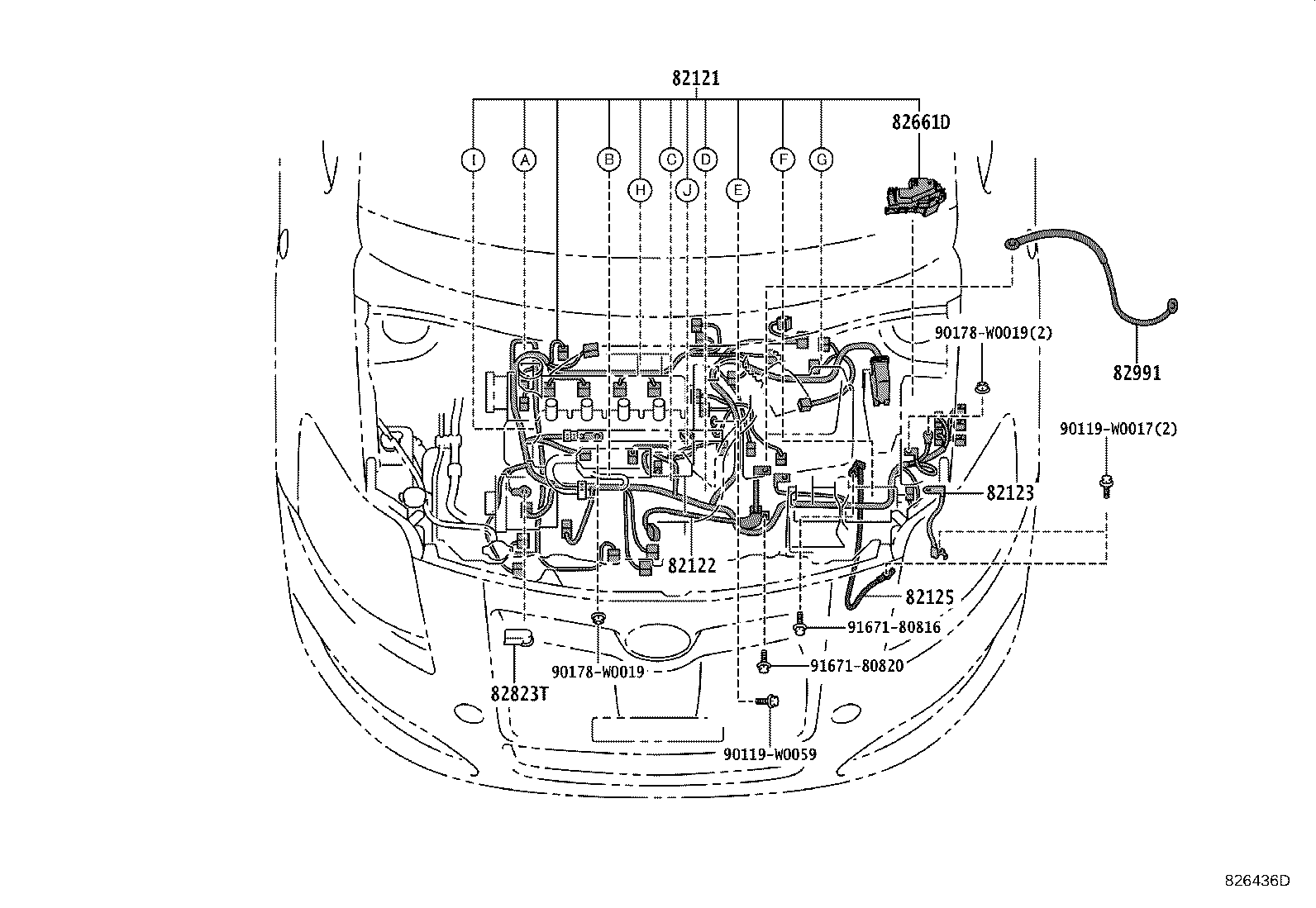

ENGINE 1/2

diagram 82121 82122 82123 82125 82661D 82823T 82991 90119W0017 90119W0059 90178W0019 90178W0019 9167180816 9167180820
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-02Q90

NDE150..3D..6F..DCR

 1
82121-02Q90

NDE150..6F..DCR

 1
82122 - WIRE, ENGINE, NO.2
82122-02050

NDE150

 1
82122-02040

NDE150

SUB COLD AREA SPEC

 1
82122-02100

NDE150..3D;NDE150..5D..6FS..TERRA

SUB COLD AREA SPEC

 1
82122-02110

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82122-02110

NDE150..E,SOL;NDE150..6F..TERRA

 1
82122-02100

NDE150..E,SOL;NDE150..6F..TERRA

SUB COLD AREA SPEC

 1
82123 - WIRE, ENGINE, NO.3
82123-02410

ADE157,NDE150..3D;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA

 1
82123-02280

NDE150

 1
82123-02410

ADE15#..LHD;NDE150..E,SOL;NDE150..6F..TERRA

 1
82125 - WIRE, TRANSMISSION
82125-02030

NDE150

 1
82125-02310

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82125-02310

NDE150..E,SOL;NDE150..6F..TERRA

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280

ADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

 1
82661-12280

NDE150,ZRE151

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12120

NDE150

 1
82991-12120

ADE157,NDE150..3D;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA

 1
82991-12120

ADE15#..LHD;NDE150..E,SOL;NDE150..6F..TERRA

 1
Common parts
90119-W0017
90119-W0059
90178-W0019
91671-80816
91671-80820

ILLUST NO. 2 OF12(0902- )NDE150

Click highlighted areas on diagram

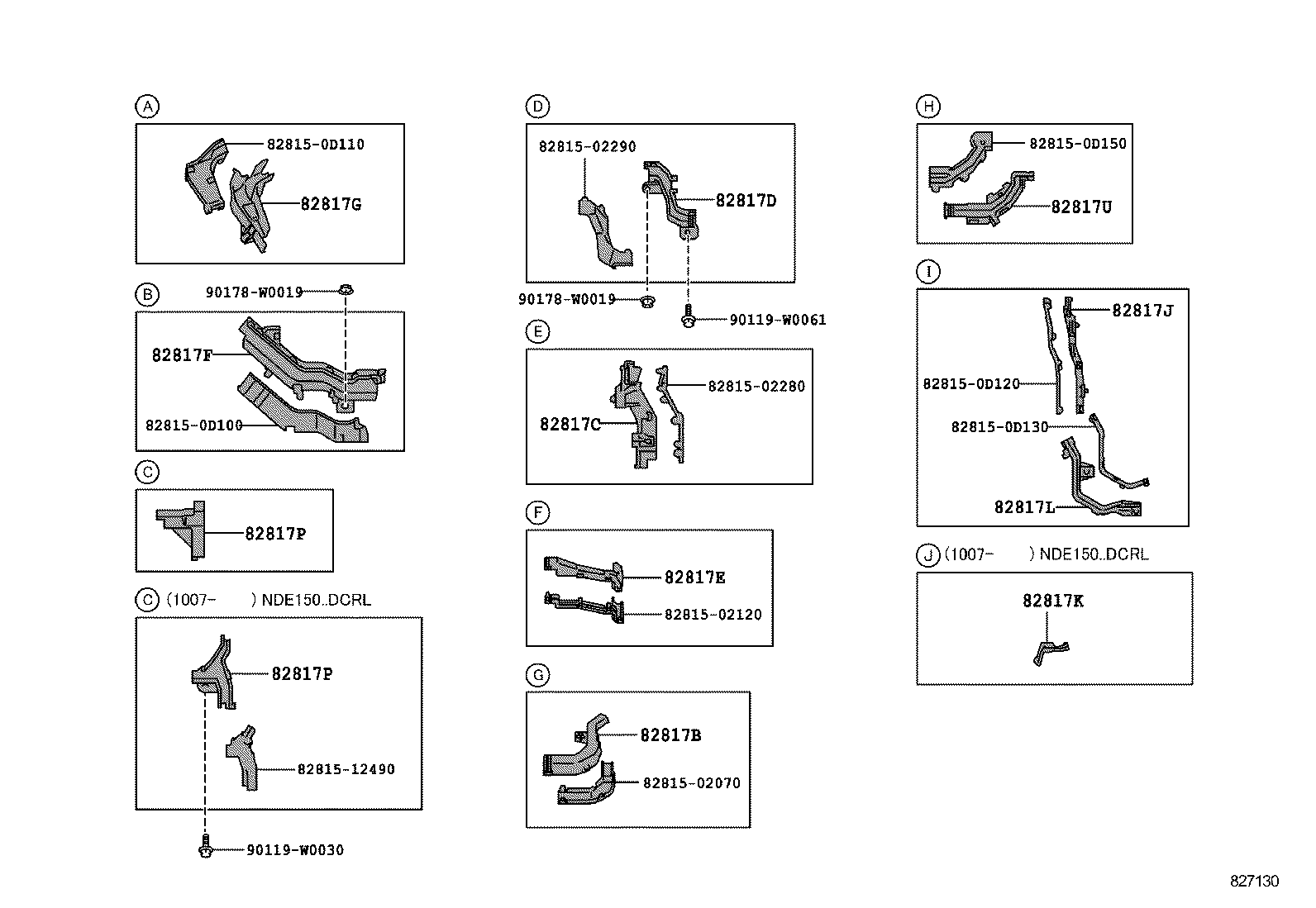

ENGINE 2/2

diagram 8281502070 8281502120 8281502280 8281502290 828150D100 828150D110 828150D120 828150D130 828150D150 8281512490 82817B 82817C 82817D 82817E 82817F 82817G 82817J 82817K 82817L 82817P 82817P 82817U 90119W0030 90119W0061 90178W0019 90178W0019
Part # Description Qty Price
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-02380

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817-02380

NDE150

 1
82817-02380

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-02400

NDE150

 1
82817-02790

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-02790

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-02410

NDE150

 1
82817-02800

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-02800

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-02430

NDE150

 1
82817-02430

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-02430

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12860

NDE150

 1
82817-0D170

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-0D170

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-0D180

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-0D180

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817-12A10

NDE150

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-12A20

NDE150

 1
82817-0D190

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-0D190

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-0D200

NDE150..E,SOL;NDE150..6F..TERRA

 1
82817-0D200

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-0D230

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817-0D230

NDE150..SOL..DCR;NDE150..6F..TERRA..DCR

 1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-0D230

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817-0D230

NDE150..SOL..DCR;NDE150..6F..TERRA..DCR

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-0D210

NDE150..3D;NDE150..5D..6FS..TERRA

 1
82817-0D210

NDE150..E,SOL;NDE150..6F..TERRA

 1
Common parts
82815-02070
82815-02120
82815-02280
82815-02290
82815-0D100
82815-0D110
82815-0D120
82815-0D130
82815-0D150
82815-12490
90119-W0030
90119-W0061
90178-W0019
