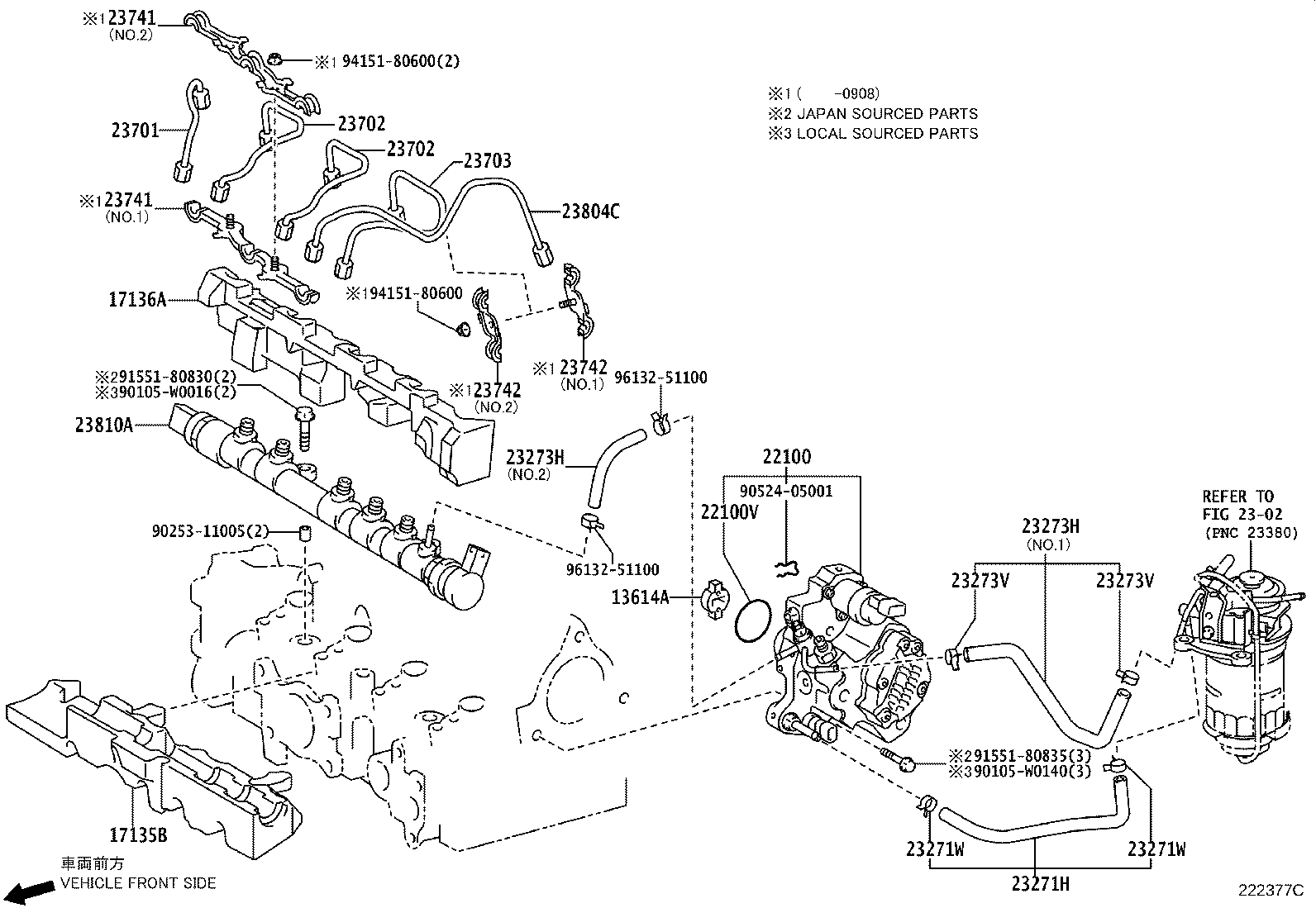

Toyota Auris/hybrid (ukp) NDE150 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1
13614-33010	1NDTV..NDE150	02/2009 - 01/2010	1
13614-33010	1NDTV..NDE150	02/2007 - 02/2009	1
13614-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132	12/2009 - 12/2999	1
17135B - INSULATOR, INTAKE MANIFOLD, NO.1
17135-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17136A - INSULATOR, INTAKE MANIFOLD, NO.2
17136-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17136-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132	12/2009 - 12/2999	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-33040	1NDTV..NDE150	02/2007 - 02/2009	1
22100-33050	1NDTV..NDE150	02/2009 - 01/2010	1
22100V - RING, O(FOR INJECTION PUMP)
96723-35044	1NDTV..NDE150	02/2009 - 01/2010	1
23271H - HOSE, FUEL, NO.1
23271-0N030	1NDTV..NDE150	02/2009 - 01/2010	1
23271-33050	1NDTV..NDE150	02/2007 - 02/2009	1
23271-0N030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
23271W - CLIP(FOR FUEL HOSE NO.1)
96132-51300	1NDTV..NDE150	02/2009 - 01/2010	2
96132-51300	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	2
23271W - CLIP(FOR FUEL HOSE NO.1)
96132-51300	1NDTV..NDE150	02/2009 - 01/2010	2
96132-51300	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	2
23273H - HOSE, FUEL, NO.2
23273-33060	1NDTV..NDE150	02/2007 - 02/2009	1
23273-33090	1NDTV..NDE150 NO.2	02/2009 - 01/2010	1
23273-0N030	1NDTV..NDE150 NO.1	02/2009 - 01/2010	1
23273-0N030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA NO.1	12/2009 - 12/2999	1
23273-33090	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132,NO.2	12/2009 - 12/2999	1
23273H - HOSE, FUEL, NO.2
23273-33060	1NDTV..NDE150	02/2007 - 02/2009	1
23273-33090	1NDTV..NDE150 NO.2	02/2009 - 01/2010	1
23273-0N030	1NDTV..NDE150 NO.1	02/2009 - 01/2010	1
23273-0N030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA NO.1	12/2009 - 12/2999	1
23273-33090	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132,NO.2	12/2009 - 12/2999	1
23273V - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1NDTV..NDE150	02/2009 - 01/2010	2
96132-51100	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	2
23273V - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1NDTV..NDE150	02/2009 - 01/2010	2
96132-51100	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	2
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-33040	1NDTV..NDE150	02/2009 - 01/2010	1
23701-33010	1NDTV..NDE150	02/2007 - 02/2009	1
23701-33040	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23701-33020	1NDTV..NDE150	02/2007 - 02/2009	1
23702-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	2
23702-33010	1NDTV..NDE150	02/2009 - 01/2010	2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23701-33020	1NDTV..NDE150	02/2007 - 02/2009	1
23702-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	2
23702-33010	1NDTV..NDE150	02/2009 - 01/2010	2
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23701-33020	1NDTV..NDE150	02/2007 - 02/2009	1
23703-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
23703-33010	1NDTV..NDE150	02/2009 - 01/2010	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-33030	1NDTV..NDE150 NO.1	02/2009 - 08/2009	1
23741-33010	1NDTV..NDE150 NO.1	02/2007 - 02/2009	1
23741-33040	1NDTV..NDE150 NO.2	02/2009 - 08/2009	1
23741-33020	1NDTV..NDE150 NO.2	02/2007 - 02/2009	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-33030	1NDTV..NDE150 NO.1	02/2009 - 08/2009	1
23741-33010	1NDTV..NDE150 NO.1	02/2007 - 02/2009	1
23741-33040	1NDTV..NDE150 NO.2	02/2009 - 08/2009	1
23741-33020	1NDTV..NDE150 NO.2	02/2007 - 02/2009	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-33010	1NDTV..NDE150 NO.1	02/2007 - 02/2009	1
23742-33020	1NDTV..NDE150 NO.2	02/2007 - 02/2009	1
23742-33040	1NDTV..NDE150 NO.2	02/2009 - 08/2009	1
23742-33030	1NDTV..NDE150 NO.1	02/2009 - 08/2009	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-33010	1NDTV..NDE150 NO.1	02/2007 - 02/2009	1
23742-33020	1NDTV..NDE150 NO.2	02/2007 - 02/2009	1
23742-33040	1NDTV..NDE150 NO.2	02/2009 - 08/2009	1
23742-33030	1NDTV..NDE150 NO.1	02/2009 - 08/2009	1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-33010	1NDTV..NDE150	02/2007 - 02/2009	1
23804-33020	1NDTV..NDE150	02/2009 - 01/2010	1
23804-33020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
23810A - RAIL ASSY, COMMON
23810-33030	1NDTV..NDE150	02/2009 - 01/2010	1
23810-33021	1NDTV..NDE150	02/2007 - 02/2009	1
23810-33030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
Common parts
90105-W0016
90105-W0140
90253-11005
90524-05001
91551-80830
91551-80835
94151-80600
96132-51100
Linked diagrams
2302

NDE150R-DGFNYW (2009)

(0902- )1NDTV
