NDE150R-DGFNYW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )1NDTV

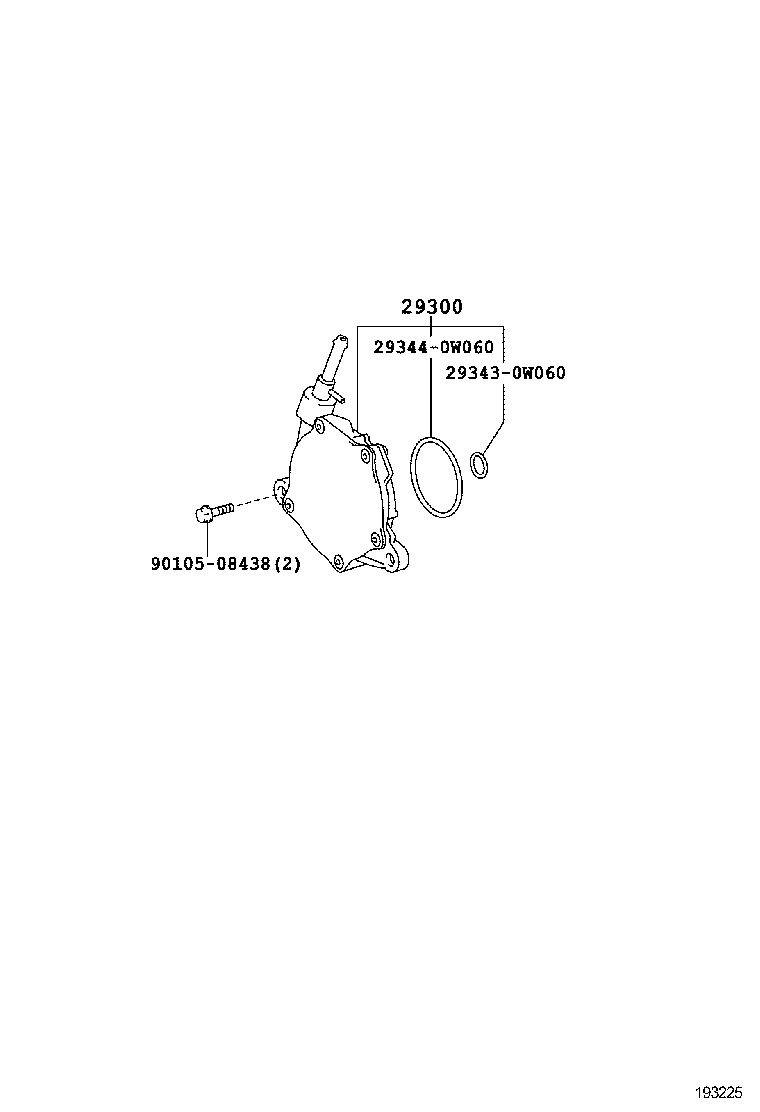

Click highlighted areas on diagram

diagram 29300 293430W060 293440W060 9010508438
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0N010

1NDTV..NDE150

 1
29300-0W070

1NDTV..NDE150

 1
Common parts
29343-0W060
29344-0W060
90105-08438
