NDE150R-DGFNYW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0902- )1NDTV..DCR

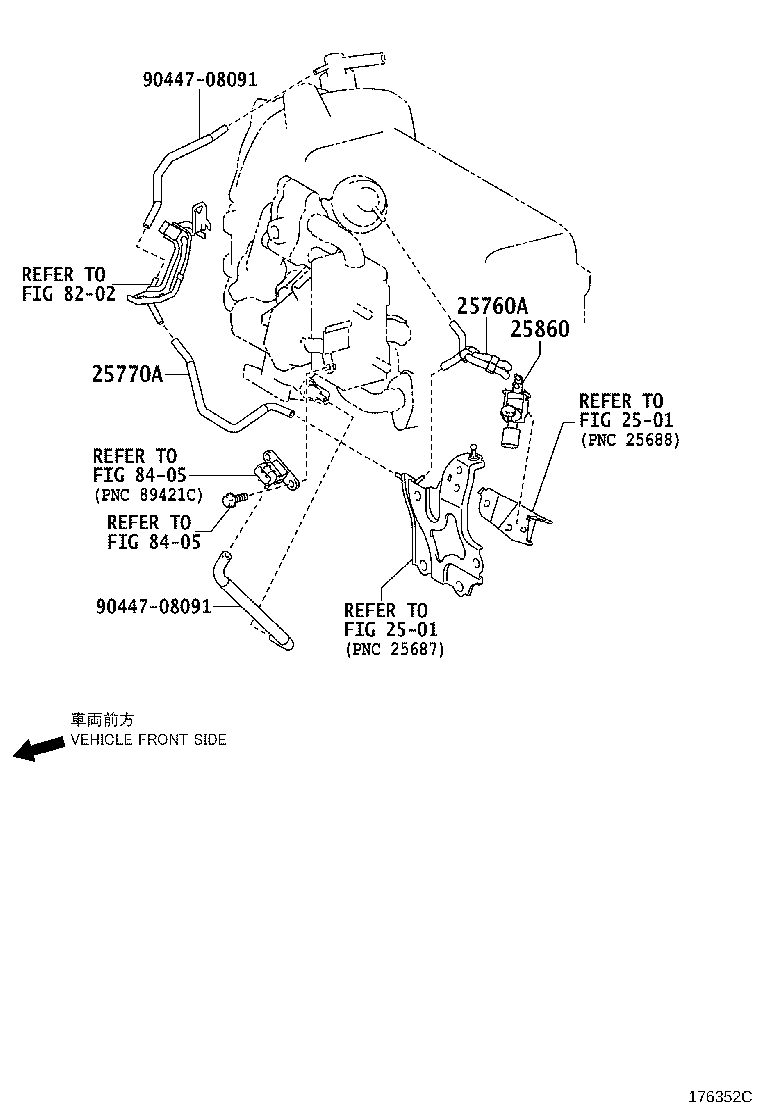

Click highlighted areas on diagram

diagram 2501 2501 25760A 25770A 25860 8202 8405 8405 9044708091 9044708091
Part # Description Qty Price
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-33110

1NDTV..NDE150

 1
25760-33110

1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR

 1
25770A - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25760-33130

1NDTV..NDE150

 1
25760-33130

1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-30070

1NDTV..NDE150

 1
25860-30070

1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA

 1
Common parts
90447-08091
Linked diagrams
2501
8202
8405
