Toyota Auris/hybrid (ukp) NDE150 MOUNTING

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0N030	1NDTV..NDE150	02/2007 - 02/2009	1
12305-0N060	1NDTV..NDE150	03/2009 - 01/2010	1
12305-0N060	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12305-0N050	1NDTV..NDE150	02/2009 - 03/2009	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0N010	1NDTV..NDE150	02/2007 - 02/2009	1
12311-0N050	1NDTV..NDE150	02/2009 - 01/2010	1
12311-0N050	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33040	1NDTV..NDE150	02/2007 - 02/2009	1
12315-33050	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132	12/2009 - 12/2999	1
12315-33050	1NDTV..NDE150	02/2009 - 01/2010	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0D210	1NDTV..NDE150	02/2007 - 09/2007	1
12321-0Y010	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52040	1NDTV..NDE150..E	12/2009 - 12/2999	1
43409-52040	1NDTV..NDE150..E	05/2009 - 01/2010	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T140	1NDTV..NDE150	02/2009 - 01/2010	1
12325-0D040	1NDTV..NDE150	02/2007 - 02/2009	1
12325-0T140	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12351 - DAMPER, ENGINE MOUNTING
12351-0D080	1NDTV..NDE150	02/2007 - 02/2009	1
12351-0T090	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12351B - DAMPER, ENGINE MOUNTING
12351-0R010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12351-0R010	1NDTV..NDE150	02/2009 - 01/2010	1
12351-0R010	1NDTV..NDE150	02/2007 - 02/2009	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D180	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12361-0D180	1NDTV..NDE150	02/2007 - 02/2009	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0D180	1NDTV..NDE150	02/2007 - 02/2009	1
12371-0D180	1NRFE..NRE150;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0N050	1NDTV..NDE150..6F	02/2009 - 01/2010	1
12372-0N050	1NDTV..NDE150..6F	12/2009 - 12/2999	1
Common parts
90105-10301
90105-14174
90105-W0076
90105-W0160
90105-W0162
90105-W0169
90105-W0178
90105-W0189
90116-12053
90119-12402
90119-W0149
90178-W0060
90179-06293
90179-08068
90179-08256
90179-10108
90179-14073
91552-81055
91552-F1070
94151-21241

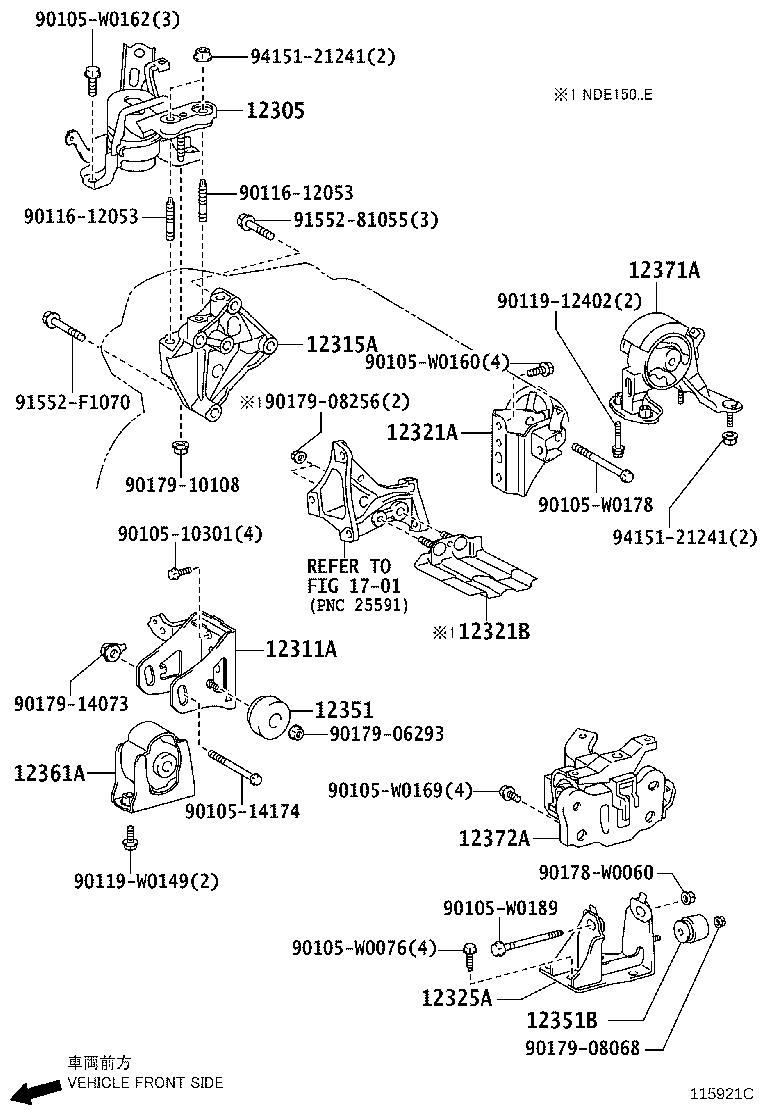

Linked diagrams
1701

NDE150R-DGFNYW (2009)

(0902- )1NDTV
