Toyota Auris/hybrid (ukp) NDE150 MANIFOLD

NDE150R-DGFDXW (2009)

Toyota Auris/Hybrid (Ukp)

Production Feb 2009 - Jan 2010

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

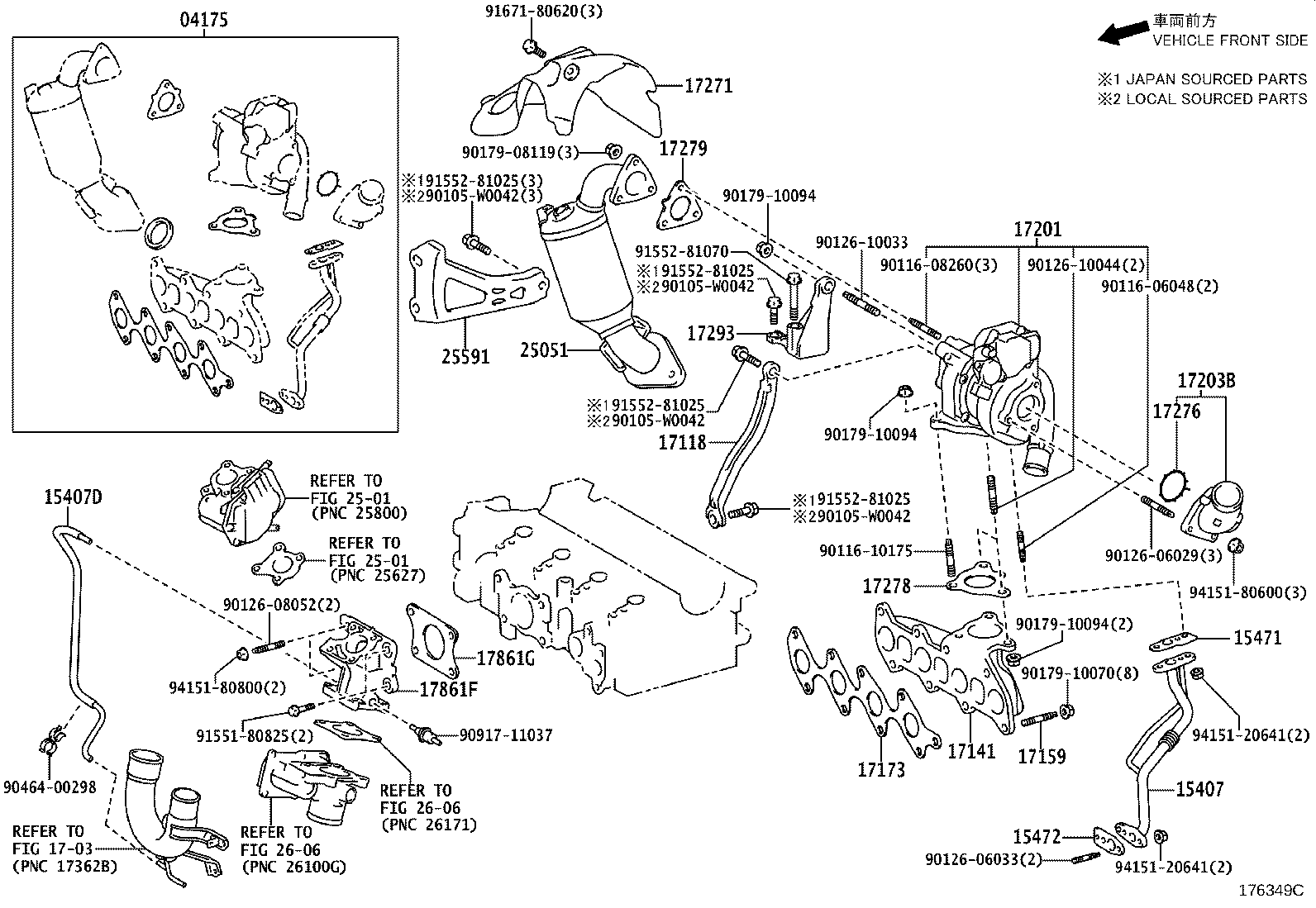

(0902- )1NDTV..DCR

Click highlighted areas on diagram

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-0N060	1NDTV..NDE150	02/2007 - 02/2009	1
04175-33070	1NDTV..NDE150	02/2009 - 01/2010	1
04175-33070	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-33020	1NDTV..NDE150	02/2009 - 01/2010	1
15407D - HOSE, OIL, NO.1
12109-33020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12109-33020	1NDTV..NDE150	02/2009 - 01/2010	1
15471 - GASKET, TURBO OIL INLET
15471-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
15471-33010	1NDTV..NDE150	02/2009 - 01/2010	1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-33010	1NDTV..NDE150	02/2007 - 02/2009	1
15472-33020	1NDTV..NDE150	02/2009 - 01/2010	1
15472-33020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17118 - STAY, MANIFOLD
17118-33030	1NDTV..NDE150	02/2007 - 02/2009	1
17118-33040	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17118-33040	1NDTV..NDE150	02/2009 - 01/2010	1
17141 - MANIFOLD, EXHAUST
17141-33050	1NDTV..NDE150	02/2009 - 01/2010	1
17141-33040	1NDTV..NDE150	02/2007 - 02/2009	1
17141-33050	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10033	1NDTV..NDE150	02/2009 - 01/2010	8
90126-10033	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-33010	1NDTV..NDE150	02/2007 - 02/2009	1
17173-33030	1NDTV..NDE150	02/2009 - 01/2010	1
17173-33030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17201 - TURBOCHARGER SUB-ASSY
17201-0N030	1NDTV..NDE150	02/2007 - 02/2009	1
17201-0N041	1NDTV..NDE150	02/2009 - 01/2010	1
17203B - ELBOW SUB-ASSY, COMPRESSOR INLET
17203-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17203-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17271 - INSULATOR, TURBO, NO.1
17271-33060	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
17271-33090	1NDTV..NDE150..DCRL	02/2009 - 01/2010	1
17271-33030	1NDTV..NDE150	02/2007 - 02/2009	1
17271-33090	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL	12/2009 - 12/2999	1
17271-33060	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR	12/2009 - 12/2999	1
17276 - GASKET, COMPRESSOR INLET
17276-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17276-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-27010	1NDTV..NDE150	02/2007 - 02/2009	1
17278-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17278-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-27020	1NDTV..NDE150	02/2007 - 02/2009	1
17279-27020	1NDTV..NDE150	02/2009 - 01/2010	1
17279-27020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132	12/2009 - 12/2999	1
17293 - STAY, TURBOCHARGER
17293-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17293-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17861F - CONNECTOR, INTAKE AIR
17861-33040	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR	12/2009 - 12/2999	1
17861-33040	1NDTV..NDE150	02/2009 - 01/2010	1
17861-33020	1NDTV..NDE150	02/2007 - 02/2009	1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-33011	1NDTV..NDE150	02/2007 - 02/2009	1
26171-33050	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
26171-33050	1NDTV..NDE150	02/2009 - 01/2010	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-33060	1NDTV..NDE150..DCR 114=TOYOTA/207/Y	02/2009 - 01/2010	1
25051-33090	1NDTV..NDE150..DCRL 114=407	02/2009 - 01/2010	1
25051-33051	1NDTV..NDE150 *114=TOYOTA/33051/Y	02/2007 - 02/2009	1
25051-33090	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL 114=407,*132	12/2009 - 12/2999	1
25051-33060	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR 114=TOYOTA/207/Y,*132	12/2009 - 12/2999	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-33020	1NDTV..NDE150	02/2007 - 02/2009	1
25592-33020	1NDTV..NDE150..DCRL NO.2	02/2009 - 01/2010	1
25594-33010	1NDTV..NDE150..DCRL NO.4	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
25591-33050	1NDTV..NDE150..DCRL NO.1	02/2009 - 01/2010	1
25593-33010	1NDTV..NDE150..DCRL NO.3	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR *132	12/2009 - 12/2999	1
25591-33050	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.1	12/2009 - 12/2999	1
25592-33020	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.2	12/2009 - 12/2999	1
Common parts
90105-W0042
90116-06048
90116-08260
90116-10175
90126-06029
90126-06033
90126-08052
90126-10033
90126-10044
90179-08119
90179-10070
90179-10094
90464-00298
90917-11037
91551-80825
91552-81025
91552-81070
91671-80620
94151-20641
94151-80600
94151-80800
Linked diagrams
1703
2501
2606

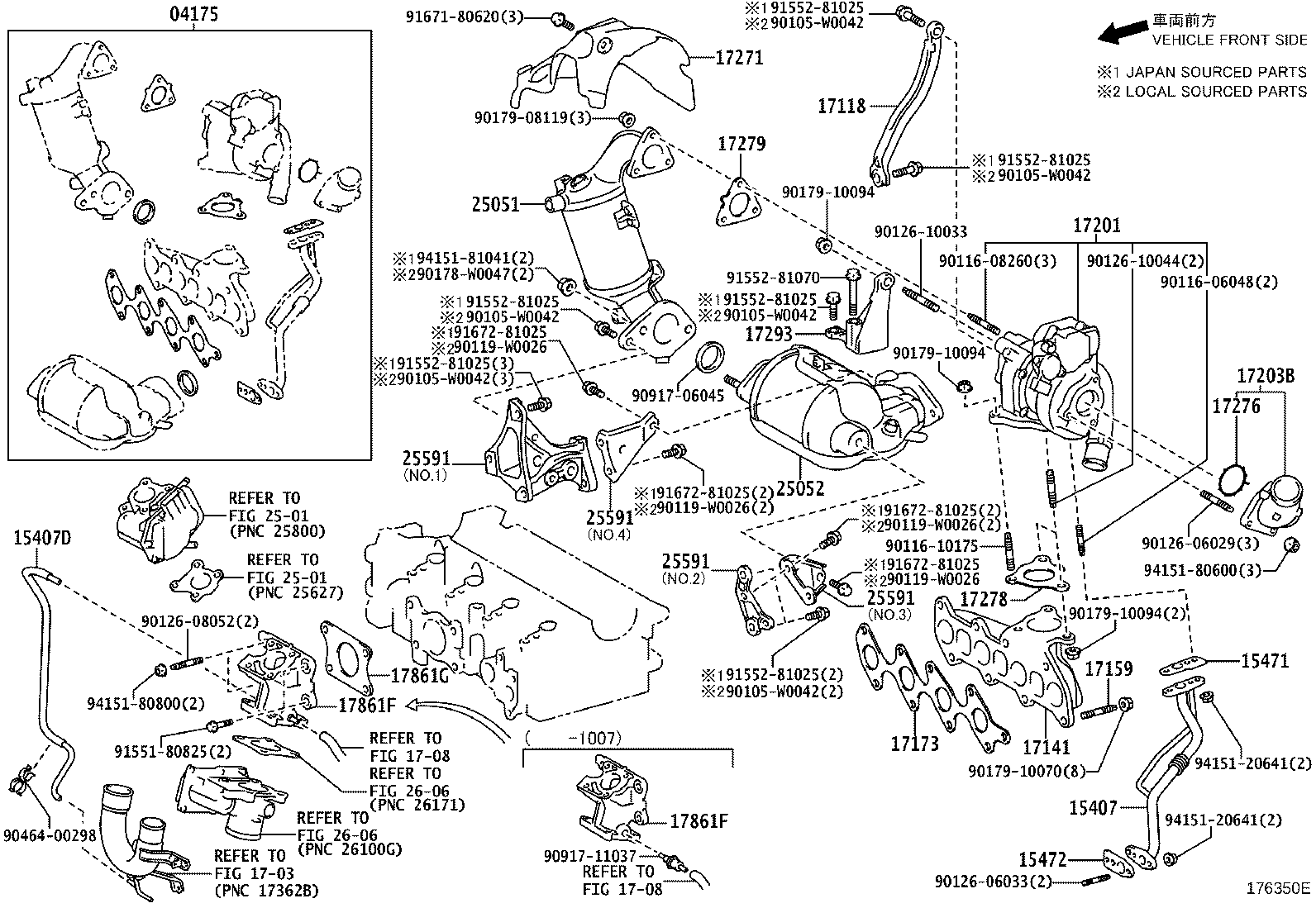

(0902- )1NDTV..DCRL

Click highlighted areas on diagram

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-0N060	1NDTV..NDE150	02/2007 - 02/2009	1
04175-33070	1NDTV..NDE150	02/2009 - 01/2010	1
04175-33070	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-33020	1NDTV..NDE150	02/2009 - 01/2010	1
15407D - HOSE, OIL, NO.1
12109-33020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
12109-33020	1NDTV..NDE150	02/2009 - 01/2010	1
15471 - GASKET, TURBO OIL INLET
15471-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
15471-33010	1NDTV..NDE150	02/2009 - 01/2010	1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-33010	1NDTV..NDE150	02/2007 - 02/2009	1
15472-33020	1NDTV..NDE150	02/2009 - 01/2010	1
15472-33020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17118 - STAY, MANIFOLD
17118-33030	1NDTV..NDE150	02/2007 - 02/2009	1
17118-33040	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17118-33040	1NDTV..NDE150	02/2009 - 01/2010	1
17141 - MANIFOLD, EXHAUST
17141-33050	1NDTV..NDE150	02/2009 - 01/2010	1
17141-33040	1NDTV..NDE150	02/2007 - 02/2009	1
17141-33050	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10033	1NDTV..NDE150	02/2009 - 01/2010	8
90126-10033	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-33010	1NDTV..NDE150	02/2007 - 02/2009	1
17173-33030	1NDTV..NDE150	02/2009 - 01/2010	1
17173-33030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17201 - TURBOCHARGER SUB-ASSY
17201-0N030	1NDTV..NDE150	02/2007 - 02/2009	1
17201-0N041	1NDTV..NDE150	02/2009 - 01/2010	1
17203B - ELBOW SUB-ASSY, COMPRESSOR INLET
17203-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17203-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17271 - INSULATOR, TURBO, NO.1
17271-33060	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
17271-33090	1NDTV..NDE150..DCRL	02/2009 - 01/2010	1
17271-33030	1NDTV..NDE150	02/2007 - 02/2009	1
17271-33090	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL	12/2009 - 12/2999	1
17271-33060	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR	12/2009 - 12/2999	1
17276 - GASKET, COMPRESSOR INLET
17276-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17276-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-27010	1NDTV..NDE150	02/2007 - 02/2009	1
17278-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17278-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-27020	1NDTV..NDE150	02/2007 - 02/2009	1
17279-27020	1NDTV..NDE150	02/2009 - 01/2010	1
17279-27020	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA *132	12/2009 - 12/2999	1
17293 - STAY, TURBOCHARGER
17293-33010	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
17293-33010	1NDTV..NDE150	02/2009 - 01/2010	1
17861F - CONNECTOR, INTAKE AIR
17861-33040	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR	12/2009 - 12/2999	1
17861-33040	1NDTV..NDE150	02/2009 - 01/2010	1
17861-33020	1NDTV..NDE150	02/2007 - 02/2009	1
17861F - CONNECTOR, INTAKE AIR
17861-33040	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR	12/2009 - 12/2999	1
17861-33040	1NDTV..NDE150	02/2009 - 01/2010	1
17861-33020	1NDTV..NDE150	02/2007 - 02/2009	1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-33011	1NDTV..NDE150	02/2007 - 02/2009	1
26171-33050	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
26171-33050	1NDTV..NDE150	02/2009 - 01/2010	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-33060	1NDTV..NDE150..DCR 114=TOYOTA/207/Y	02/2009 - 01/2010	1
25051-33090	1NDTV..NDE150..DCRL 114=407	02/2009 - 01/2010	1
25051-33051	1NDTV..NDE150 *114=TOYOTA/33051/Y	02/2007 - 02/2009	1
25051-33090	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL 114=407,*132	12/2009 - 12/2999	1
25051-33060	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR 114=TOYOTA/207/Y,*132	12/2009 - 12/2999	1
25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2
25052-33020	1NDTV..NDE150..DCRL 114=TOYOTA/208/Y	02/2009 - 01/2010	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-33020	1NDTV..NDE150	02/2007 - 02/2009	1
25592-33020	1NDTV..NDE150..DCRL NO.2	02/2009 - 01/2010	1
25594-33010	1NDTV..NDE150..DCRL NO.4	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
25591-33050	1NDTV..NDE150..DCRL NO.1	02/2009 - 01/2010	1
25593-33010	1NDTV..NDE150..DCRL NO.3	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR *132	12/2009 - 12/2999	1
25591-33050	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.1	12/2009 - 12/2999	1
25592-33020	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.2	12/2009 - 12/2999	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-33020	1NDTV..NDE150	02/2007 - 02/2009	1
25592-33020	1NDTV..NDE150..DCRL NO.2	02/2009 - 01/2010	1
25594-33010	1NDTV..NDE150..DCRL NO.4	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
25591-33050	1NDTV..NDE150..DCRL NO.1	02/2009 - 01/2010	1
25593-33010	1NDTV..NDE150..DCRL NO.3	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR *132	12/2009 - 12/2999	1
25591-33050	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.1	12/2009 - 12/2999	1
25592-33020	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.2	12/2009 - 12/2999	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-33020	1NDTV..NDE150	02/2007 - 02/2009	1
25592-33020	1NDTV..NDE150..DCRL NO.2	02/2009 - 01/2010	1
25594-33010	1NDTV..NDE150..DCRL NO.4	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
25591-33050	1NDTV..NDE150..DCRL NO.1	02/2009 - 01/2010	1
25593-33010	1NDTV..NDE150..DCRL NO.3	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR *132	12/2009 - 12/2999	1
25591-33050	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.1	12/2009 - 12/2999	1
25592-33020	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.2	12/2009 - 12/2999	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-33020	1NDTV..NDE150	02/2007 - 02/2009	1
25592-33020	1NDTV..NDE150..DCRL NO.2	02/2009 - 01/2010	1
25594-33010	1NDTV..NDE150..DCRL NO.4	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..DCR	02/2009 - 01/2010	1
25591-33050	1NDTV..NDE150..DCRL NO.1	02/2009 - 01/2010	1
25593-33010	1NDTV..NDE150..DCRL NO.3	02/2009 - 01/2010	1
25591-33030	1NDTV..NDE150..SOL..DCR;1NDTV..NDE150..6F..TERRA..DCR *132	12/2009 - 12/2999	1
25591-33050	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.1	12/2009 - 12/2999	1
25592-33020	1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL *132,NO.2	12/2009 - 12/2999	1
Common parts
90105-W0042
90116-06048
90116-08260
90116-10175
90119-W0026
90126-06029
90126-06033
90126-08052
90126-10033
90126-10044
90178-W0047
90179-08119
90179-10070
90179-10094
90464-00298
90917-06045
90917-11037
91551-80825
91552-81025
91552-81070
91671-80620
91672-81025
94151-20641
94151-80600
94151-80800
94151-81041
Linked diagrams
1703
1708
2501
2606

NDE150R-DGFDXW (2009)

(0902- )1NDTV..DCR

(0902- )1NDTV..DCRL

Part Price Details
