NDE150L-DHLDYW (2009)
Toyota Auris/Hybrid (Ukp)
(0902- )6FS
EC60A,EC65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-25005 |
NDE150,ZRE151..6FS |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
NDE150..E;NDE150,ZRE151..6FS |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-35062 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
1 | ||
| 90311-35062 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202,*206 |
1 | ||
| 90311-35062 |
NDE150..E;NDE150,ZRE151..6FS |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-12170 |
NDE150..6F..(SOL,TERRA) *206 |
1 | ||
| 31115-0D120 |
NDE150..6F..(SOL,TERRA) *202 |
1 | ||
| 31115-52100 |
NDE150..6F..(SOL,TERRA) *201 |
1 | ||
| 31115-12170 |
NDE150..E |
1 | ||
| 31115-52100 |
NDE150..6FS |
1 | ||
| 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR | ||||
| 41300-02030 |
NDE150..6F..(SOL,TERRA) *202 |
1 | ||
| 41300-12010 |
NDE150..6FS |
1 | ||
| 41300-52110 |
NDE150..E |
1 | ||
| 41300-12040 |
NDE150..6F..(SOL,TERRA) *206 |
1 | ||
| 41300-12010 |
NDE150..6F..(SOL,TERRA) *201 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40129 |
NDE150..E;NDE150,ZRE151..6FS |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42009 |
NDE150..E;NDE150,ZRE151..6FS |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NDE150..E;NDE150,ZRE151..6FS T=2.1 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-44010 |
NDE150..E;NDE150,ZRE151..6FS T=2.150, MARK 2 |
1 | ||
| 90564-44008 |
NDE150..E;NDE150,ZRE151..6FS T=2.100, MARK 0 |
1 | ||
| 90564-44016 |
NDE150..E;NDE150,ZRE151..6FS T=2.300, MARK 8 |
1 | ||
| 90564-44013 |
NDE150..E;NDE150,ZRE151..6FS T=2.225, MARK 5 |
1 | ||
| 90564-44015 |
NDE150..E;NDE150,ZRE151..6FS T=2.275, MARK 7 |
1 | ||
| 90564-44023 |
NDE150..E;NDE150,ZRE151..6FS T=2.475, MARK F |
1 | ||
| 90564-44027 |
NDE150..E;NDE150,ZRE151..6FS T=2.575, MARK K |
1 | ||
| 90564-44014 |
NDE150..E;NDE150,ZRE151..6FS T=2.250, MARK 6 |
1 | ||
| 90564-44009 |
NDE150..E;NDE150,ZRE151..6FS T=2.125, MARK 1 |
1 | ||
| 90564-44017 |
NDE150..E;NDE150,ZRE151..6FS T=2.325, MARK 9 |
1 | ||
| 90564-44012 |
NDE150..E;NDE150,ZRE151..6FS T=2.200, MARK 4 |
1 | ||
| 90564-44024 |
NDE150..E;NDE150,ZRE151..6FS T=2.500, MARK G |
1 | ||
| 90564-44011 |
NDE150..E;NDE150,ZRE151..6FS T=2.175, MARK 3 |
1 | ||
| 90564-44025 |
NDE150..E;NDE150,ZRE151..6FS T=2.525, MARK H |
1 | ||
| 90564-44019 |
NDE150..E;NDE150,ZRE151..6FS T=2.375, MARK B |
1 | ||
| 90564-44029 |
NDE150..E;NDE150,ZRE151..6FS T=2.625, MARK M |
1 | ||
| 90564-44020 |
NDE150..E;NDE150,ZRE151..6FS T=2.400, MARK C |
1 | ||
| 90564-44021 |
NDE150..E;NDE150,ZRE151..6FS T=2.425, MARK D |
1 | ||
| 90564-44022 |
NDE150..E;NDE150,ZRE151..6FS T=2.450, MARK E |
1 | ||
| 90564-44035 |
NDE150..E;NDE150,ZRE151..6FS T=2.775, MARK T |
1 | ||
| 90564-44028 |
NDE150..E;NDE150,ZRE151..6FS T=2.600, MARK L |
1 | ||
| 90564-44018 |
NDE150..E;NDE150,ZRE151..6FS T=2.350, MARK A |
1 | ||
| 90564-44034 |
NDE150..E;NDE150,ZRE151..6FS T=2.750, MARK S |
1 | ||
| 90564-44026 |
NDE150..E;NDE150,ZRE151..6FS T=2.550, MARK J |
1 | ||
| 90564-44037 |
NDE150..E;NDE150,ZRE151..6FS T=2.825, MARK V |
1 | ||
| 90564-44030 |
NDE150..E;NDE150,ZRE151..6FS T=2.650, MARK N |
1 | ||
| 90564-44031 |
NDE150..E;NDE150,ZRE151..6FS T=2.675, MARK P |
1 | ||
| 90564-44032 |
NDE150..E;NDE150,ZRE151..6FS T=2.700, MARK Q |
1 | ||
| 90564-44033 |
NDE150..E;NDE150,ZRE151..6FS T=2.725, MARK R |
1 | ||
| 90564-44038 |
NDE150..E;NDE150,ZRE151..6FS T=2.850, MARK W |
1 | ||
| 90564-44036 |
NDE150..E;NDE150,ZRE151..6FS T=2.800, MARK U |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90080-36144 |
NDE150..6F..(SOL,TERRA) *202 |
1 | ||
| 90366-40130 |
NDE150..E |
1 | ||
| 90366-40130 |
NDE150..6F..(SOL,TERRA) *201,*206 |
1 | ||
| 90366-40130 |
NDE150..6FS |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-42010 |
NDE150..E;NDE150,ZRE151..6FS |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12150 |
NDE150,ZRE15#..6F..(SOL,TERRA) *206 |
2 | ||
| 41331-05030 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202 |
2 | ||
| 41331-20130 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
2 | ||
| 41331-12150 |
NDE150..E |
2 | ||
| 41331-20130 |
NDE150,ZRE151..6FS |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12150 |
NDE150,ZRE15#..6F..(SOL,TERRA) *206 |
2 | ||
| 41331-05030 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202 |
2 | ||
| 41331-20130 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
2 | ||
| 41331-12150 |
NDE150..E |
2 | ||
| 41331-20130 |
NDE150,ZRE151..6FS |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-05030 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202 |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6FS |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
2 | ||
| 41341-12100 |
NDE150,ZRE15#..6F..(SOL,TERRA) *206 |
2 | ||
| 41341-12100 |
NDE150..E |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-05030 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202 |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6FS |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
2 | ||
| 41341-12100 |
NDE150,ZRE15#..6F..(SOL,TERRA) *206 |
2 | ||
| 41341-12100 |
NDE150..E |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NDE150..E;ADE15#..DCRL;NDE150,ZRE151..4FC,6FS |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL |
1 | ||
| 41342-32020 |
NDE150..E;NDE150,ZRE151..6FS |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202,*206 |
2 | ||
| 41351-32010 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
2 | ||
| 41351-32010 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL |
2 | ||
| 41351-32010 |
NDE150..E;NDE150,ZRE151..6FS |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NDE150,ZRE15#..6F..(SOL,TERRA) *202,*206 |
2 | ||
| 41351-32010 |
NDE150,ZRE151..6F..(SOL,TERRA) *201 |
2 | ||
| 41351-32010 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL |
2 | ||
| 41351-32010 |
NDE150..E;NDE150,ZRE151..6FS |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
NDE150..E;NDE150,ZRE151..6FS T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
NDE150..E;NDE150,ZRE151..6FS T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
NDE150..E;NDE150,ZRE151..6FS T=0.95,MARK 14 |
2 | ||
| 41361-22030 |
NDE150..E;NDE150,ZRE151..6FS T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
NDE150..E;NDE150,ZRE151..6FS T=1.15,MARK 16 |
2 | ||
| 41361-22150 |
NDE150..E;NDE150,ZRE151..6FS T=1.05,MARK 15 |
2 | ||
| 41361-22020 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.10,MARK 03 |
2 | ||
| 41361-22150 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=0.95,MARK 14 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
NDE150..E;NDE150,ZRE151..6FS T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
NDE150..E;NDE150,ZRE151..6FS T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
NDE150..E;NDE150,ZRE151..6FS T=0.95,MARK 14 |
2 | ||
| 41361-22030 |
NDE150..E;NDE150,ZRE151..6FS T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
NDE150..E;NDE150,ZRE151..6FS T=1.15,MARK 16 |
2 | ||
| 41361-22150 |
NDE150..E;NDE150,ZRE151..6FS T=1.05,MARK 15 |
2 | ||
| 41361-22020 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.10,MARK 03 |
2 | ||
| 41361-22150 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
NDE150..E;ZRE151..6FS;NDE150..6FS..SOL T=0.95,MARK 14 |
2 | ||
| Linked diagrams | ||||

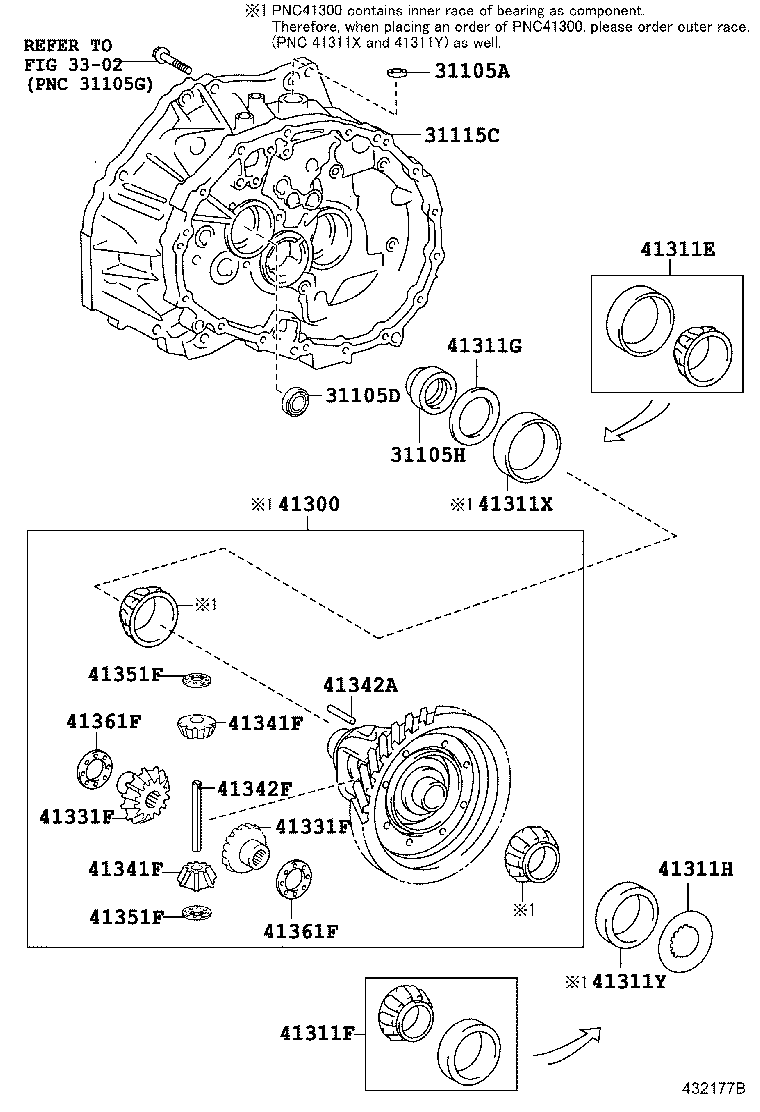

| 3302 | ||||
