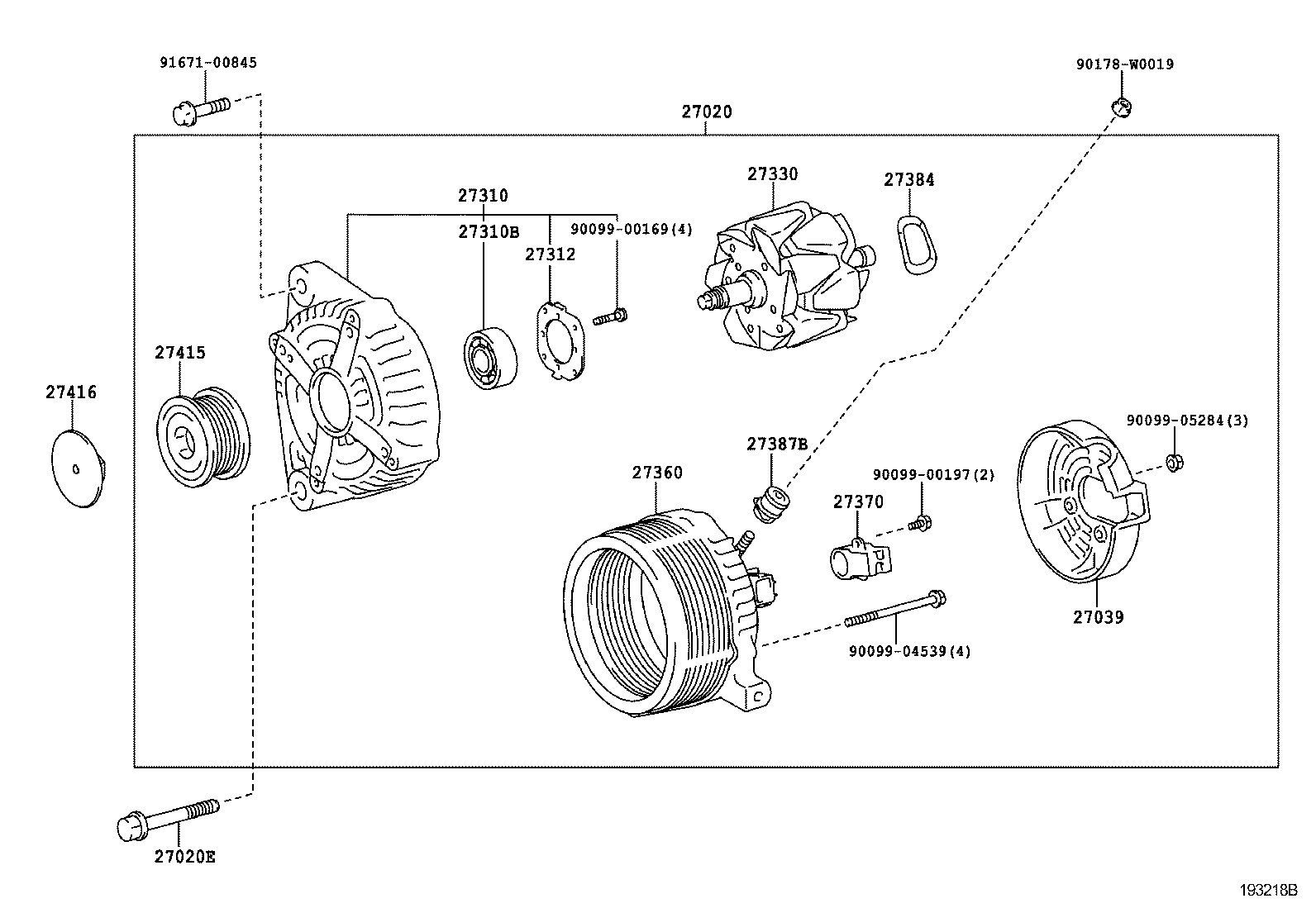

Toyota Auris/hybrid (ukp) NDE150 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0N020	1NDTV..NDE150 12V 100A	02/2007 - 07/2008	1
27060-0N040	1NDTV..NDE150 12V 100A	02/2009 - 01/2010	1
27060-0N040	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA 12V 100A	12/2009 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10571	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
90105-10111	1NDTV..NDE150	02/2009 - 01/2010	1
90105-W0119	1NDTV..NDE150	02/2007 - 02/2009	1
27039 - COVER, ALTERNATOR REAR END
27039-27060	1NDTV..NDE150	02/2007 - 02/2009	1
27039-26170	1NDTV,1ZRFE..NDE150,ZRE151	02/2009 - 01/2010	1
27039-31390	1ZRFE..ZRE151;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-33110	1NDTV..NDE150	02/2007 - 02/2009	1
27310-0N030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
27310-0N030	1NDTV..NDE150	02/2009 - 01/2010	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223	1NDTV..NDE150	02/2007 - 08/2008	1
90099-10231	1NDTV..NDE150	02/2009 - 01/2010	1
90099-10231	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
27312 - PLATE, RETAINER
27312-72100	1NDTV..NDE150;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..DCRL,HTWC	02/2009 - 01/2010	1
27312-72100	1NDTV..NDE150	02/2007 - 02/2009	1
27312-72100	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..LHD	12/2009 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-30070	1NDTV..NDE150	02/2007 - 02/2009	1
27330-30070	1NDTV..NDE150;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..DCRL,HTWC	02/2009 - 01/2010	1
27330-30070	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..LHD	12/2009 - 12/2999	1
27360 - COIL ASSY, ALTERNATOR
27360-33110	1NDTV..NDE150	02/2007 - 02/2009	1
27360-0N030	1NDTV..NDE150	02/2009 - 01/2010	1
27360-28190	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220	1ZRFE..ZRE151;1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA	12/2009 - 12/2999	1
27370-31220	1NDTV..NDE150	02/2007 - 02/2009	1
27370-31220	1NDTV,1ZRFE..NDE150,ZRE151	02/2009 - 01/2010	1
27384 - WASHER
27384-50030	1NDTV..NDE150	02/2007 - 02/2009	1
27384-50030	1NDTV..NDE150;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..DCRL,HTWC	02/2009 - 01/2010	1
27384-50030	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..LHD	12/2009 - 12/2999	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130	1NDTV..NDE150	02/2007 - 02/2009	1
27387-20130	1NDTV..NDE150..E,SOL;1NDTV..NDE150..6F..TERRA;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..LHD	12/2009 - 12/2999	1
27387-20130	1NDTV..NDE150;1ADFTV,2ADFHV,1ZRFE..ADE15#,ZRE151..DCRL,HTWC	02/2009 - 01/2010	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-33070	1NDTV..NDE150	02/2009 - 01/2010	1
27415-33050	1NDTV..NDE150	02/2007 - 02/2009	1
27416 - CAP, ALTERNATOR PULLEY
27416-27010	1NDTV..NDE150;1ADFTV,2ADFHV..ADE15#..DCRL	02/2009 - 01/2010	1
Common parts
90099-00169
90099-00197
90099-04539
90099-05284
90178-W0019
91671-00845

NDE150L-DGFDYW (2009)

(0902- )1NDTV
