ADE186L-DHFNXW (2012)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 1 OF13(1210- )ADE186,NDE180,NRE18#,WWE185,ZRE185..LHD

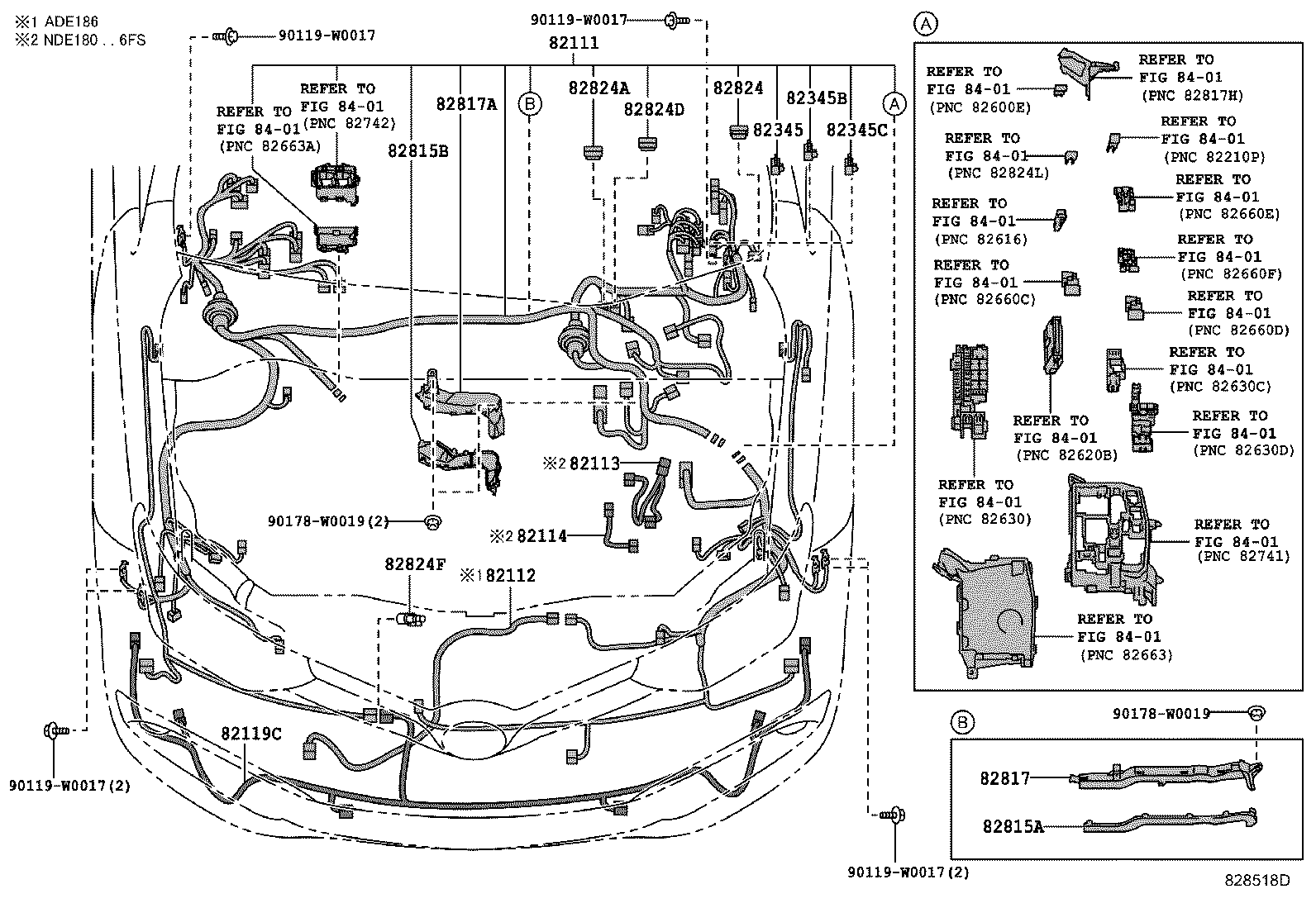

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-0Z240 |
ADE186 |
1 | ||
| 82115-0Z250 |
ADE186 CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & AFS&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0Z230 |
ADE186 COLD AREA SPEC |
1 | ||
| 82115-0Z250 |
ADE186 HIGH GRADE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82115-0Z250 |
ADE186 COMFORT PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0Z780 |
ADE186 COMFORT PACKAGE&COLD AREA SPEC&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0Z780 |
ADE186 HIGH GRADE&COLD AREA SPEC&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM&HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82115-0Z780 |
ADE186 COLD AREA SPEC&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & AFS&HEADLAMP CLEANER-WITH |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-05010 |
ADE186 |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02140 |
ADE186,NDE180,NRE180,ZRE185..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02130 |
ADE186,NDE180,NRE180,ZRE185..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02640 |
ADE186,NDE180..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02A80 |
ADE186,NDE180,NRE180,ZRE185..LHD |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
ADE186,NDE180,NRE180,ZRE185..LHD |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-52270 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||

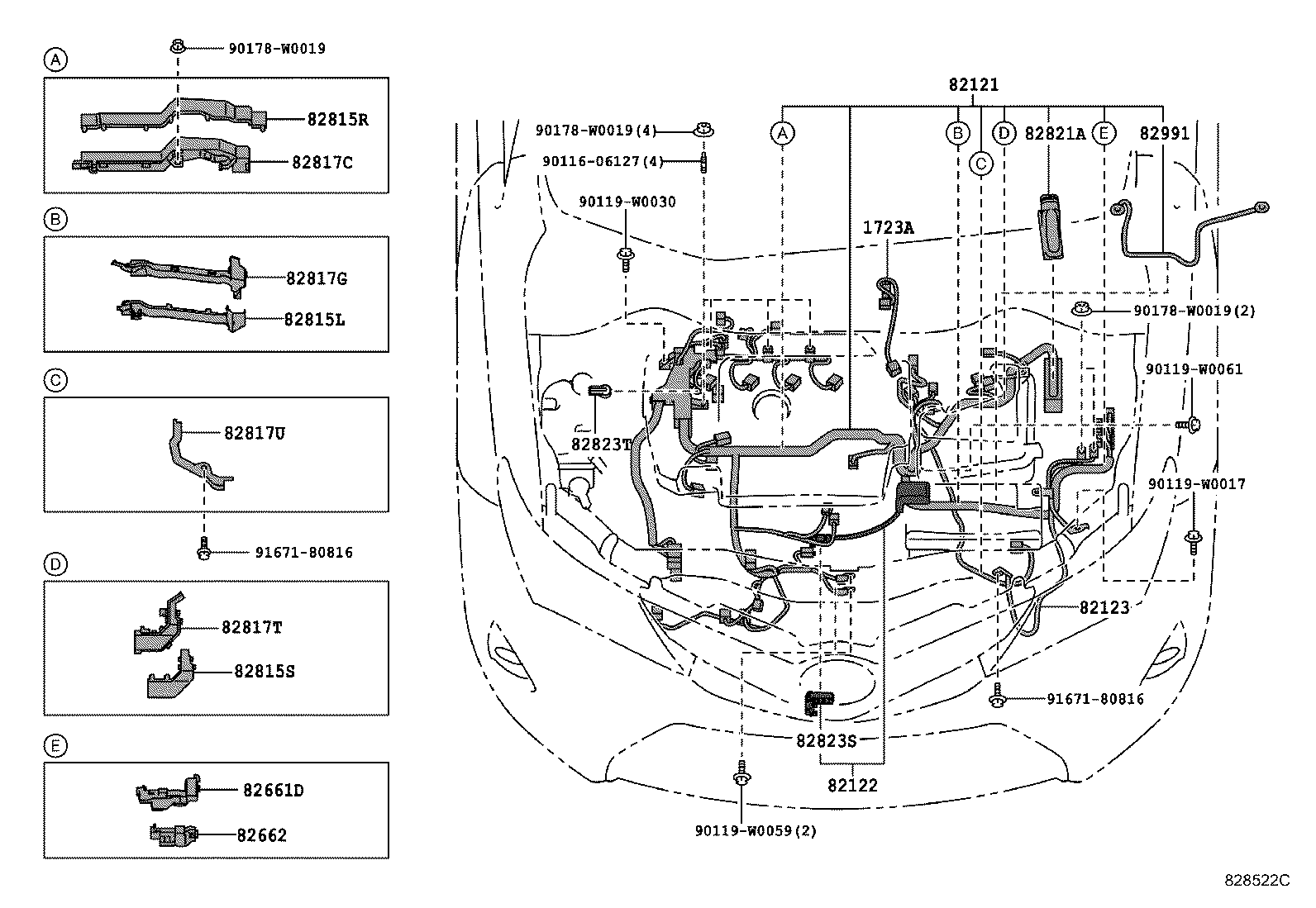

ILLUST NO. 2 OF13(1210-1505)ADE186
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 1723A - WIRE, TURBOCHARGER | ||||
| 1723A-0R012 |
1ADFTV..ADE186 |
1 | ||
| 1723A-0R011 |
1ADFTV..ADE186 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-0Z290 |
ADE186 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-02180 |
ADE186 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02580 |
ADE186 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12320 |
ADE186,NDE180 |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-12C00 |
ADE186,NDE180 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02380 |
ADE186 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-05240 |
ADE186 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-02070 |
ADE186,NDE180 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-05490 |
ADE186 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02B10 |
ADE186 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-02380 |
ADE186,NDE180 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-02440 |
ADE186 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
ADE186 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20100 |
ADE186 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ADE186,NDE180,NRE180,ZRE185 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-02050 |
ADE186 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-W0017 | ||||
| 90119-W0030 | ||||
| 90119-W0059 | ||||
| 90119-W0061 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
ILLUST NO. 3 OF13(1210- )LHD

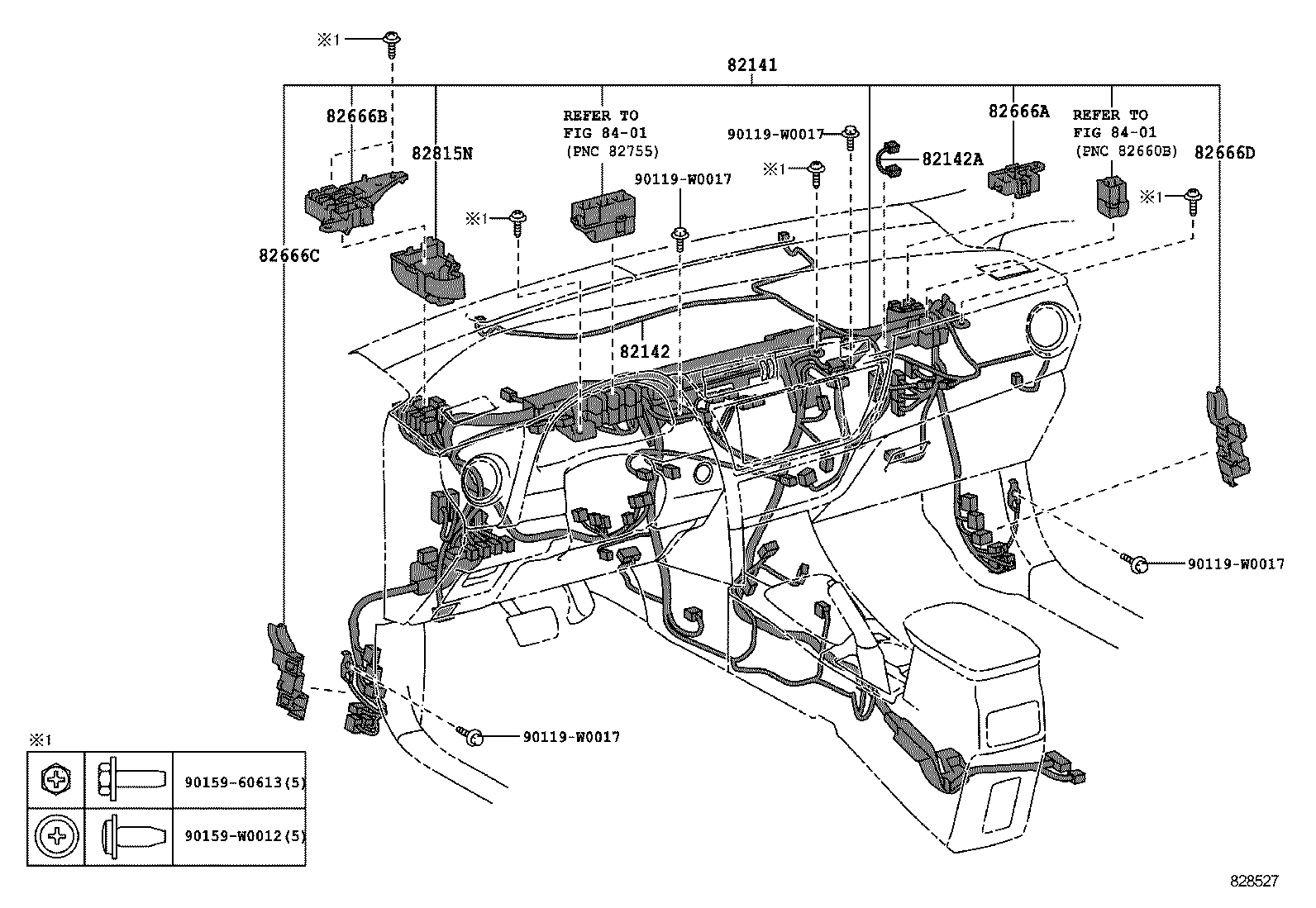

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-0ZB60 |
ADE186 SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB60 |
ADE186 SEAT HEATER-WITH |
1 | ||
| 82118-0ZB70 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB70 |
ADE186..HB HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB60 |
ADE186 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB70 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB70 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB70 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH |
1 | ||
| 82118-0ZB70 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82118-0ZF00 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZF00 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&SEAT HEATER-WITH |
1 | ||
| 82118-0ZF00 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82118-0ZF00 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZX40 |
ADE186 |
1 | ||
| 82118-0ZB71 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB61 |
ADE186 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB61 |
ADE186 SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB71 |
ADE186..HB HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&LIGHT CONTROLSYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEATHEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB61 |
ADE186 SEAT HEATER-WITH |
1 | ||
| 82118-0ZB71 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH |
1 | ||
| 82118-0ZB71 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZB71 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82118-0ZB71 |
ADE186..HB COMFORT PACKAGE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&LIGHT CONTROL SYSTEM-WITH(AUTO)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZF01 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82118-0ZF01 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&SEAT HEATER-WITH |
1 | ||
| 82118-0ZF01 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZF01 |
ADE186..HB REFRIGERANT GAS TYPE=R-134A&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82118-0ZX41 |
ADE186 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02240 |
ADE186,ZRE185..LHD;NDE180,NRE180..LHD..N LIGHT GRADE |
1 | ||
| 82142-02290 |
NDE180,NRE180..LHD..N;ADE186,ZRE185,ZWE186..LHD..(D,N) |
1 | ||
| 82142-02300 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82142-02310 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02380 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02400 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02420 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02430 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-02330 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-60613 | ||||
| 90159-W0012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF13(1210- )HB

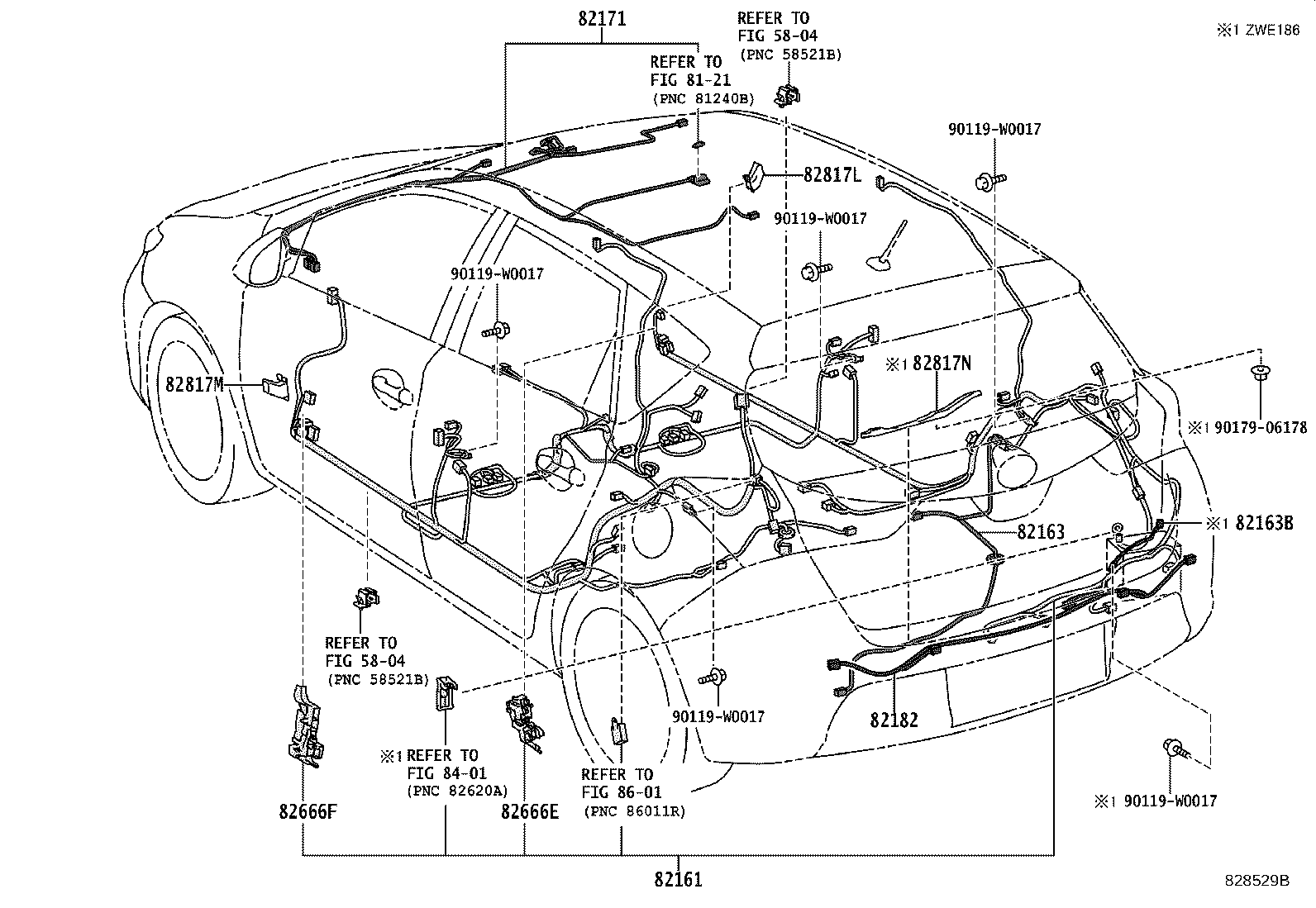

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0ZD40 |
ADE186,NDE180,NRE180..LHD..HB..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD30 |
ADE186,NDE180,NRE180..LHD..HB..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD30 |
ADE186,NDE180,NRE180..LHD..HB SEAT HEATER-WITH |
1 | ||
| 82161-0ZD30 |
ADE186,NDE180,NRE180..LHD..HB..N SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD40 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD40 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&CLEARANCE & BACKSONAR-WITH |
1 | ||
| 82161-0ZD40 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH |
1 | ||
| 82161-0ZD40 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82161-0ZS00 |
ADE186,NDE180,NRE180..LHD..HB |
1 | ||
| 82161-0ZD30 |
ADE186,NDE180,NRE180..LHD..HB..N REFRIGERANT GAS TYPE=R-134A&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD40 |
ADE186,NDE180..LHD..HB..N REFRIGERANT GAS TYPE=R-134A&HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZD30 |
ADE186,NDE180,NRE180..LHD..HB REFRIGERANT GAS TYPE=R-134A&SEAT HEATER-WITH |
1 | ||
| 82161-0ZD30 |
ADE186,NDE180,NRE180..LHD..HB..N REFRIGERANT GAS TYPE=R-134A&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82161-0ZS00 |
ADE186,NDE180,NRE180..LHD..HB REFRIGERANT GAS TYPE=R-134A |
1 | ||
| 82199-02770 |
ADE186,NDE180,NRE180..LHD..HB SEAT HEATER-WITH |
1 | ||
| 82199-02780 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82199-02780 |
ADE186,NDE180,NRE180..LHD..HB..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82199-02770 |
ADE186,NDE180,NRE180..LHD..HB..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82199-02780 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&CLEARANCE & BACKSONAR-WITH |
1 | ||
| 82199-02780 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82199-02790 |
ADE186,NDE180,NRE180..LHD..HB |
1 | ||
| 82199-02780 |
ADE186,NDE180,NRE180..LHD..HB..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&SEAT HEATER-WITH |
1 | ||
| 82199-02770 |
ADE186,NDE180,NRE180..LHD..HB..N SEAT HEATER-WITH&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-02190 |
NDE180..6F..N;ADE186,ZRE185..N;NDE180..LHD..6FS;NRE180,ZWE186..LHD..N COMFORT PACKAGE |
1 | ||
| 82163-02200 |
ADE186,ZRE185..LHD..HB..N HIGH GRADE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 82163-02200 |
ADE186,ZRE185..LHD..HB..N COMFORT PACKAGE&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM |
1 | ||
| 82163-02200 |
ADE186,ZRE185..LHD..HB..N HEADLAMP-DISCHARGE & AFS |
1 | ||
| 82163-02190 |
NDE180..6F..N;NRE180..LHD..N;NDE180..LHD..6FS;ADE186,ZRE185..N HIGH GRADE |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02U40 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N HIGH GRADE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02U00 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N |
1 | ||
| 82171-02U40 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N COMFORT PACKAGE&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02U50 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE) |
1 | ||
| 82171-02Y00 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N HIGH GRADE&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-02Y00 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N COMFORT PACKAGE&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-02010 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..HB..N CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02460 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02470 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02C00 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02C10 |
ADE186,NDE180,NRE180,ZRE185,ZWE186 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90179-06178 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 7 OF13(1210- )

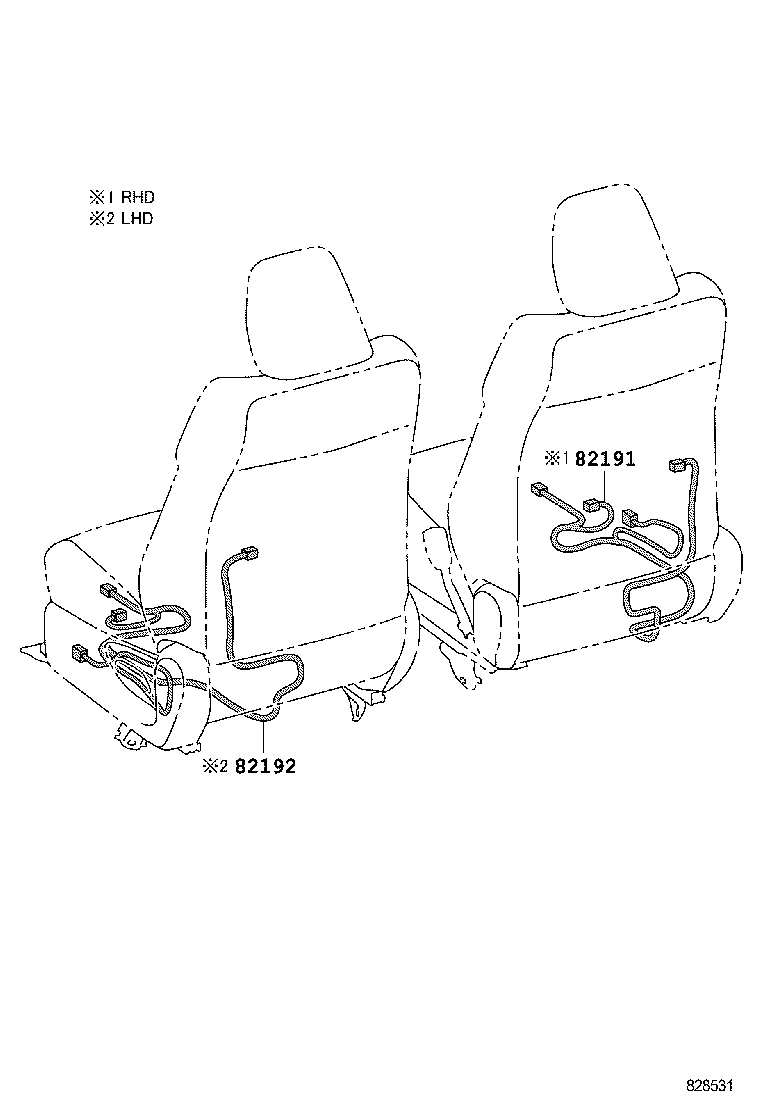

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
ADE186,NDE180,NRE180,ZRE185..LHD..N SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N SEAT HEATER-WITH |
1 | ||
| 82192-02110 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N MODELYEAR 14&SEAT COVER MATERIAL-FABLIC(MY14)&SEAT HEATER-WITH |
1 | ||
ILLUST NO. 8 OF13(1210- )

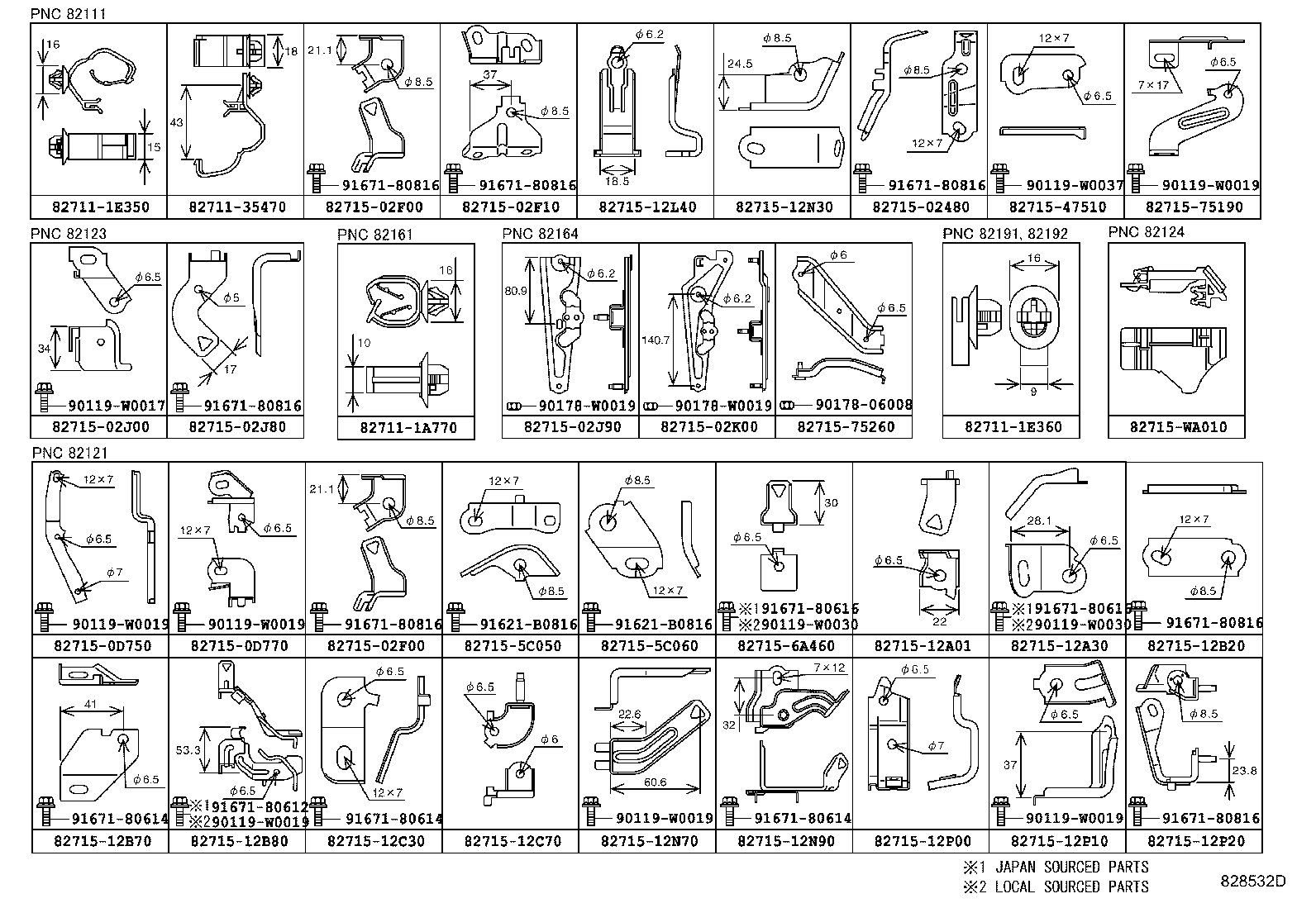

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E350 | ||||
| 82711-1E360 | ||||
| 82711-35470 | ||||
| 82715-02480 | ||||
| 82715-02F00 | ||||
| 82715-02F10 | ||||
| 82715-02J00 | ||||
| 82715-02J80 | ||||
| 82715-02J90 | ||||
| 82715-02K00 | ||||
| 82715-0D750 | ||||
| 82715-0D770 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C30 | ||||
| 82715-12C70 | ||||
| 82715-12L40 | ||||
| 82715-12N30 | ||||
| 82715-12N70 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P10 | ||||
| 82715-12P20 | ||||
| 82715-47510 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82715-75190 | ||||
| 82715-75260 | ||||
| 82715-WA010 | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90178-06008 | ||||
| 90178-W0019 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
ILLUST NO. 9 OF13(1210- )

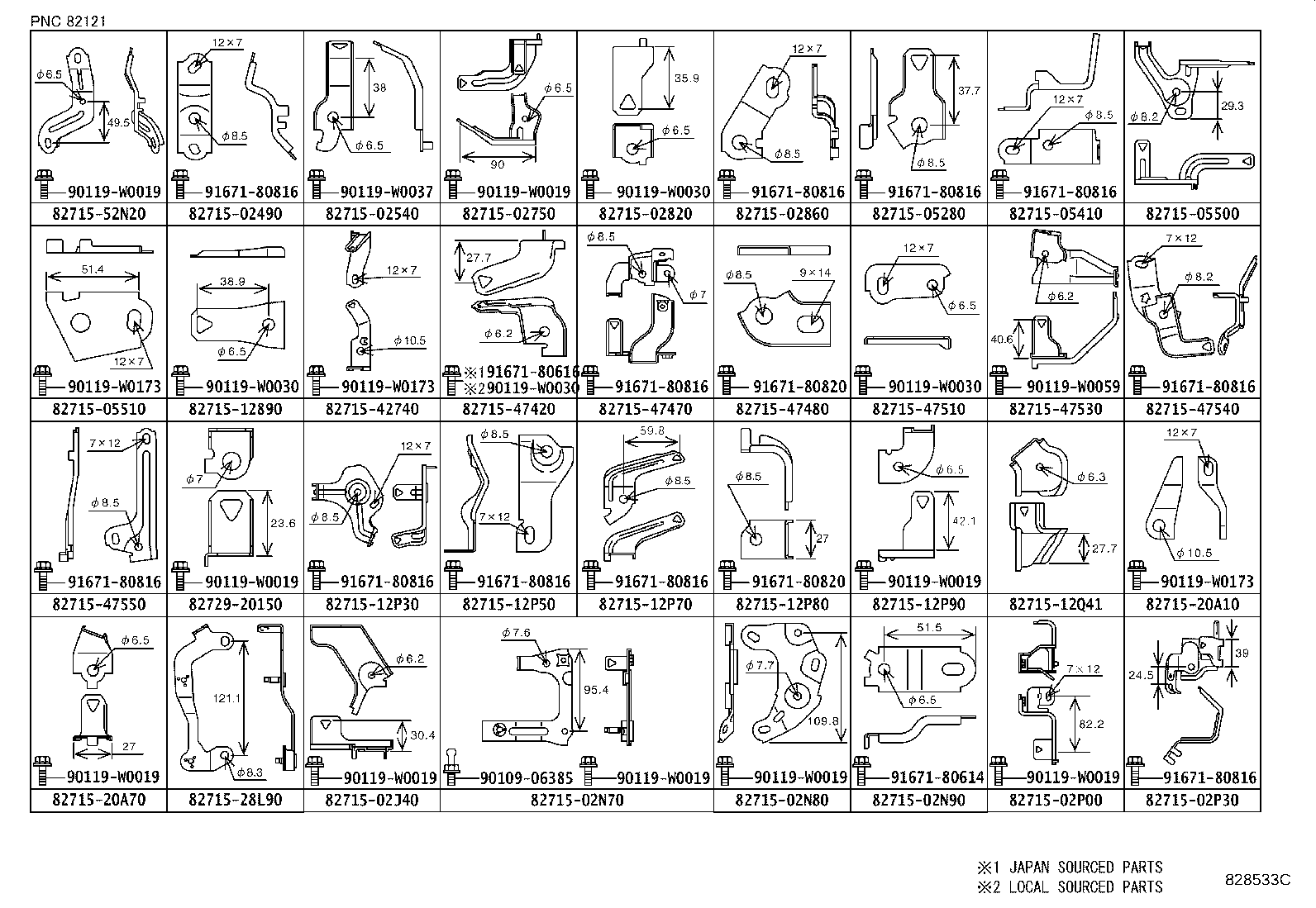

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02490 | ||||
| 82715-02540 | ||||
| 82715-02750 | ||||
| 82715-02820 | ||||
| 82715-02860 | ||||
| 82715-02J40 | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-02P30 | ||||
| 82715-05280 | ||||
| 82715-05410 | ||||
| 82715-05500 | ||||
| 82715-05510 | ||||
| 82715-12890 | ||||
| 82715-12P30 | ||||
| 82715-12P50 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12P90 | ||||
| 82715-12Q41 | ||||
| 82715-20A10 | ||||
| 82715-20A70 | ||||
| 82715-28L90 | ||||
| 82715-42740 | ||||
| 82715-47420 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47510 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 82715-52N20 | ||||
| 82729-20150 | ||||
| 90109-06385 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0059 | ||||
| 90119-W0173 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
ILLUST NO.11 OF13(1210- )

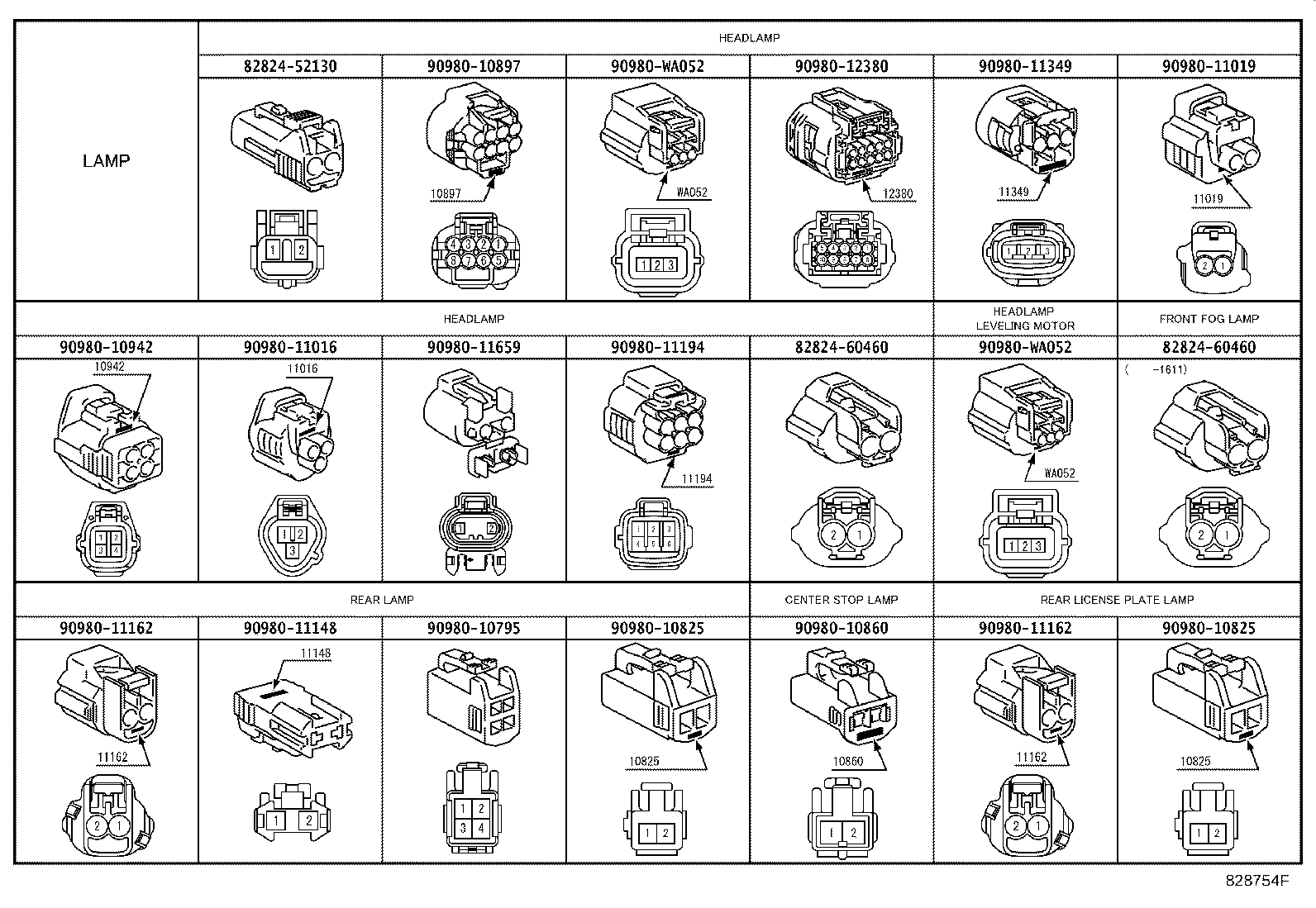

CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-12380 | ||||
| 90980-WA052 | ||||
ILLUST NO. 4 OF13(1210- )

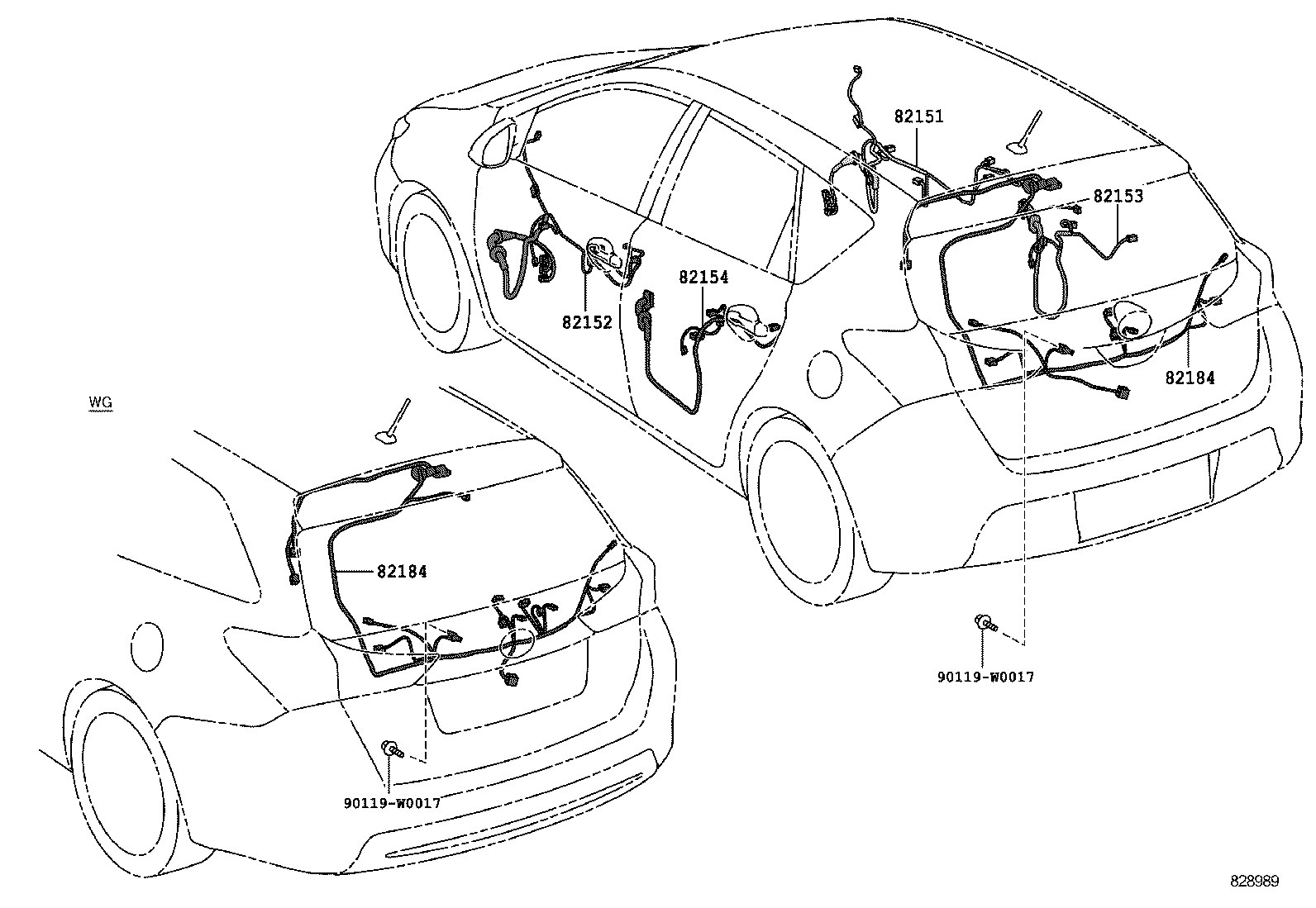

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0Z320 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82151-0Z280 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N) |
1 | ||
| 82151-0Z320 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82151-0Z460 |
ADE186,NDE180,NRE180,ZRE185..LHD..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0Z130 |
ADE186,NDE180,NRE180,ZRE185..LHD..N |
1 | ||
| 82152-02Z90 |
ADE186,NDE180,NRE180,ZRE185..LHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82152-0Z300 |
ADE186,NDE180,NRE180,ZRE185..LHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z170 |
ADE186,NDE180,NRE180,ZRE185..LHD..N HIGH GRADE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z170 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N COMFORT PACKAGE&POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN)&OUTSIDE REAR VIEW MIRROR-AUTOMATIC RETRACTABLE & W(HEATER) |
1 | ||
| 82152-0Z310 |
ADE186,NDE180,NRE180,ZRE185..LHD..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02A70 |
ADE186,NDE180,NRE180,ZRE185..LHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82153-02A90 |
ADE186,NDE180,NRE180,ZRE185..LHD..N |
1 | ||
| 82153-02A50 |
ADE186,NDE180,NRE180,ZRE185..LHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82153-02B30 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02830 |
ADE186,NDE180,NRE180,ZRE185..LHD..N |
1 | ||
| 82154-02790 |
ADE186,NDE180,NRE180,ZRE185..LHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN)&AUDIO-RADIO LESS & SPEAKER LESS |
1 | ||
| 82154-02810 |
ADE186,NDE180,NRE180,ZRE185..LHD..N POWER WINDOW-FRONT ONLY(DRIVER ONE-TOUCH UP/DOWN) |
1 | ||
| 82154-02870 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..N POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02330 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N COMFORT PACKAGE&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-02330 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-02350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N COMFORT PACKAGE |
1 | ||
| 82184-02350 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N HIGH GRADE |
1 | ||
| 82184-02490 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02330 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N COMFORT PACKAGE&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-02330 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82184-02350 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N COMFORT PACKAGE |
1 | ||
| 82184-02350 |
ADE186,NDE180,NRE180,ZRE185..LHD..HB..N HIGH GRADE |
1 | ||
| 82184-02490 |
ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..HB..N |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
ILLUST NO.12 OF13(1210- )

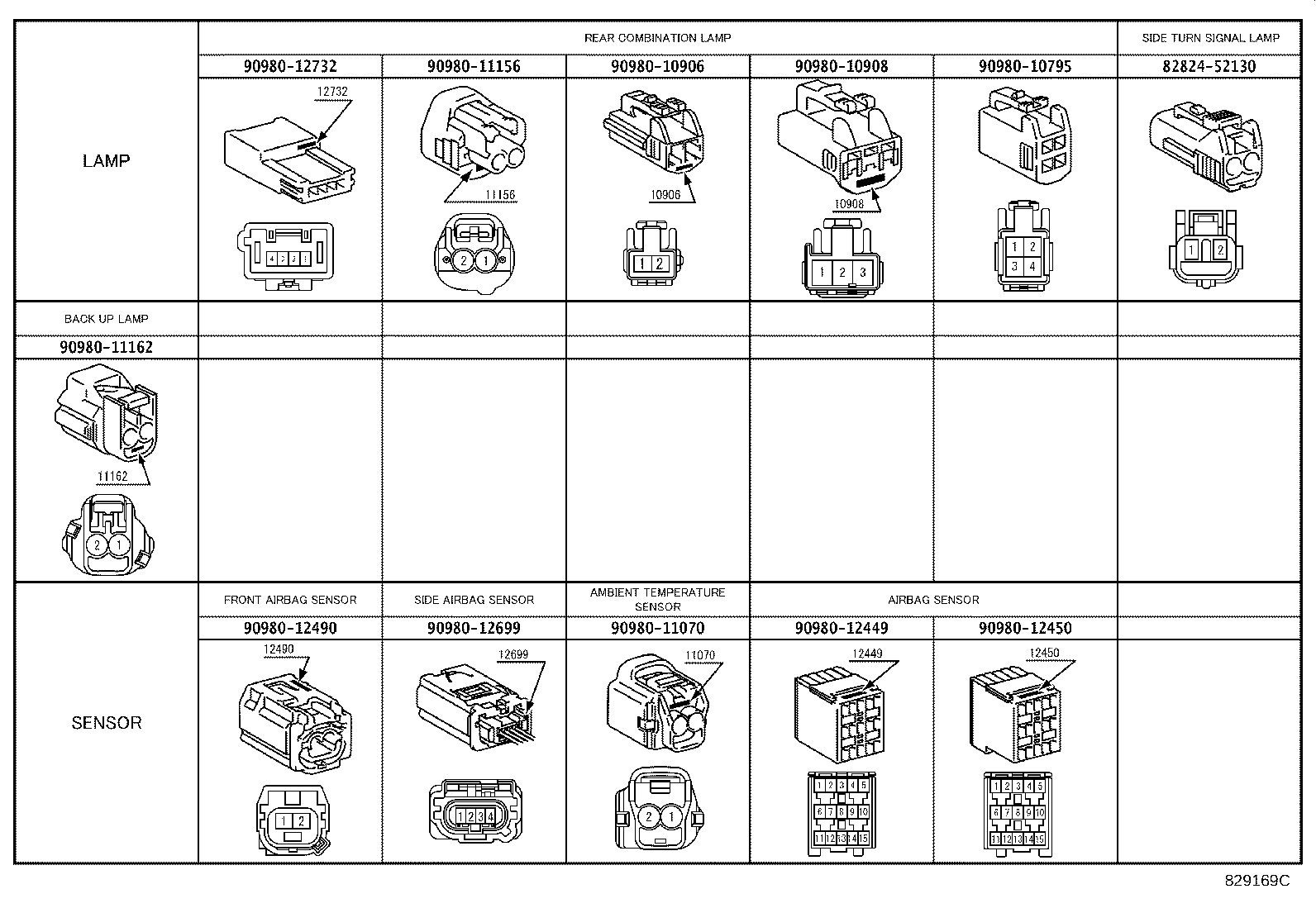

CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 90980-10795 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-11070 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12732 | ||||
ILLUST NO.10 OF13(1210- )

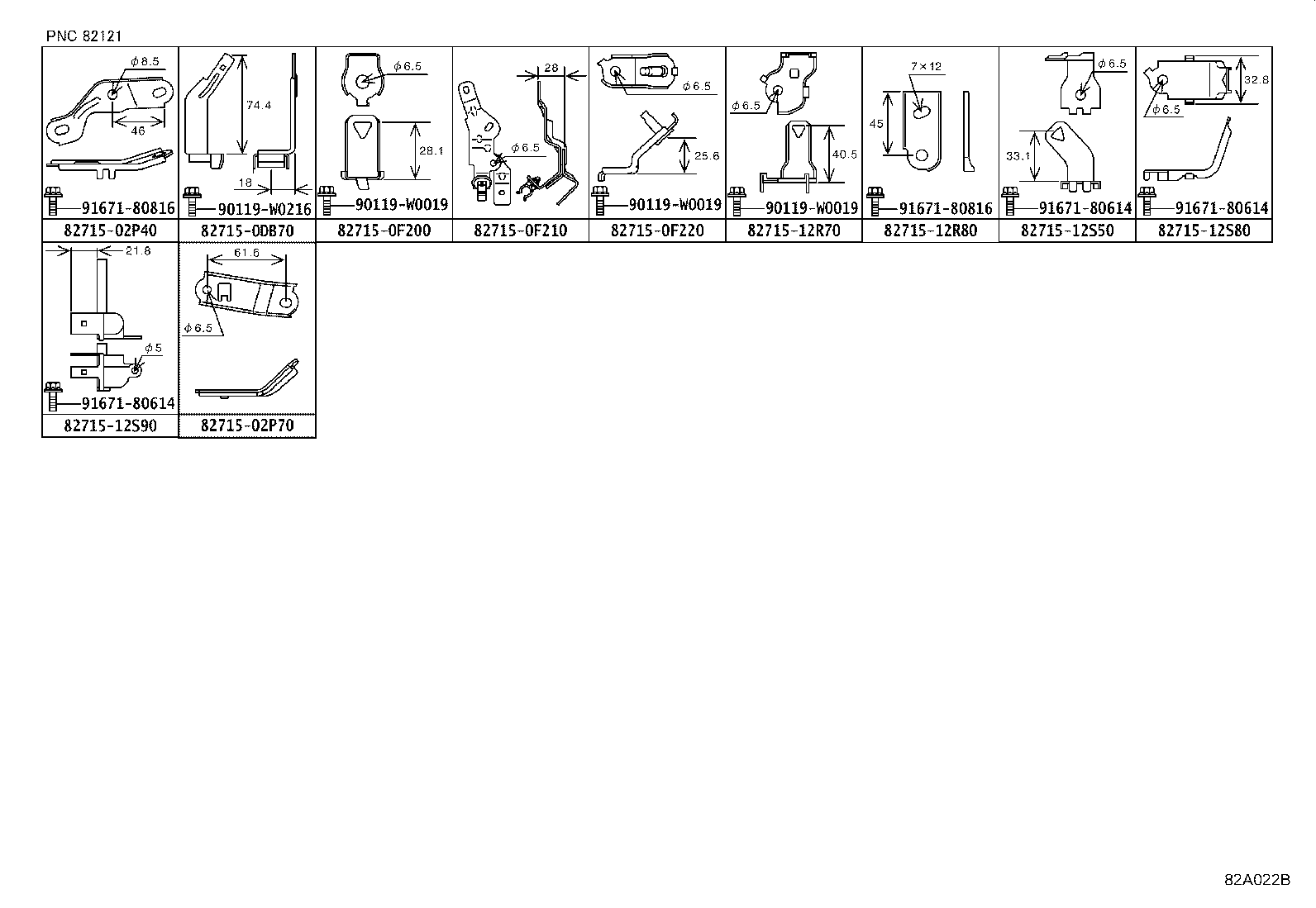

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02P40 | ||||
| 82715-02P70 | ||||
| 82715-0DB70 | ||||
| 82715-0F200 | ||||
| 82715-0F210 | ||||
| 82715-0F220 | ||||
| 82715-12R70 | ||||
| 82715-12R80 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12S90 | ||||
| 90119-W0019 | ||||
| 90119-W0216 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO.13 OF13(1210- )

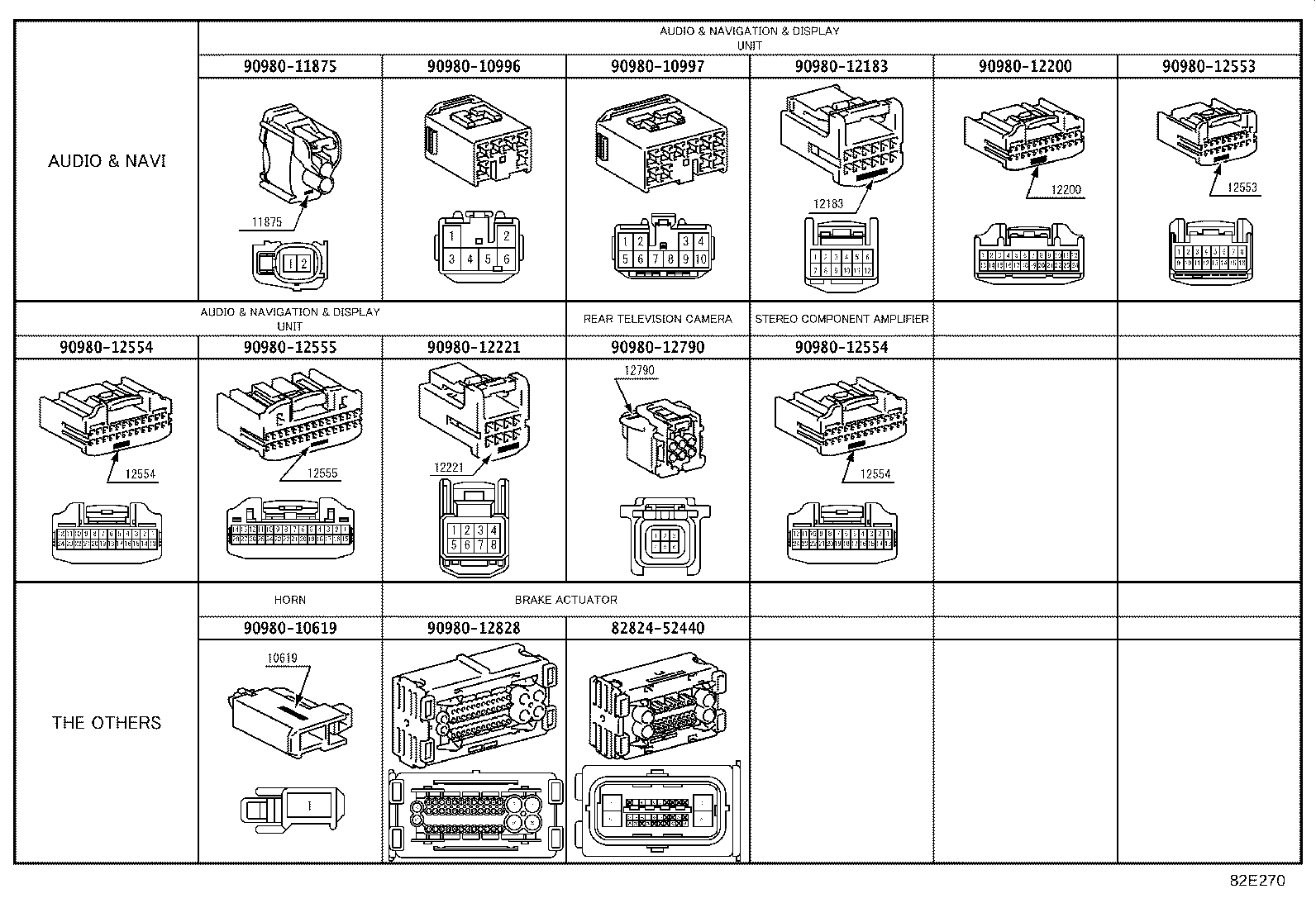

CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11875 | ||||
| 90980-12183 | ||||
| 90980-12200 | ||||
| 90980-12221 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12828 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
