ADE186L-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )ADE186,NRE185,WWE185,ZRE185

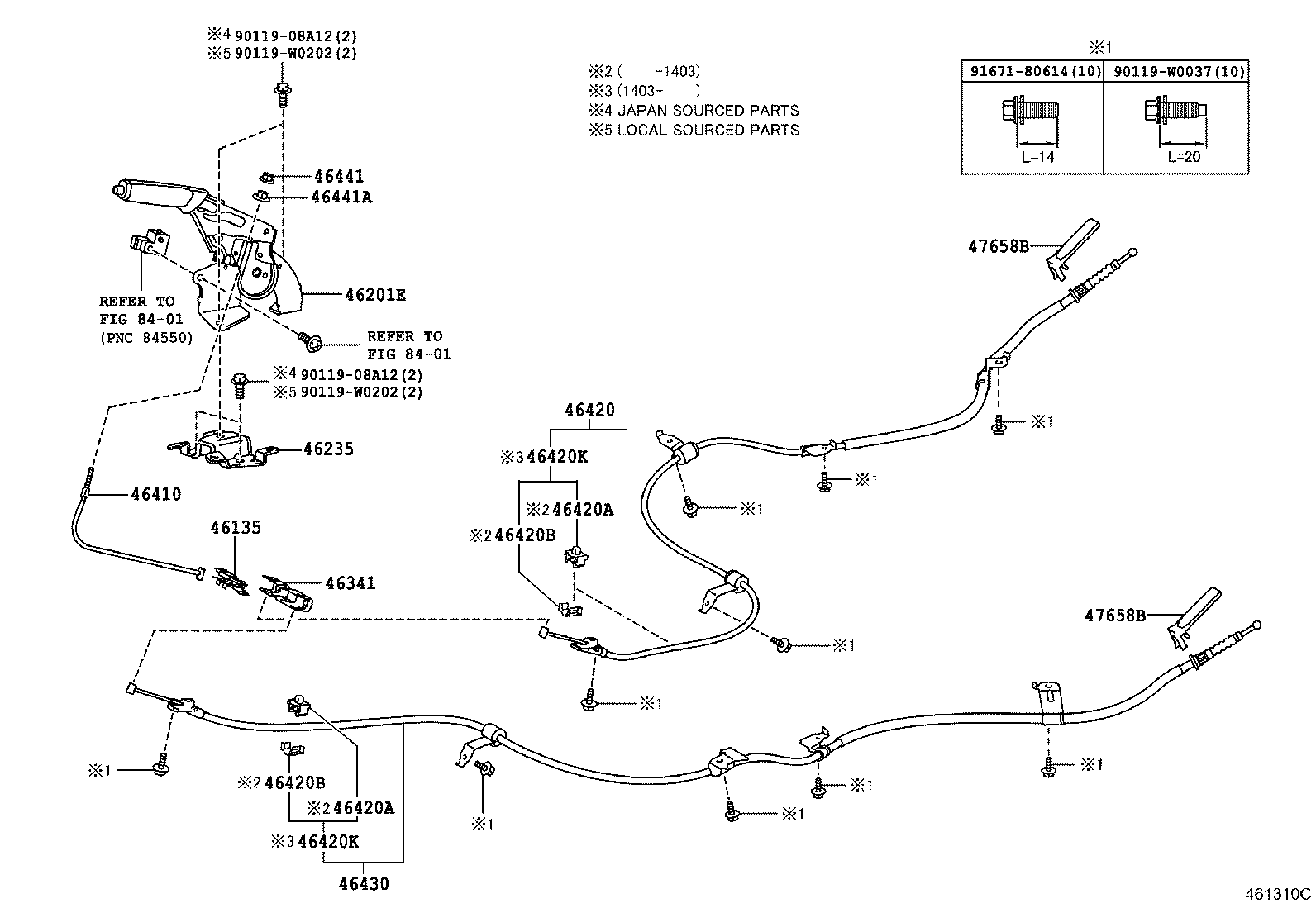

Click highlighted areas on diagram

diagram 46135 46201E 46235 46341 46410 46420 46420A 46420A 46420B 46420B 46420K 46420K 46430 46441 46441A 47658B 47658B 8401 8401 9011908A12 9011908A12 90119W0037 90119W0202 90119W0202 9167180614
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-02040

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02200C0

ADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)

BLACK,TRIM2#

 1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-02030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
46341 - EQUALIZER, PARKING BRAKE
46341-02110

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02140

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02130

ADE186,ZRE185

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-12030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46411-12030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-12040

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46411-12040

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-12030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46402-12030

ADE186,NDE180,NRE180,ZRE185,ZWE186

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-02130

ADE186,ZRE185

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010

ADE186,NDE180,NRE180,ZRE185,ZWE186

 1
47658B - PROTECTOR, PARKING BRAKE LEVER
47658-12010

ADE186,ZRE185,ZWE186

 2
47658B - PROTECTOR, PARKING BRAKE LEVER
47658-12010

ADE186,ZRE185,ZWE186

 2
Common parts
90119-08A12
90119-W0037
90119-W0202
91671-80614
Linked diagrams
8401
