ADE186L-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210-1505)ADE186 ; (1505- )WWE185

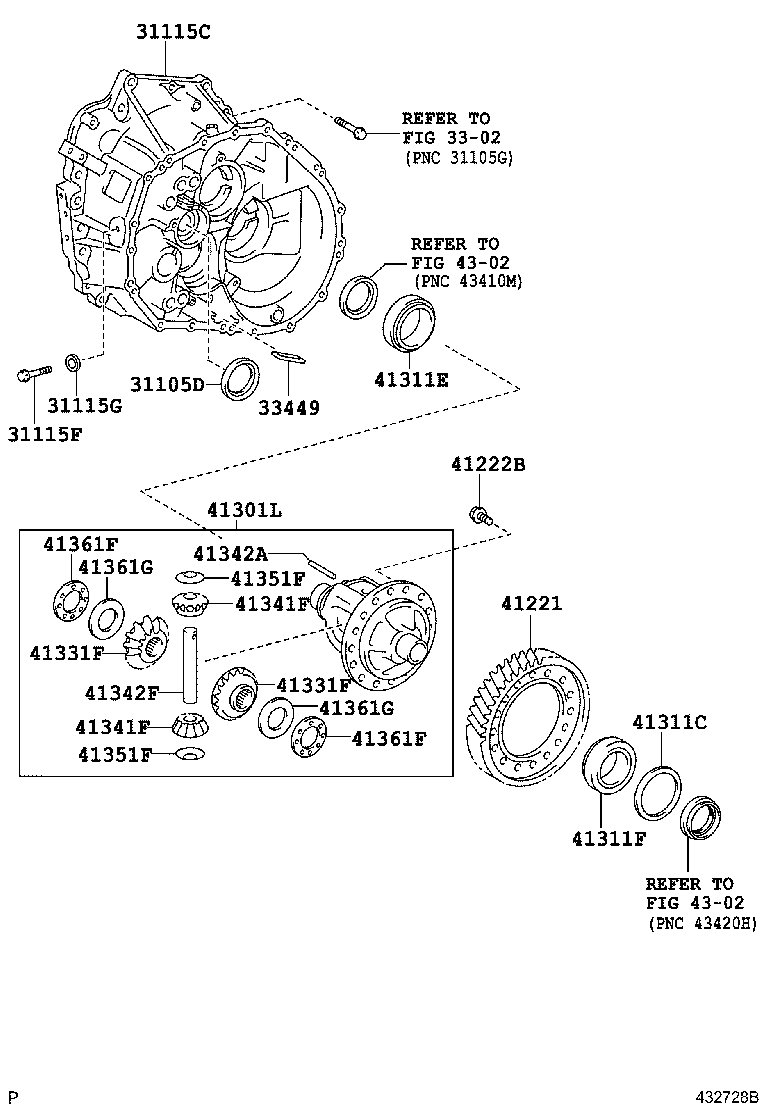

Click highlighted areas on diagram

EA66

diagram 31105D 31115C 31115F 31115G 3302 33449 41221 41222B 41301L 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G 4302 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30017

ADE186

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-20081

ADE186

 1
31115F - BOLT(FOR FRONT TRANSAXLE CASE)
90105-12354

ADE186

 1
31115G - GASKET(FOR FRONT TRANSAXLE CASE)
90430-13004

ADE186

 1
33449 - MAGNET, TRANSMISSION
33449-60010

ADE186

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-20440

ADE186

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12319

ADE186

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-12310

ADE186

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-56109

ADE186

T=2.00,MARK 0

 1
90564-56111

ADE186

T=2.10,MARK 2

 1
90564-56112

ADE186

T=2.15,MARK 3

 1
90564-56115

ADE186

T=2.30,MARK 6

 1
90564-56121

ADE186

T=2.60,MARK C

 1
90564-56110

ADE186

T=2.05,MARK 1

 1
90564-56120

ADE186

T=2.55,MARK B

 1
90564-56118

ADE186

T=2.45,MARK 9

 1
90564-56117

ADE186

T=2.40,MARK 8

 1
90564-56122

ADE186

T=2.65,MARK D

 1
90564-56114

ADE186

T=2.25,MARK 5

 1
90564-56116

ADE186

T=2.35,MARK 7

 1
90564-56113

ADE186

T=2.20,MARK 4

 1
90564-56119

ADE186

T=2.50,MARK A

 1
90564-56125

ADE186

T=2.80,MARK G

 1
90564-56124

ADE186

T=2.75,MARK F

 1
90564-56123

ADE186

T=2.70,MARK E

 1
90564-56126

ADE186

T=2.85,MARK H

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-50100

ADE186

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50103

ADE186

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12170

ADE186

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12170

ADE186

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-35050

ADE186

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-35050

ADE186

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ADE186,NDE180,NRE180,ZRE185..MTM

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20070

ADE186

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20050

ADE186

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20050

ADE186

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-20240

ADE186

T=1.25

 2
41361-20350

ADE186

T=1.50

 2
41361-20320

ADE186

T=1.35

 2
41361-20400

ADE186

T=1.75

 2
41361-20330

ADE186

T=1.40

 2
41361-20310

ADE186

T=1.30

 2
41361-20410

ADE186

T=1.80

 2
41361-20340

ADE186

T=1.45

 2
41361-20370

ADE186

T=1.60

 2
41361-20380

ADE186

T=1.65

 2
41361-20440

ADE186

T=1.95

 2
41361-20360

ADE186

T=1.55

 2
41361-20430

ADE186

T=1.90

 2
41361-20390

ADE186

T=1.70

 2
41361-20420

ADE186

T=1.85

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-20240

ADE186

T=1.25

 2
41361-20350

ADE186

T=1.50

 2
41361-20320

ADE186

T=1.35

 2
41361-20400

ADE186

T=1.75

 2
41361-20330

ADE186

T=1.40

 2
41361-20310

ADE186

T=1.30

 2
41361-20410

ADE186

T=1.80

 2
41361-20340

ADE186

T=1.45

 2
41361-20370

ADE186

T=1.60

 2
41361-20380

ADE186

T=1.65

 2
41361-20440

ADE186

T=1.95

 2
41361-20360

ADE186

T=1.55

 2
41361-20430

ADE186

T=1.90

 2
41361-20390

ADE186

T=1.70

 2
41361-20420

ADE186

T=1.85

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-45001

ADE186

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-45001

ADE186

 2
