ADE186L-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )ADE186,WWE185..LHD ; (1503- )NRE180..LHD

Click highlighted areas on diagram

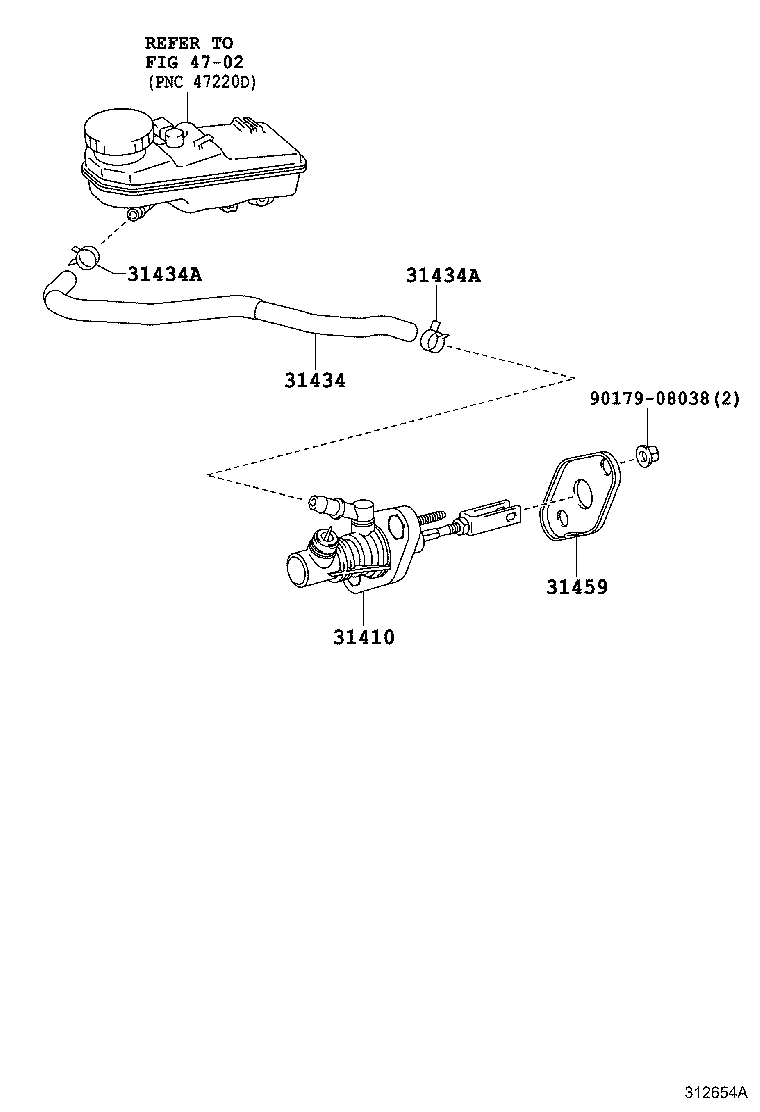

diagram 31410 31434 31434A 31434A 31459 4702 9017908038
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-02051

ADE186

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-02030

ADE186,NDE180,NRE180,ZRE185..LHD..6F

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

ADE186,NDE180,NRE180,ZRE185..6F

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

ADE186,NDE180,NRE180,ZRE185..6F

 2
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-42040

ADE186,NDE180,NRE180,ZRE185..6F

 1
Common parts
90179-08038
Linked diagrams
4702
