ADE186L-DHFNXW (2012)

Toyota Auris/Hybrid (Ukp)

Production Oct 2012 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1210- )1ADFTV

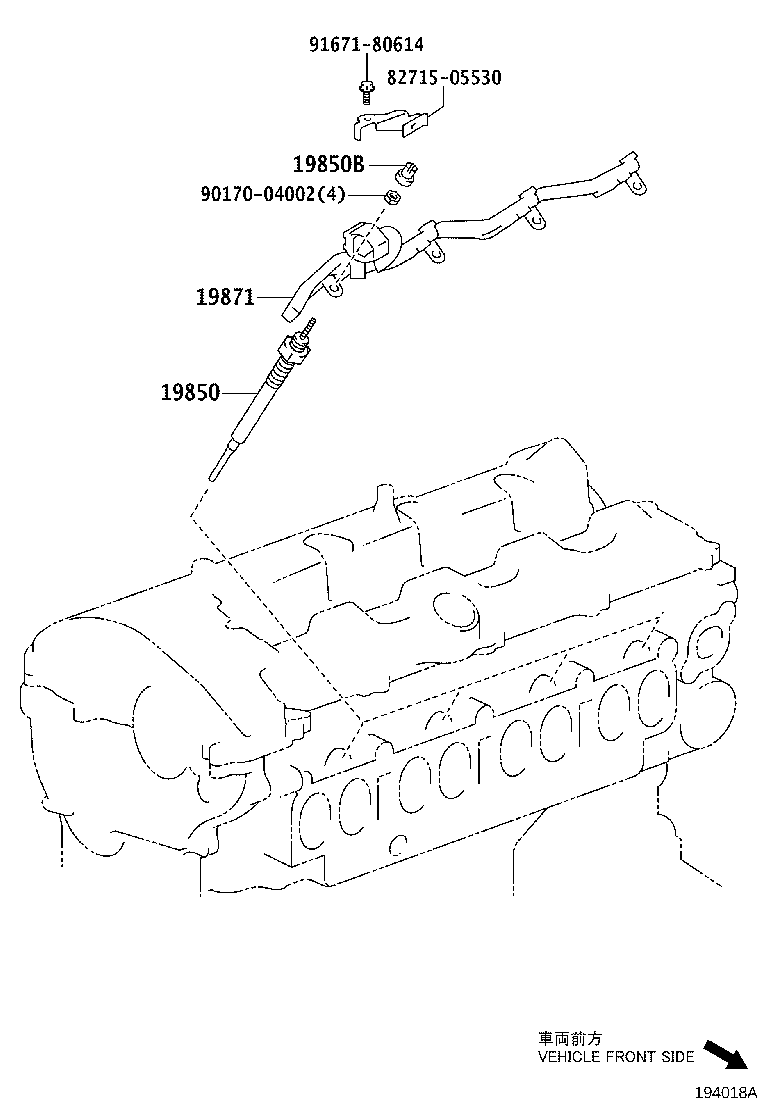

Click highlighted areas on diagram

diagram 19850 19850B 19871 8271505530 9017004002 9167180614
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-26030

1ADFTV..ADE186

*BV-GV=12V-11V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1ADFTV..ADE186

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-0R010

1ADFTV..ADE186

 1
Common parts
82715-05530
90170-04002
91671-80614
