Toyota Auris/hybrid (ukp) ADE157 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
EU
AURIS/HYBRID (UKP)
ADE157R-DHFNXW (2007)
5102 - SUSPENSION CROSSMEMBER & UNDER COVER

ADE157R-DHFNXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009

Engine 2ADFHV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0702-0902)NDE150,ZRE151,ZZE150 ; (0702-0903)ADE15# ; (0702- )NRE150 ; (0902-

Click highlighted areas on diagram

Part #	Description	Period	Qty

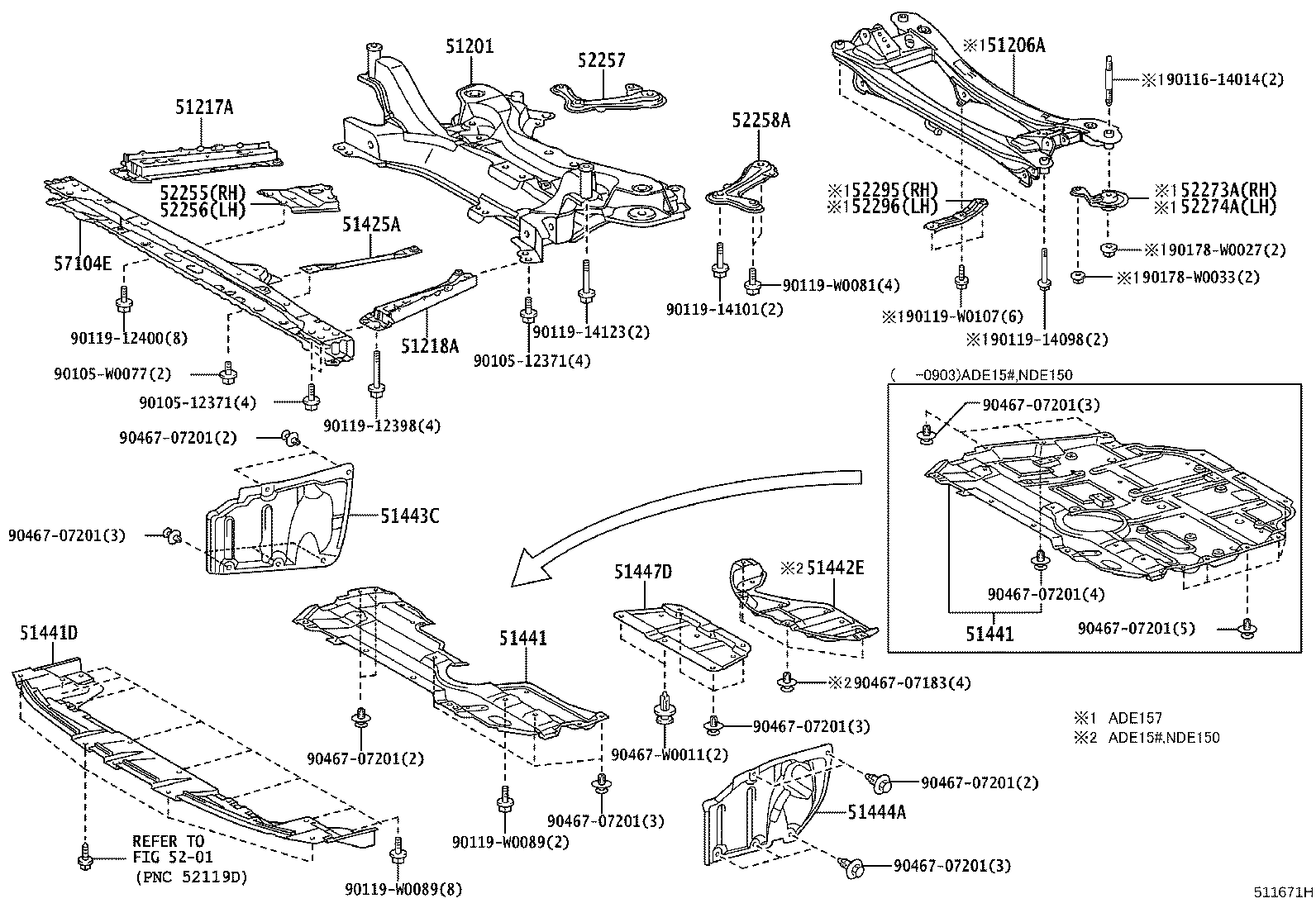

51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02101	ADE15#	02/2007 - 03/2009	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12110	ADE157	02/2007 - 01/2009	1
51206-05080	ADE157 *153	02/2009 - 03/2009	1
51206-12111	ADE157 *154	02/2009 - 03/2009	1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-02010	ADE15#	02/2007 - 03/2009	1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-02010	ADE15#	02/2007 - 03/2009	1
51441 - COVER, ENGINE UNDER, NO.1
51410-02120	ADE15#	02/2007 - 03/2009	1
51441 - COVER, ENGINE UNDER, NO.1
51410-02120	ADE15#	02/2007 - 03/2009	1
51441D - COVER, ENGINE UNDER
52618-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
51442E - COVER, ENGINE UNDER, NO.2
51442-02230	ADE15#	02/2007 - 03/2009	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02050	ADE15#	02/2007 - 03/2009	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02040	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 10/2007	1
51444-02041	ADE15#	11/2007 - 03/2009	1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-02010	ADE15#	02/2007 - 03/2009	1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02030	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 06/2008	1
52257-02031	ADE15#	07/2008 - 03/2009	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02030	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 06/2008	1
52258-02031	ADE15#	07/2008 - 03/2009	1
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-02010	ADE157	02/2007 - 03/2009	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52203-02010	ADE157	02/2007 - 03/2009	1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-05030	ADE157 *153	11/2008 - 03/2009	1
52295-12050	ADE157	02/2007 - 11/2008	1
52295-12050	ADE157 *154	11/2008 - 03/2009	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-12050	ADE157	02/2007 - 11/2008	1
52295-12050	ADE157 *154	11/2008 - 03/2009	1
52295-05030	ADE157 *153	11/2008 - 03/2009	1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-02160	ADE15#	02/2007 - 03/2009	1
Common parts
90105-12371
90105-W0077
90116-14014
90119-12398
90119-12400
90119-14098
90119-14101
90119-14123
90119-W0081
90119-W0089
90119-W0107
90178-W0027
90178-W0033
90467-07183
90467-07201
90467-W0011
Linked diagrams
5201

(0902- )ZRE15# ; (0903- )E ; (0903- )ADE15#,ZWE150

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02101	ADE15#	02/2007 - 03/2009	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12110	ADE157	02/2007 - 01/2009	1
51206-05080	ADE157 *153	02/2009 - 03/2009	1
51206-12111	ADE157 *154	02/2009 - 03/2009	1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-02010	ADE15#	02/2007 - 03/2009	1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-02010	ADE15#	02/2007 - 03/2009	1
51441 - COVER, ENGINE UNDER, NO.1
51410-02120	ADE15#	02/2007 - 03/2009	1
51441D - COVER, ENGINE UNDER
52618-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
51442E - COVER, ENGINE UNDER, NO.2
51442-02230	ADE15#	02/2007 - 03/2009	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02050	ADE15#	02/2007 - 03/2009	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02040	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 10/2007	1
51444-02041	ADE15#	11/2007 - 03/2009	1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-02010	ADE15#	02/2007 - 03/2009	1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-02010	NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC	02/2007 - 03/2009	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02030	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 06/2008	1
52257-02031	ADE15#	07/2008 - 03/2009	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02030	ADE15#,NDE150,ZRE151,ZZE150	02/2007 - 06/2008	1
52258-02031	ADE15#	07/2008 - 03/2009	1
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-02010	ADE157	02/2007 - 03/2009	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52203-02010	ADE157	02/2007 - 03/2009	1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-05030	ADE157 *153	11/2008 - 03/2009	1
52295-12050	ADE157	02/2007 - 11/2008	1
52295-12050	ADE157 *154	11/2008 - 03/2009	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-12050	ADE157	02/2007 - 11/2008	1
52295-12050	ADE157 *154	11/2008 - 03/2009	1
52295-05030	ADE157 *153	11/2008 - 03/2009	1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-02160	ADE15#	02/2007 - 03/2009	1
Common parts
90105-12371
90105-W0077
90116-14014
90119-12398
90119-12400
90119-14098
90119-14101
90119-14123
90119-W0081
90119-W0089
90119-W0107
90178-W0027
90178-W0033
90467-07183
90467-07201
90467-07215
90467-W0011
Linked diagrams
5201
