ADE157R-DHFNXW (2007)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2007
-
Mar 2009
Engine
2ADFHV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0702-1105)ADE15# ; (1105- )ADE157
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-W2020 |
ADE15# |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02240 |
ADE15#..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02240 |
ADE15#..RHD |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ADE15#..RHD |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ADE15#..RHD |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ADE15#..RHD |
2 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-05120 |
ADE15# |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-12070 |
ADE15# (J) |
1 | ||
| 31483-02050 |
ADE15# (L) |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-02090 |
ADE15# |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20460 |
ADE15# |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-05010 |
ADE15# |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0030 | ||||
| 90119-W0053 | ||||
| 90119-W0142 | ||||
| 90119-W0175 | ||||
| 90461-10835 | ||||
| 90461-10836 | ||||
| 90468-08040 | ||||
| 91611-60814 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||

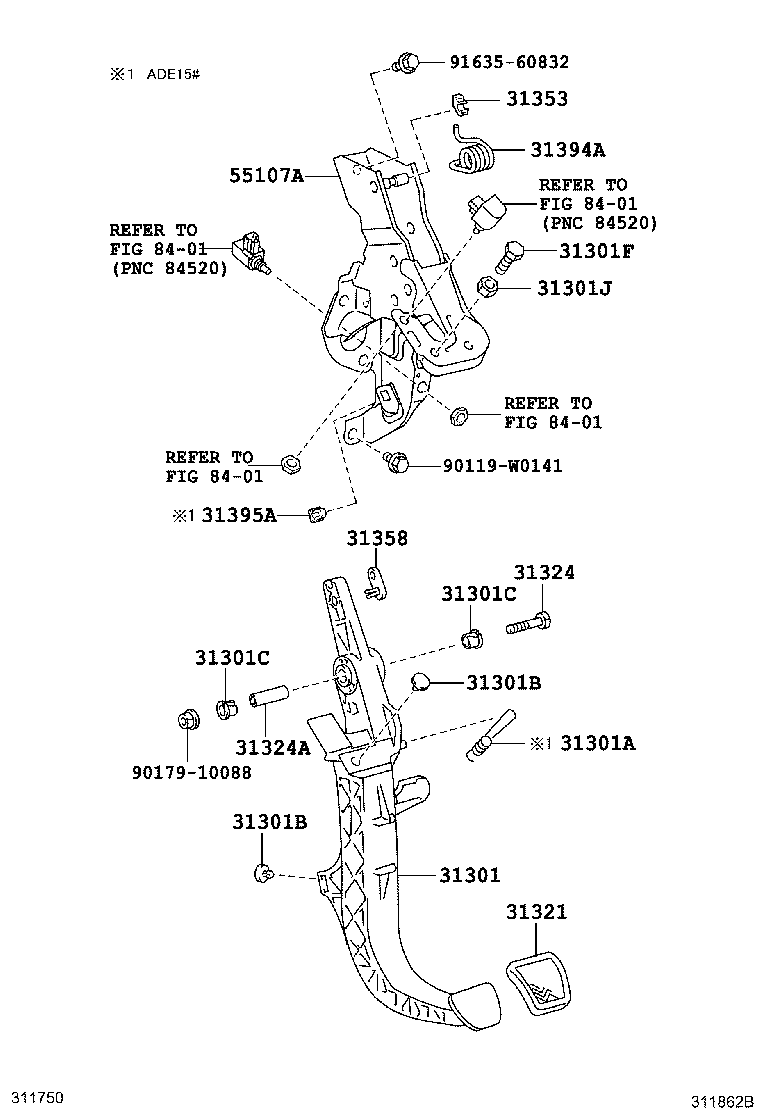

ILLUST NO. 1 OF 2(0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31311-12370 |
ADE15#..RHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
ADE15#..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ADE15# |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ADE15# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ADE15# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ADE15# |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ADE15# |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
ADE15# |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
ADE15# |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
ADE15#..RHD |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
ADE15#..RHD |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
ADE15# |
1 | ||
| 31358 - CAP, OVER CENTER SPRING | ||||
| 31358-42010 |
ADE15#..RHD |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-12050 |
ADE15#..RHD |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
ADE15# |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12290 |
ADE15#..RHD |
1 | ||
| Common parts | ||||
| 90119-W0141 | ||||
| 90179-10088 | ||||
| 91635-60832 | ||||
| Linked diagrams | ||||
| 8401 | ||||
