ADE157R-DGFNXW (2007)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 2 OF12(0702-0903)ADE15#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-02J20 |
ADE157 |
1 | ||
| 82121-02J22 |
ADE157 |
1 | ||
| 82121-02J21 |
ADE157 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-02030 |
ADE15# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02280 |
ADE15# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-02020 |
ADE15# |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
ADE15# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12B80 |
ADE157 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12B80 |
ADE157 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02370 |
ADE15# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-02380 |
ADE15# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02390 |
ADE15# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02420 |
ADE15# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02440 |
ADE15# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
ADE15# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20370 |
ADE15# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20090 |
ADE15# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12120 |
ADE15# |
1 | ||
| Common parts | ||||
| 82815-02050 | ||||
| 82815-02060 | ||||
| 82815-02070 | ||||
| 82815-02080 | ||||
| 82815-02110 | ||||
| 82815-12200 | ||||
| 90116-06127 | ||||
| 90119-W0017 | ||||
| 90119-W0059 | ||||
| 90119-W0061 | ||||
| 90178-W0019 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO. 4 OF12(0702- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-02C00 |
ADE15#..RHD..3D |
1 | ||
| 82151-02E30 |
ADE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82151-02C10 |
ADE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82151-02E20 |
ADE15#..RHD..3D POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-02C10 |
ADE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK) |
1 | ||
| 82152-02C00 |
ADE15#..RHD..3D |
1 | ||
| 82152-02C10 |
ADE15#..RHD..3D POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02160 |
ADE15#..RHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-02150 |
ADE15# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02250 |
ADE15# |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
ILLUST NO. 7 OF12(0702- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02490 | ||||
| 82715-02F00 | ||||
| 82715-05280 | ||||
| 82715-05410 | ||||
| 82715-05490 | ||||
| 82715-0D750 | ||||
| 82715-0D770 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12G10 | ||||
| 82715-12N70 | ||||
| 82715-12N80 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P60 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12P90 | ||||
| 82715-12Q30 | ||||
| 82715-12Q41 | ||||
| 82715-12R10 | ||||
| 82715-28L90 | ||||
| 82715-42740 | ||||
| 82715-47420 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
ILLUST NO. 8 OF12(0702- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23292-26030 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-02540 | ||||
| 82715-02750 | ||||
| 82715-02760 | ||||
| 82715-02770 | ||||
| 82715-02790 | ||||
| 82715-02800 | ||||
| 82715-02810 | ||||
| 82715-02820 | ||||
| 82715-02860 | ||||
| 82715-02880 | ||||
| 82715-02890 | ||||
| 82715-05200 | ||||
| 82715-12420 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12C30 | ||||
| 82715-12C60 | ||||
| 82715-12P10 | ||||
| 82715-12P20 | ||||
| 82715-12P30 | ||||
| 82715-12P50 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A30 | ||||
| 82715-20A40 | ||||
| 82715-20A70 | ||||
| 82715-20A80 | ||||
| 82715-42560 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0059 | ||||
| 90119-W0061 | ||||
| 91551-80608 | ||||
| 91551-80816 | ||||
| 91671-80610 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
ILLUST NO.10 OF12(0702- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 82824-60460 | ||||
| 90080-98298 | ||||
| 90980-10795 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-WA052 | ||||
ILLUST NO.11 OF12(0702- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-11070 | ||||
| 90980-11159 | ||||
| 90980-11967 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||

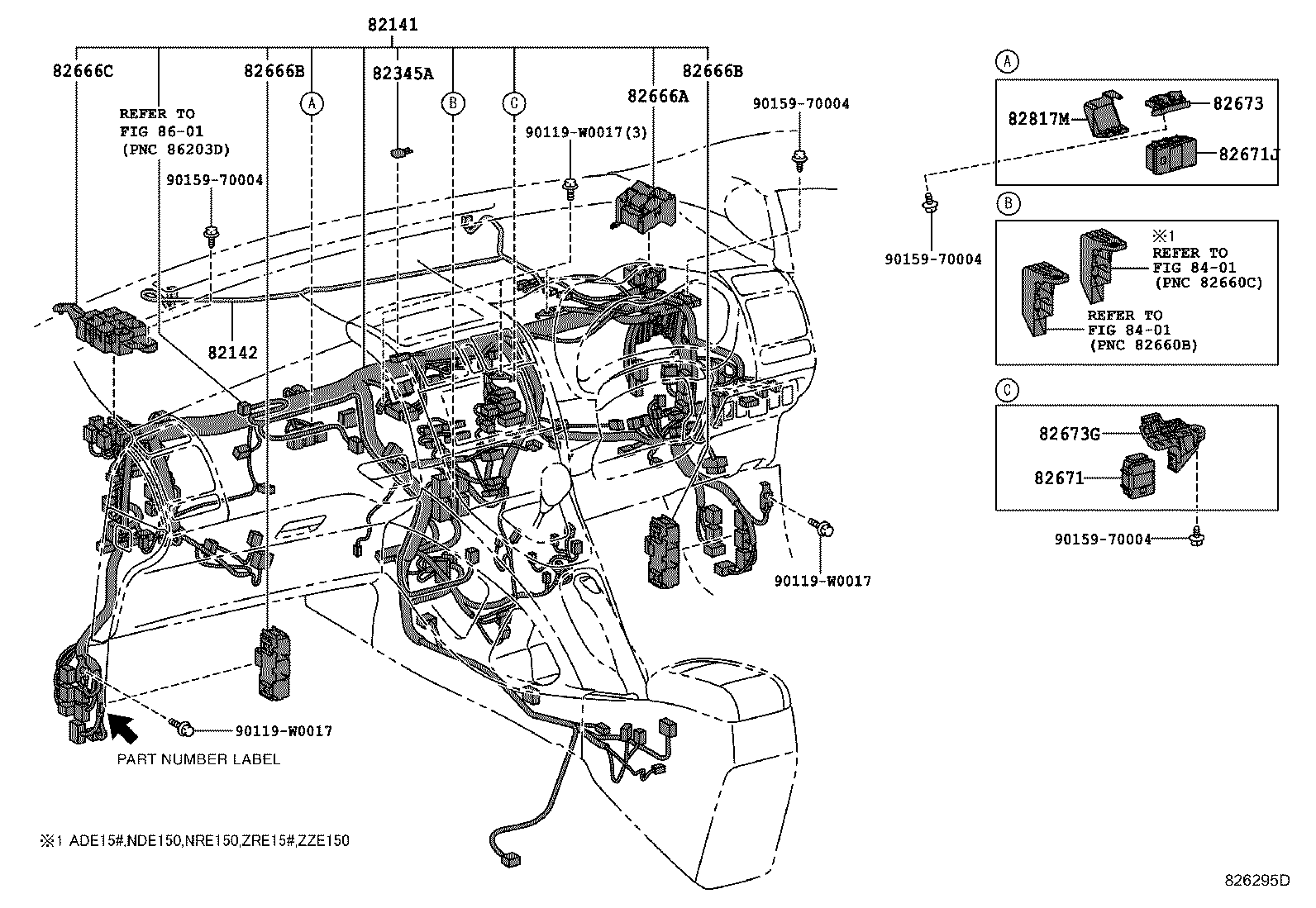

ILLUST NO. 3 OF12(0702- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0ZL20 |
ADE15#..RHD AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82141-0ZK60 |
ADE15#..RHD AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZK80 |
ADE15#..RHD AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82141-0ZL40 |
ADE15#..RHD AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZL60 |
ADE15#..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82141-0ZL10 |
ADE15#..RHD UK SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZK50 |
ADE15#..RHD UK SPEC |
1 | ||
| 82141-0ZL30 |
ADE15#..RHD UK SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82141-0ZL00 |
ADE15#..RHD AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZL90 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZL80 |
ADE15#..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZK40 |
ADE15#..RHD |
1 | ||
| 82141-0ZK90 |
ADE15#..RHD UK SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82141-0ZM10 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82141-0ZK70 |
ADE15#..RHD UK SPEC&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZM70 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZM20 |
ADE15#..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZM40 |
ADE15#..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82141-0ZM60 |
ADE15#..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZL50 |
ADE15#..RHD UK SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&AUDIO(OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZM30 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82141-0ZL70 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82141-0ZM00 |
ADE15#..RHD INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82141-0ZM50 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02130 |
ADE15#..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82142-02090 |
ADE15#..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02200 |
ADE15# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02210 |
ADE15# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02210 |
ADE15# |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12390 |
ADE15#..RHD |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12270 |
ADE15#..RHD |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-12280 |
ADE15#..RHD |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-12160 |
ADE15#..RHD |
1 | ||
| 82673G - BRACKET, JUNCTION BLOCK | ||||
| 82673-12150 |
ADE15#..RHD |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-12D20 |
ADE15#..RHD |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

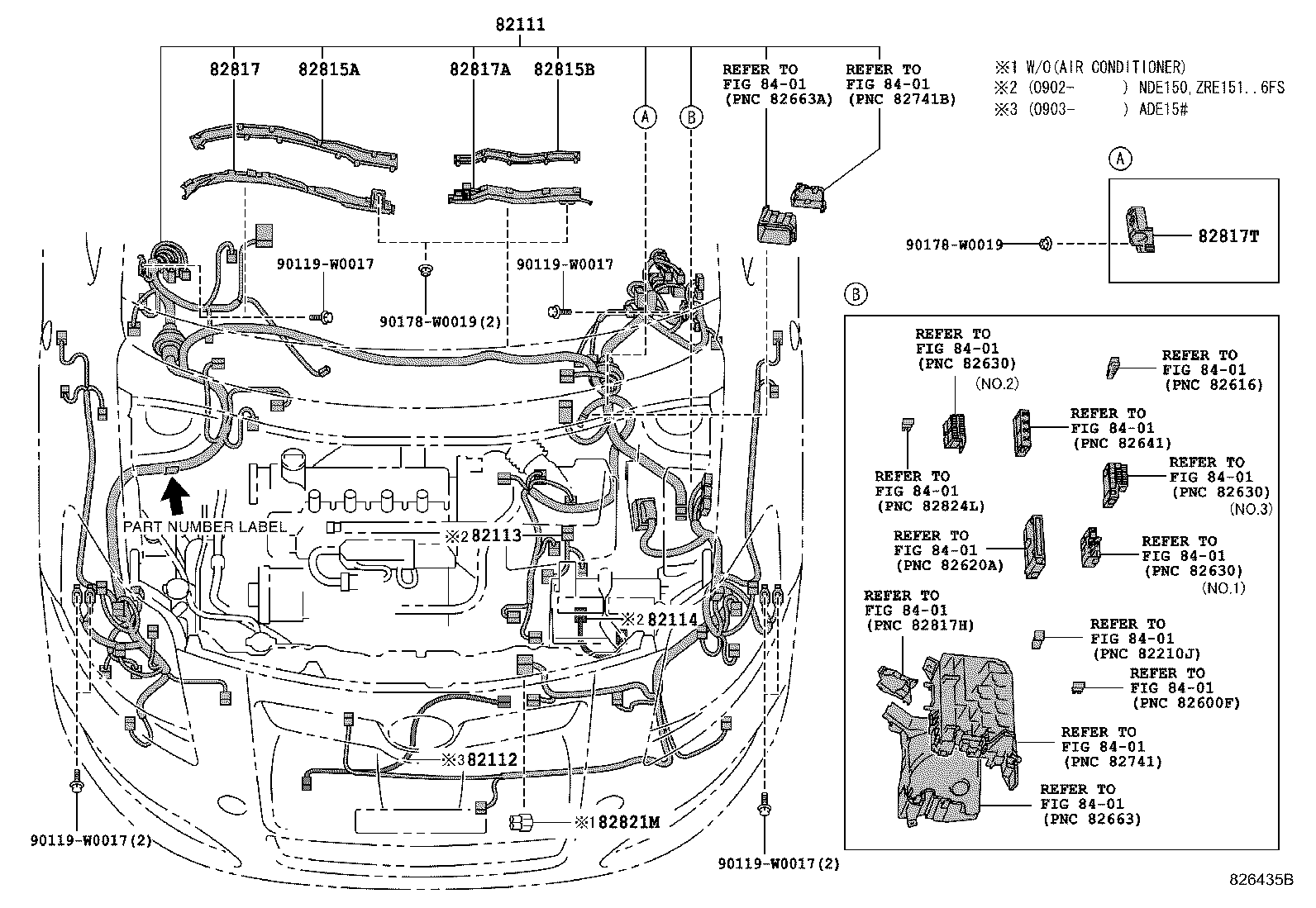

ILLUST NO. 1 OF12(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150..RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-02X60 |
ADE157..RHD |
1 | ||
| 82111-02X61 |
ADE157..RHD |
1 | ||
| 82111-02X60 |
ADE157..RHD PART NUMBER LABEL=82111-02X60 |
1 | ||
| 82111-02X61 |
ADE157..RHD PART NUMBER LABEL=82111-02X61 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12150 |
ADE15#..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12160 |
ADE15#..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B10 |
ADE15#..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B20 |
ADE15#..RHD |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12J30 |
ADE15#..RHD |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-12590 |
ADE157 AIR CONDITIONER-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF12(0702- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02420 | ||||
| 82715-02480 | ||||
| 82715-02780 | ||||
| 82715-02830 | ||||
| 82715-02A50 | ||||
| 82715-02F00 | ||||
| 82715-02F10 | ||||
| 82715-12G00 | ||||
| 82715-12L40 | ||||
| 82715-12N30 | ||||
| 82715-47510 | ||||
| 82715-75190 | ||||
| 82715-75240 | ||||
| 82715-75250 | ||||
| 82715-75260 | ||||
| 82715-75270 | ||||
| 90105-W0008 | ||||
| 90105-W0175 | ||||
| 90119-W0003 | ||||
| 90119-W0019 | ||||
| 90119-W0059 | ||||
| 90178-06008 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
ILLUST NO. 5 OF12(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-02N40 |
ADE15#..RHD..3D SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82161-02N30 |
ADE15#..RHD..3D |
1 | ||
| 82161-02N30 |
ADE15#..RHD..3D PART NUMBER LABEL=82161-02N30 |
1 | ||
| 82161-02N40 |
ADE15#..RHD..3D PART NUMBER LABEL=82161-02N40 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-02090 |
ADE15#..RHD..3D SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82162-02080 |
ADE15#..RHD..3D |
1 | ||
| 82162-02240 |
ADE15#..RHD..3D SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82162-02230 |
ADE15#..RHD..3D STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82162-02090 |
ADE15#..RHD..3D PART NUMBER LABEL=82162-02090 |
1 | ||
| 82162-02080 |
ADE15#..RHD..3D PART NUMBER LABEL=82162-02080 |
1 | ||
| 82162-02230 |
ADE15#..RHD..3D PART NUMBER LABEL=82162-02230 |
1 | ||
| 82162-02240 |
ADE15#..RHD..3D PART NUMBER LABEL=82162-02240 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-02090 |
ADE15#..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02A50 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02B20 |
ADE15#..RHD UK SPEC |
1 | ||
| 82171-02B40 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-02A40 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) |
1 | ||
| 82171-02B50 |
ADE15#..RHD UK SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02B30 |
ADE15#..RHD UK SPEC&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02A90 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) MOON ROOF-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02A70 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02B10 |
ADE15#..RHD MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02B90 |
ADE15#..RHD UK SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-02B10 |
ADE15#..RHD MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-02A90 |
ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) MOON ROOF-WITH |
1 | ||
| 82171-02A60 |
NDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-02B70 |
ADE15#..RHD UK SPEC&MOON ROOF-WITH |
1 | ||
| 82171-02B90 |
ADE15#..RHD UK SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02B70 |
ADE15#..RHD UK SPEC&MOON ROOF-WITH&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-02A40 |
NDE150..RHD..(5F,5FS);ADE15#,ZRE151,ZZE150..RHD..(DCR,DCRL,HTWC) PART NUMBER LABEL=82171-02A40 |
1 | ||
| 82171-02A90 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) PART NUMBER LABEL=82171-02A90 |
1 | ||
| 82171-02A70 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) PART NUMBER LABEL=82171-02A70 |
1 | ||
| 82171-02A50 |
ADE15#,ZRE151..RHD..(DCR,DCRL,HTWC) PART NUMBER LABEL=82171-02A50 |
1 | ||
| 82171-02A60 |
NDE150..RHD..(5F,5FS)..SOL;ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) PART NUMBER LABEL=82171-02A60 |
1 | ||
| 82171-02A90 |
ADE15#,ZRE151,ZZE150..RHD..SOL..(DCR,DCRL,HTWC) PART NUMBER LABEL=82171-02A90 |
1 | ||
| 82171-02B90 |
ADE15#..RHD PART NUMBER LABEL=82171-02B90 |
1 | ||
| 82171-02B40 |
ADE15#..RHD PART NUMBER LABEL=82171-02B40 |
1 | ||
| 82171-02B30 |
ADE15#..RHD PART NUMBER LABEL=82171-02B30 |
1 | ||
| 82171-02B10 |
ADE15#..RHD PART NUMBER LABEL=82171-02B10 |
1 | ||
| 82171-02B20 |
ADE15#..RHD PART NUMBER LABEL=82171-02B20 |
1 | ||
| 82171-02B70 |
ADE15#..RHD PART NUMBER LABEL=82171-02B70 |
1 | ||
| 82171-02B50 |
ADE15#..RHD PART NUMBER LABEL=82171-02B50 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ADE15# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02240 |
ADE15# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
ADE15# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02220 |
ADE15# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ADE15# |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO.12 OF12(0702- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12183 | ||||
| 90980-12200 | ||||
| 90980-12212 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12555 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
