ADE157L-DGFNXW (2010)

Toyota Auris/Hybrid (Ukp)

Production Jan 2010 - Oct 2012
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1001- )3D ; (1001- )ZRE151..HTWC

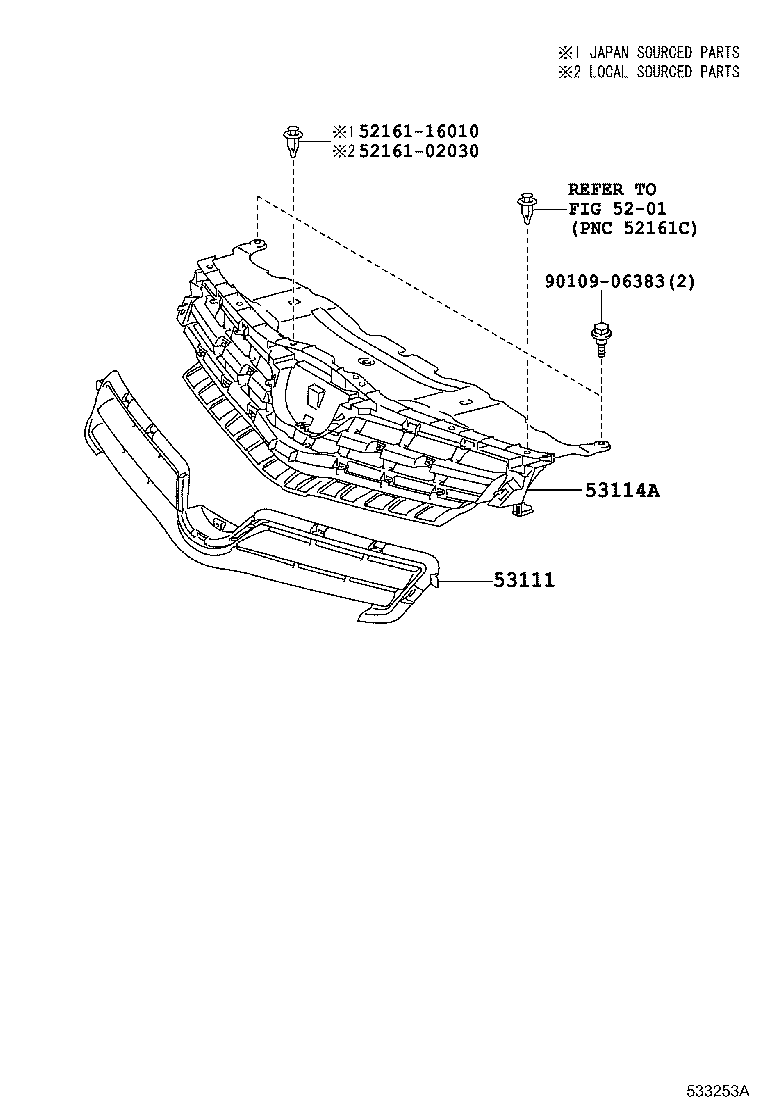

Click highlighted areas on diagram

diagram 5201 5216102030 5216116010 53111 53114A 9010906383
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-02390

ADE15#

NO PAINT REQ.

 1
53111-02390

ADE15#

NO PAINT REQ.

 1
Common parts
52161-02030
52161-16010
90109-06383
Linked diagrams
5201
