ADE157L-DGFNXW (2009)
Toyota Auris/Hybrid (Ukp)

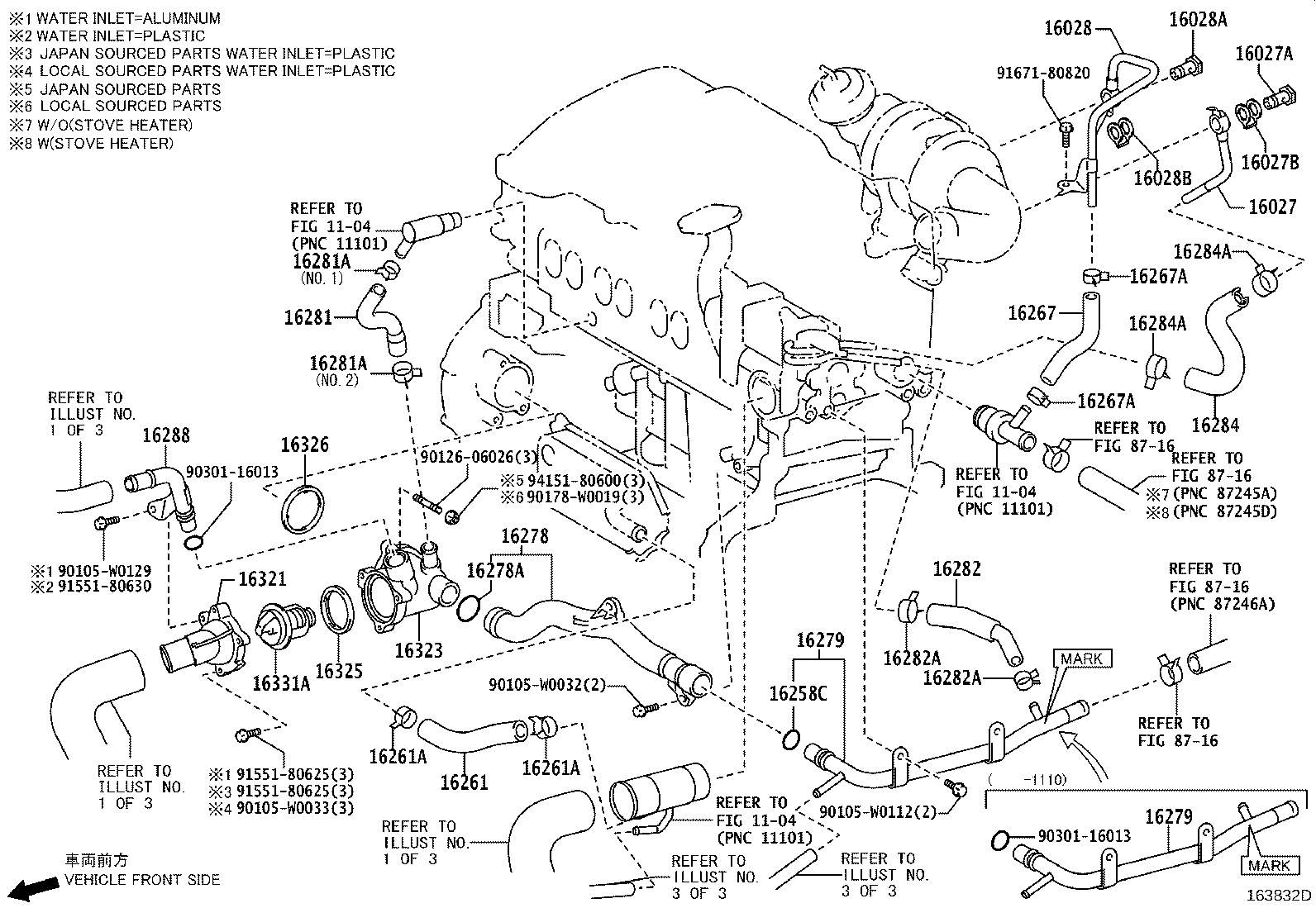

ILLUST NO. 1 OF 3(0903- )1ADFTV,2ADFHV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16261-0R050 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16261-0R050 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-52501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 90467-21006 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-52501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 90467-21006 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0D140 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16264-0D140 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-51901 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 96136-52101 |
1ADFTV,2ADFHV..ADE15# NO.2 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-51901 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 96136-52101 |
1ADFTV,2ADFHV..ADE15# NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52101 |
1ADFTV,2ADFHV..ADE15# NO.2 |
1 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0R040 |
2ADFHV..ADE157 AIR CONDITIONER-WITHOUT |
1 | ||
| 16267-0R040 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16267-0R040 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 16361 - FAN | ||||
| 16361-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16361-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16361-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0R030 |
1ADFTV,2ADFHV..ADE15#..SOL |
1 | ||
| 16361-0R030 |
1ADFTV,2ADFHV..ADE15#..LHD..SOL |
1 | ||
| 16361-0R030 |
1ADFTV,2ADFHV..ADE15#..SOL |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16363-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16363-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0R030 |
1ADFTV,2ADFHV..ADE15#..SOL |
1 | ||
| 16363-0R030 |
1ADFTV,2ADFHV..ADE15#..LHD..SOL |
1 | ||
| 16363-0R030 |
1ADFTV,2ADFHV..ADE15#..SOL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0R030 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16400-0R030 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16400-0R030 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0Q040 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16417-0Q040 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16417-0Q040 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16492-21050 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16492-21050 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-26030 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16480-26030 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16480-26030 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 90480-18010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28120 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16475-51010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16505B - SUPPORT SUB-ASSY, RADIATOR, UPPER RH | ||||
| 16505-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16505-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16505-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16505C - SUPPORT SUB-ASSY, RADIATOR, UPPER LH | ||||
| 16505-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16505-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16505-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16506B - SUPPORT SUB-ASSY, RADIATOR, LOWER RH | ||||
| 16506-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16506-0R070 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16506-0R070 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16506C - SUPPORT SUB-ASSY, RADIATOR, LOWER LH | ||||
| 16506-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16506-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16506-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..SOL NO.2 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15# NO.2 |
4 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
4 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..SOL NO.2 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15# NO.2 |
4 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
4 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..SOL NO.2 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15# NO.2 |
4 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
4 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..SOL NO.2 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15# NO.2 |
4 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
4 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..SOL NO.2 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15# NO.2 |
4 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
4 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..SOL NO.2 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15# NO.2 |
4 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R010 |
1ADFTV,2ADFHV..ADE15# NO.1 |
2 | ||
| 16523-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
4 | ||
| 16526 - HOLDER, RADIATOR SUPPORT | ||||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..SOL |
2 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15# |
4 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
4 | ||
| 16526 - HOLDER, RADIATOR SUPPORT | ||||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..SOL |
2 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15# |
4 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
4 | ||
| 16526 - HOLDER, RADIATOR SUPPORT | ||||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..SOL |
2 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15# |
4 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
4 | ||
| 16526 - HOLDER, RADIATOR SUPPORT | ||||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..SOL |
2 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15# |
4 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
4 | ||
| 16526 - HOLDER, RADIATOR SUPPORT | ||||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..SOL |
2 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15# |
4 | ||
| 16526-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
4 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 16533-0R020 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16533-0R020 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0R050 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 16535-0R050 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16535-0R040 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0R030 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16571-26151 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16571-26151 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
3 | ||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
3 | ||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0R030 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16572-0R040 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 96136-54801 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-22020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16575-22020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16575-37020 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16575-37020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22110 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
1 | ||
| 16581-22110 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 16581-22120 |
1ADFTV,2ADFHV..ADE15# NO.2 |
1 | ||
| 16581-22120 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
1 | ||
| 16581-26040 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22110 |
1ADFTV,2ADFHV..ADE15#..LHD NO.1 |
1 | ||
| 16581-22110 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 16581-22120 |
1ADFTV,2ADFHV..ADE15# NO.2 |
1 | ||
| 16581-22120 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2 |
1 | ||
| 16581-26040 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22120 |
1ADFTV,2ADFHV..ADE15# NO.2 |
1 | ||
| 16581-22110 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 16581-28070 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16581-28070 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16711-0R060 |
1ADFTV,2ADFHV..ADE15# *153 |
1 | ||
| 16711-0R080 |
1ADFTV,2ADFHV..ADE15# *154 |
1 | ||
| 16711-0R080 |
1ADFTV,2ADFHV..ADE15#..LHD *154 |
1 | ||
| 16711-0R060 |
1ADFTV,2ADFHV..ADE15#..LHD *153 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-04613 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90119-W0037 | ||||
| 90467-10110 | ||||
| 91651-B0616 | ||||
| 91671-L0818 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 8718 | ||||
ILLUST NO. 3 OF 3(0903- )1ADFTV,2ADFHV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16283-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16295-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-26020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16296-26020 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 96136-41501 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 2 OF 3(0903- )2ADFHV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-26010 |
2ADFHV..ADE157 |
1 | ||
| 16027-26010 |
2ADFHV..ADE157 |
1 | ||
| 16027-26010 |
2ADFHV..ADE157..LHD |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90401-12040 |
2ADFHV..ADE157..LHD |
1 | ||
| 90401-12040 |
2ADFHV..ADE157 |
1 | ||
| 96341-11200 |
2ADFHV..ADE157 |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90430-12037 |
2ADFHV..ADE157 |
1 | ||
| 90430-12037 |
2ADFHV..ADE157 |
1 | ||
| 90430-12037 |
2ADFHV..ADE157..LHD |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-26011 |
2ADFHV..ADE157 |
1 | ||
| 16028-26011 |
2ADFHV..ADE157..LHD |
1 | ||
| 16028-26010 |
2ADFHV..ADE157 |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90401-12040 |
2ADFHV..ADE157..LHD |
1 | ||
| 96341-11200 |
2ADFHV..ADE157 |
1 | ||
| 90401-12040 |
2ADFHV..ADE157 |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90430-12037 |
2ADFHV..ADE157 |
1 | ||
| 90430-12037 |
2ADFHV..ADE157 |
1 | ||
| 90430-12037 |
2ADFHV..ADE157..LHD |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0R081 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16261-0R081 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 90467-21006 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 90467-21006 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-26020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16267-26021 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16267-26021 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15#..LHD |
2 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 90467-15022 |
1ADFTV,2ADFHV..ADE15# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16278-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16258-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16258-0R010 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-26020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16279-26040 |
2ADFHV..ADE157 (J) |
1 | ||
| 16279-0R020 |
2ADFHV..ADE157 (L) |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-26020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16279-26040 |
2ADFHV..ADE157 (J) |
1 | ||
| 16279-0R020 |
2ADFHV..ADE157 (L) |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0R010 |
1ADFTV,2ADFHV..ADE15# PNC 16321=ALUMINUM |
1 | ||
| 16281-0R030 |
1ADFTV,2ADFHV..ADE15# PNC 16321=PLASTIC |
1 | ||
| 16281-0R010 |
1ADFTV,2ADFHV..ADE15# PNC 16321=ALUMINUM |
1 | ||
| 16281-0R010 |
1ADFTV,2ADFHV..ADE15#..LHD PNC 16321=ALUMINUM |
1 | ||
| 16281-0R030 |
1ADFTV,2ADFHV..ADE15#..LHD PNC 16321=PLASTIC |
1 | ||
| 16281-0R030 |
1ADFTV,2ADFHV..ADE15# PNC 16321=PLASTIC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96134-41900 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 90467-21010 |
1ADFTV,2ADFHV..ADE15# NO.2PNC16321=PLASTIC |
1 | ||
| 96134-52100 |
1ADFTV,2ADFHV..ADE15# NO.2,PNC 16321=ALUMI |
1 | ||
| 96134-41900 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 96134-52100 |
1ADFTV,2ADFHV..ADE15# NO.2,PNC 16321=ALUMI |
1 | ||
| 90467-21010 |
1ADFTV,2ADFHV..ADE15# NO.2PNC16321=PLASTIC |
1 | ||
| 90467-21010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2PNC16321=PLASTIC |
1 | ||
| 96134-52100 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2,PNC 16321=ALUMI |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96134-41900 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 90467-21010 |
1ADFTV,2ADFHV..ADE15# NO.2PNC16321=PLASTIC |
1 | ||
| 96134-52100 |
1ADFTV,2ADFHV..ADE15# NO.2,PNC 16321=ALUMI |
1 | ||
| 96134-41900 |
1ADFTV,2ADFHV..ADE15# NO.1 |
1 | ||
| 96134-52100 |
1ADFTV,2ADFHV..ADE15# NO.2,PNC 16321=ALUMI |
1 | ||
| 90467-21010 |
1ADFTV,2ADFHV..ADE15# NO.2PNC16321=PLASTIC |
1 | ||
| 90467-21010 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2PNC16321=PLASTIC |
1 | ||
| 96134-52100 |
1ADFTV,2ADFHV..ADE15#..LHD NO.2,PNC 16321=ALUMI |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-26030 |
2ADFHV..ADE157 |
1 | ||
| 16282-26030 |
2ADFHV..ADE157..LHD |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ADFHV..ADE157 |
2 | ||
| 90467-15022 |
2ADFHV..ADE157..LHD |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2ADFHV..ADE157 |
2 | ||
| 90467-15022 |
2ADFHV..ADE157..LHD |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-26040 |
2ADFHV..ADE157 |
1 | ||
| 16284-26010 |
2ADFHV..ADE157 |
1 | ||
| 16284-26040 |
2ADFHV..ADE157..LHD |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
2ADFHV..ADE157..LHD |
2 | ||
| 90467-15022 |
2ADFHV..ADE157 |
2 | ||
| 90467-15022 |
2ADFHV..ADE157 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
2ADFHV..ADE157..LHD |
2 | ||
| 90467-15022 |
2ADFHV..ADE157 |
2 | ||
| 90467-15022 |
2ADFHV..ADE157 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16288-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD |
1 | ||
| 16288-0R020 |
1ADFTV,2ADFHV..ADE15# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-26010 |
1ADFTV,2ADFHV..ADE15# ALUMINUM |
1 | ||
| 16321-0R011 |
1ADFTV,2ADFHV..ADE15# PLASTIC |
1 | ||
| 16321-26030 |
1ADFTV,2ADFHV..ADE15# ALUMINUM |
1 | ||
| 16321-0R020 |
1ADFTV,2ADFHV..ADE15# PLASTIC |
1 | ||
| 16321-26030 |
1ADFTV,2ADFHV..ADE15#..LHD ALUMINUM |
1 | ||
| 16321-0R020 |
1ADFTV,2ADFHV..ADE15#..LHD PLASTIC |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0R011 |
1ADFTV,2ADFHV..ADE15# PLASTIC |
1 | ||
| 16323-26010 |
1ADFTV,2ADFHV..ADE15# ALUMINUM |
1 | ||
| 16323-0R011 |
1ADFTV,2ADFHV..ADE15# PLASTIC |
1 | ||
| 16323-26010 |
1ADFTV,2ADFHV..ADE15# ALUMINUM |
1 | ||
| 16323-0R011 |
1ADFTV,2ADFHV..ADE15#..LHD PLASTIC |
1 | ||
| 16323-26010 |
1ADFTV,2ADFHV..ADE15#..LHD ALUMINUM |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ADFTV,2ADFHV..ADE15# ALUMINUM |
1 | ||
| 16325-26011 |
1ADFTV,2ADFHV..ADE15# OD=60.3,ID=51.0 |
1 | ||
| 16325-62010 |
1ADFTV,2ADFHV..ADE15#..LHD ALUMINUM |
1 | ||
| 16325-26011 |
1ADFTV,2ADFHV..ADE15# PLASTIC |
1 | ||
| 16325-26011 |
1ADFTV,2ADFHV..ADE15#..LHD PLASTIC |
1 | ||
| 16325-62010 |
1ADFTV,2ADFHV..ADE15# OD=59.0,ID=51.9 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-26020 |
1ADFTV,2ADFHV..ADE15# PNC 16321=ALUMINUM |
1 | ||
| 16326-26020 |
1ADFTV,2ADFHV..ADE15# PNC 16321=ALUMINUM |
1 | ||
| 16326-26011 |
1ADFTV,2ADFHV..ADE15# PNC 16321=PLASTIC |
1 | ||
| 16326-26011 |
1ADFTV,2ADFHV..ADE15# PNC 16321=PLASTIC |
1 | ||
| 16326-26011 |
1ADFTV,2ADFHV..ADE15#..LHD PNC 16321=PLASTIC |
1 | ||
| 16326-26020 |
1ADFTV,2ADFHV..ADE15#..LHD PNC 16321=ALUMINUM |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03125 |
1ADFTV,2ADFHV..ADE15# *WAX 82-95 |
1 | ||
| 90916-03125 |
1ADFTV,2ADFHV..ADE15# *WAX 82-95 |
1 | ||
| 90916-03125 |
1ADFTV,2ADFHV..ADE15#..LHD *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90105-W0112 | ||||
| 90105-W0129 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90301-16013 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
