ADE157L-DGFNXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0903)2ADFHV

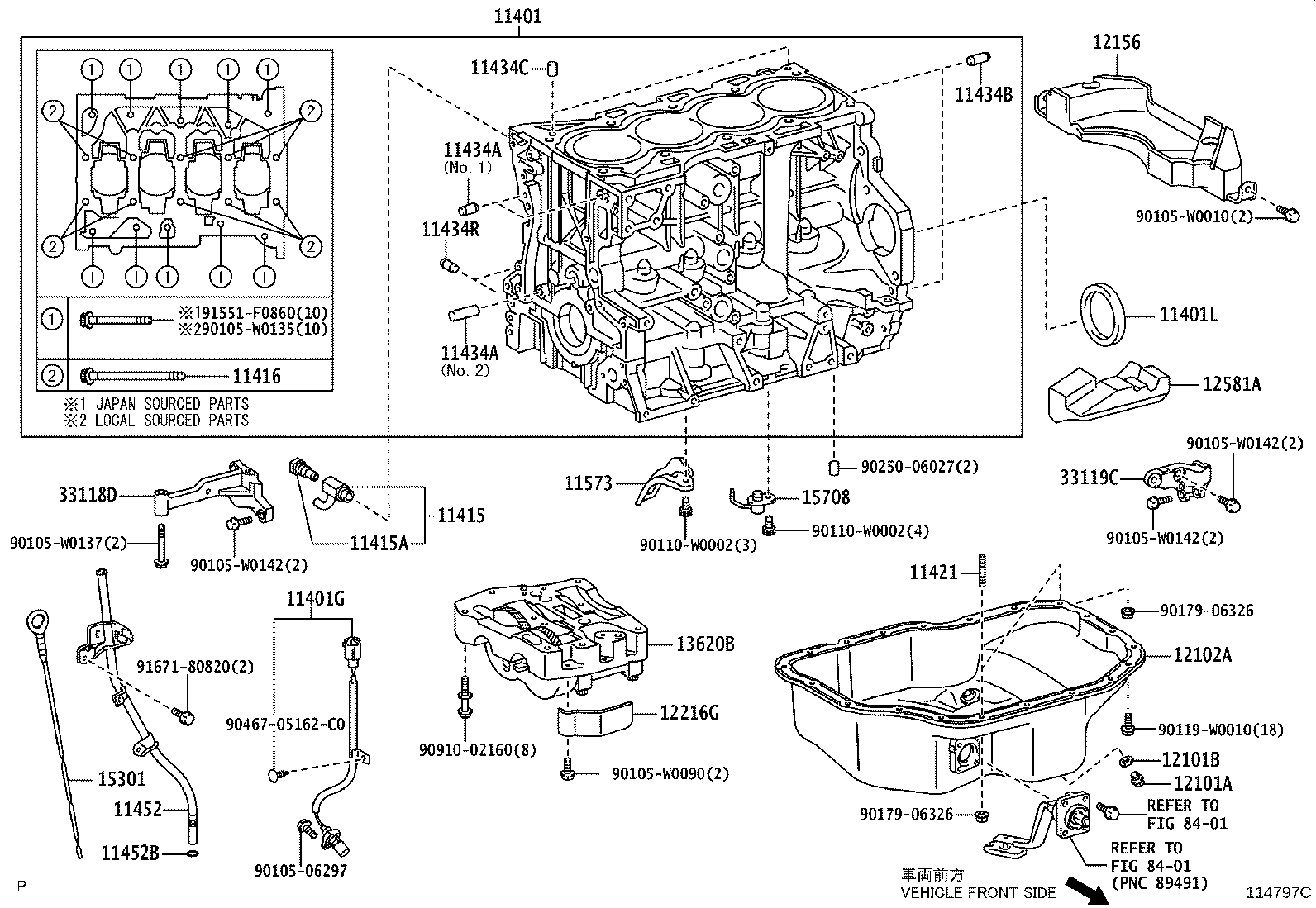

Click highlighted areas on diagram

diagram 11401 11401G 11401L 11415 11415A 11416 11421 11434A 11434A 11434B 11434C 11434R 11452 11452B 11573 12101A 12101B 12102A 12156 12216G 12581A 13620B 15301 15708 33118D 33119C 8401 8401 9010506297 90105W0010 90105W0090 90105W0135 90105W0137 90105W0142 90105W0142 90105W0142 90110W0002 90110W0002 90119W0010 9017906326 9017906326 9025006027 9046705162C0 9091002160 91551F0860 9167180820
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09380

1ADFTV,2ADFHV..ADE15#

(L)

 1
11410-09415

2ADFHV..ADE157

(L)

 1
11410-29395

1ADFTV,2ADFHV..ADE15#

(J)

 1
11410-09250

1ADFTV,2ADFHV..ADE15#

(L)

 1
11410-29355

1ADFTV,2ADFHV..ADE15#

(J)

 1
11410-29415

2ADFHV..ADE157

(J)

 1
11401G - SENSOR, CRANK POSITION
90919-05069

1ADFTV,2ADFHV..ADE15#

 1
11401L - SEAL, ENGINE REAR OIL
90311-W0006

1ADFTV,2ADFHV..ADE15#

 1
90311-W0010

1ADFTV,2ADFHV..ADE15#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1ADFTV,2ADFHV..ADE15#

 1
90910-09129

1ADFTV,2ADFHV..ADE15#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1ADFTV,2ADFHV..ADE15#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02157

1ADFTV,2ADFHV..ADE15#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06134

1ADFTV,2ADFHV..ADE15#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1ADFTV,2ADFHV..ADE15#

L=18,OD=8,NO.1

 2
90250-10030

1ADFTV,2ADFHV..ADE15#

L=36,OD=10,NO.2

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1ADFTV,2ADFHV..ADE15#

L=18,OD=8,NO.1

 2
90250-10030

1ADFTV,2ADFHV..ADE15#

L=36,OD=10,NO.2

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ADFTV,2ADFHV..ADE15#

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

1ADFTV,2ADFHV..ADE15#

L=15,OD=8

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-08120

1ADFTV,2ADFHV..ADE15#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-26050

1ADFTV,2ADFHV..ADE15#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

1ADFTV,2ADFHV..ADE15#

 1
11573 - PLATE, OIL REFLECTOR
11573-26010

1ADFTV,2ADFHV..ADE15#

 3
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1ADFTV,2ADFHV..ADE15#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ADFTV,2ADFHV..ADE15#

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0R010

1ADFTV,2ADFHV..ADE15#

 1
12156 - INSULATOR, OIL PAN
12156-0R010

1ADFTV,2ADFHV..ADE15#

 1
12216G - PLATE, OIL BAFFLE
12216-26011

2ADFHV..ADE157

 1
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-26010

2ADFHV..ADE157

 1
13620B - BALANCER ASSY, ENGINE
13620-26015

2ADFHV..ADE157

 1
13620-26013

2ADFHV..ADE157

 1
13620-26016

2ADFHV..ADE157

 1
13620-26014

2ADFHV..ADE157

 1
13620-26060

2ADFHV..ADE157

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-26030

2ADFHV..ADE157

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-0R010

1ADFTV,2ADFHV..ADE15#

 4
33118D - PLATE, STIFFENER, RH
33118-05010

ADE15#

 1
33119C - PLATE, STIFFENER, LH
33119-05010

ADE15#

 1
Common parts
90105-06297
90105-W0010
90105-W0090
90105-W0135
90105-W0137
90105-W0142
90110-W0002
90119-W0010
90179-06326
90250-06027
90467-05162C0
90910-02160
91551-F0860
91671-80820
Linked diagrams
8401
