ADE150L-DHFDYW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0912) ; (0912-1001)ADE150..RHD ; (0912-1001)ZRE151..HTWC ; (0912-1001)ADE150.

Click highlighted areas on diagram

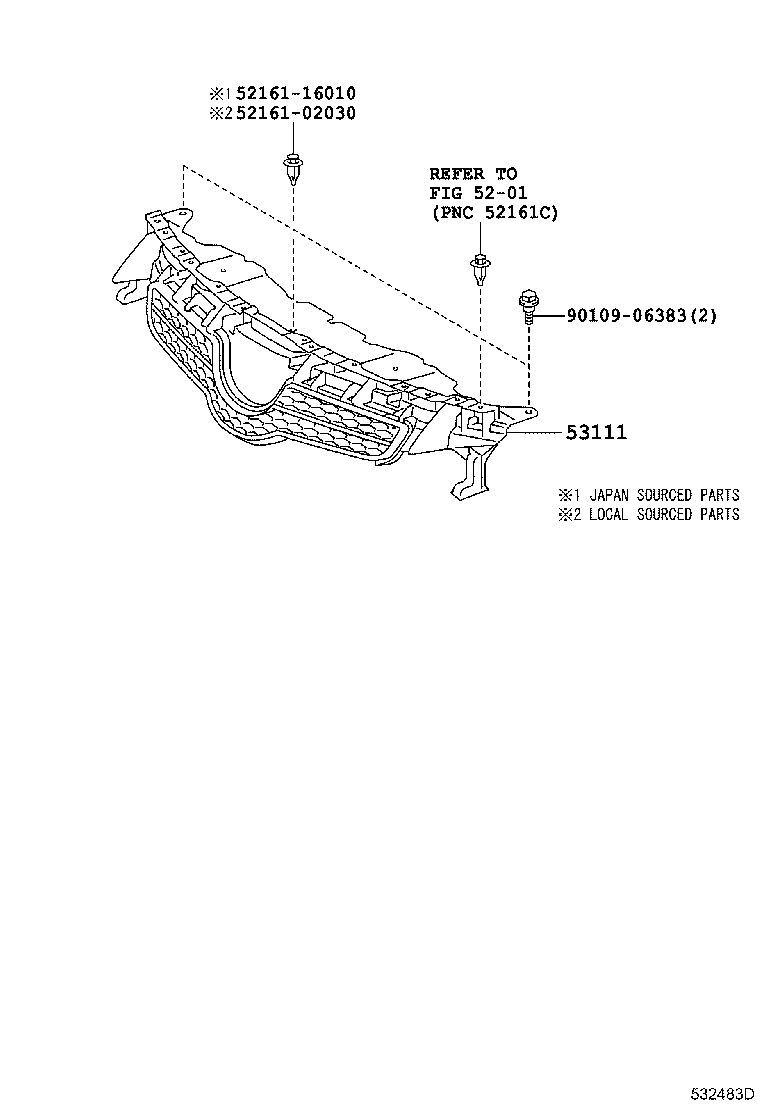

diagram 5201 5216102030 5216116010 53111 9010906383
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-02390

ADE15#

NO PAINT REQ.

 1
53111-02390

ADE15#

NO PAINT REQ.

 1
Common parts
52161-02030
52161-16010
90109-06383
Linked diagrams
5201
