Toyota Auris/hybrid (ukp) ADE150 DISC WHEEL & WHEEL CAP

ADE150L-DHFDYW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009

Engine 1ADFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

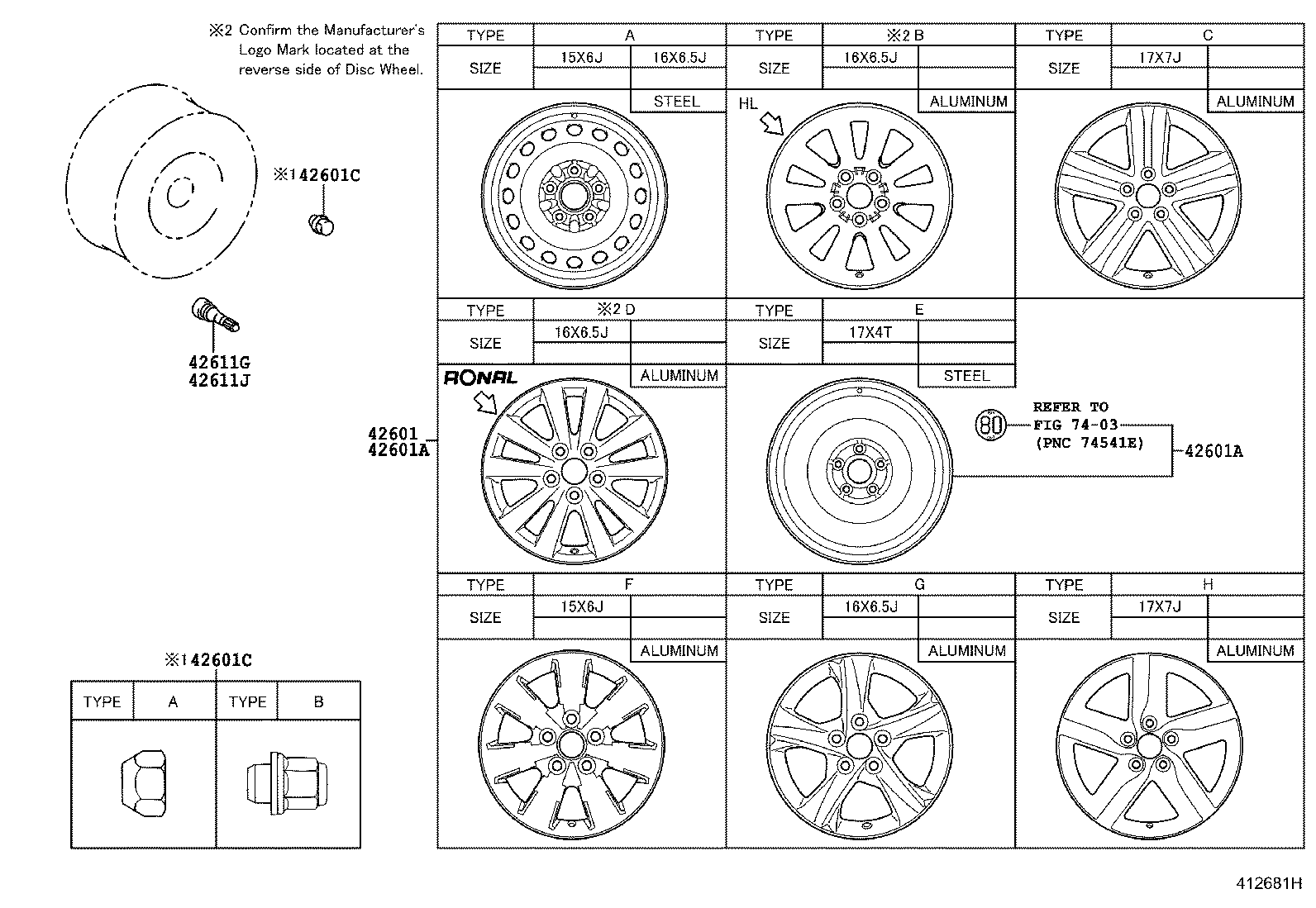

ILLUST NO. 1 OF 4(0702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-02760	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE B:REFER ILLUST.	02/2007 - 03/2009	4
42611-02760	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE B:REFER ILLUST.	02/2007 - 03/2009	4
42611-02790	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE D:REFER ILLUST.	02/2007 - 03/2009	4
42611-02750	ADE150 16X6.5J, #,TYPE A:REFER ILLUST.	02/2007 - 03/2009	4
42611-02760	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE B:REFER ILLUST.	02/2007 - 03/2009	4
42611-02790	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE D:REFER ILLUST.	02/2007 - 03/2009	4
42611-02790	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE D:REFER ILLUST.	02/2007 - 03/2009	4
42601A - WHEEL, DISC (FOR SPARE)
42611-02750	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42611-0F090	ADE150 17X4T,TYPE E:REFER ILLUST.	02/2007 - 03/2009	1
42611-02750	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42611-02750	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42611-02750	ADE150 16X6.5J, #,SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	ADE150 TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE B:REFER ILLUST.	02/2007 - 03/2009	20
90942-01007	ADE150 TYPE A:REFER ILLUST.	02/2007 - 03/2009	20
90942-01033	ADE150 TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE B:REFER ILLUST.	02/2007 - 03/2009	20
42601C - NUT, HUB (FOR AXLE)
90942-01033	ADE150 TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE B:REFER ILLUST.	02/2007 - 03/2009	20
90942-01007	ADE150 TYPE A:REFER ILLUST.	02/2007 - 03/2009	20
90942-01033	ADE150 TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE B:REFER ILLUST.	02/2007 - 03/2009	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	ADE15#	02/2007 - 03/2009	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ADE150	02/2007 - 03/2009	1
Linked diagrams
7403

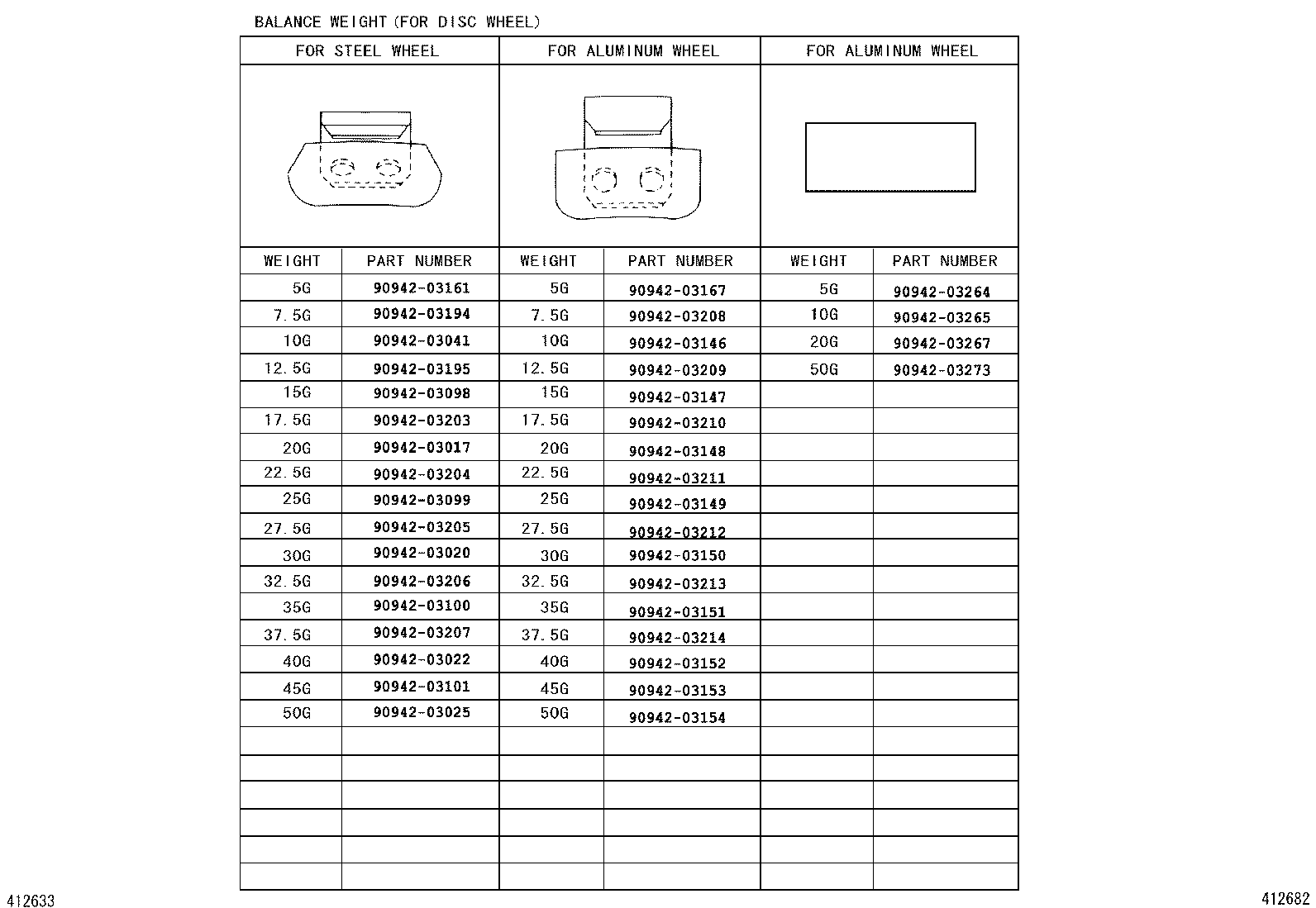

ILLUST NO. 4 OF 4(0702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

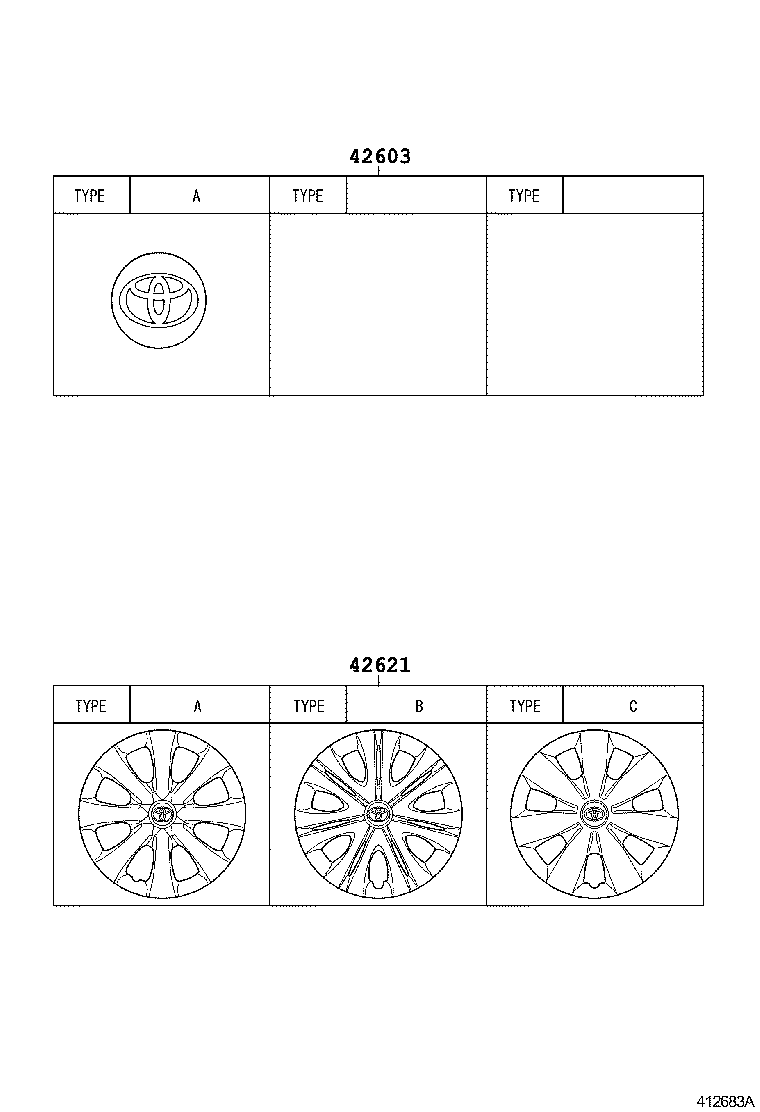

ILLUST NO. 3 OF 4(0702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-02200	ADE150,NDE150,ZRE151,ZZE150 *ALU,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE A:REFER ILLUST.	02/2007 - 02/2008	4
42603-02200	ADE150,NDE150,ZRE151,ZZE150 *ALU,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE A:REFER ILLUST.	02/2007 - 02/2008	4
42603-02201	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC *ALU,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE A:REFER ILLUST.	03/2008 - 03/2009	4
42603-02201	NDE150..5F,5FS;ADE150,ZRE151,ZZE150..DCR,DCRL,HTWC *ALU,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE A:REFER ILLUST.	03/2008 - 03/2009	4
42621 - CAP, WHEEL
42602-02230	ADE150,ZRE151..TERRA TYPE C:REFER ILLUST.	02/2007 - 06/2008	4
42602-02231	ADE150..TERRA TYPE C:REFER ILLUST.	07/2008 - 03/2009	4

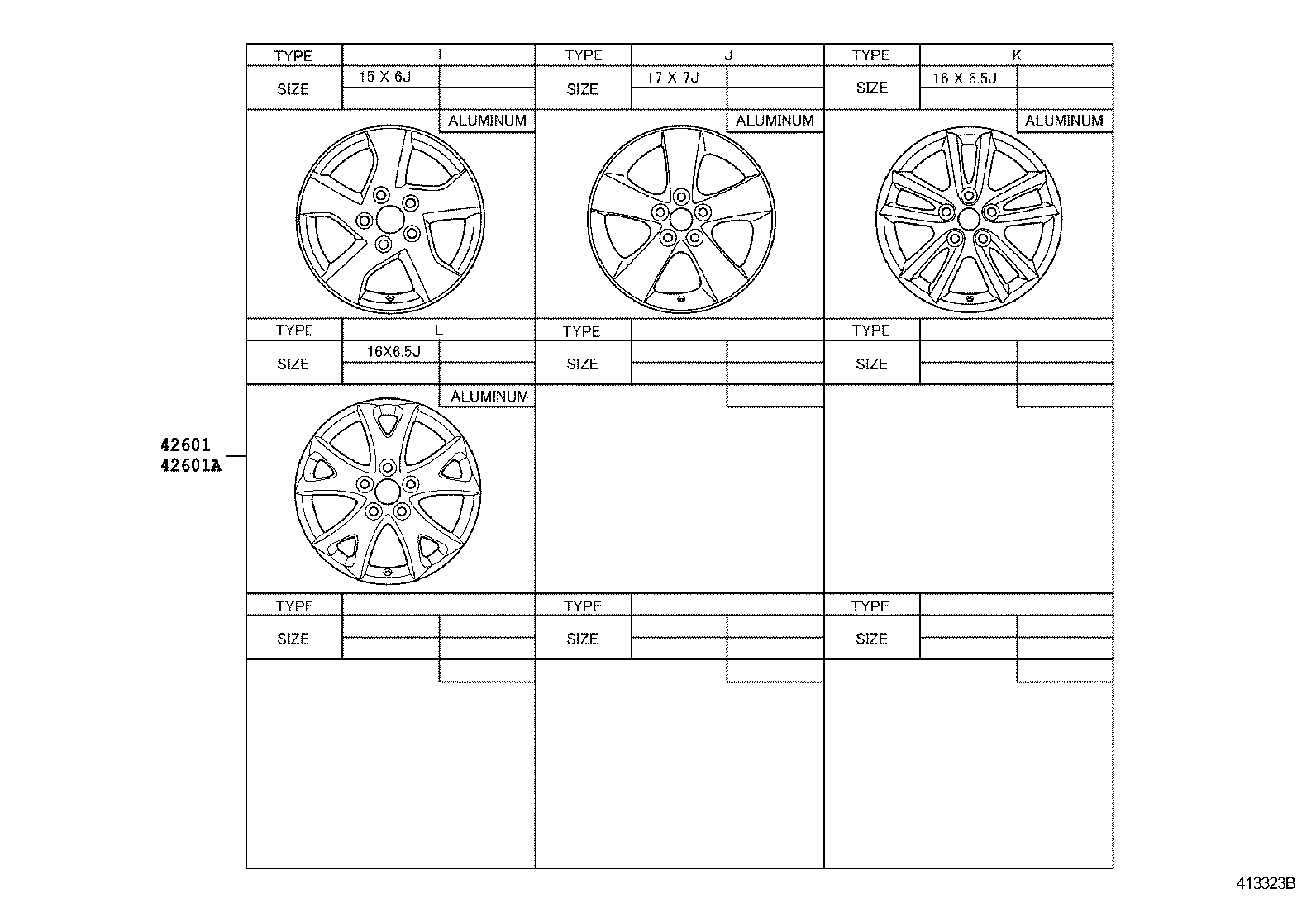

ILLUST NO. 2 OF 4(0702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-02760	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE B:REFER ILLUST.	02/2007 - 03/2009	4
42611-02760	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE B:REFER ILLUST.	02/2007 - 03/2009	4
42611-02790	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE D:REFER ILLUST.	02/2007 - 03/2009	4
42611-02750	ADE150 16X6.5J, #,TYPE A:REFER ILLUST.	02/2007 - 03/2009	4
42611-02760	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE B:REFER ILLUST.	02/2007 - 03/2009	4
42611-02790	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE D:REFER ILLUST.	02/2007 - 03/2009	4
42611-02790	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE D:REFER ILLUST.	02/2007 - 03/2009	4
42601A - WHEEL, DISC (FOR SPARE)
42611-02750	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42611-0F090	ADE150 17X4T,TYPE E:REFER ILLUST.	02/2007 - 03/2009	1
42611-02750	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42611-02750	ADE150 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
42611-02750	ADE150 16X6.5J, #,SPARE TIRE-GROUND(STEEL WHEEL 205/55R16),TYPE A:REFER ILLUST.	02/2007 - 03/2009	1
