ADE150L-DHFDXW (2009)

Toyota Auris/Hybrid (Ukp)

Production Dec 2009 - Oct 2012
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

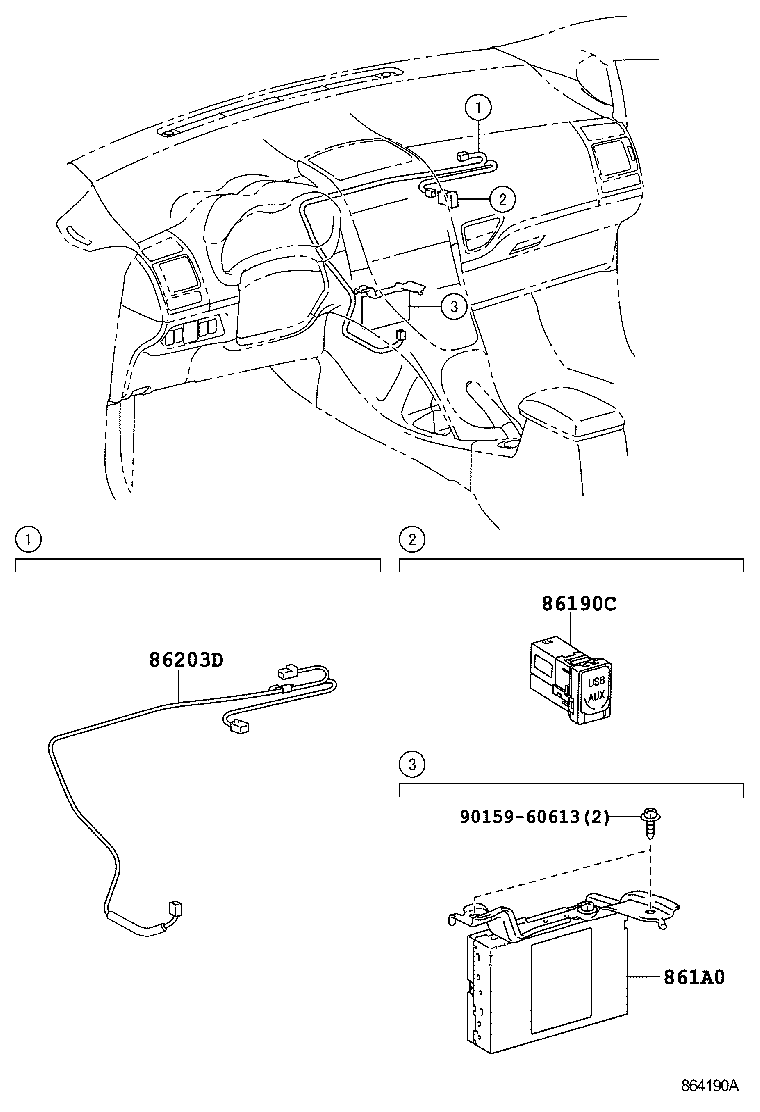

ILLUST NO. 2 OF 3(0912- )ADE150..LHD..5D ; (0912- )NDE150..5D..E,SOL ; (0912- )NDE150..5D..

Click highlighted areas on diagram

USB & ECU

diagram 86190C 861A0 86203D 9015960613
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-02060

ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150

 1
86190-02060

ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150

 1
861A0 - COMPUTER ASSY, MULTI-MEDIA INTERFACE
861A0-02010

NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA

CD 6SPEAKER(MULTI)

 1
861A0-02010

NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA

CD 6SPEAKER(MULTI)

 1
861A0-02010

NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA

CD 4SPEAKER(MULTI)

 1
861A0-02010

NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA

CD 4SPEAKER(MULTI)

 1
Common parts
90159-60613
