ADE150L-DHFDXW (2007)
Toyota Auris/Hybrid (Ukp)
Production
Feb 2007
-
Mar 2009
Engine
1ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0702-0912)ADE150..LHD..5D..DCRL ; (0702-0912)NDE150..5D..6F..TERRA ; (0702-0912)ND

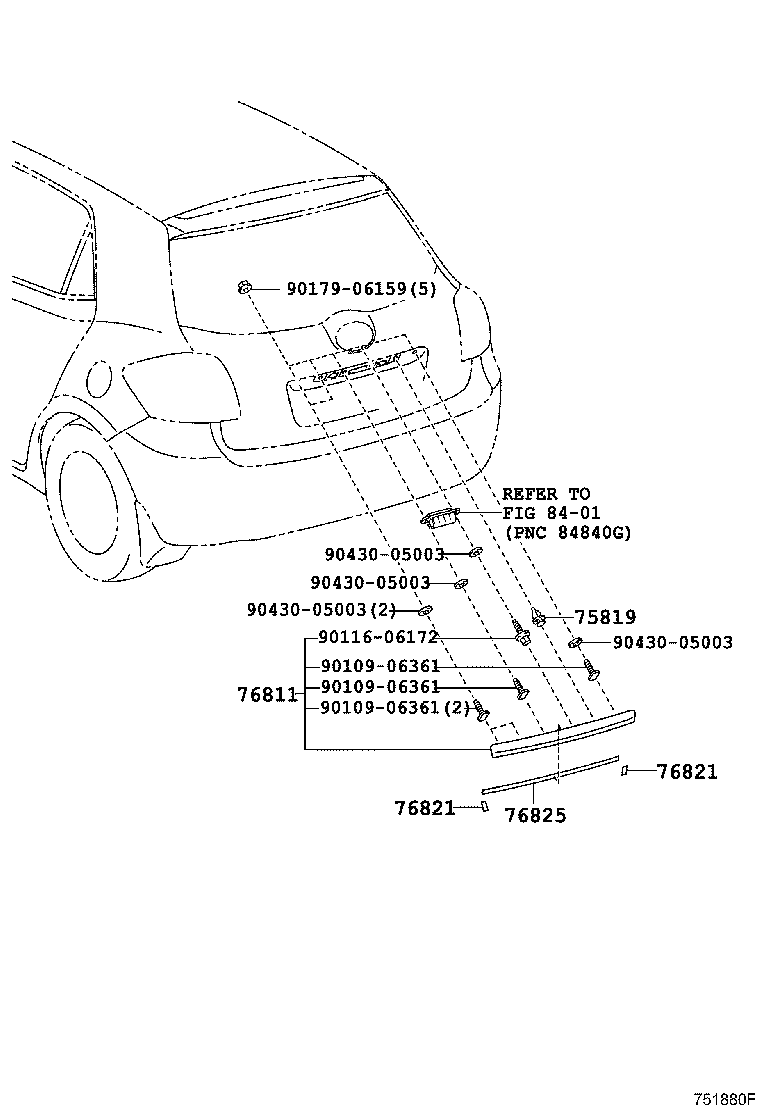

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING | ||||
| 75819-33010 |
ADE15# |
1 | ||
| 75819-33010 |
ADE15# |
1 | ||
| 75819-33010 |
ADE15# |
1 | ||
| 75819-33010 |
ADE15# |
1 | ||
| 76811 - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-02180 |
ADE15# |
1 | ||
| 76811-02180 |
ADE15# |
1 | ||
| 76811-02180 |
ADE15# |
1 | ||
| 76811-02180 |
ADE15# |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-12200 |
ADE15# |
2 | ||
| 76821-12200 |
ADE15# |
2 | ||
| 76821-12200 |
ADE15# |
2 | ||
| 76821-12200 |
ADE15# |
2 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76821-12200 |
ADE15# |
2 | ||
| 76821-12200 |
ADE15# |
2 | ||
| 76821-12200 |
ADE15# |
2 | ||
| 76821-12200 |
ADE15# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-02030 |
ADE15# |
1 | ||
| 76825-02030 |
ADE15# |
1 | ||
| 76825-02030 |
ADE15# |
1 | ||
| 76825-02030 |
ADE15# |
1 | ||
| Common parts | ||||
| 90109-06361 | ||||
| 90116-06172 | ||||
| 90179-06159 | ||||
| 90430-05003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
