ADE150L-DHFDXW (2007)
Toyota Auris/Hybrid (Ukp)
(0702- )5D

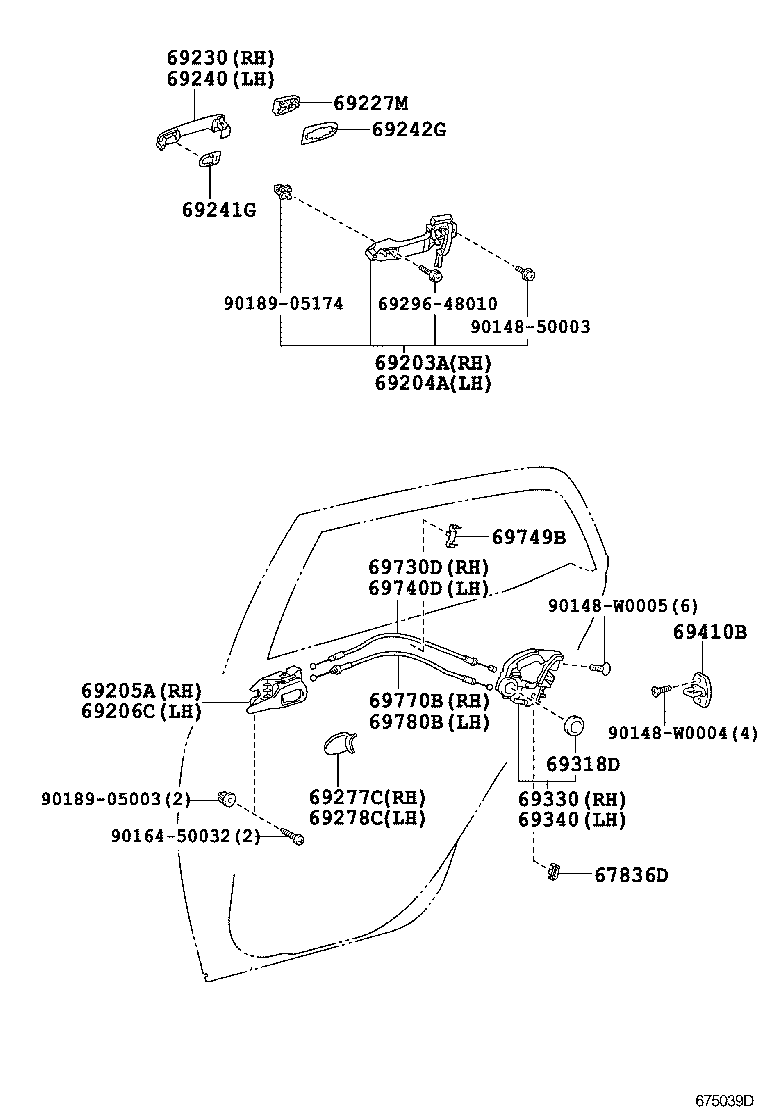

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-12040 |
NDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC) |
2 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-02120 |
ADE15#..5D |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-02120 |
ADE15#..5D |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-02120B1 |
ADE150..5D..TERRA SILVER,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-02120B1 |
ADE150..5D..TERRA SILVER,TRIM1# |
1 | ||
| 69227M - COVER, REAR DOOR OUTSIDE HANDLE | ||||
| 69227-0D903 |
ADE150..5D..TERRA LESS COLOR,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
2 | ||
| 69227-0D050 |
ADE150..5D..TERRA BLACK |
2 | ||
| 69227-0D903 |
ADE150..5D..TERRA LESS COLOR,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
2 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69211-0D901 |
ADE150..5D..TERRA PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
1 | ||
| 69211-0D070 |
ADE150..5D..TERRA NO PAINT REQ. |
1 | ||
| 69211-0D901 |
ADE150..5D..TERRA PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69211-0D901 |
ADE150..5D..TERRA PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
1 | ||
| 69211-0D070 |
ADE150..5D..TERRA NO PAINT REQ. |
1 | ||
| 69211-0D901 |
ADE150..5D..TERRA PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0D030 |
ADE15#..5D |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0D020 |
ADE15#,NDE150,ZRE151..5D *154 |
2 | ||
| 69242-02040 |
ADE15#,NDE150,ZRE151..5D *153 |
2 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-02100B0 |
ADE15#..5D DK.GRAY,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-02090B0 |
ADE15#..5D DK.GRAY,TRIM1# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ADE15#..5D |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-02180 |
ADE15#..5D |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-02170 |
ADE15#..5D |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33010 |
ADE15#..5D |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-02060 |
ADE15#..5D |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-02060 |
ADE15#..5D |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
ADE15#..5D |
2 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-02120 |
ADE15#..5D |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-02120 |
ADE15#..5D |
1 | ||
| Common parts | ||||
| 69296-48010 | ||||
| 90148-50003 | ||||
| 90148-W0004 | ||||
| 90148-W0005 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90189-05174 | ||||
