ADE150L-DHFDXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0702- )5D

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67003 67003C 67004 6706 67113 67114 67407E 67408E 67841E 67842E 67857B 67858B 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68630D 68640A 75925C 75926C 86262D 90109W0017 9015150026 90151W0001 90178W0019 9026905034 91611B0610
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-02250

ADE15#..5D

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09124

ADE15#..5D

 4
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-02260

ADE15#..5D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-02110

ADE15#..5D

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-02110

ADE15#..5D

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-12280

ADE15#..5D

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-12280

ADE15#..5D

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-02150

ADE15#..5D

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-02130

ADE15#..5D

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-02040

NDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC)

ANTI-CHIPPING TAPE-WITH(REAR DOOR,QUATER)

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-02040

ADE15#..5D

ANTI-CHIPPING TAPE-WITH(REAR DOOR,QUATER)

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

ADE15#..5D

 16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

ADE15#..5D

 16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-02140

ADE15#..5D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-02140

ADE15#..5D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-02210

NDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC)

*HSEA,=3.1,S.GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-02200

NDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC)

*HSEA,=3.1,S.GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-02170

ADE15#..5D

*HSEA,T=3.1,S.GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-02170

ADE15#..5D

*HSEA,T=3.1,S.GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-02110

ADE15#..5D

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-02110

ADE15#..5D

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-02090

ADE15#..5D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-02090

ADE15#..5D

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-02120

ADE15#,NDE150,ZRE151,ZZE150..5D

 1
68630-02121

ADE15#..5D

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-02120

ADE15#,NDE150,ZRE151,ZZE150..5D

 1
68630-02121

ADE15#..5D

 1
75925C - TAPE, BLACK OUT, NO.3 RH
75925-02020

ADE15#..5D

 1
75926C - TAPE, BLACK OUT, NO.3 LH
75926-02020

ADE15#..5D

 1
86262D - COVER, REAR DOOR SPEAKER
86262-13010

ADE150..5D..TERRA

 2
Common parts
90109-W0017
90151-50026
90151-W0001
90178-W0019
90269-05034
91611-B0610
Linked diagrams
5701
6706

ILLUST NO. 2 OF 2(0702- )5D

Click highlighted areas on diagram

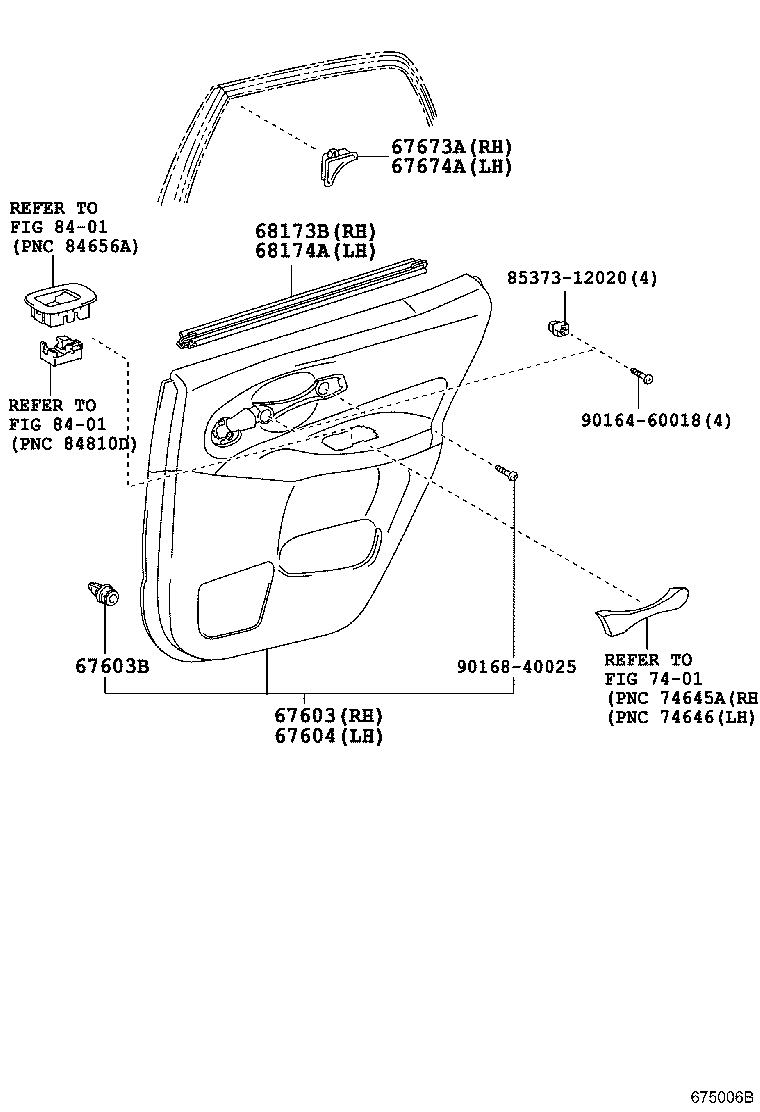

DOOR TRIM

diagram 67603 67603B 67604 67673A 67674A 68173B 68174A 7401 8401 8401 8537312020 9016460018 9016840025
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-02E10B0

ADE150..5D..TERRA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

 1
67630-02E00B0

ADE150..5D..TERRA

DK.GRAY,TRIM1#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-W0010

ADE15#..5D

 9
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-02E00B0

ADE150..5D..TERRA

DK.GRAY,TRIM1#

 1
67640-02E10B0

ADE150..5D..TERRA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-48010

ADE15#..5D

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-48010

ADE15#..5D

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-02120

ADE15#..5D

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-02090

ADE15#..5D

 1
Common parts
85373-12020
90164-60018
90168-40025
Linked diagrams
7401
8401
