ADE150L-DHFDXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0912) ; (0912-1001)ADE150..RHD ; (0912-1001)ZRE151..HTWC ; (0912-1001)ADE150.

Click highlighted areas on diagram

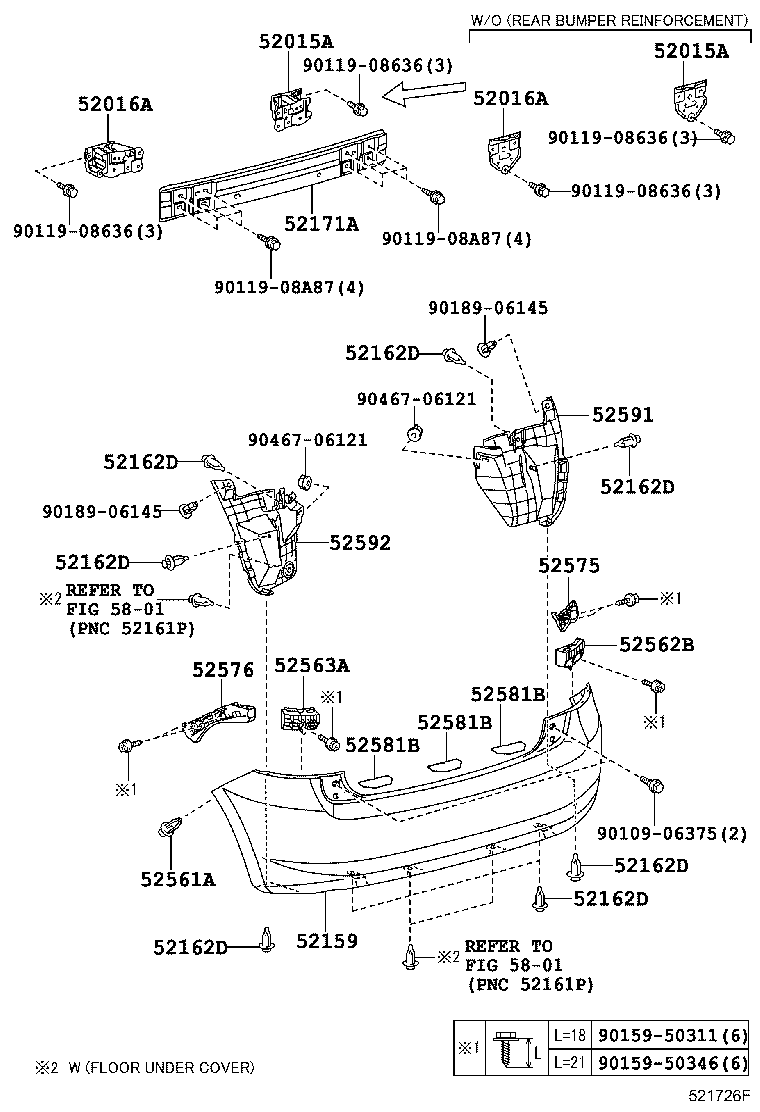

diagram 52015A 52015A 52016A 52016A 52159 52162D 52162D 52162D 52162D 52162D 52162D 52162D 52171A 52561A 52562B 52563A 52575 52576 52581B 52581B 52581B 52591 52592 5801 5801 9010906375 9011908636 9011908636 9011908636 9011908636 9011908A87 9011908A87 9015950311 9015950346 9018906145 9018906145 9046706121 9046706121
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-02050

ADE15#

 1
52015-02050

ADE15#

 1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-02050

ADE15#

 1
52015-02050

ADE15#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-02040

ADE15#

 1
52016-02040

ADE15#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-02040

ADE15#

 1
52016-02040

ADE15#

 1
52159 - COVER, REAR BUMPER
52159-02952

NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC

PAINT REQ.

 1
52159-02952

NDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC

PAINT REQ.

 1
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52162D - PIECE, REAR BUMPER
52161-16010

ADE15#

(J)

 8
52161-16010

ADE15#

(J)

 8
52161-02030

ADE15#

(L)

 8
52161-02030

ADE15#

(L)

 8
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-02140

ADE15#

 1
52023-02140

ADE15#

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05090B1

ADE15#

DK.GRAY

 2
90467-05090B1

ADE15#

DK.GRAY

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-02040

ADE15#

 1
52562-02040

ADE15#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-02030

ADE15#

 1
52563-02030

ADE15#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-02070

ADE15#

 1
52575-02070

ADE15#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-02070

ADE15#

 1
52576-02070

ADE15#

 1
52581B - PROTECTOR, REAR BUMPER
52581-02020

ADE15#

 3
52581-02020

ADE15#

 3
52581B - PROTECTOR, REAR BUMPER
52581-02020

ADE15#

 3
52581-02020

ADE15#

 3
52581B - PROTECTOR, REAR BUMPER
52581-02020

ADE15#

 3
52581-02020

ADE15#

 3
52591 - SEAL, REAR BUMPER SIDE, RH
52591-02140

ADE15#

 1
52591-02140

ADE15#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-02130

ADE15#

 1
52592-02130

ADE15#

 1
Common parts
90109-06375
90119-08636
90119-08A87
90159-50311
90159-50346
90189-06145
90467-06121
Linked diagrams
5801
