ADE150L-DHFDXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0912)ADE150,NRE150,ZRE15#..5D..5F,6F..TERRA..DCRL,HTWC,HTWVM ; (0702-1001)4FC

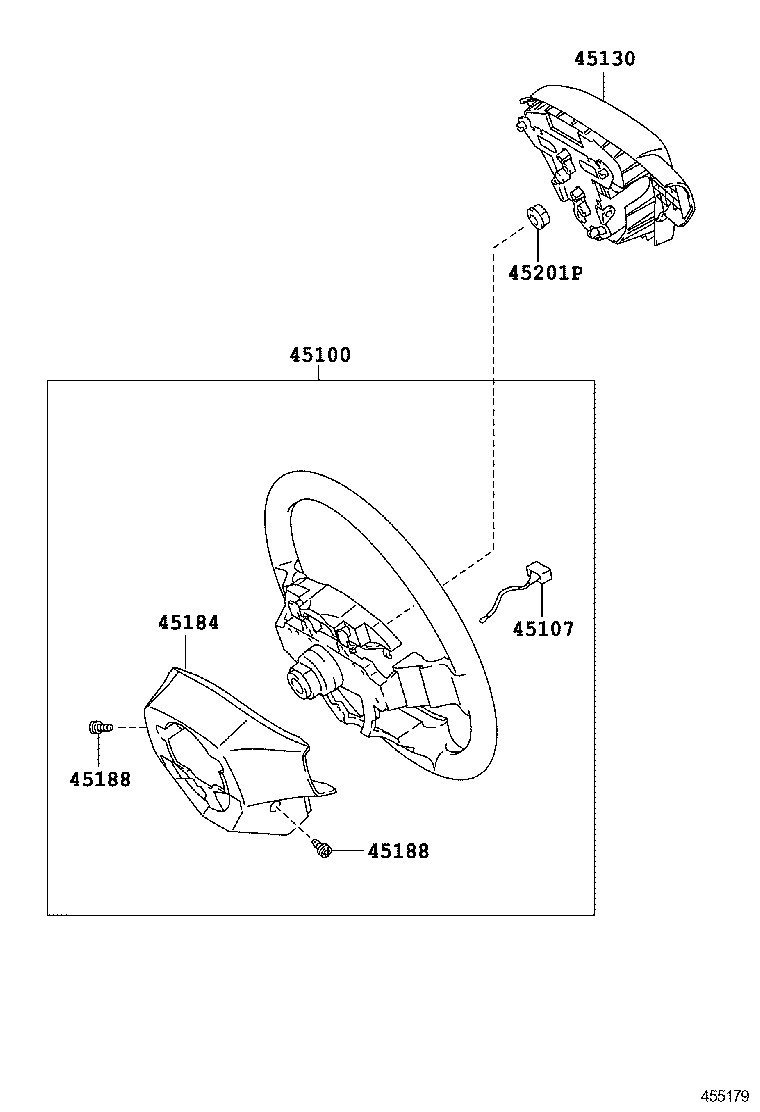

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45107 45130 45184 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02520B0

ADE150..TERRA

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-02520B0

ADE150..TERRA

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45100-02520B0

ADE150..TERRA

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-02020

ADE150..TERRA

 1
45107-02020

ADE150..TERRA

 1
45107-02020

ADE150..TERRA

 1
45130 - BUTTON ASSY, HORN
45130-02280B0

ADE150..TERRA

DK.GRAY,TRIM1#

 1
45130-02280B0

ADE150..TERRA

DK.GRAY,TRIM1#

 1
45130-02280B0

ADE150..TERRA

DK.GRAY,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-02130B0

ADE150..TERRA

DK.GRAY,TRIM1#

 1
45184-02130B0

ADE150..TERRA

DK.GRAY,TRIM1#

 1
45184-02130B0

ADE150..TERRA

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ADE15#

L=18

 2
45188-60010

ADE15#

L=18

 2
45188-60010

ADE15#

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ADE15#

L=18

 2
45188-60010

ADE15#

L=18

 2
45188-60010

ADE15#

L=18

 2
45201P - NUT, STEERING WHEEL SET
90178-W0030

ADE15#

 1
90178-W0030

ADE15#

 1
90178-W0030

ADE15#

 1
